Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Test C: A Single Door Lock Is Inoperative - Driver

Test C: A Single Door Lock Is Inoperative - Driver

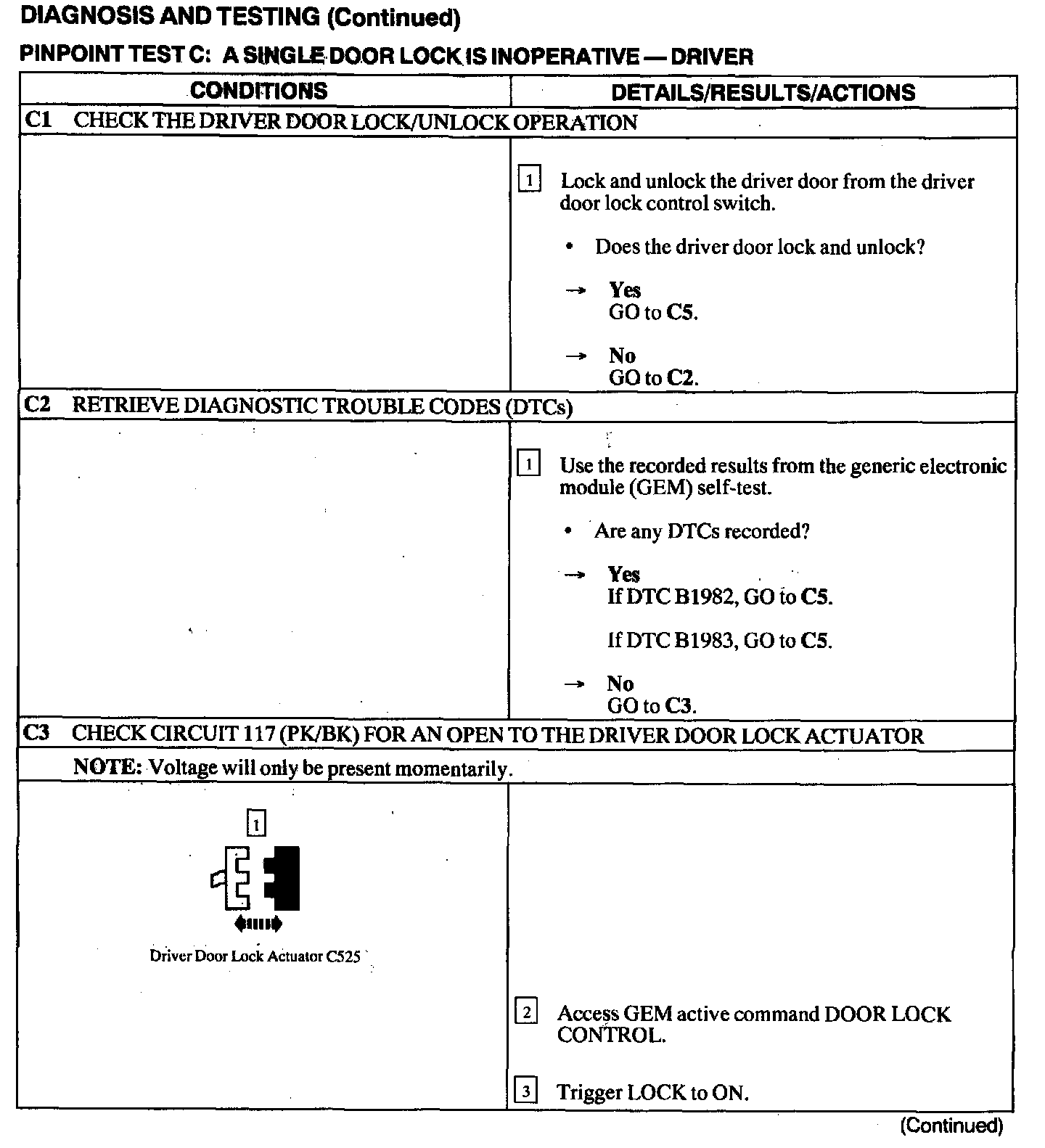

C1 - C3:

C3 - C5:

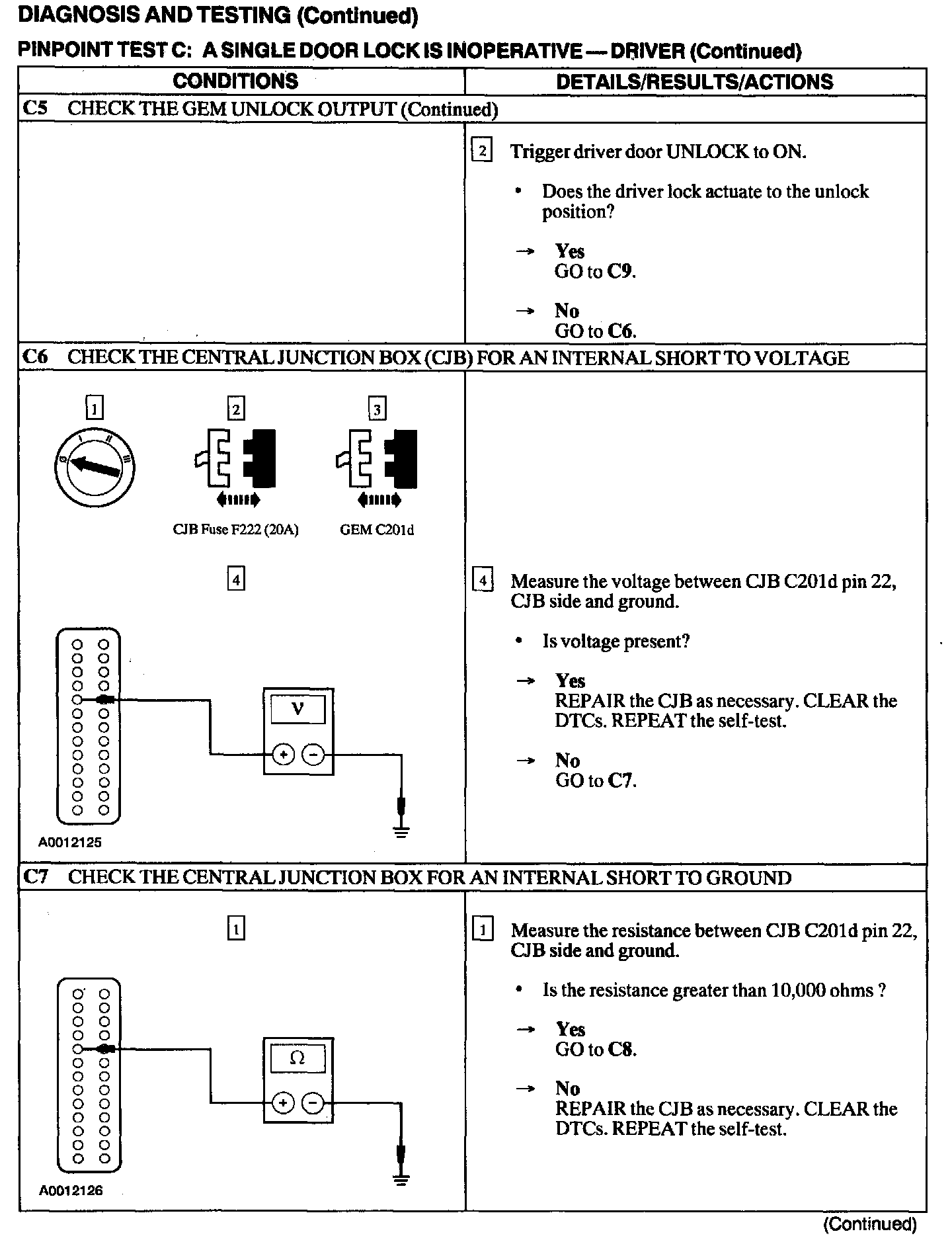

C5 - C7:

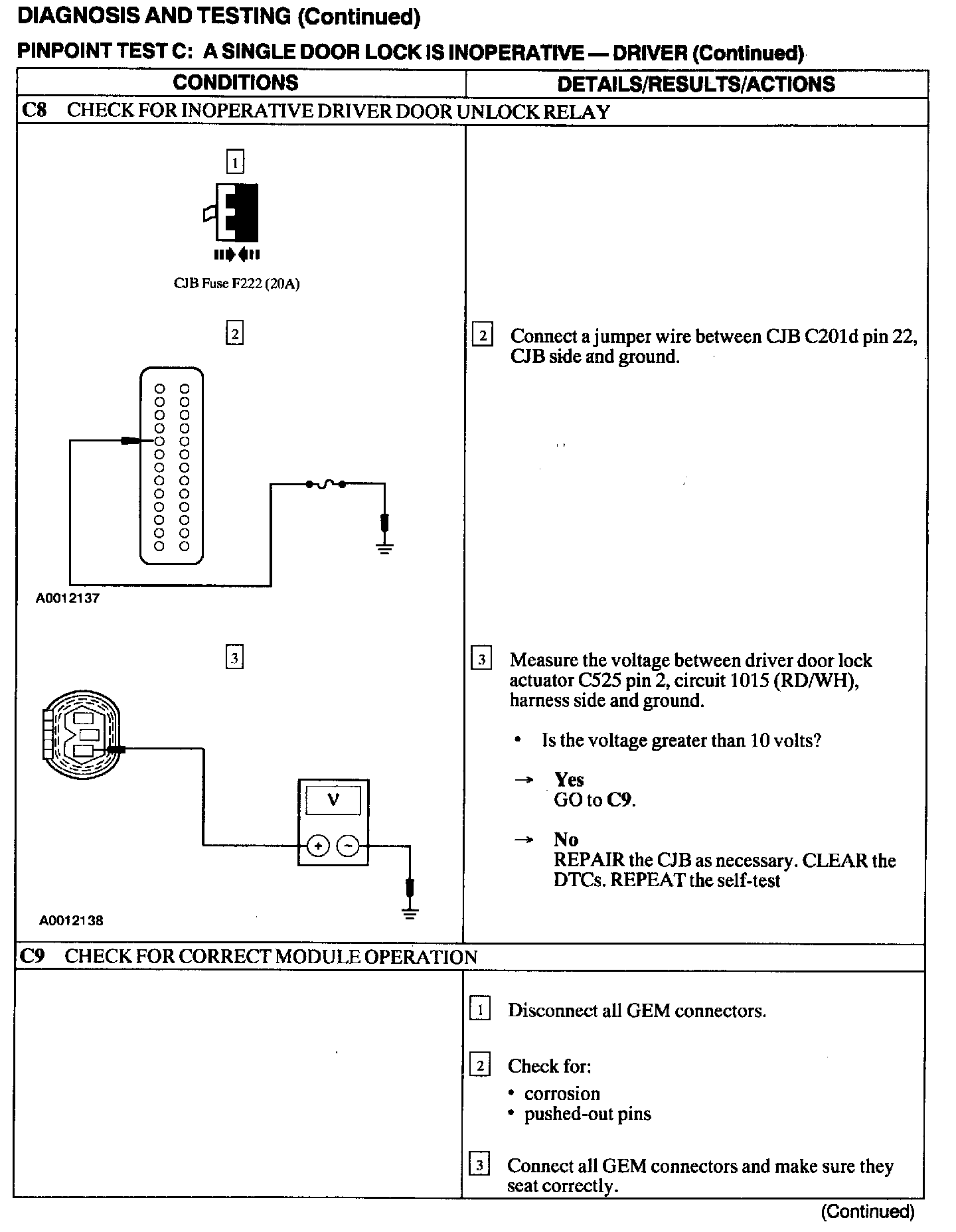

C8 - C9:

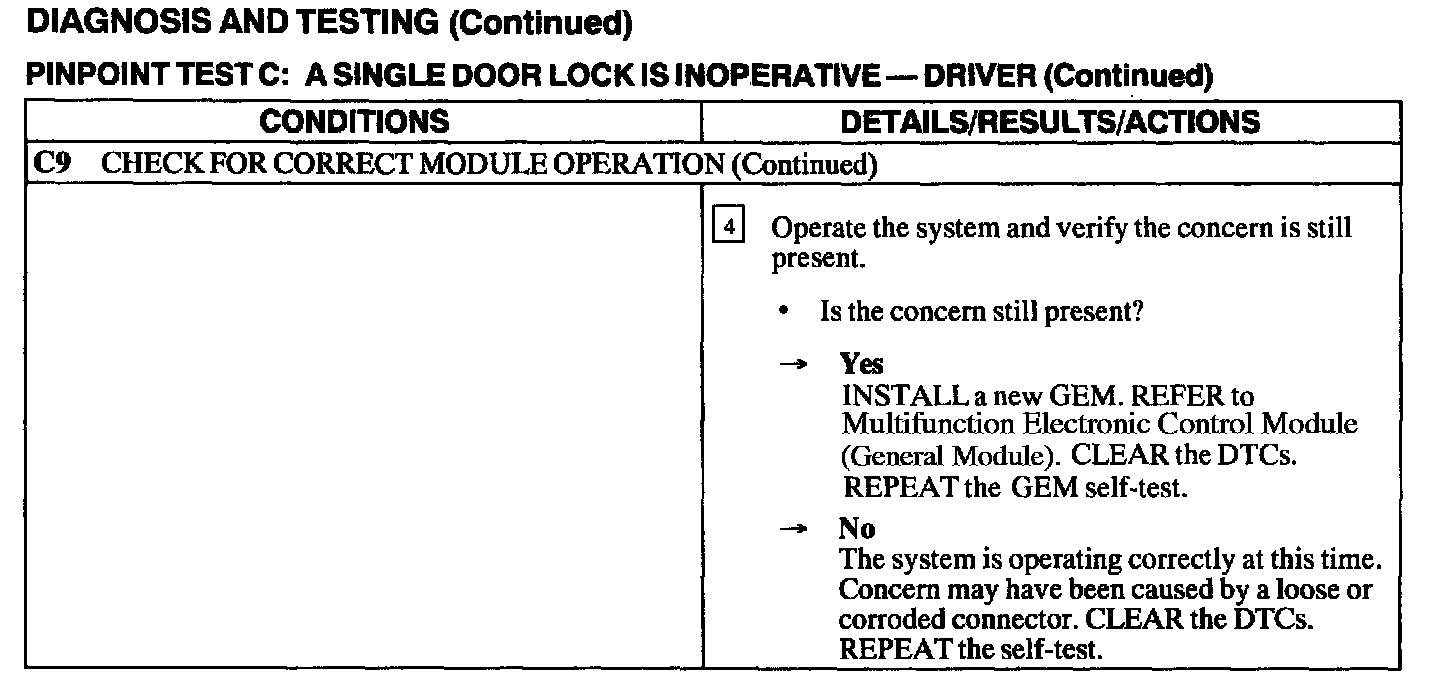

C9:
