Test A: All Door Locks Are Inoperative From One Switch
Test A: All Door Locks Are Inoperative From One Switch

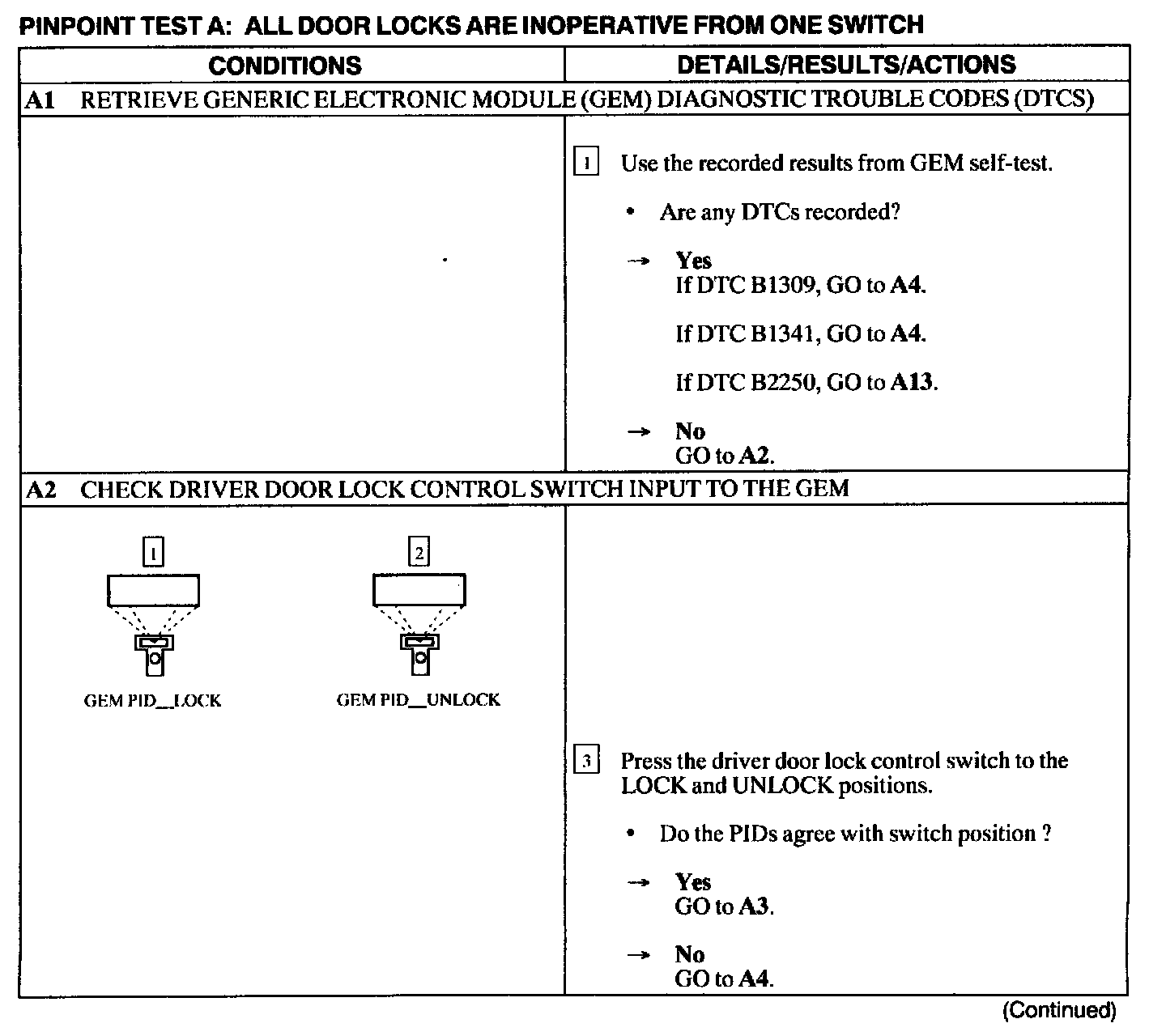

A1 - A2:

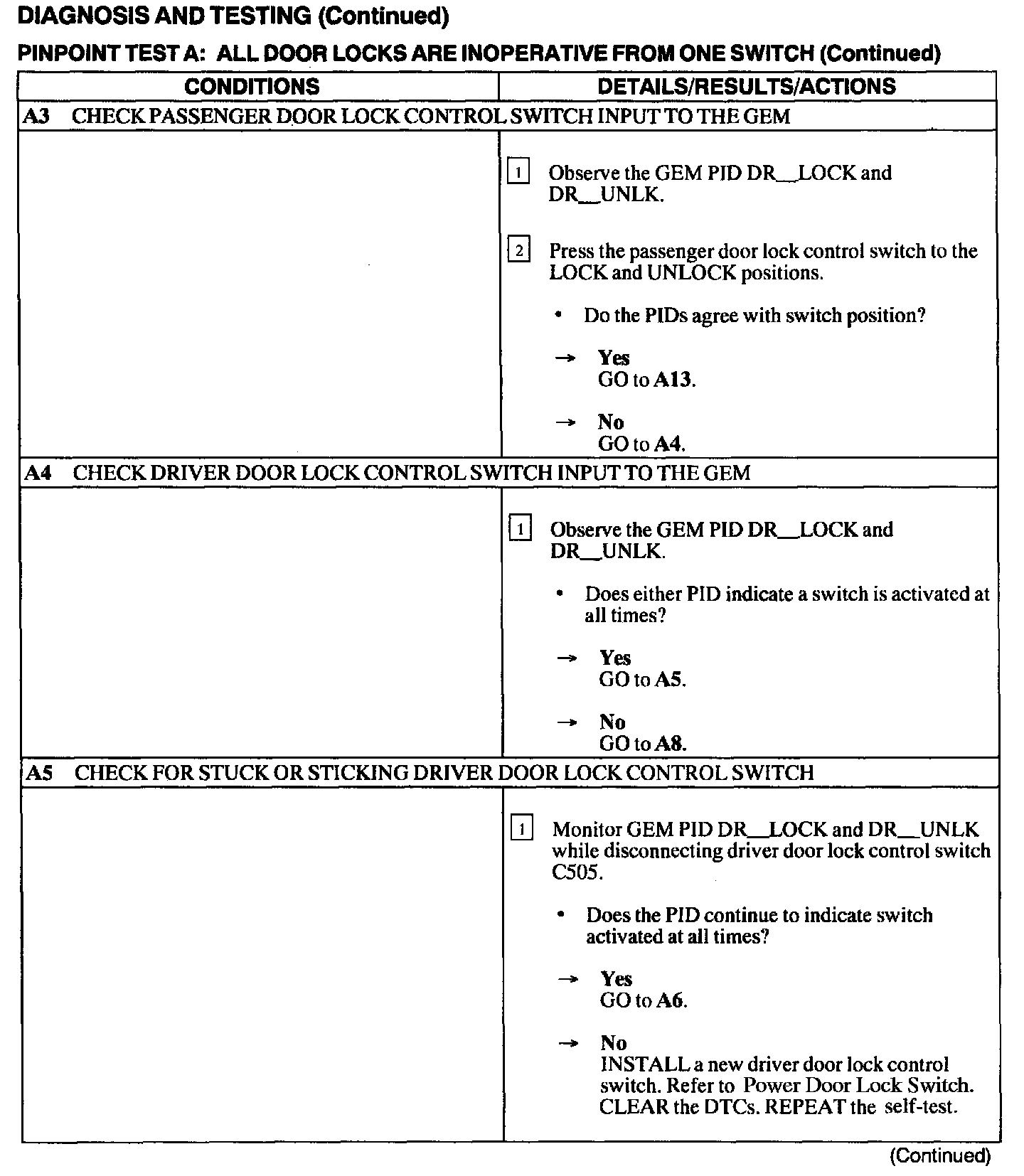

A3 - A5:

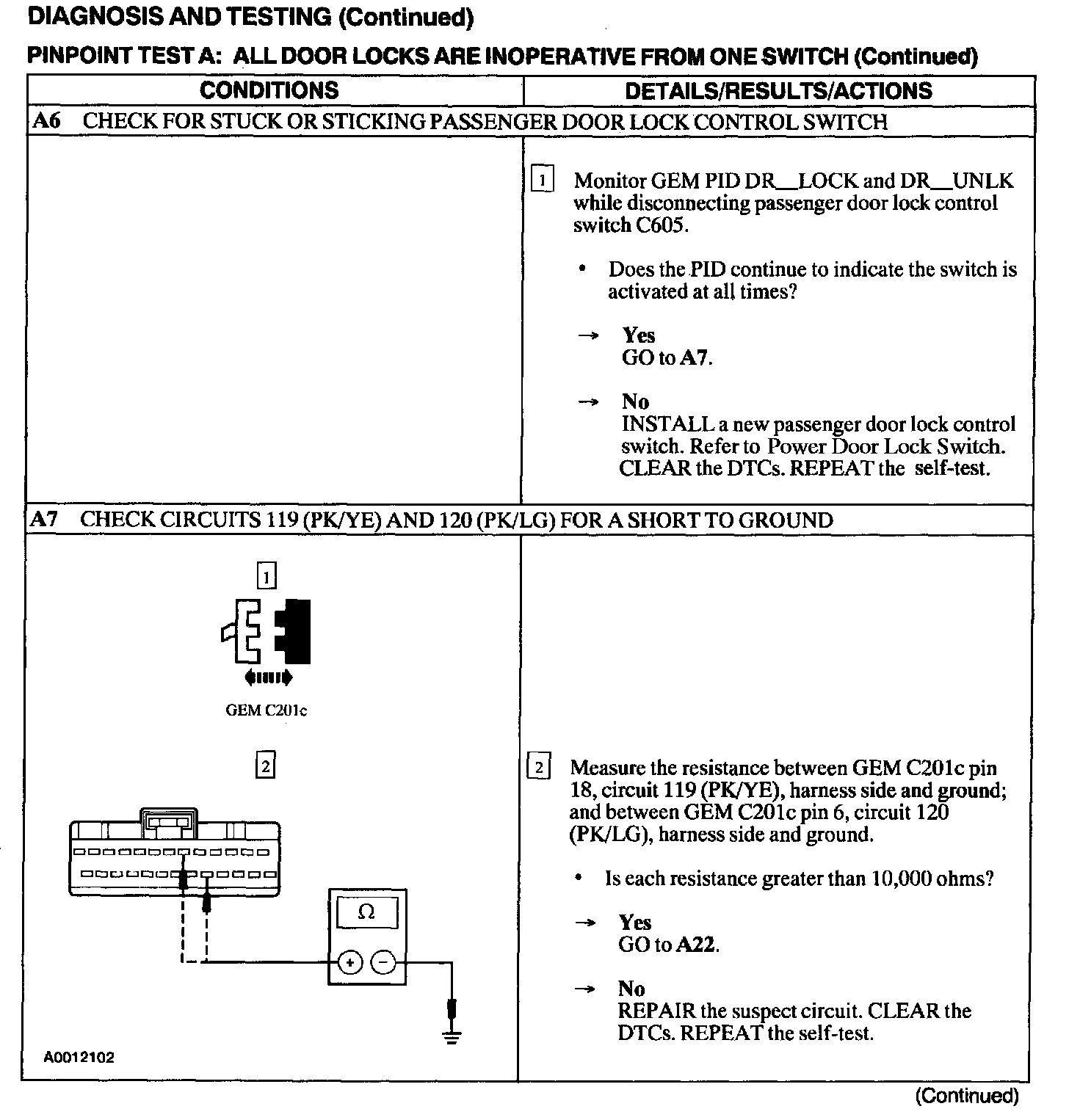

A6 - A7:

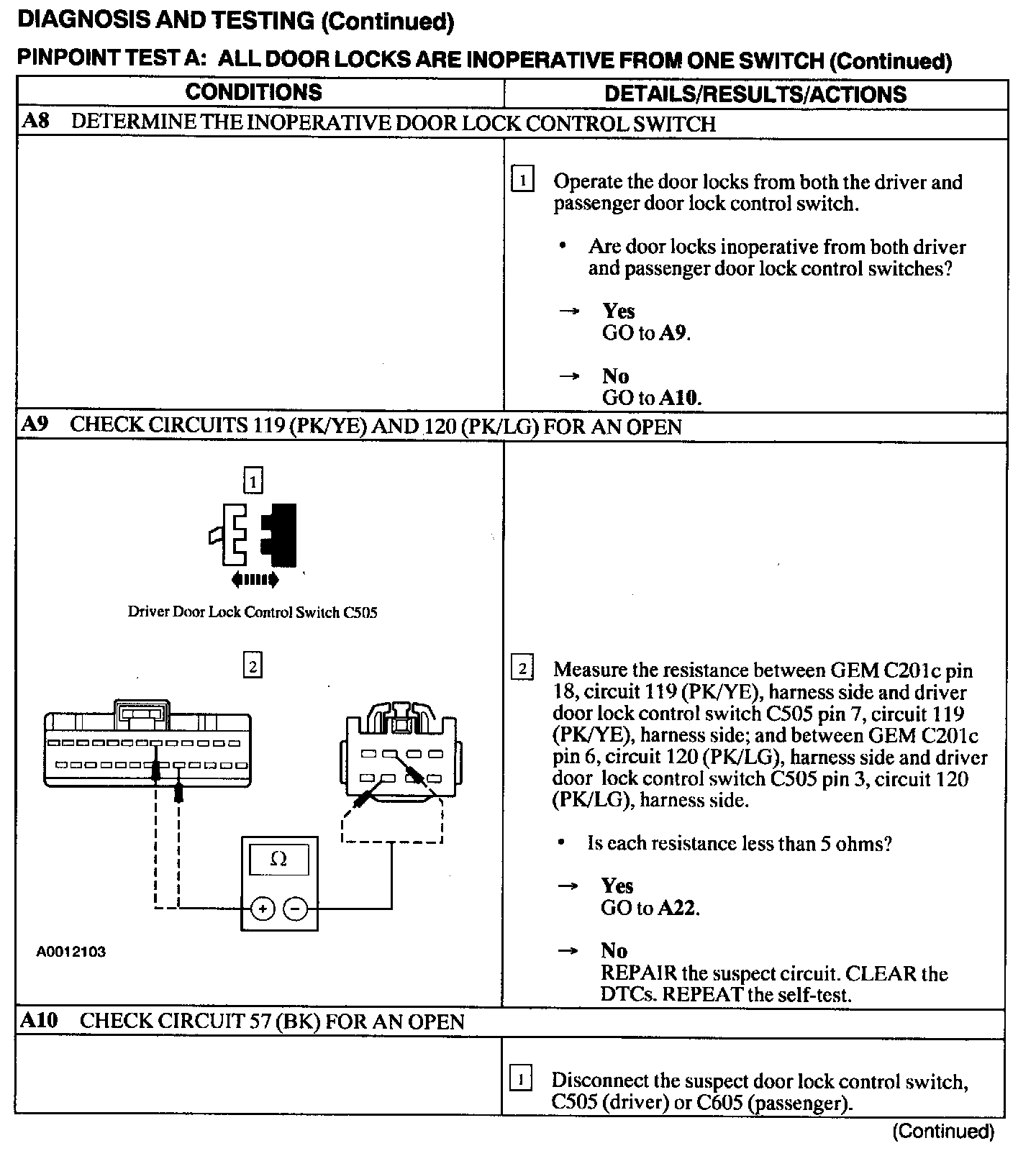

A8 - A10:
A10 - A11:

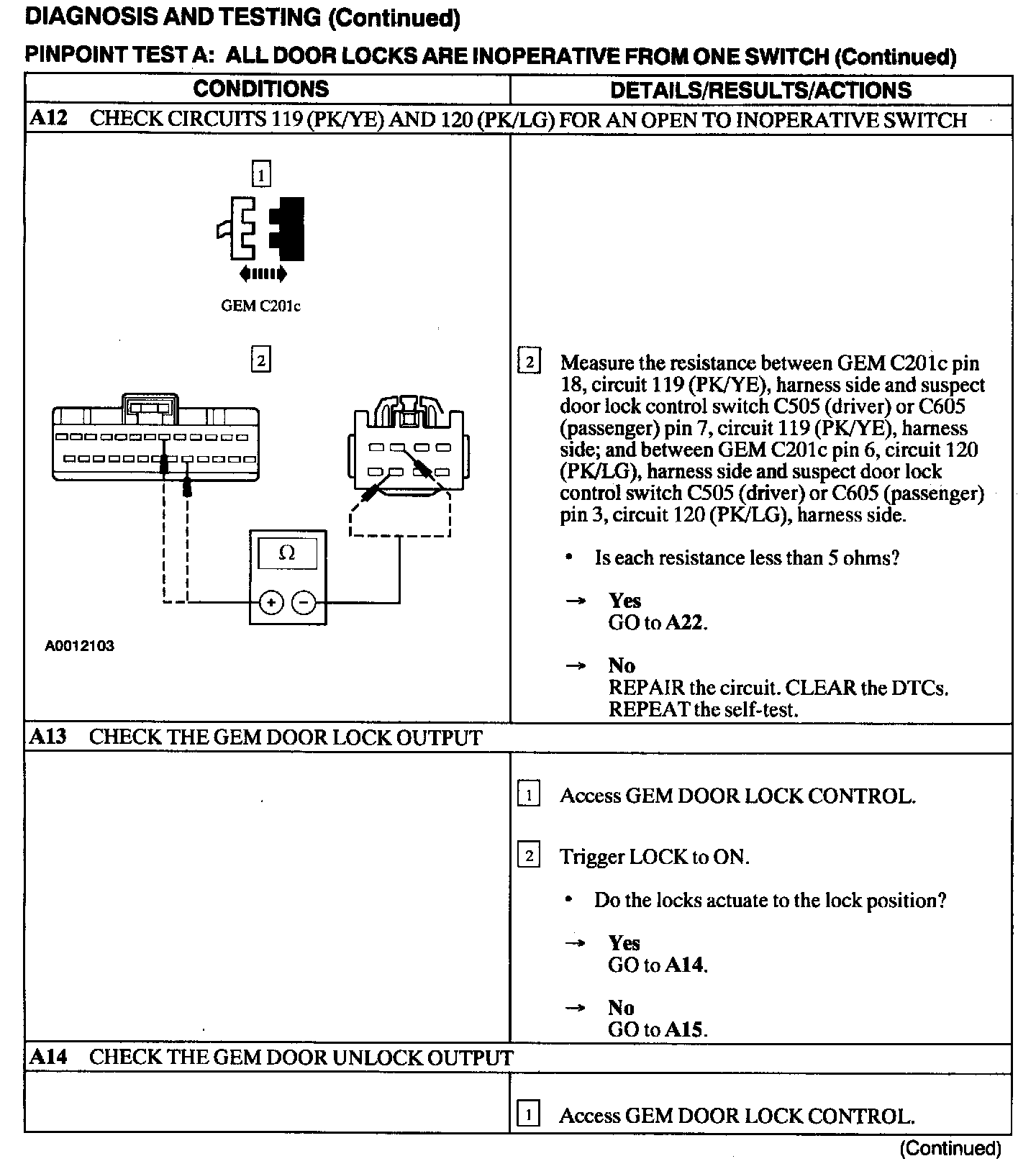

A12 - A14:

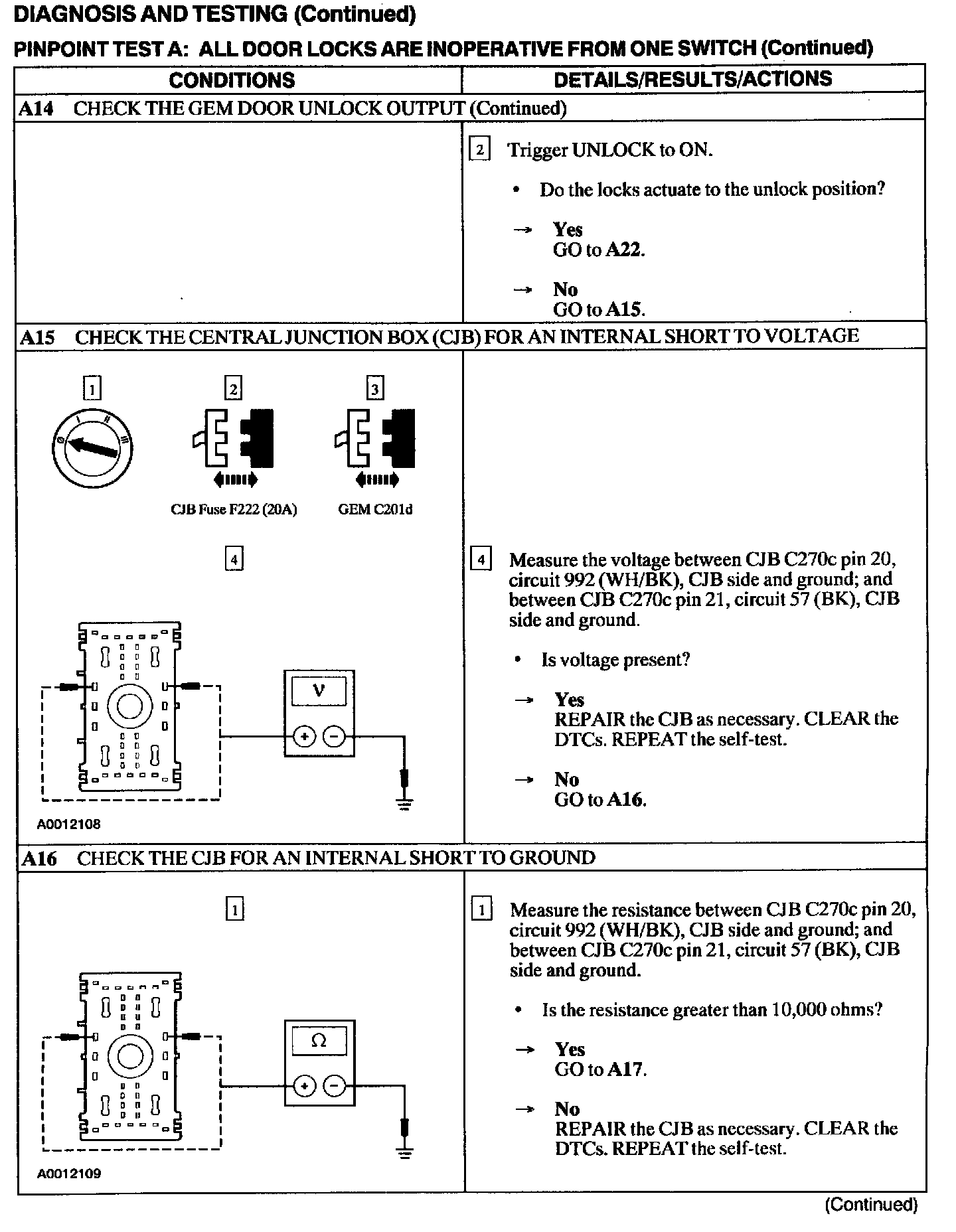

A14 - A16:

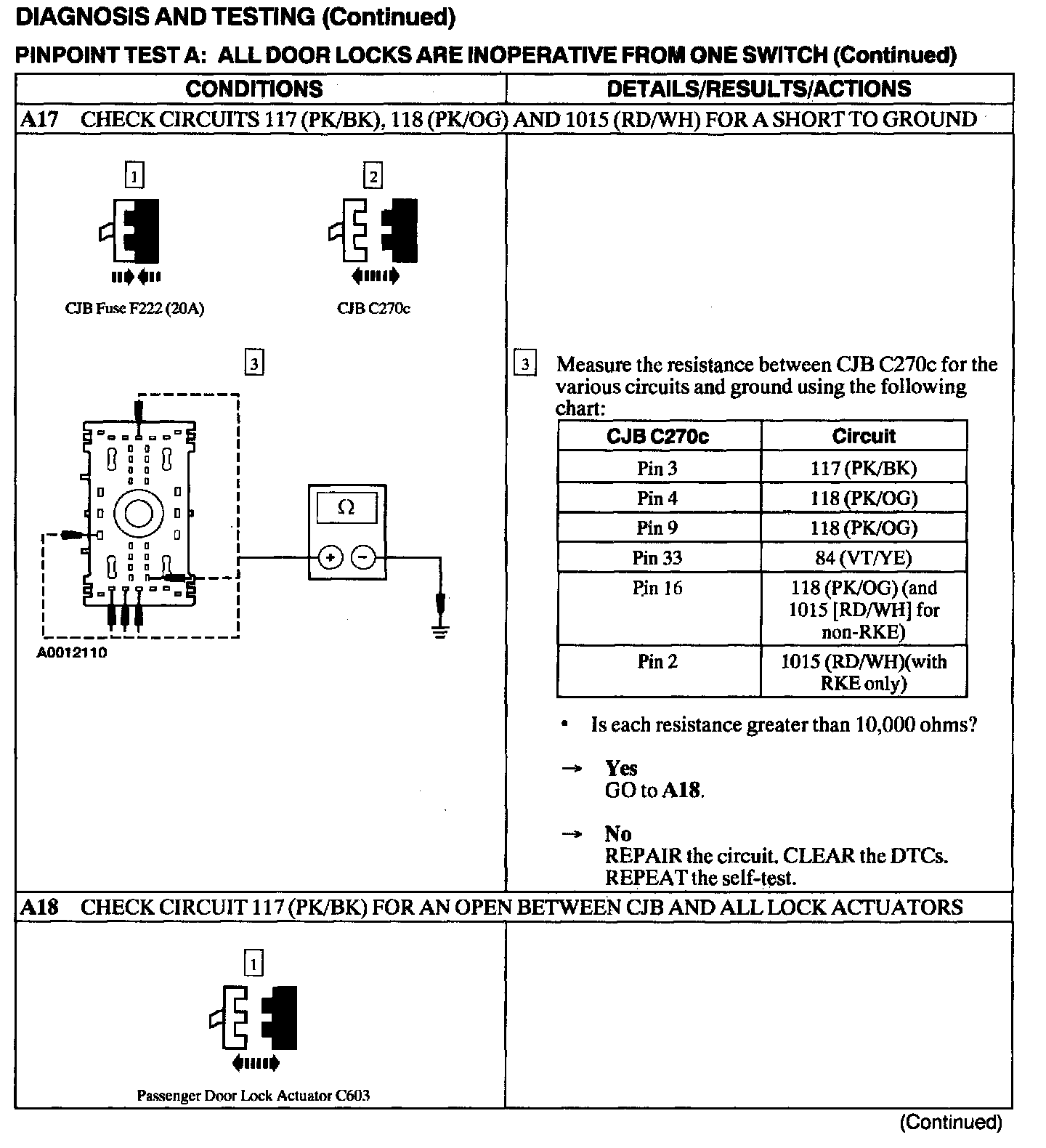

A17 - A18:

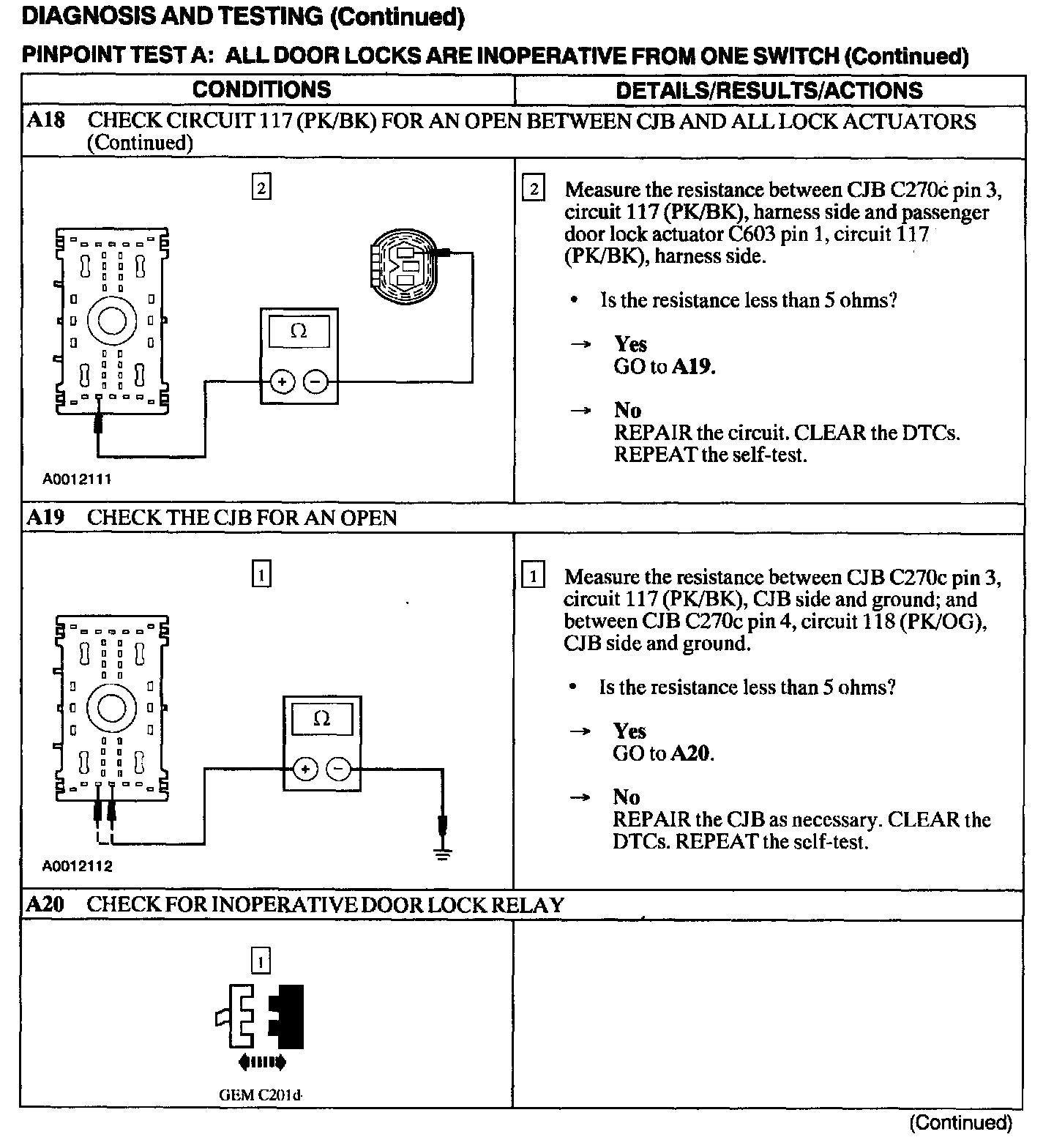

A18 - A20:

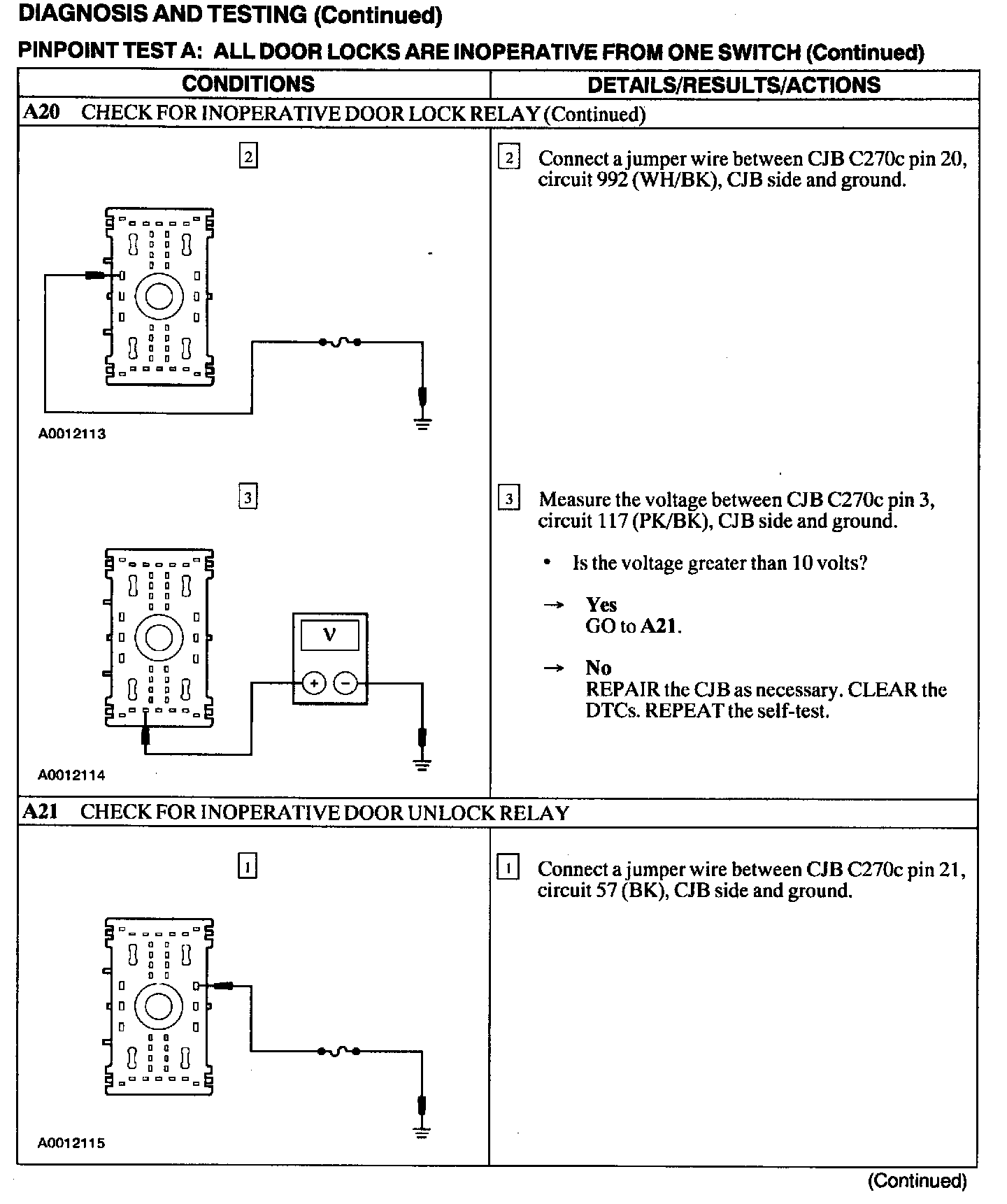

A20 - A21:

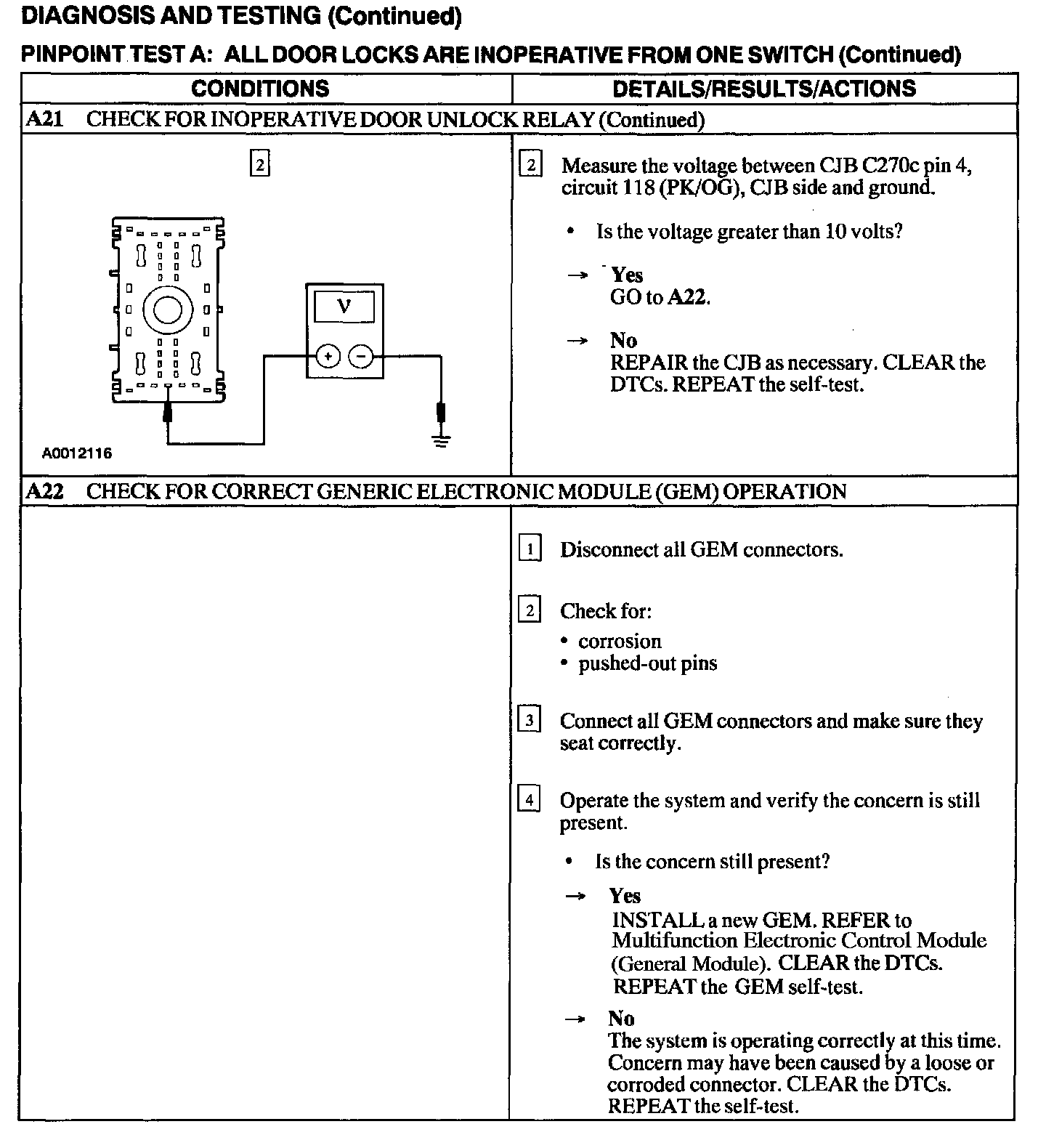

A21 - A22:
