Home >> Mercury >> 2001 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Diagrams >> Electrical Diagrams >> Wagon

Wagon

DETAILED DIAGRAMS

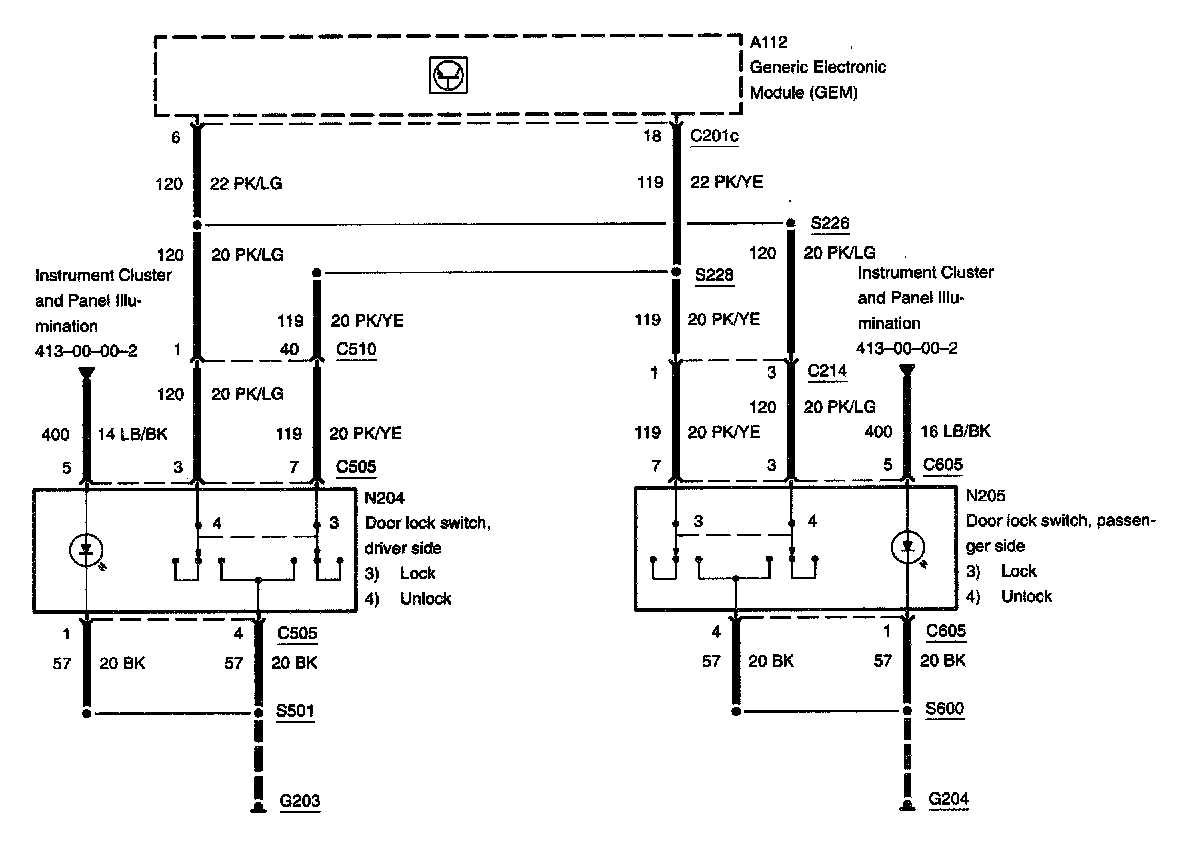

Diagram 501-14-00-1:

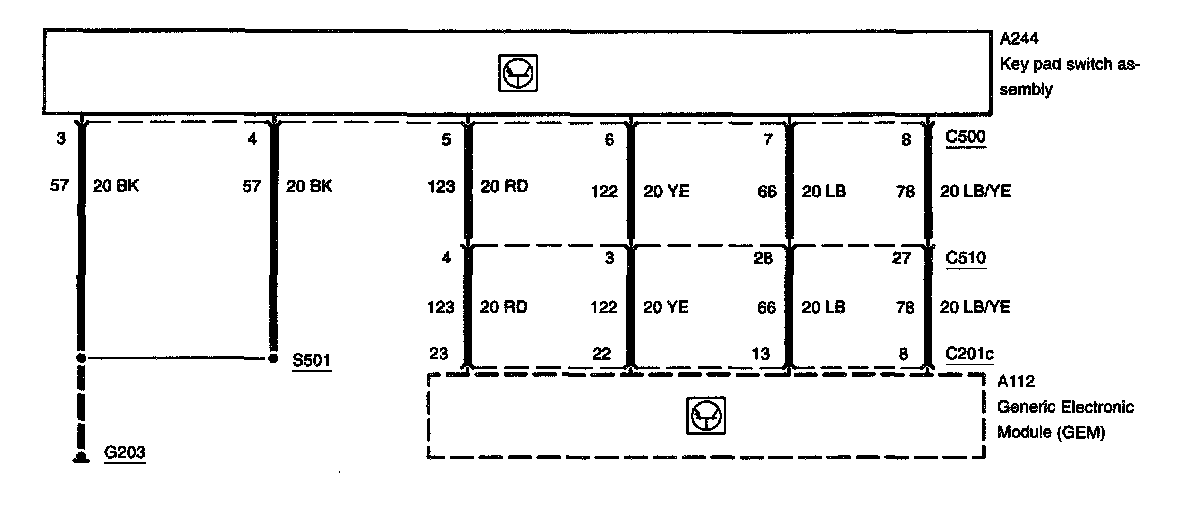

Diagram 501-14-00-2:

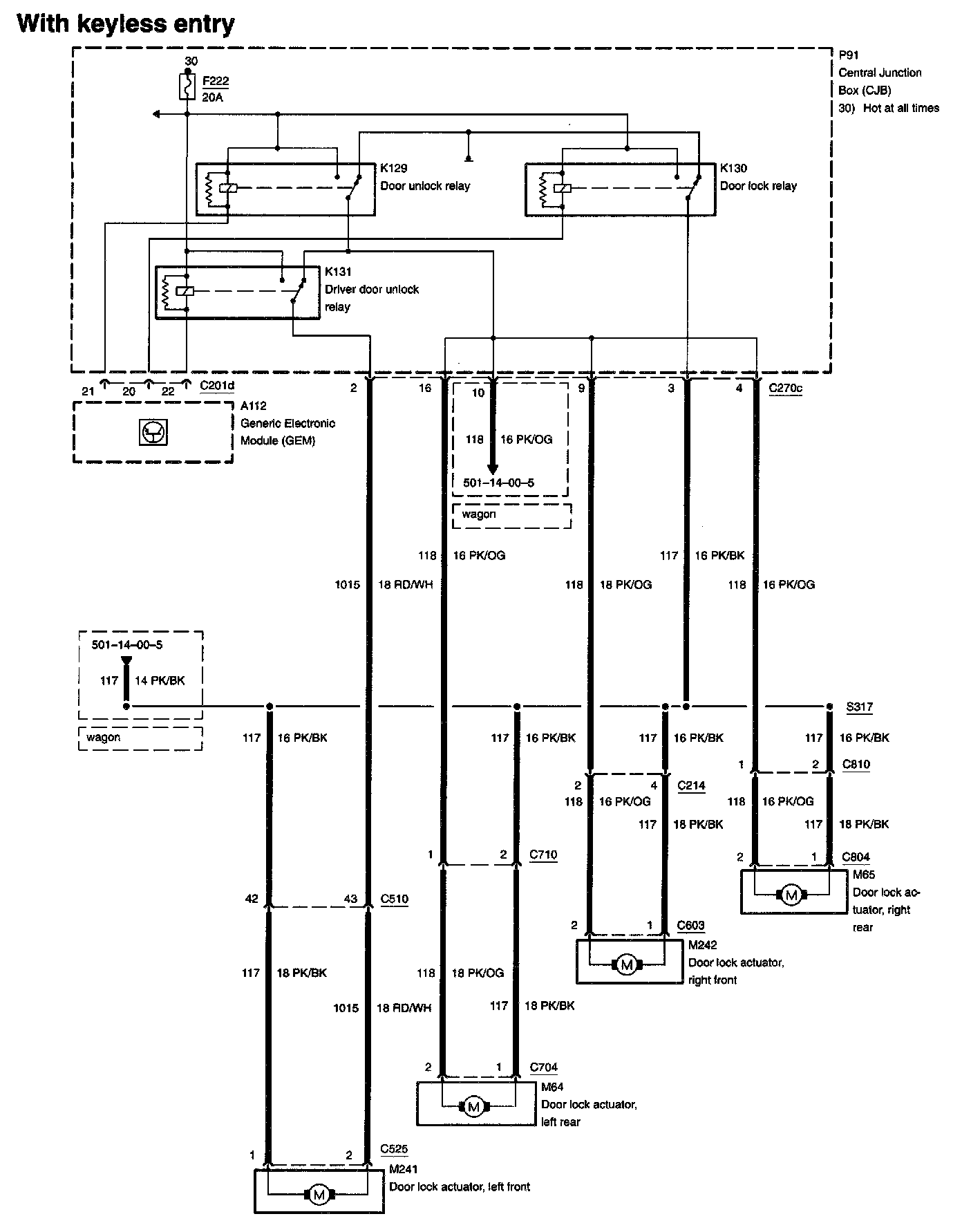

Diagram 501-14-00-3:

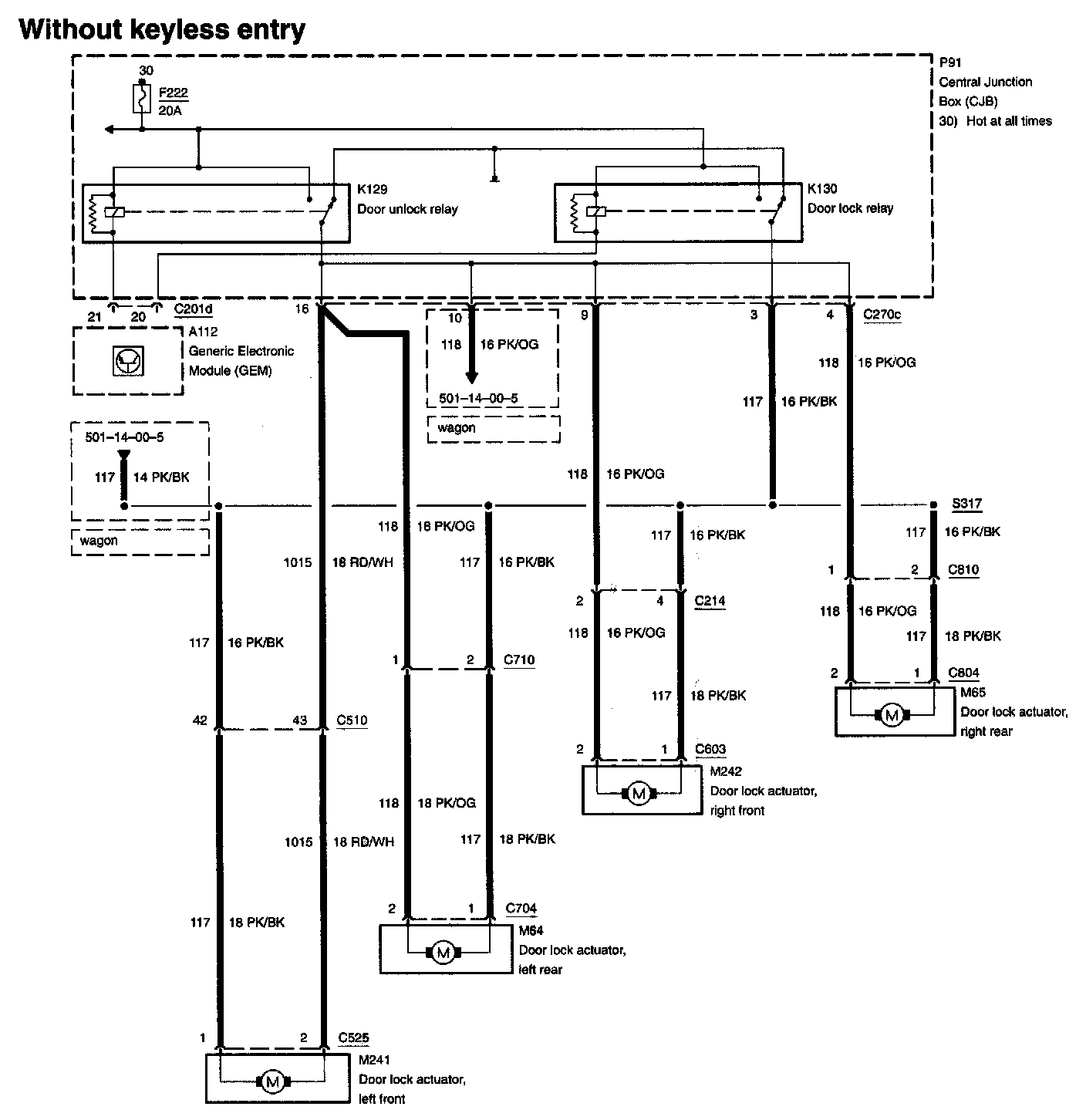

Diagram 501-14-00-4:

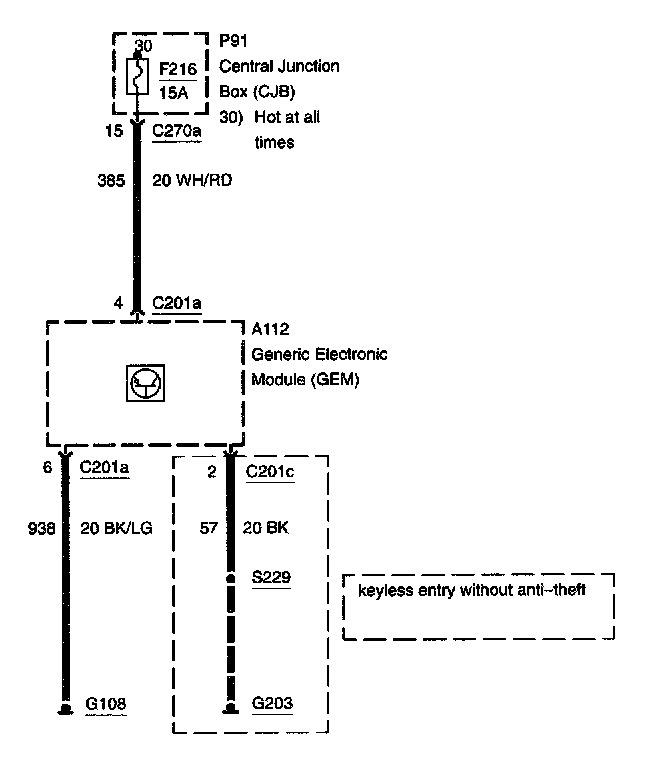

Diagram 501-14-00-5:

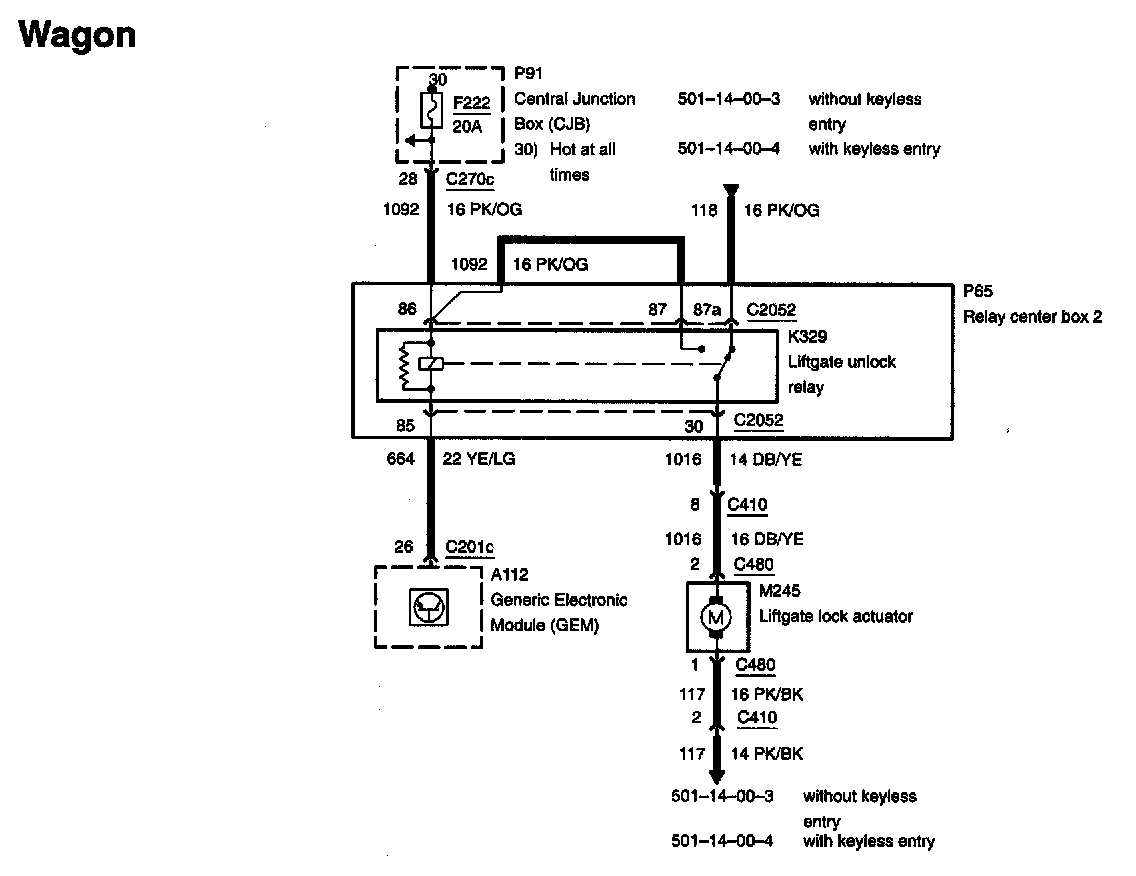

Diagram 501-14-00-7:






Diagram 501-14-00-8:






Diagram 501-14-00-9:






RELATED DIAGRAMS

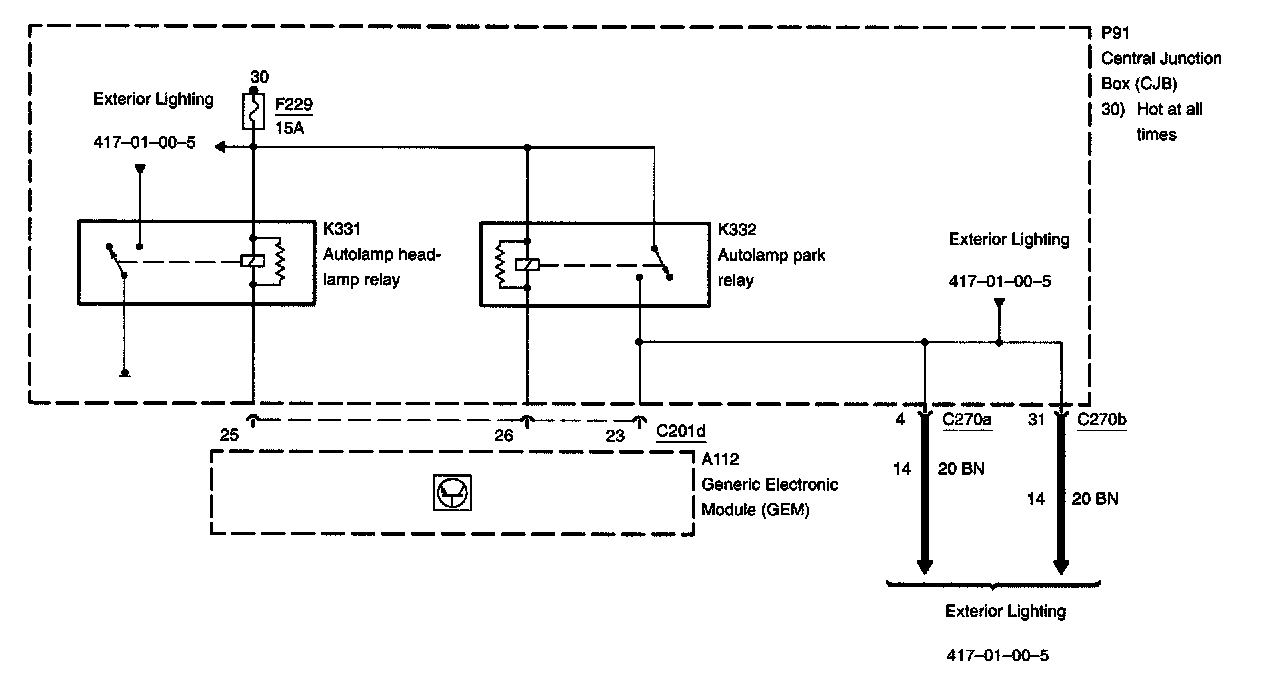

Diagram 413-00-00-2:

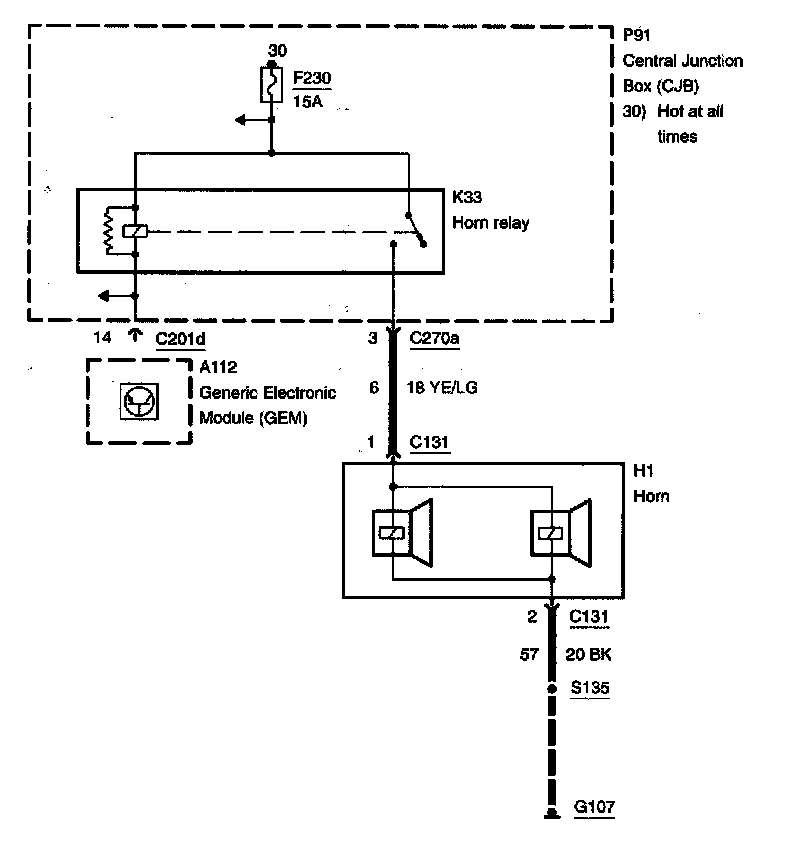

Diagram 417-01-00-5:
