Vehicle Certification Label

Vehicle Certification (VC) Label:

The Vehicle Certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement, and the VIN. It also includes Gross Vehicle Weight Ratings (GVWR).

VEHICLE CERTIFICATION LABEL REFERENCE

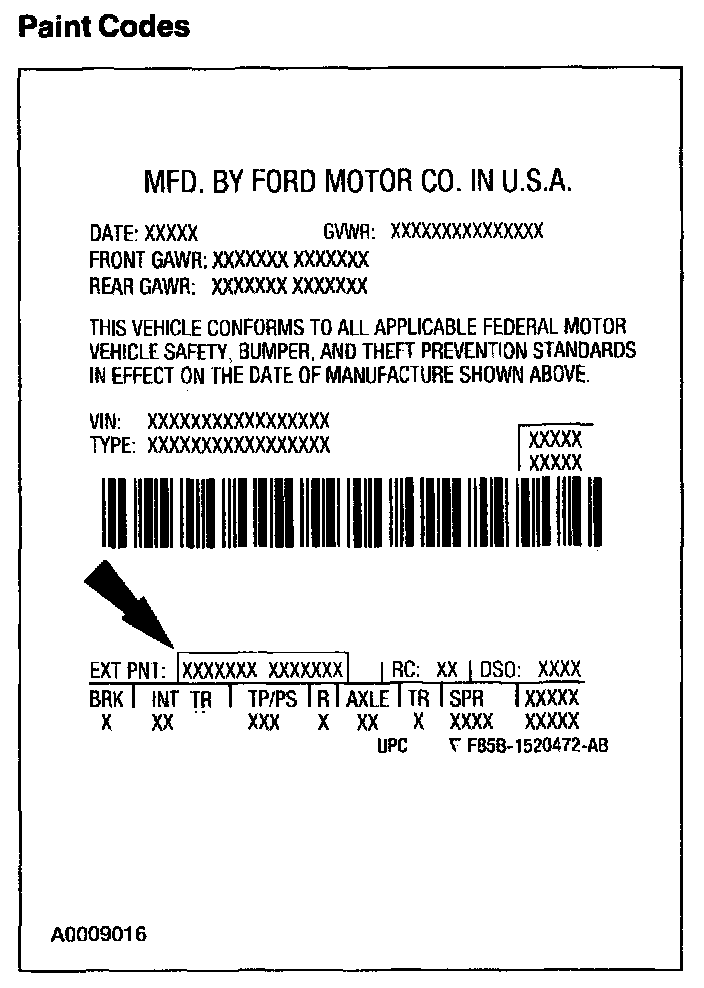

Paint Codes:

The first set of paint code numbers/letters listed, indicate the vehicle primary body color. The second set of numbers/letters listed (if applicable) indicate a two-tone or accent body color. All colors are base coat/clear coat.
^ FL - Toreador Red
^ WT - Performance White
^ UA - Ebony
^ TS - Silver Frost
^ B4 - Chestnut
^ LA - Medium Royal Blue
^ B2 - Harvest Gold
^ KX - Graphite Blue
^ TK - Mineral Gray Metallic
^ FS - Spruce Green

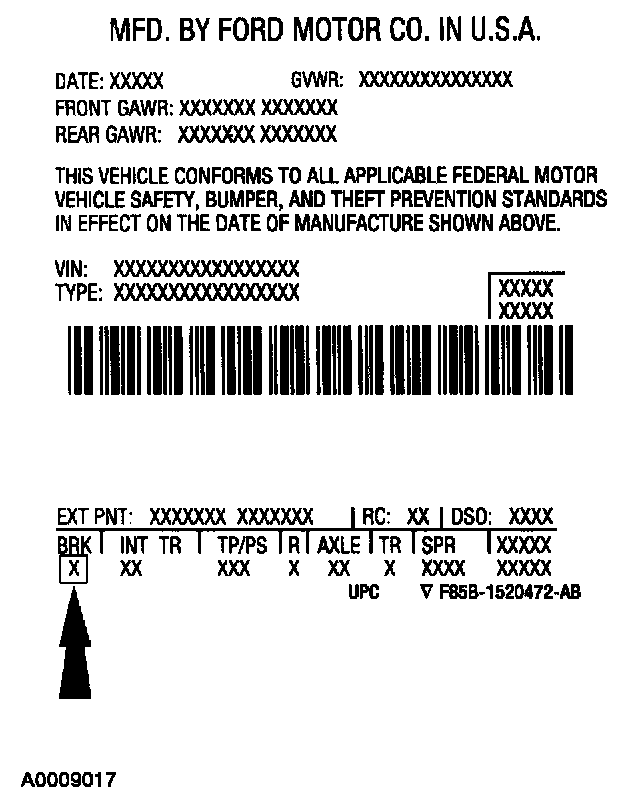

^ 2 - Four-wheel disc with Anti-lock Brake System (ABS)
^ 3 - Four-wheel disc brakes with Traction Control
^ 5 - Four-wheel disc with anti-lock system (ABS) and Traction Control

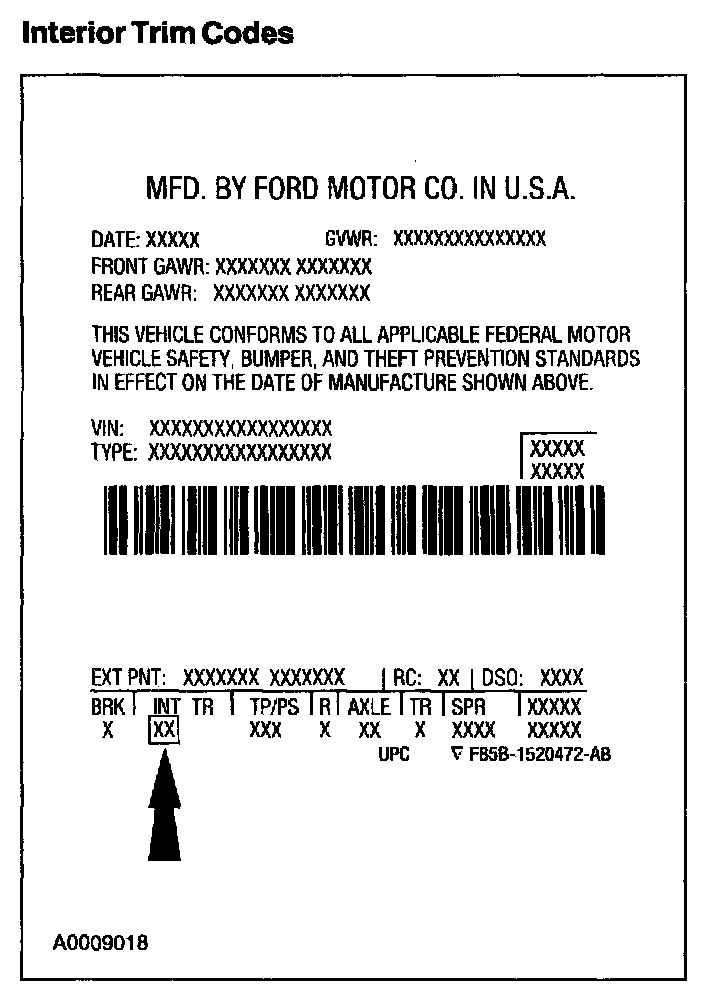

Interior Trim Codes:

The interior trim codes are listed below. The first digit listed indicates the seat and fabric style. The second digit listed indicate the interior trim color.

Trim Codes
^ G - Courtland/Oasis Cloth, Taurus LX
^ K - Maggie/Kent Cloth, Taurus LX, Taurus SE
^ J - Ultra-Soft Leather, Taurus SE/Sable LS
^ H - Dexter/Kent Cloth, Sable GS/LS
^ 7 - Dexter/Leather Twill Cloth, Sable LS

Interior Trim Color Code
^ H - Medium Parchment
^ W - Midnight Black
^ 2 - Medium Graphite







Tape and paint pinstripe codes do not apply.

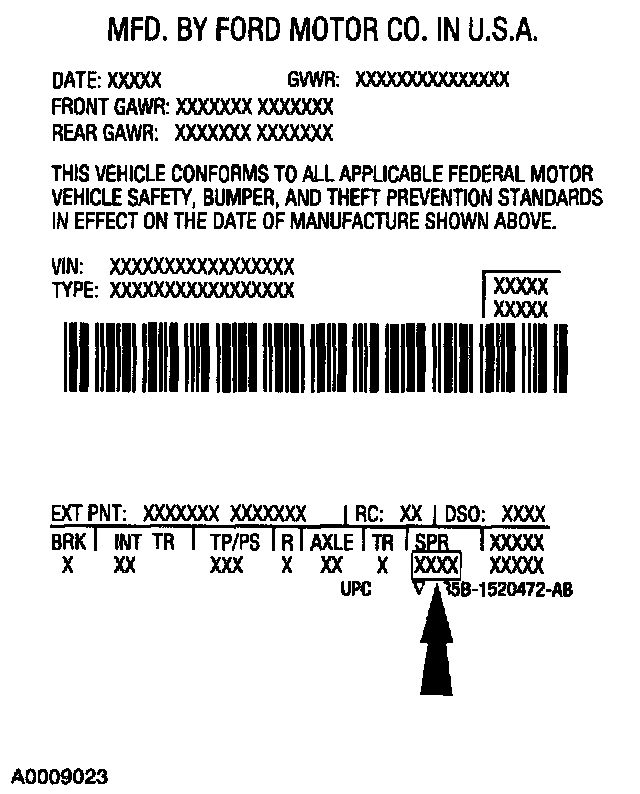

Spring codes list both front and rear spring codes. The first set of characters identify the front springs. The second set of characters identify the rear springs.

The following lists the available front spring codes:
^ Base part number - 5310 (RH/LH).
^ A - Catchword AAK
^ B - Catchword BOF
^ C - Catchword CAX
^ D - Catchword DAX

The following lists the available rear spring codes:
^ Base part number - 5560 (RH/LH).
^ A - Catchword AAL
^ B - Catchword BON
^ C - Catchword CBA
^ D - Catchword DEC
^ E - Catchword EEF
^ F - Catchword FOF
^ G - Catchword GOF
^ 1 - Catchword DWB
^ 2 - Catchword EPA
^ 3 - Catchword FTD
