Test A: Audio Unit Is Inoperative
Test A: Audio Unit Is Inoperative

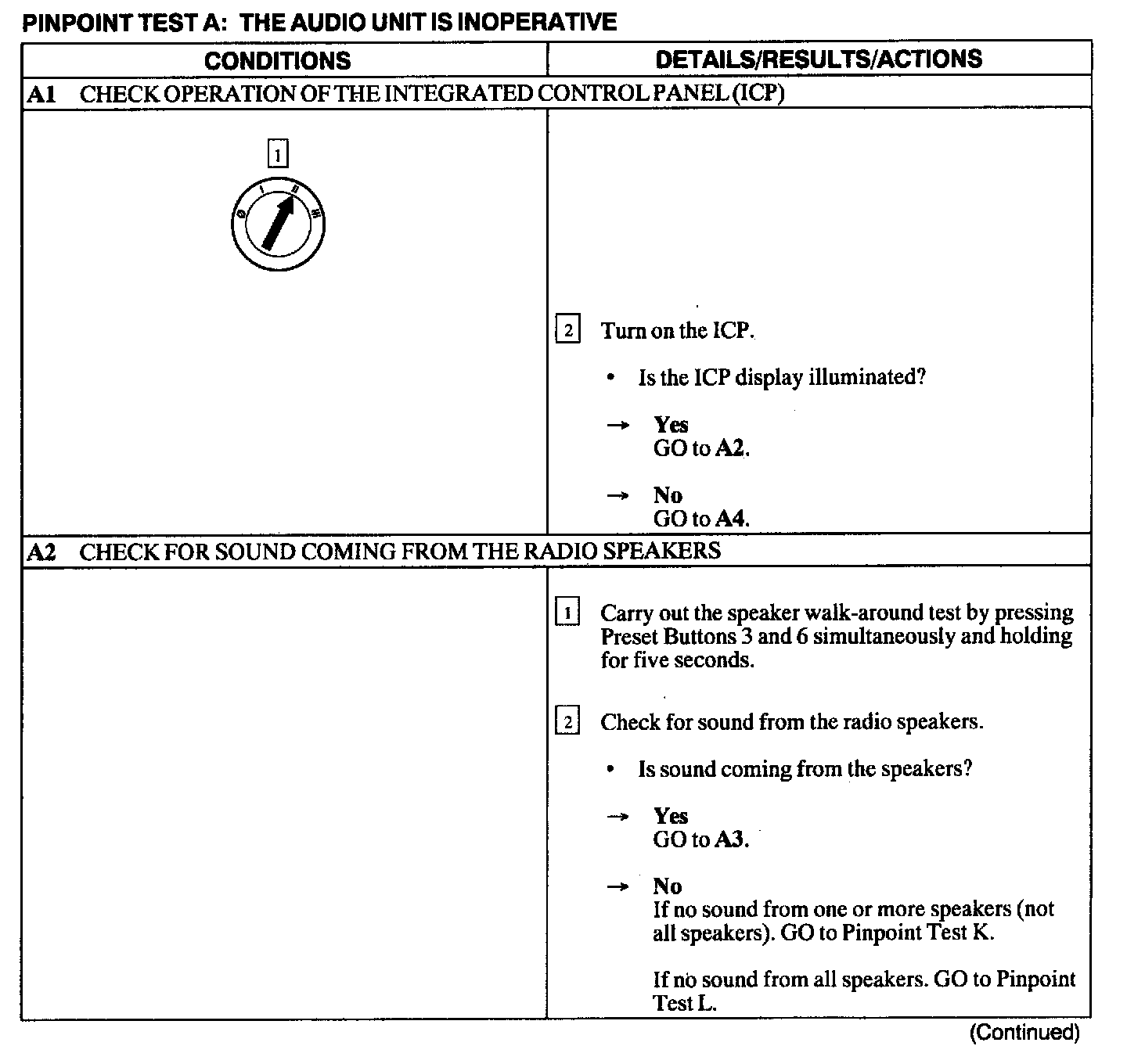

A1 - A2:

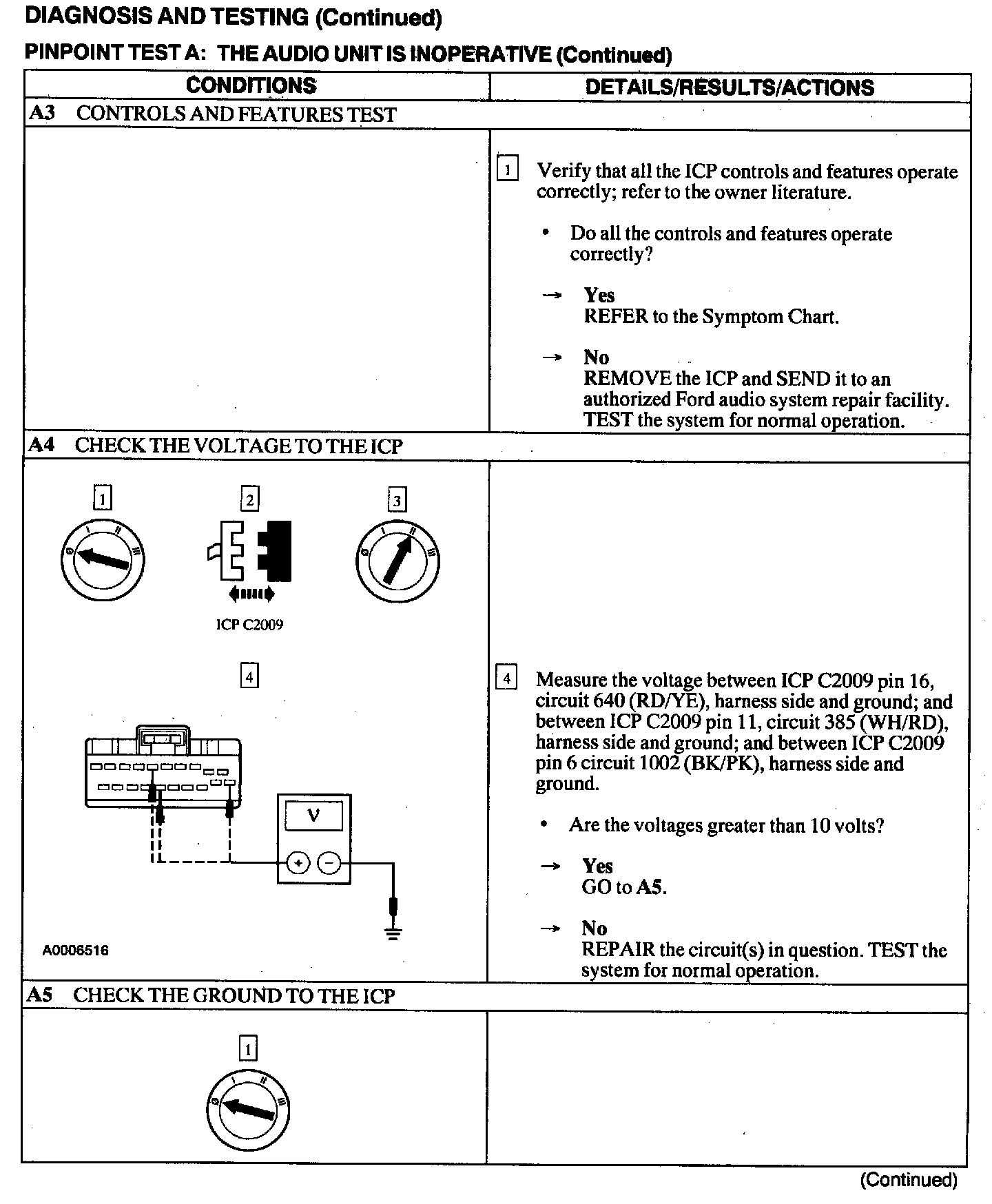

A3 - A5:

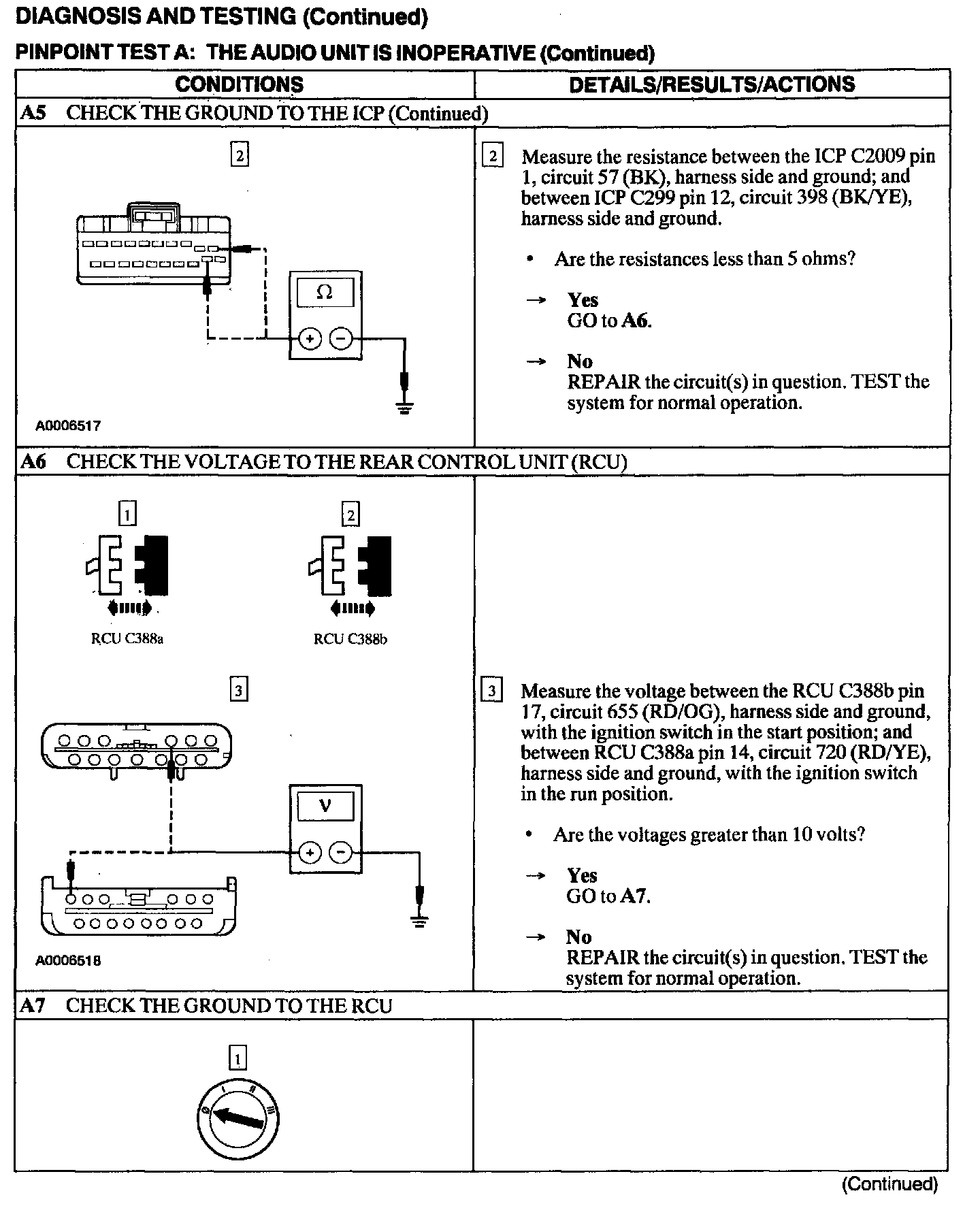

A5 - A7:

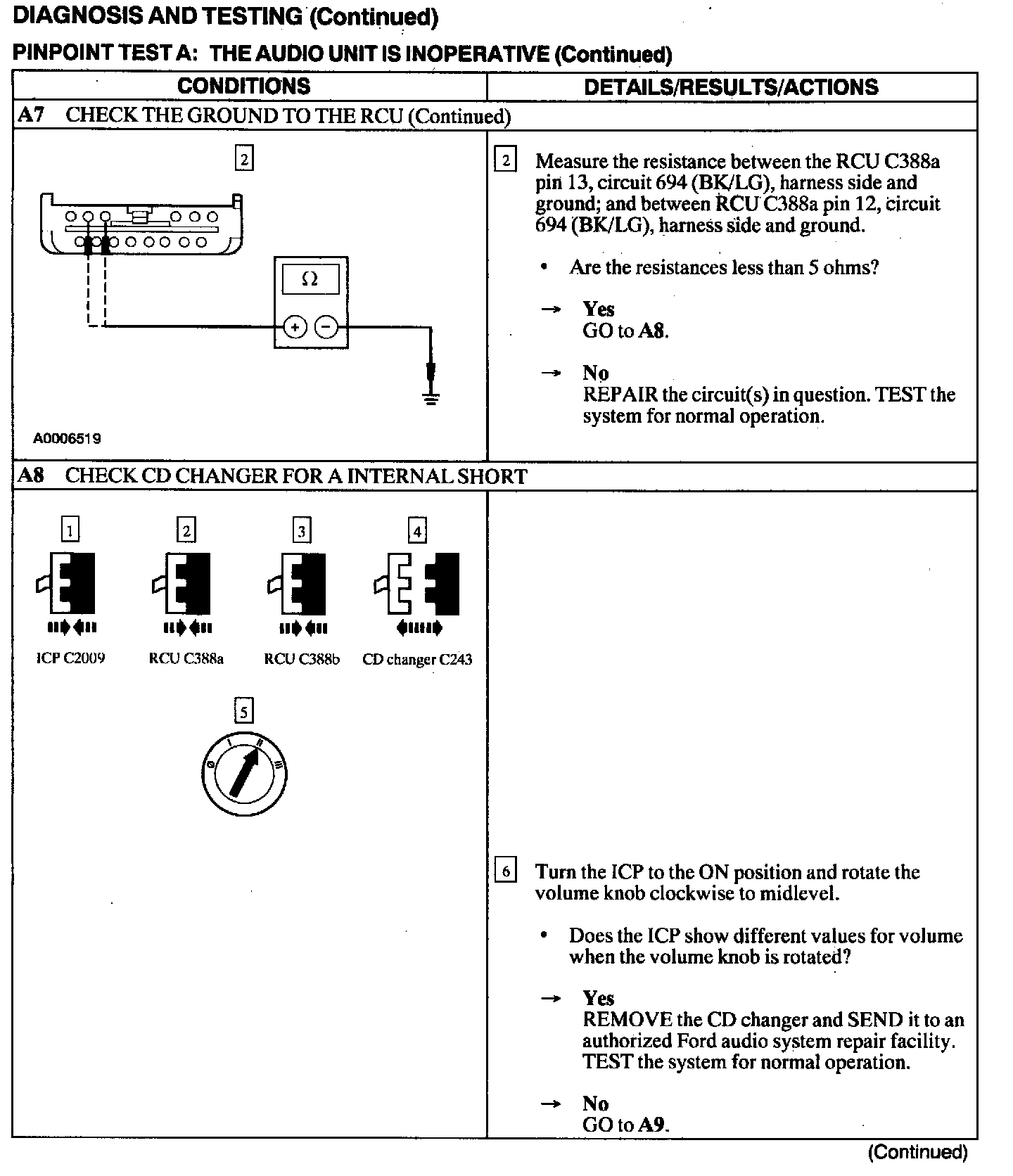

A7 - A8:

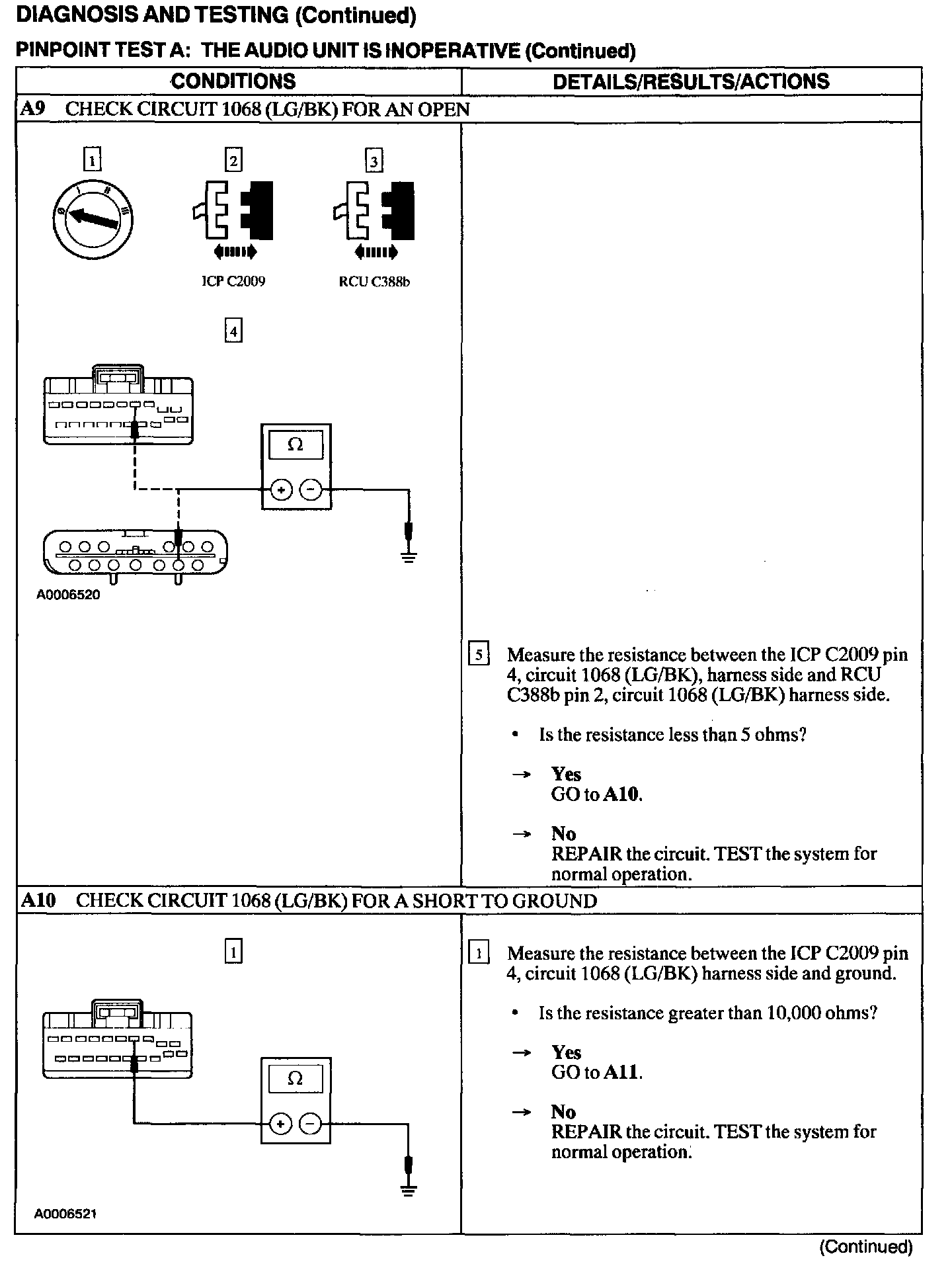

A9 - A10:

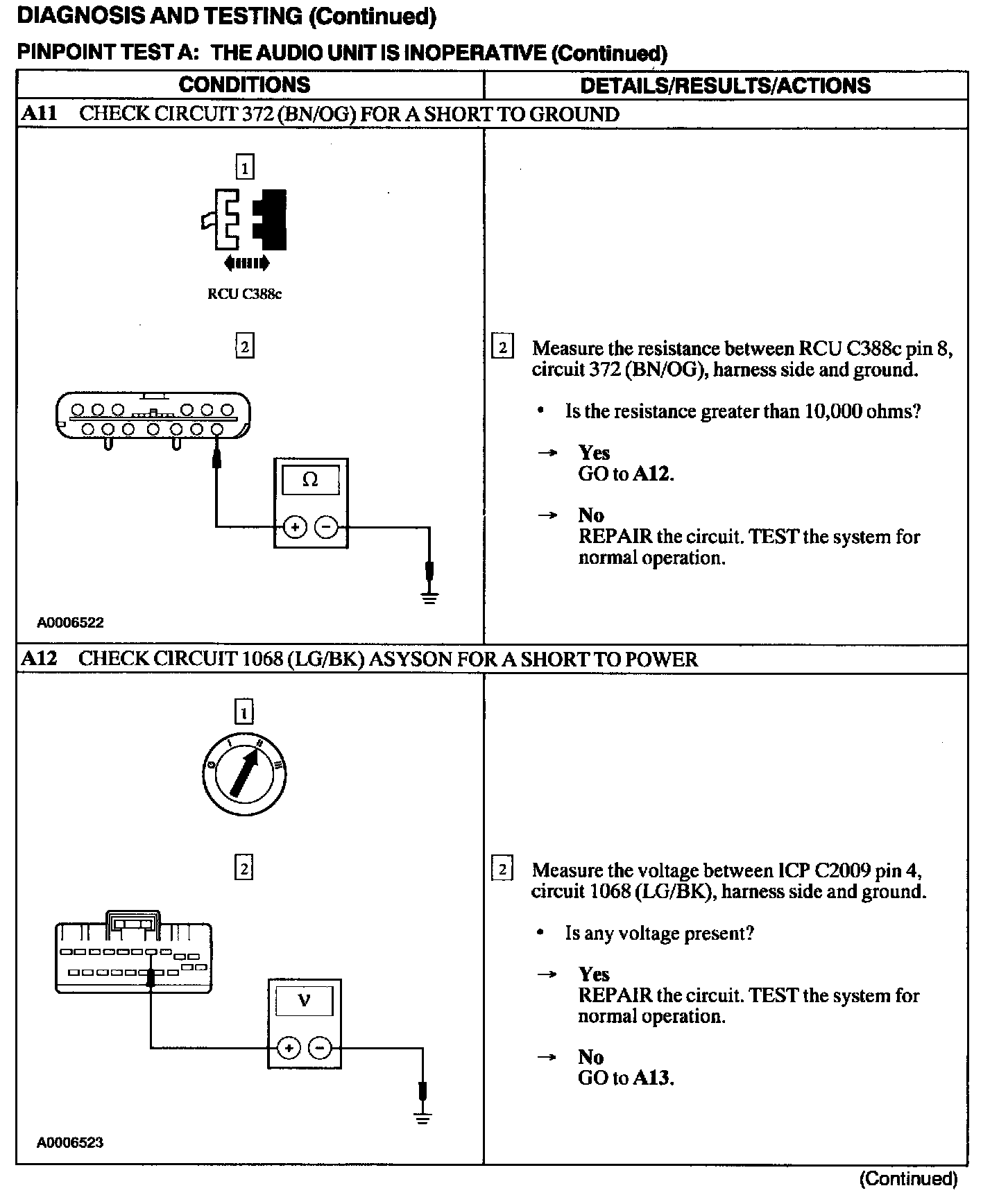

A11 - A12:
A13 - A15:

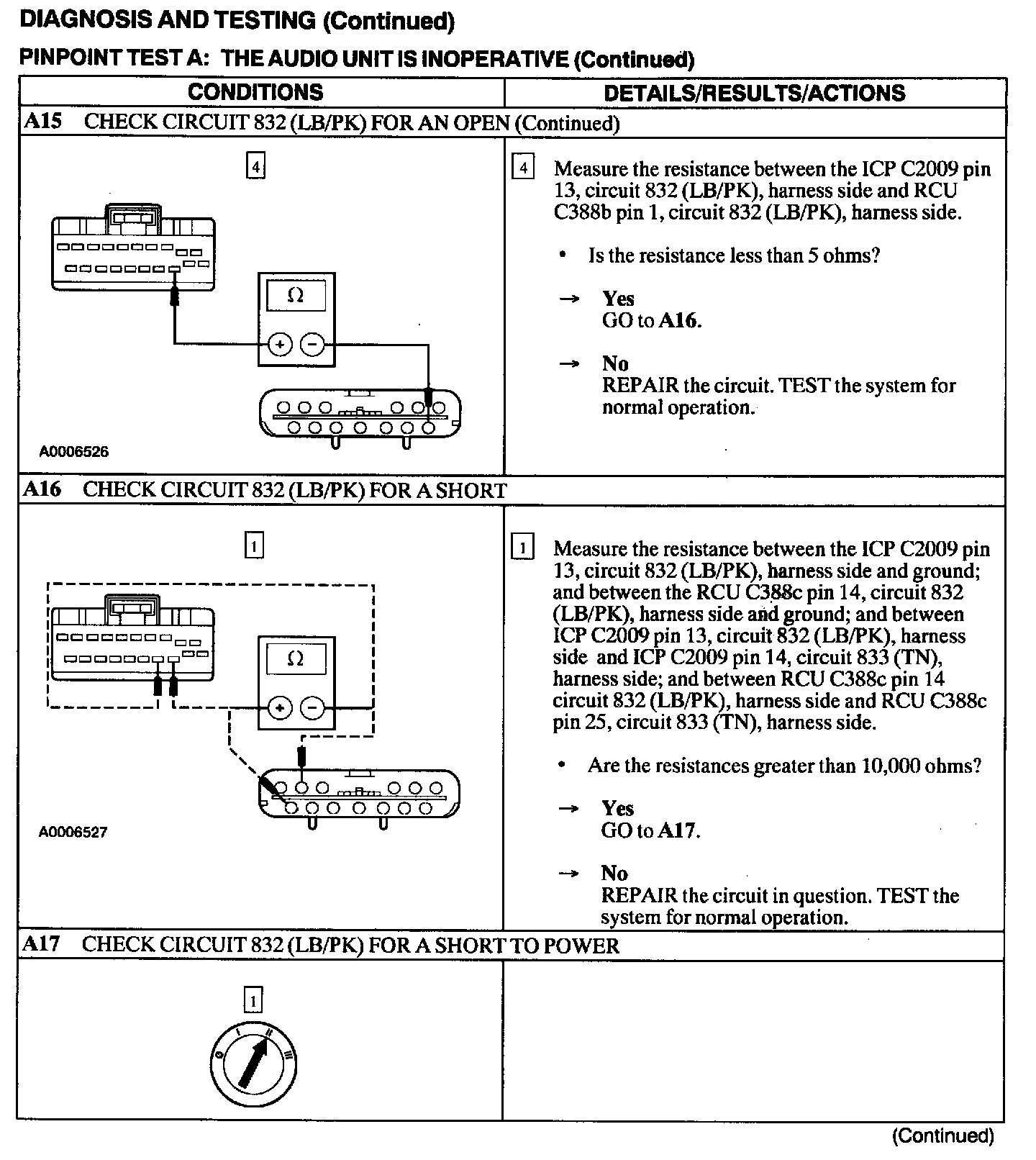

A15 - A17:

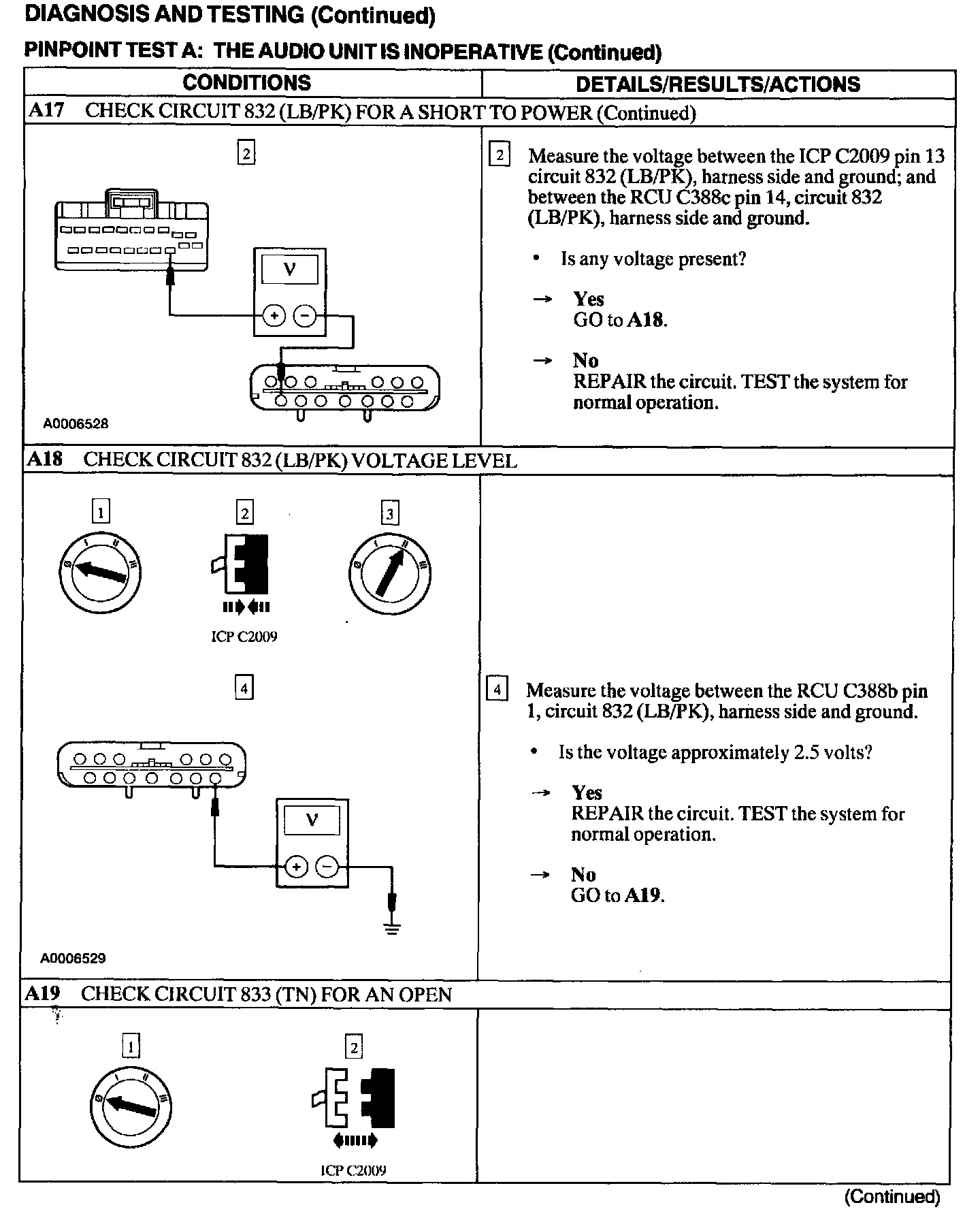

A17 - A19:

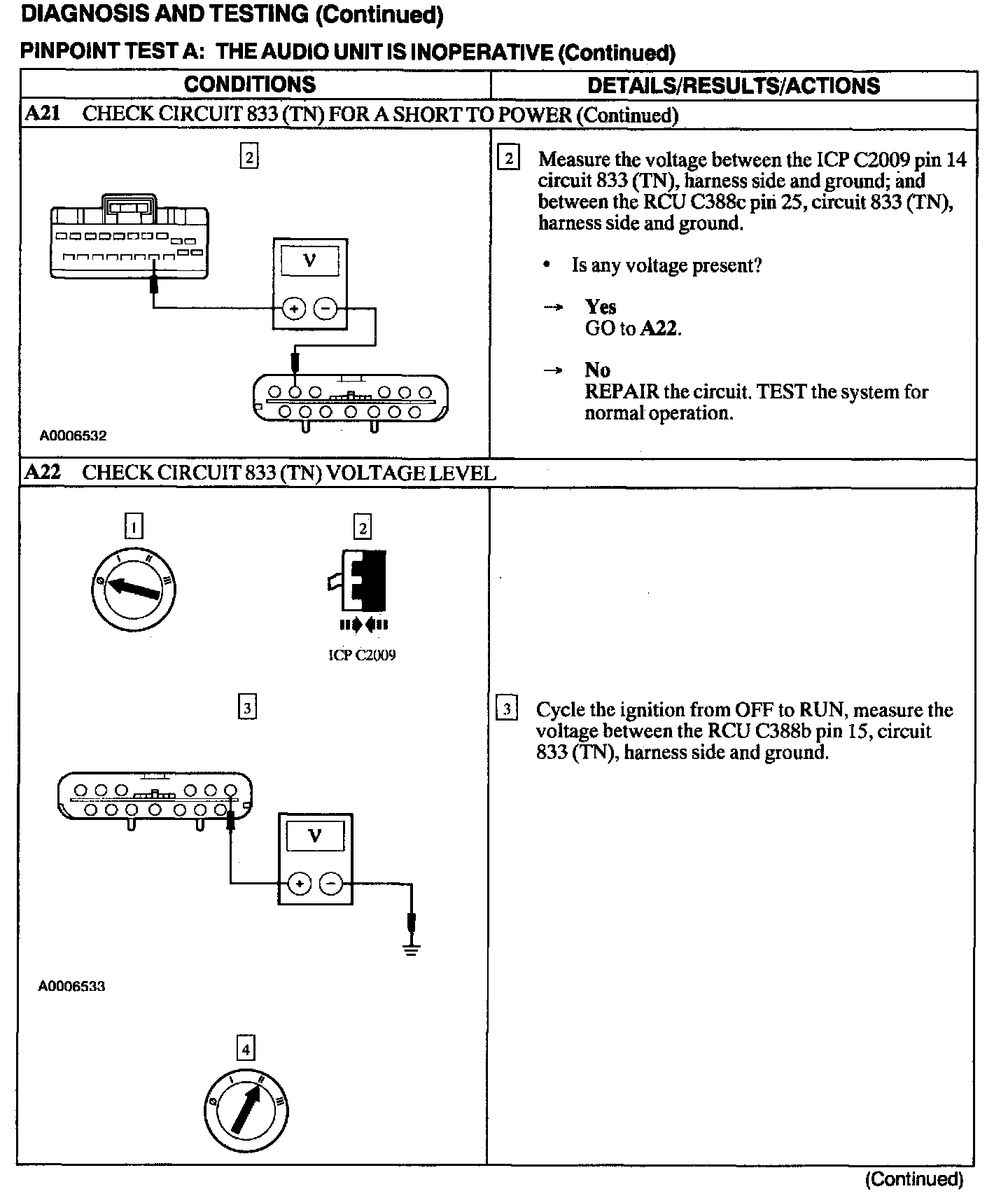

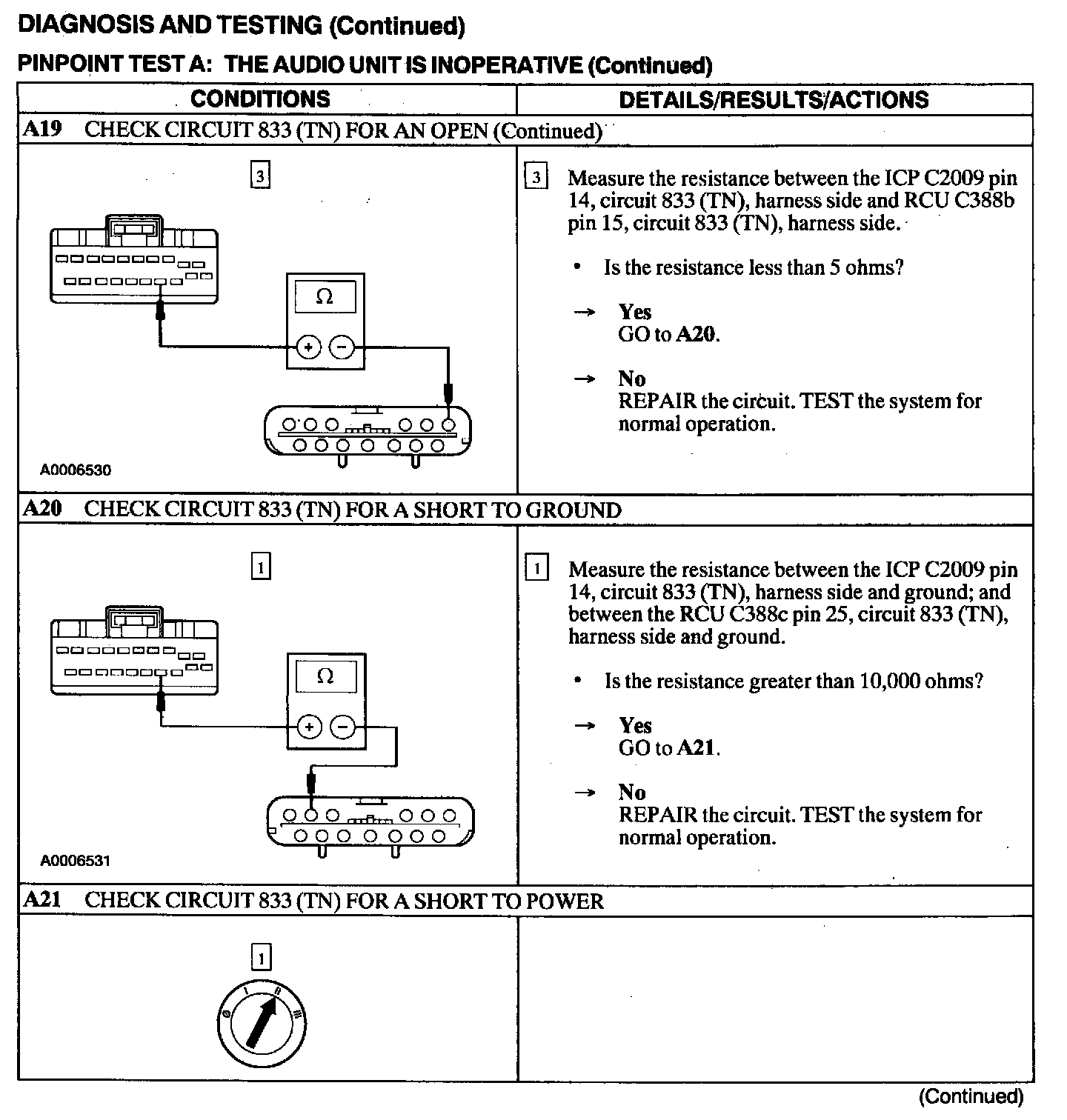

A19 - A21:
A21 - A22:

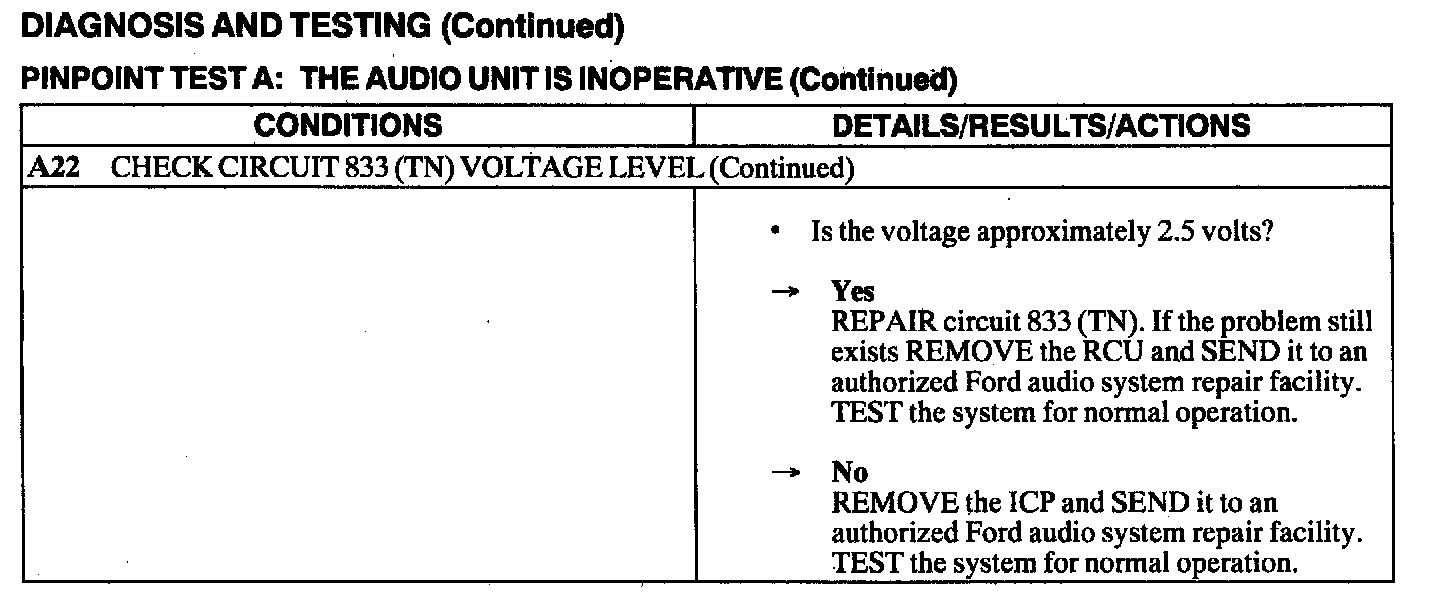

A22:
