Wagon

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the spare tire.

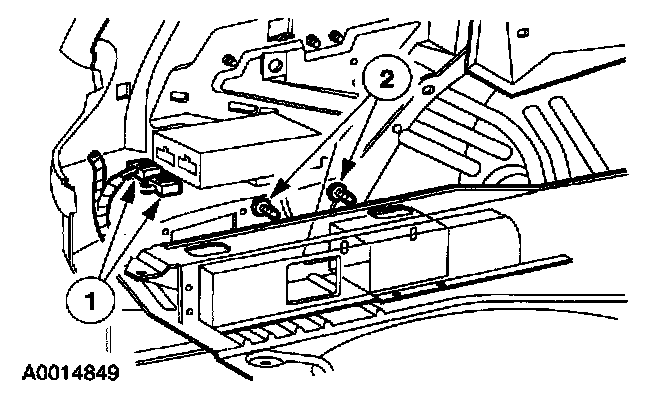

3. Remove the WIM.
1 Disconnect the connectors.
2 Remove the screws and remove the WIM.

INSTALLATION
1. To install, reverse the removal procedure.
