Fuel Filler Hose: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. If the fuel tank is full, drain the fuel tank until the fuel level is at or below half a tank.







3. Remove the filler neck screws.
4. Raise and support the vehicle.

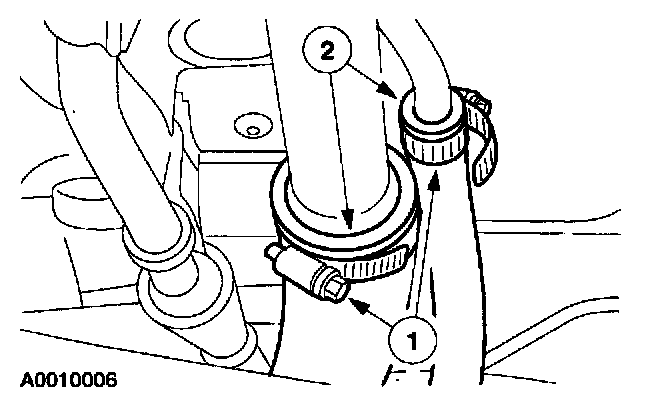

5. Remove the fuel tank filler pipe hoses.
1 Loosen the hose clamps.
2 Disconnect the hoses from the filler pipes.

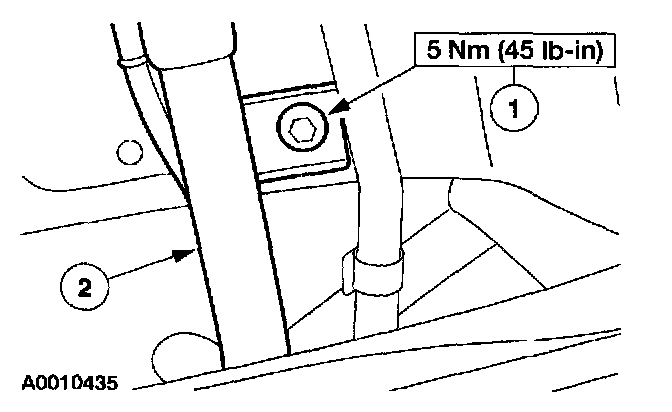

6. Remove the filler pipe assembly.
1 Remove the filler tube bolt.
2 Remove the filler pipe.

INSTALLATION
1. To install, reverse the removal procedure.
