Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Materials
Item: Silicone Gasket and Sealant F7AZ-19554-EA or equivalent
Specification: WSE-M4G323-A4

Removal

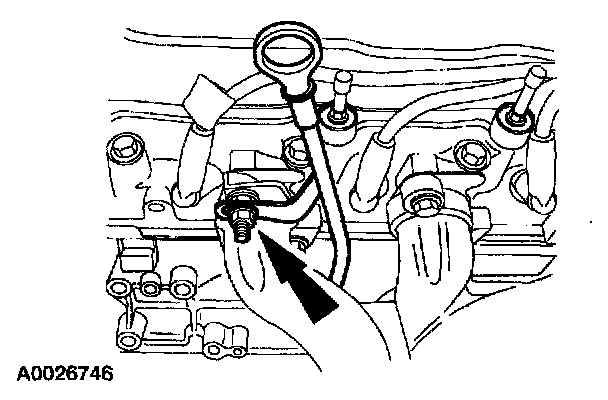

1. Remove the oil level indicator and tube.
- Remove the nut.
- Remove the tube.


Installation





1. Coat the sealing surface of the oil level indicator tube with silicone gasket and sealant.

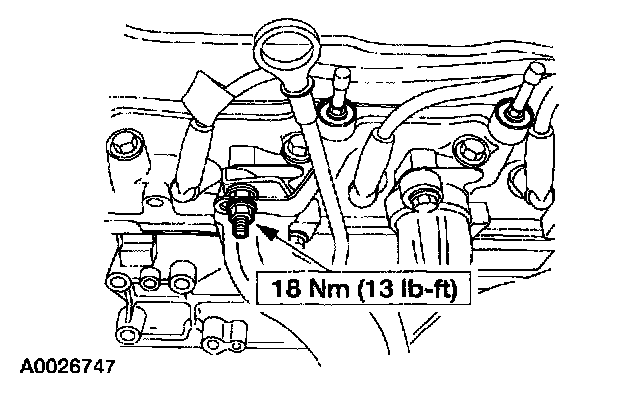

2. Install the oil level indicator tube.
- Install the tube.
- Install the nut.
