Trouble Code to Pinpoint Test Charts

Diagnostic Trouble Code Charts

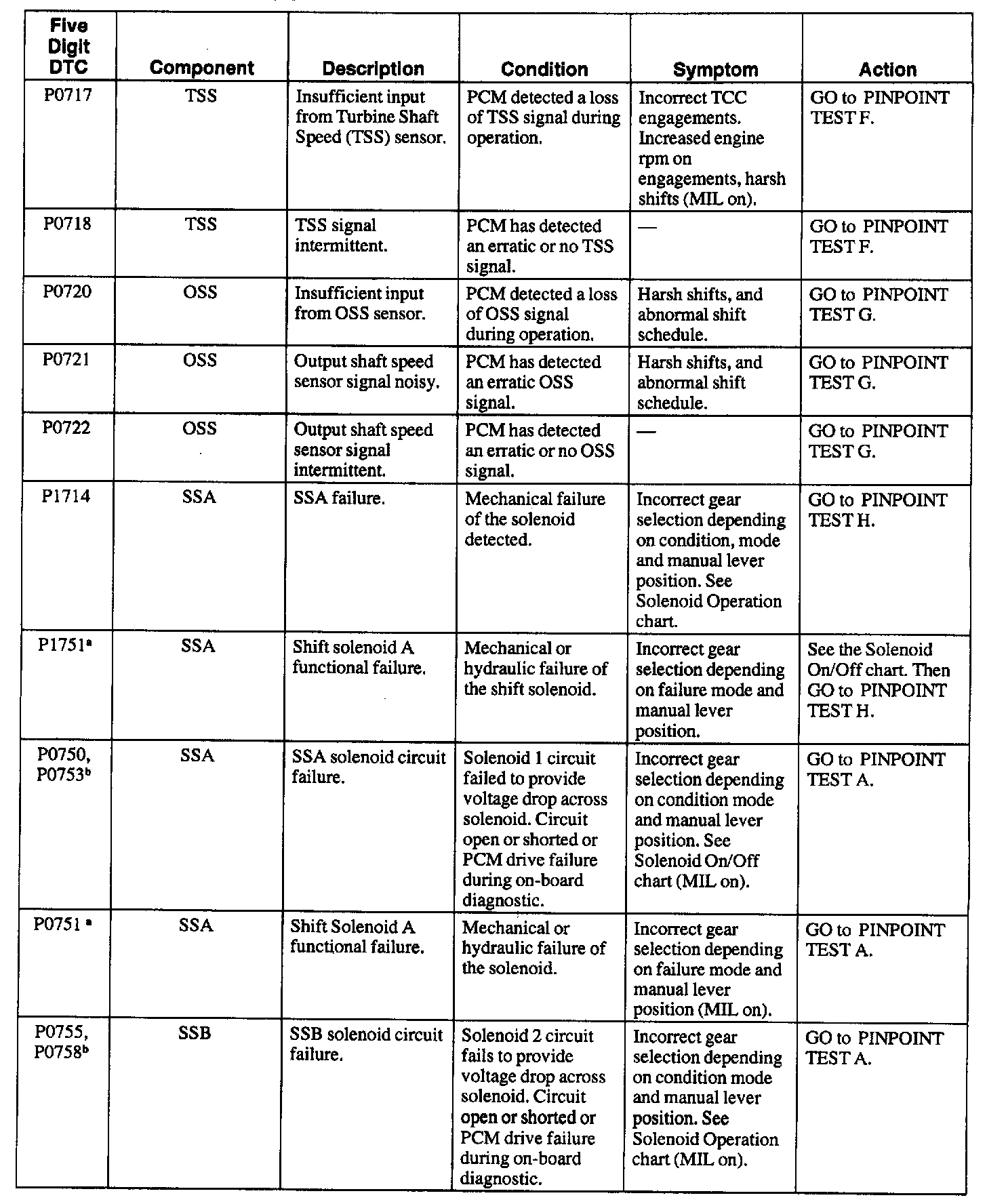

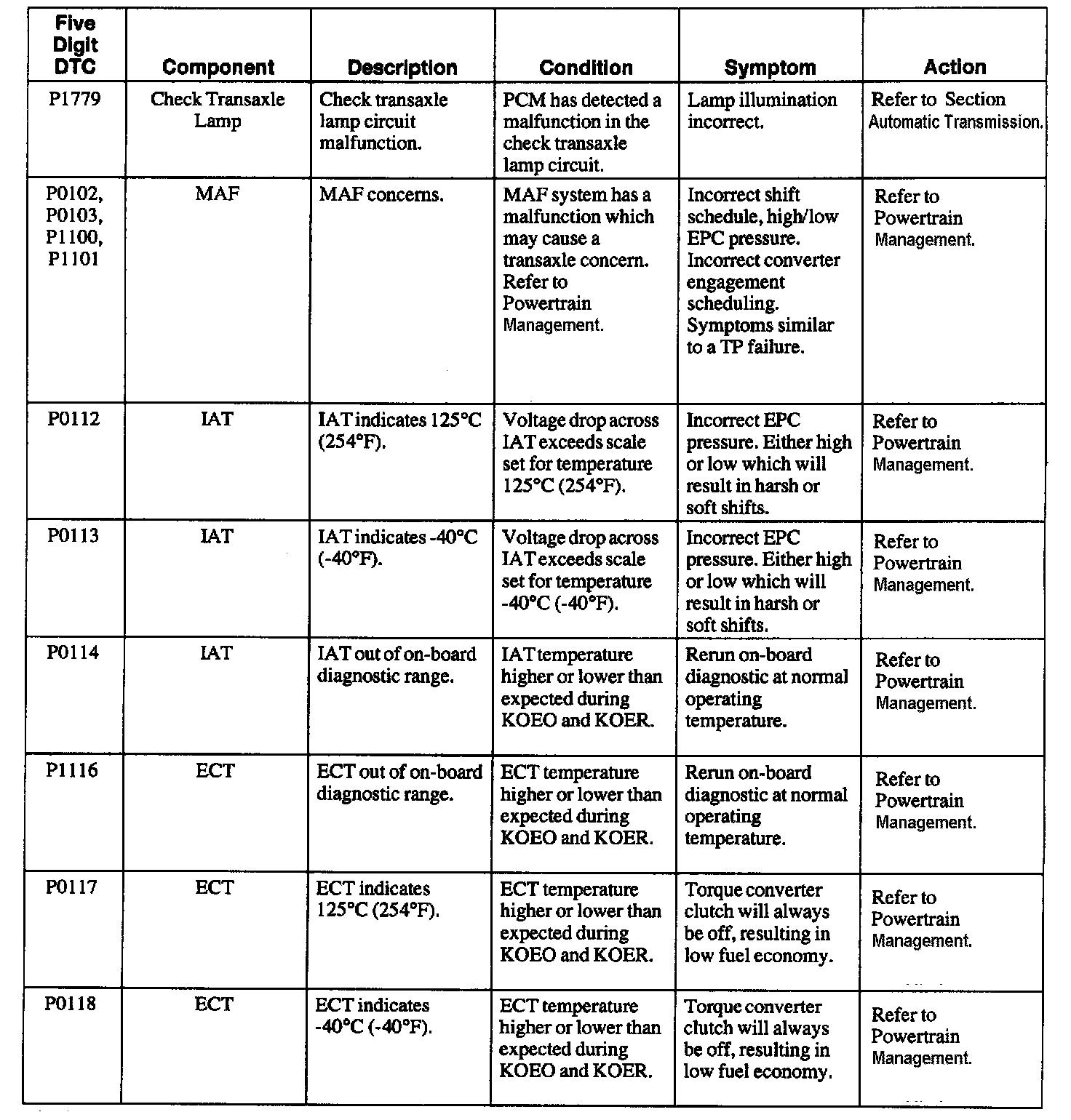

Part 1 of 9

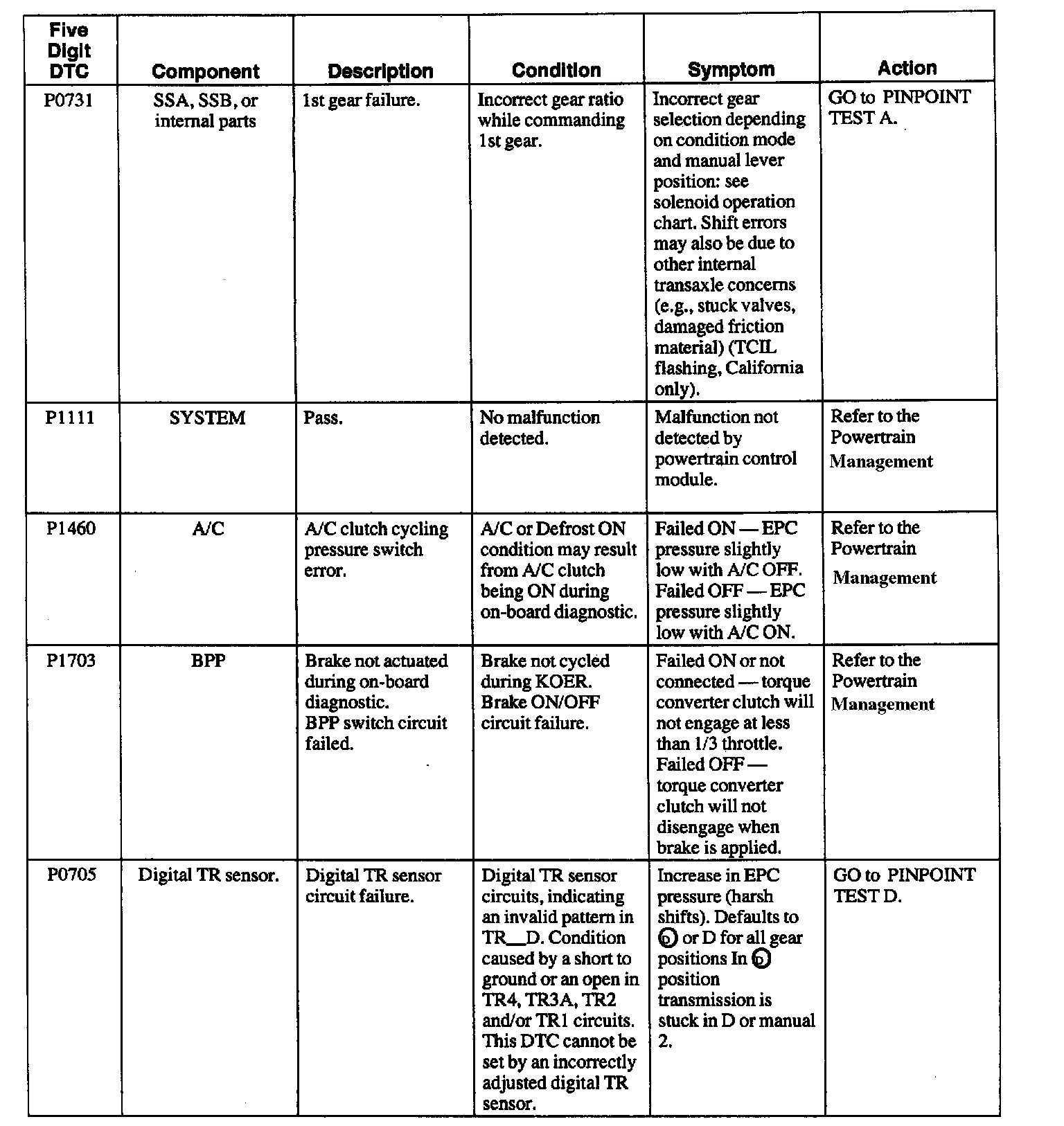

Part 2 of 9

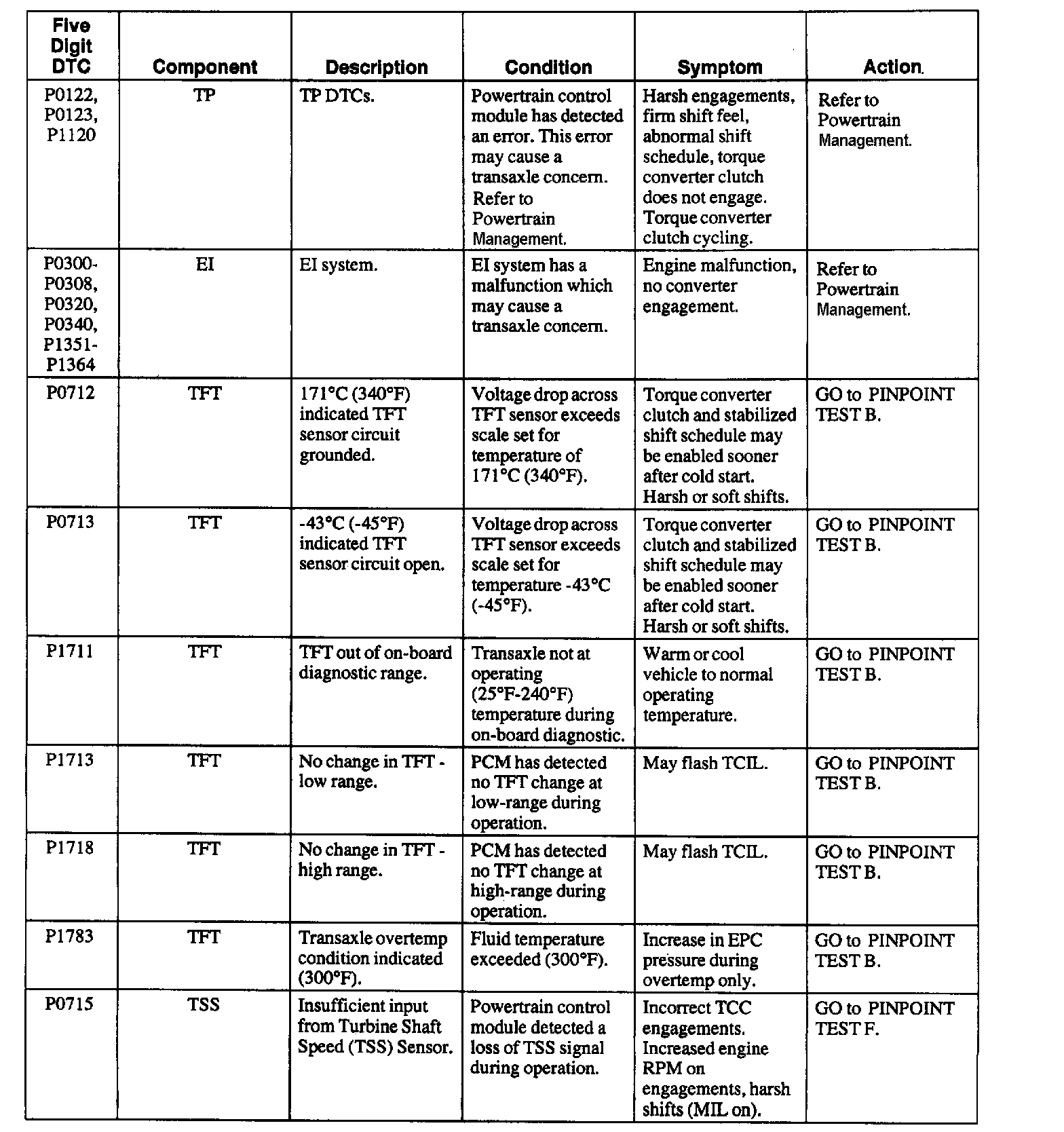

Part 3 of 9

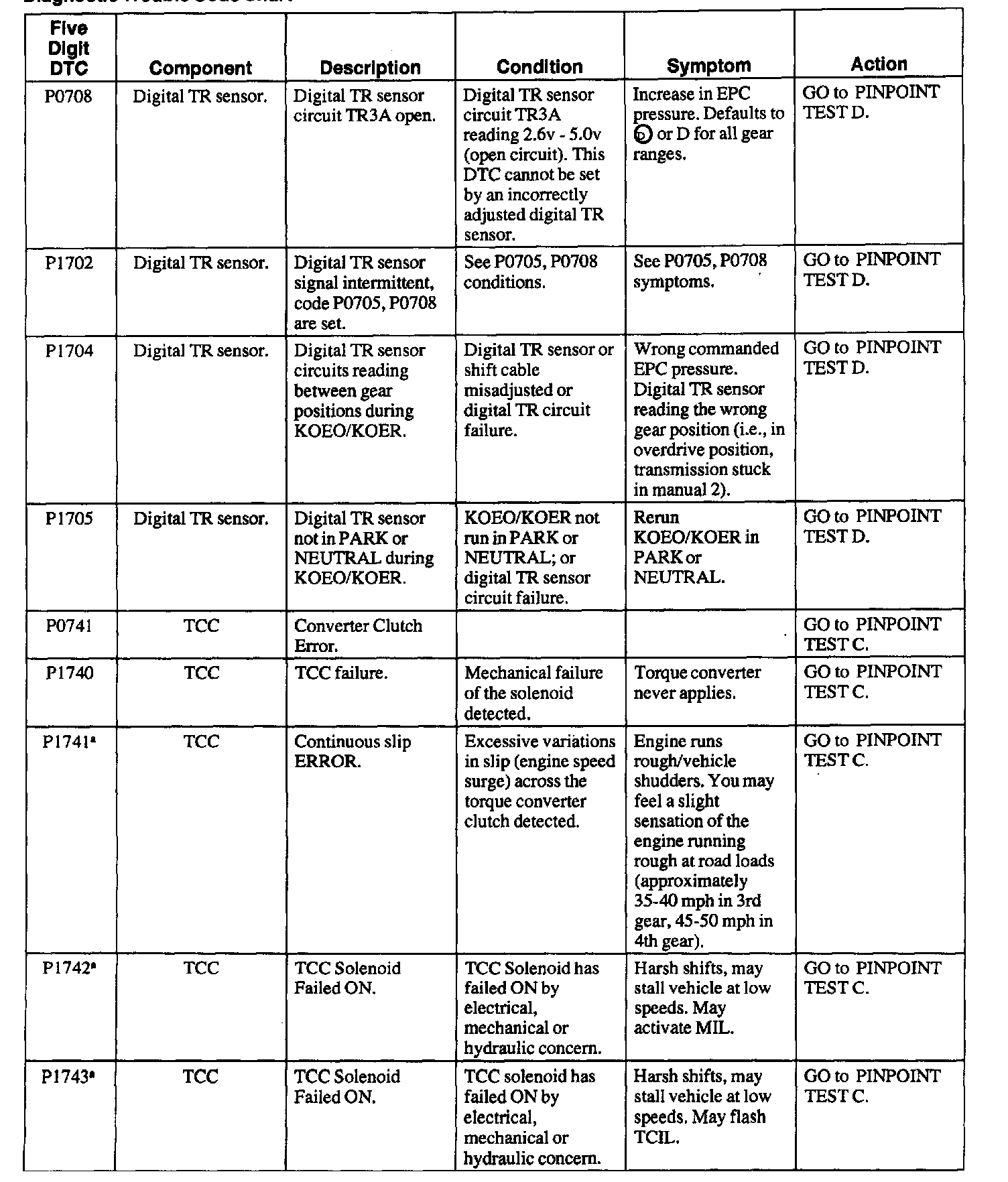

Part 4 of 9

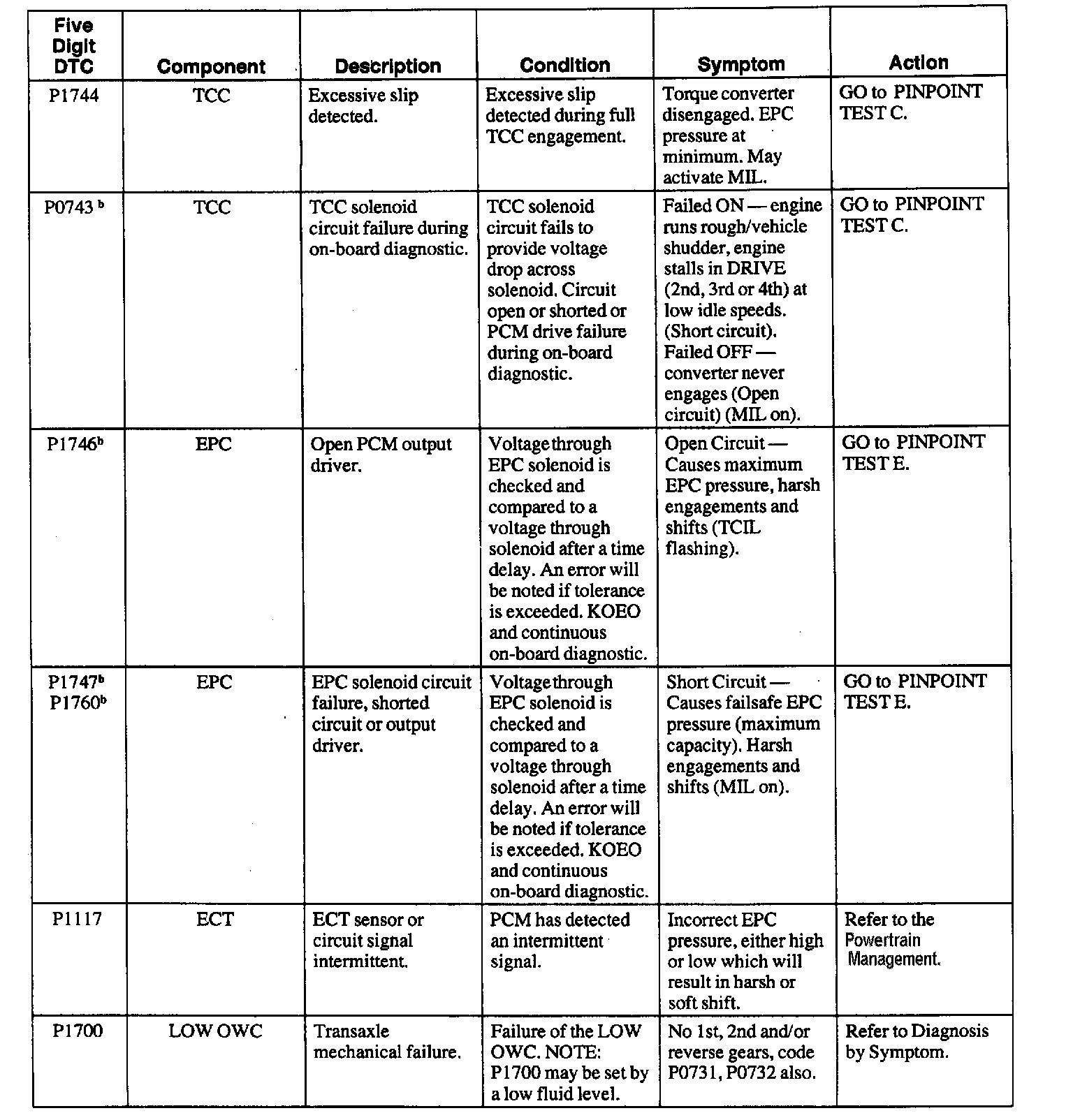

Part 5 of 9

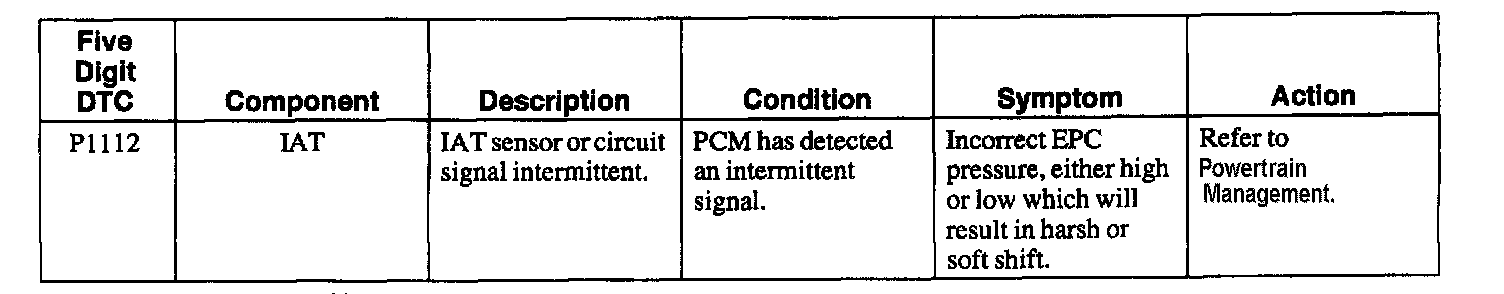

Part 6 of 9

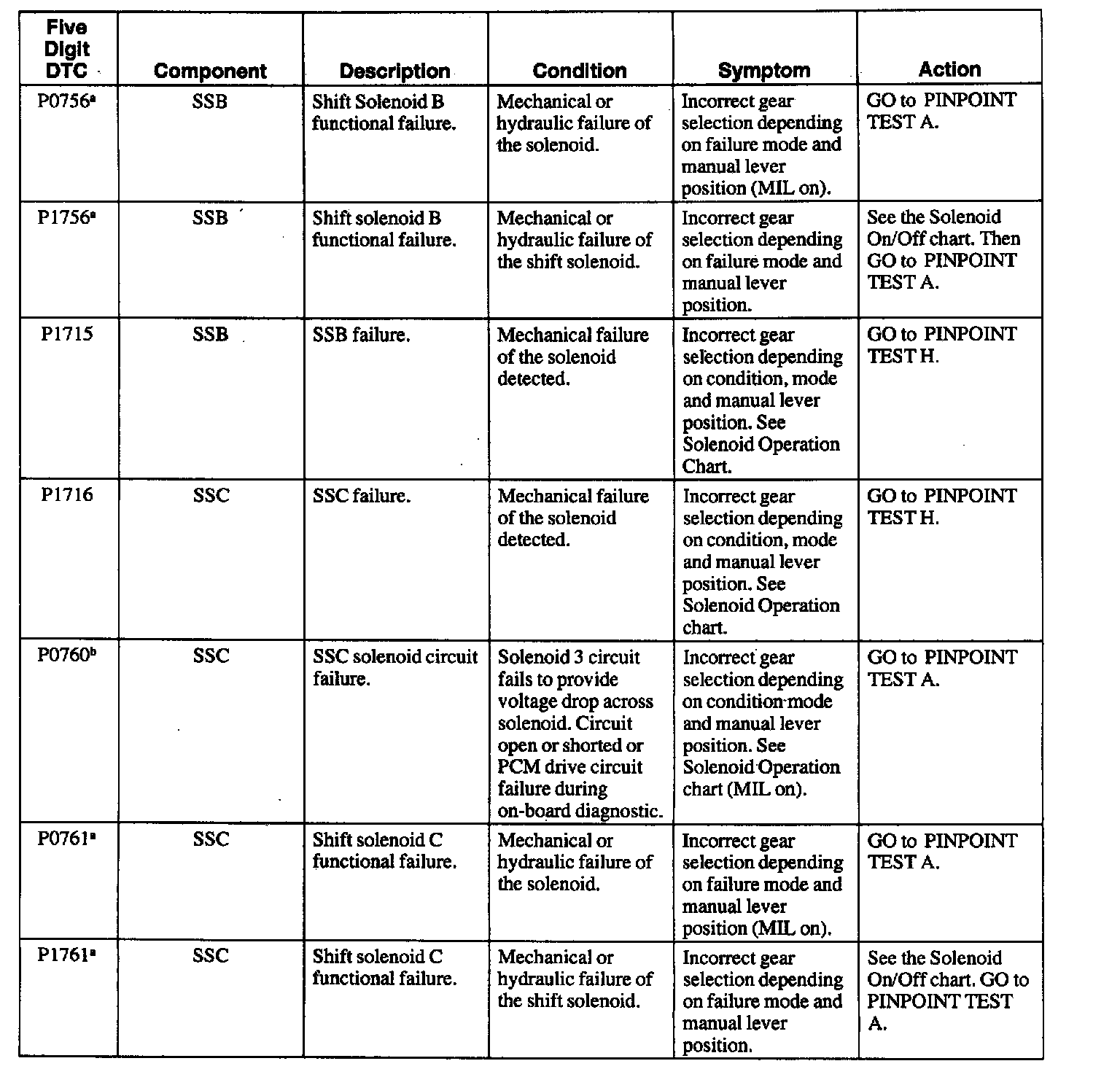

Part 7 of 9

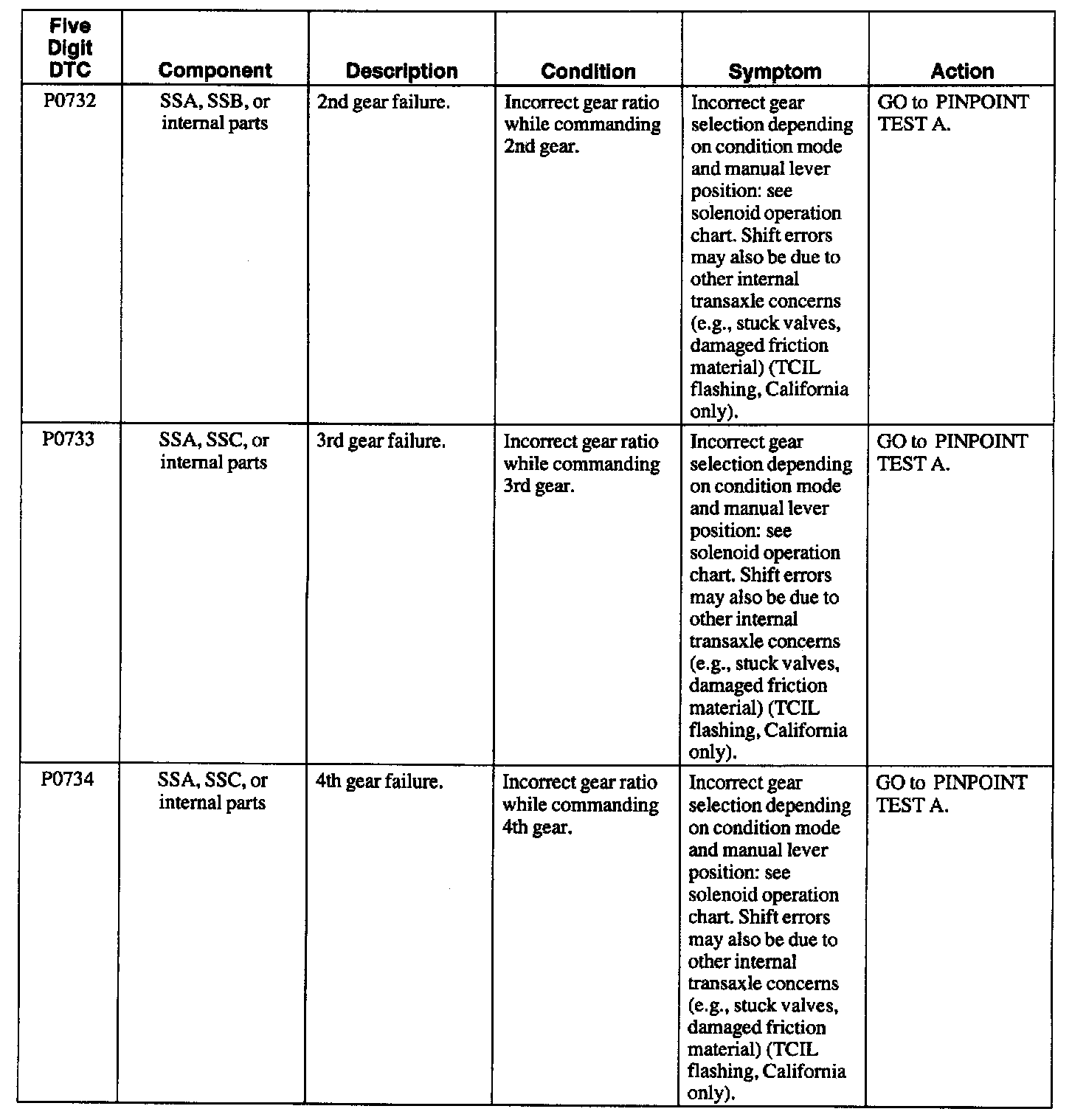

Part 8 of 9





Part 9 of 9

a May also be generated by some other non-electric transaxle hardware system.
b Output circuit check, generated only by electrical symptoms.
