Pump - CIII

Power Steering Pump-CIII





Special Tool(s)

Removal and Installation
1. Remove the pump pulley.

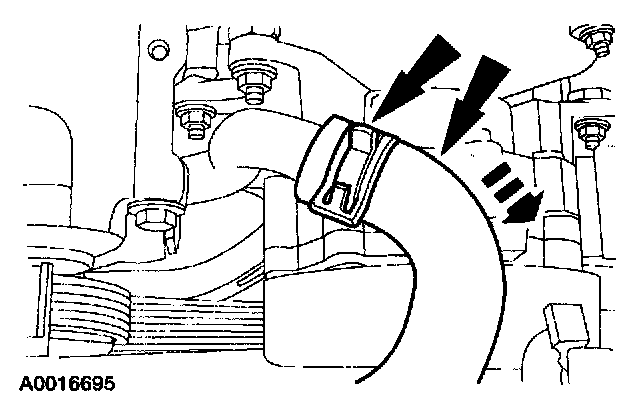

2. Loosen the clamp and disconnect the power steering reservoir-to-pump hose.

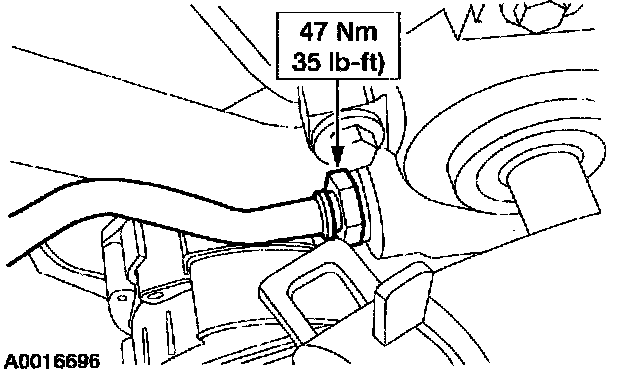

3. Loosen the fitting and disconnect the power steering pressure hose.

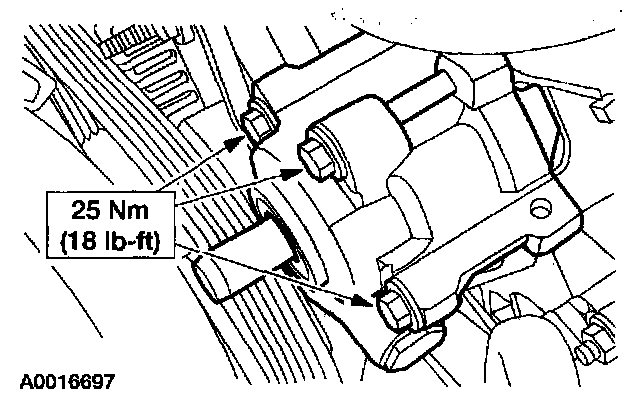

4. Remove the bolts and the power steering pump.

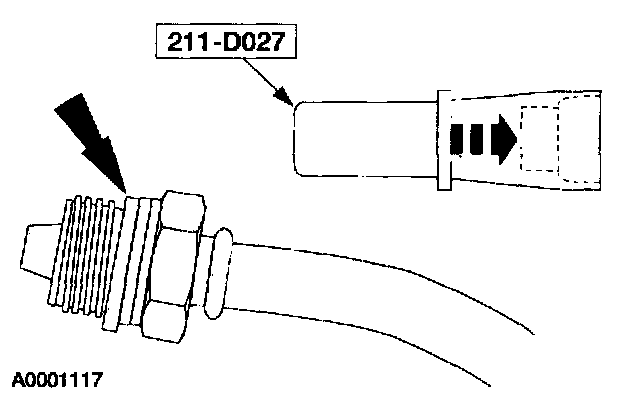

5. Using the special tool, install a new seal on the power steering pressure hose fitting.
6. To install, reverse the removal procedure.
7. Fill and leak check the system.
