System Specifications

General Torque Specifications

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

Footnote
(a) Multiple step procedure. Refer to Procedure.


LH Cylinder Head

Note: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.

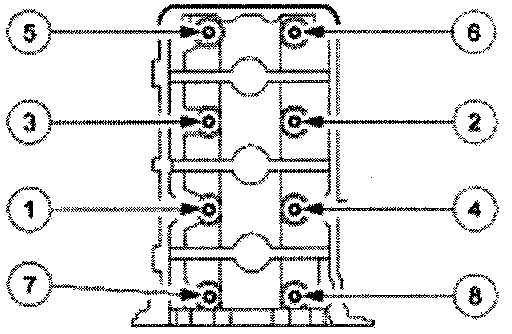

Position the LH cylinder head, gasket and install the bolts in the sequence shown in six stages.

- Tighten the bolts in six stages.
- Stage 1:Tighten to 40 Nm ( 30 ft lbs )
- Stage 2:Tighten bolts 90 °
- Stage 3:Loosen one full turn.
- Stage 4:Tighten to 40 Nm ( 30 ft lbs )
- Stage 5:Tighten 90 °
- Stage 6:Tighten 90 °

RH Cylinder Head

Note: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.






Position the RH cylinder head, gasket and install the bolts in the sequence show in six stages.

- Tighten the bolts in six stages.
- Stage 1:Tighten to 40 Nm ( 30 ft lbs ).
- Stage 2:Tighten bolts 90 °.
- Stage 3:loosen one full turn.
- Stage 4:Tighten to 40 Nm ( 30 ft lbs ).
- Stage 5:Tighten 90 °.
- Stage 6:Tighten 90 °.
