Oil Pressure Sender: Service and Repair

Removal and Installation
1. Raise and support the vehicle.





2. NOTE: The A/C compressor has been removed for clarity.

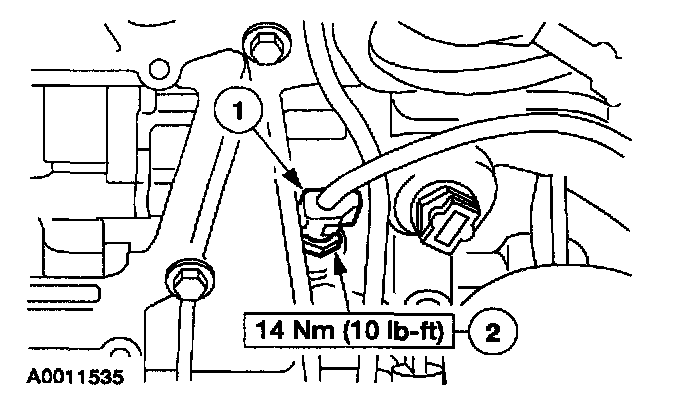

Remove the oil pressure sender.
1 Disconnect the electrical connector.
2 Remove the sender.
3. To install, reverse the removal Procedure.
