Home >> Mercury >> 2001 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DB: Engine Fuel Temperature (EFT) Sensor

Tests DB: Engine Fuel Temperature (EFT) Sensor

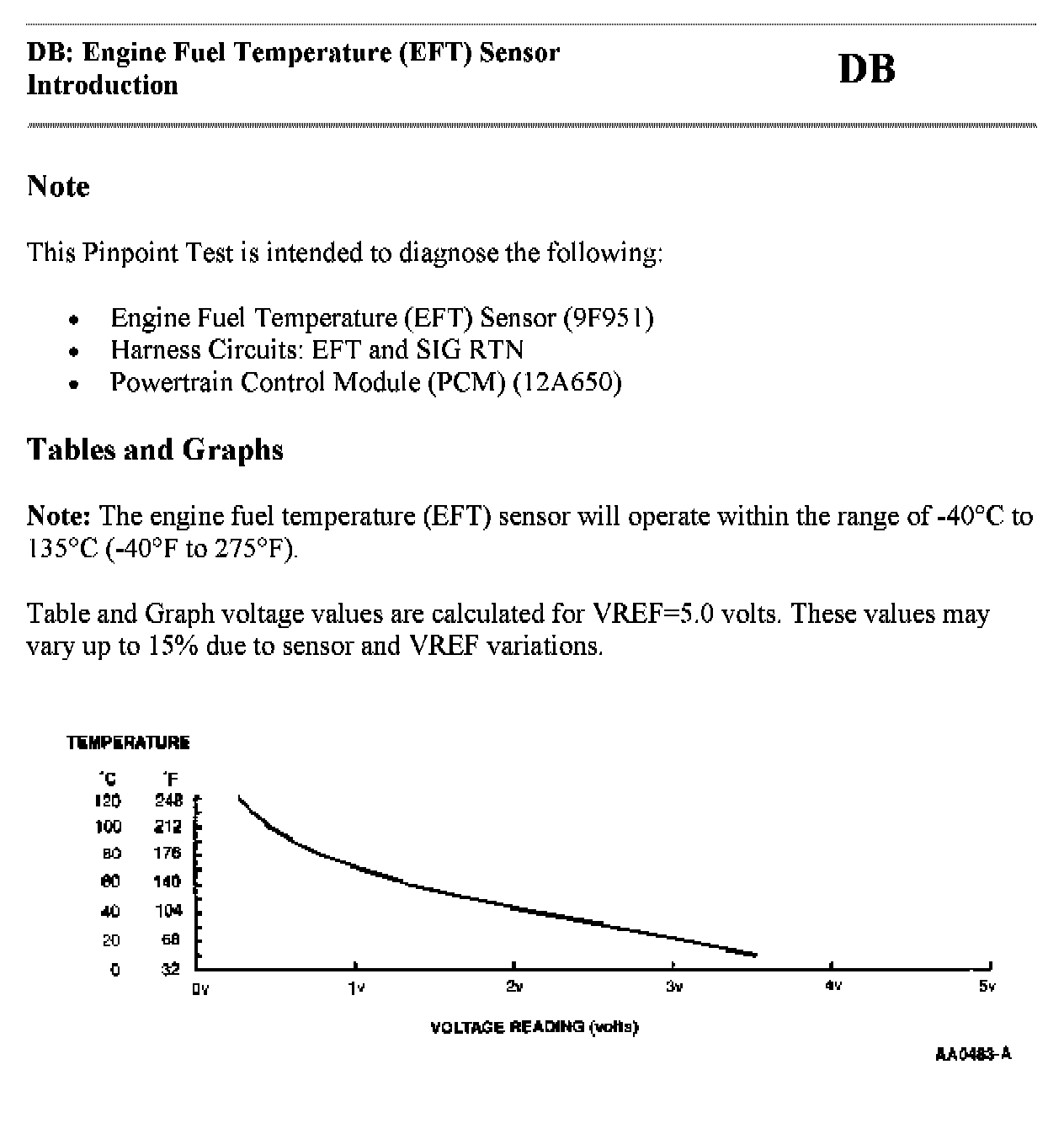

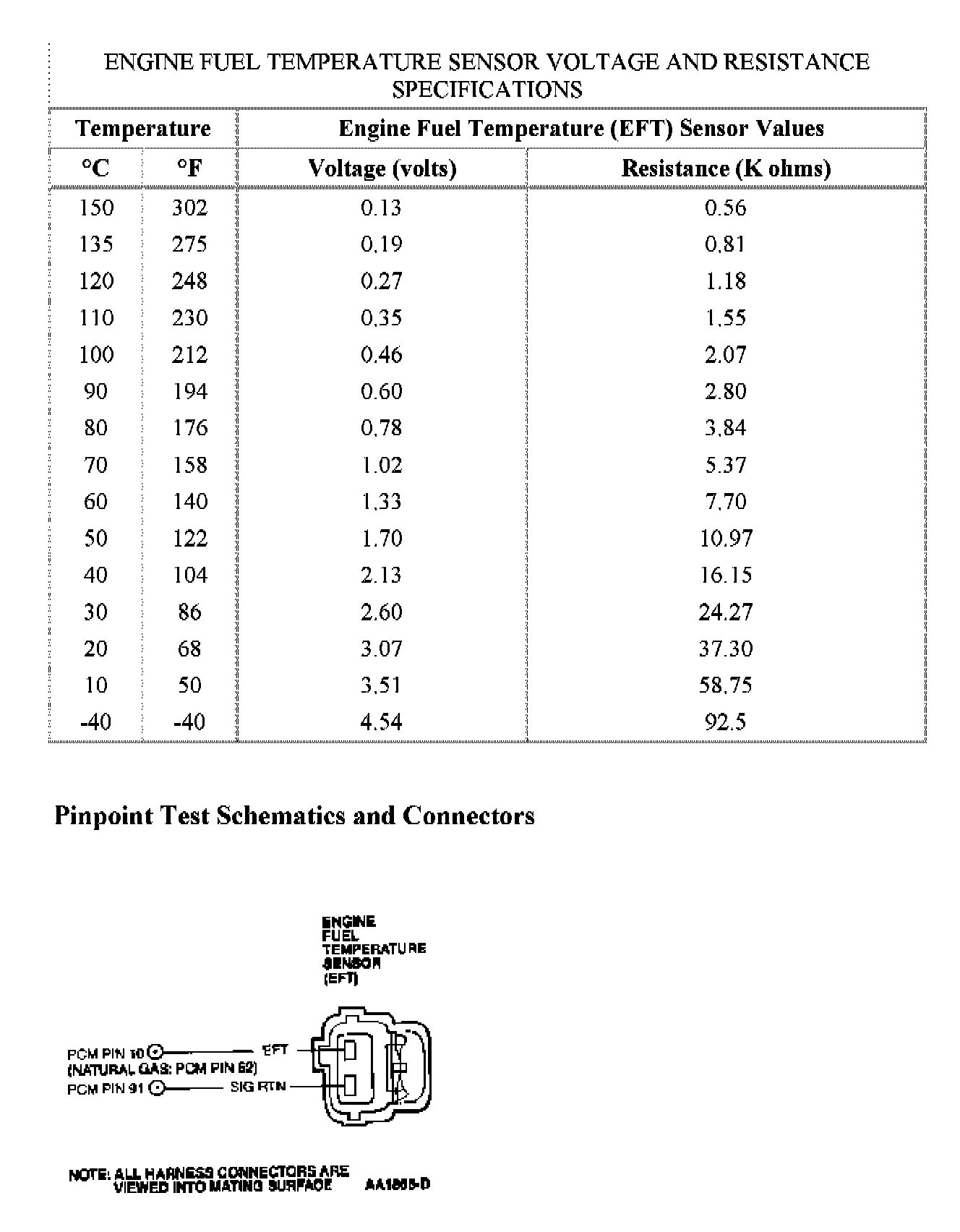

DB INTRODUCTION:

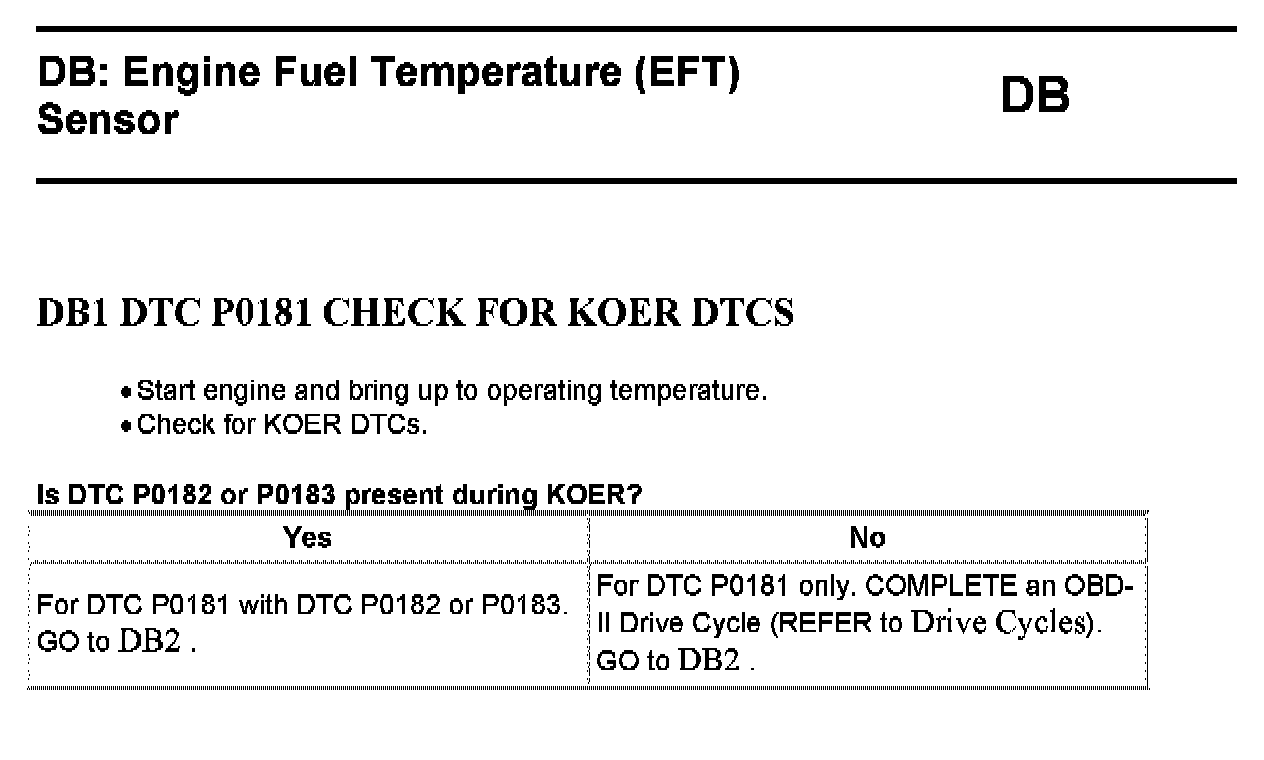

DB1:





DB2 - DB3:

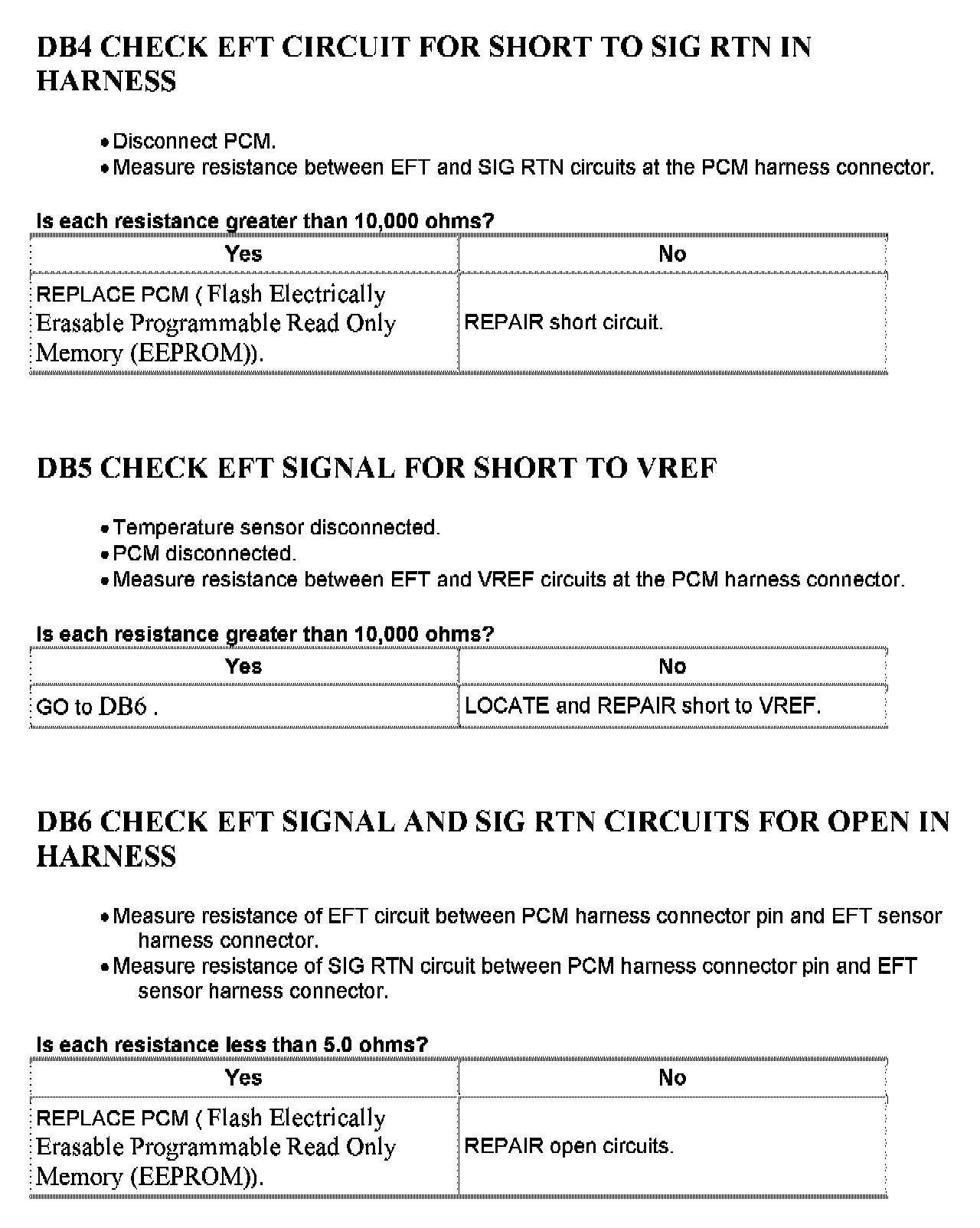

DB4 - DB6:

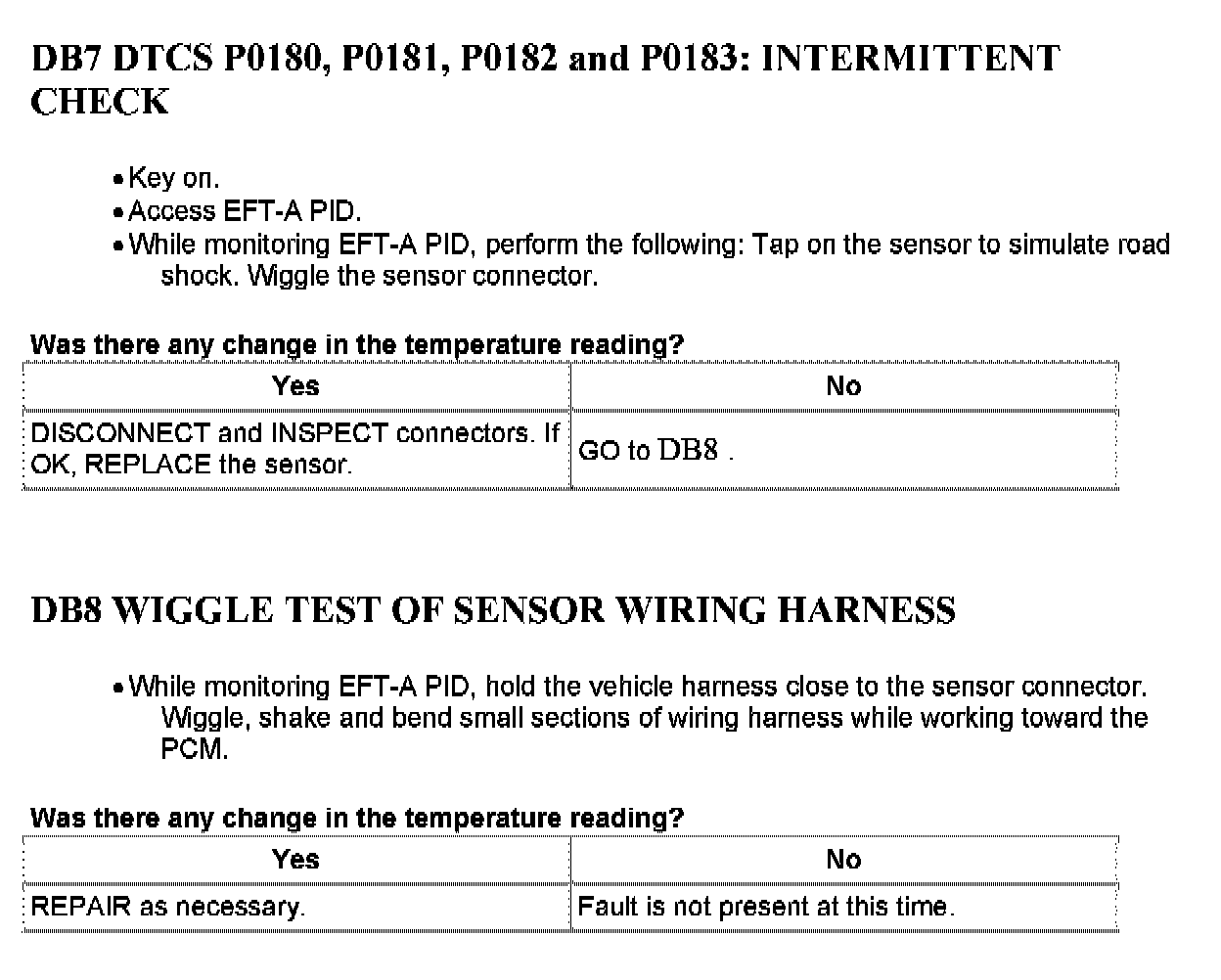

DB7 - DB8:
