Water Pump Belt

Removal and Installation

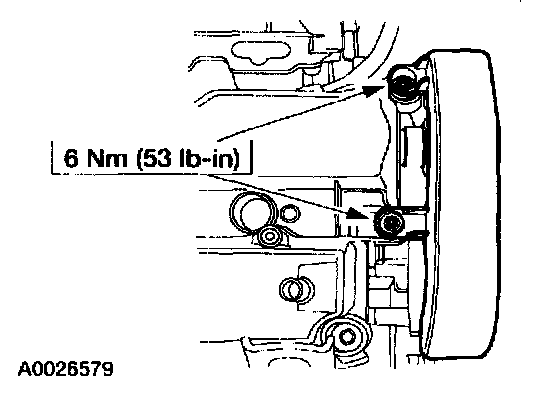

1. Remove the nuts and the cover.

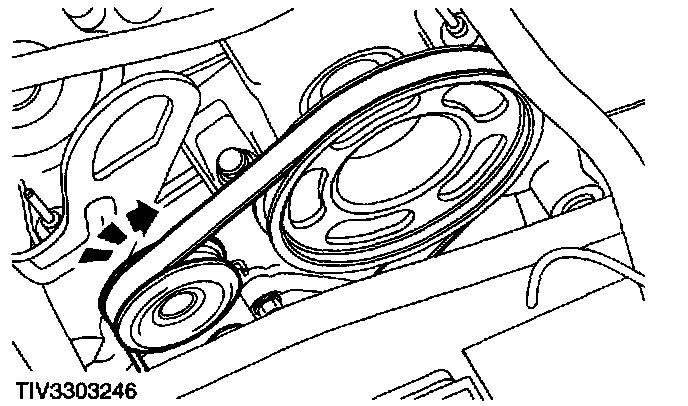

2. Rotate the drive belt tensioner clockwise and remove the water pump belt.






3. To install, reverse the removal procedure.
