Pressure Cutoff Switch - Dual Function

REMOVAL
1. Raise and support the vehicle.

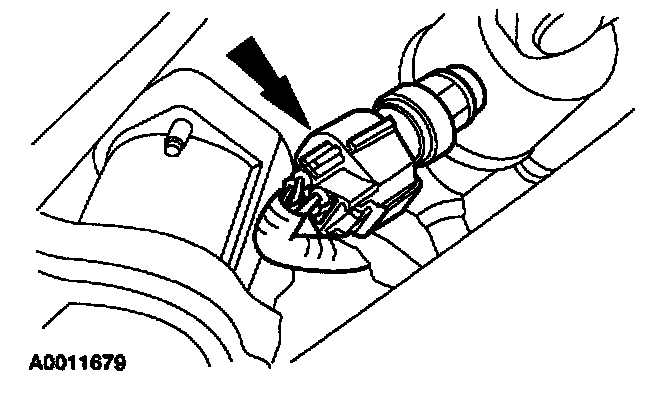

2. Disconnect the dual function pressure cutoff switch electrical connector.
3. Remove the dual function pressure cutoff switch. Remove and discard the O-ring seal.
- During installation, install a new O-ring seal lubricated with PAG oil or equivalent.

INSTALLATION
1. To install, reverse the removal procedure.
