Oil Pump: Service and Repair

Removal
1. Remove the timing drive components.
2. Remove the oil pump screen cover and tube.

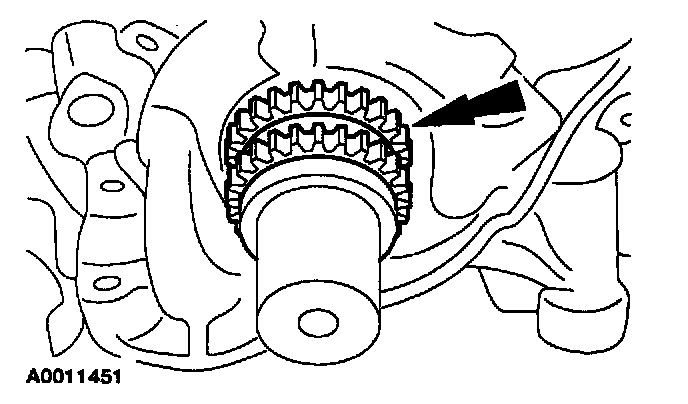

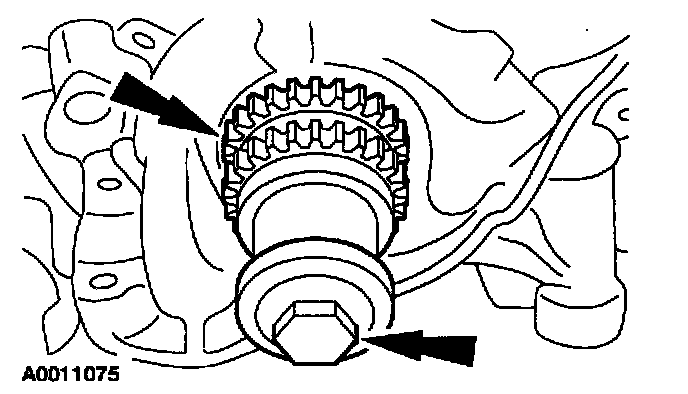

3. Remove the damper bolt and the crankshaft sprocket.

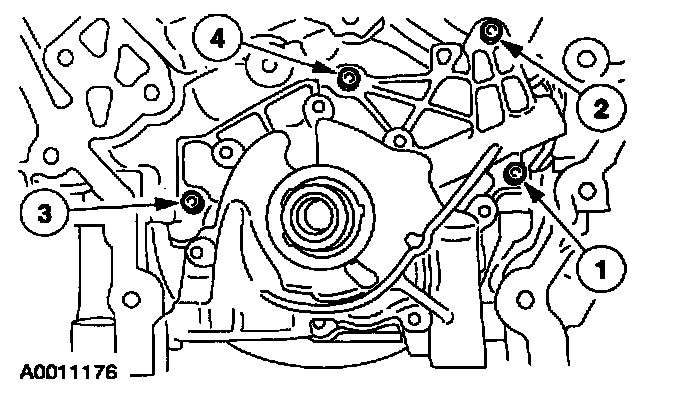

4. Remove the bolts in the indicated sequence and remove the oil pump.


Installation





1. Position the oil pump and install the bolts in the sequence shown.





2. Install the crankshaft sprocket.
3. Install the oil pump screen cover and tube.
4. Install the timing drive components.
