LH

Special Tools:

Special Tool(s)


Removal and Installation
1. Raise and support vehicle.
2. Remove the right front wheel.

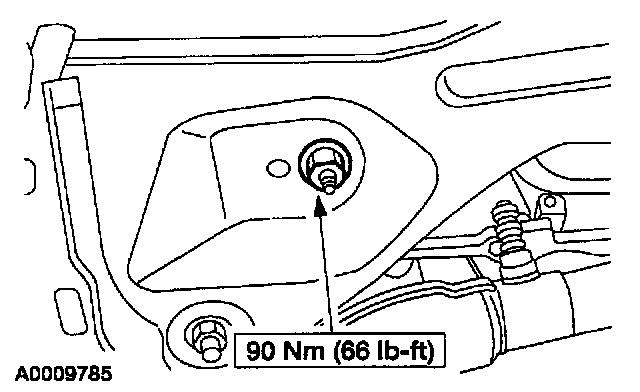

3. Remove the engine support insulator nut.
4. Lower the vehicle.

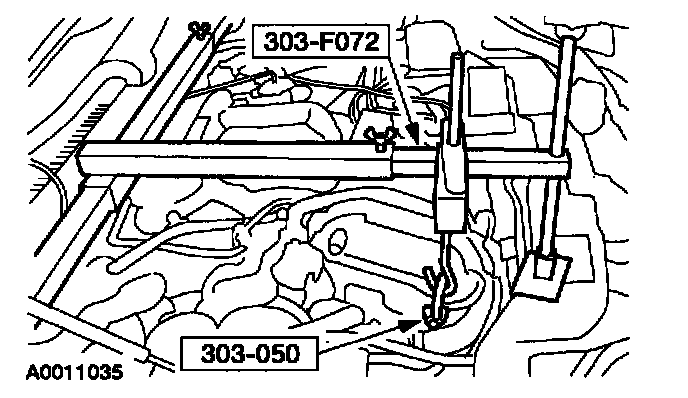

5. Using the special tools, raise the engine to gain clearance to remove the mount.

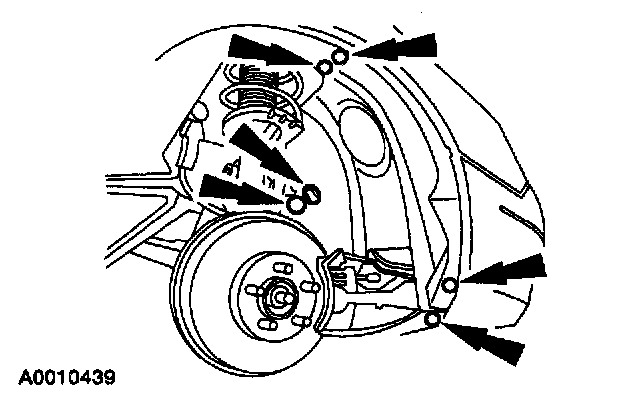

6. Remove the RH front inner fender splash shield.





7. Remove the two upper bolts and remove the engine support insulator.
8. To install, reverse the removal procedure.
