Valve Seat: Service and Repair

Special Tools:

Special Tool(s)


Removal
1. Remove the valve spring.





2. NOTE: Camshaft removed for clarity.

Remove the valve seal.


Installation

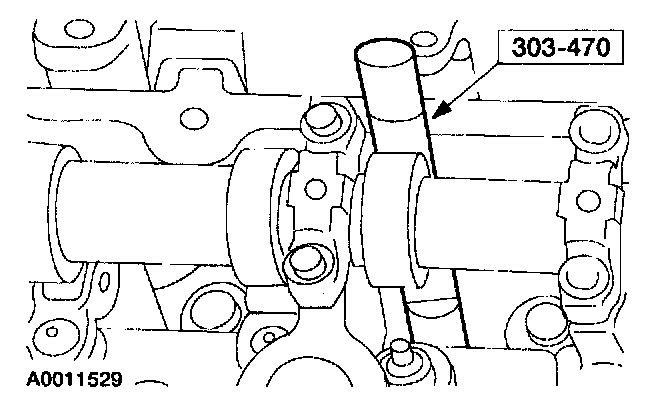

1. Using the special tool, install the valve seal.
2. Install the valve spring.
