LH
MaterialsItem: Silicone Gasket and Sealant F7AZ-19554-EA
Specification: WSE-M4G323-A4
Item: Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A221-A
Specification: ESE-M1C171-A
Removal

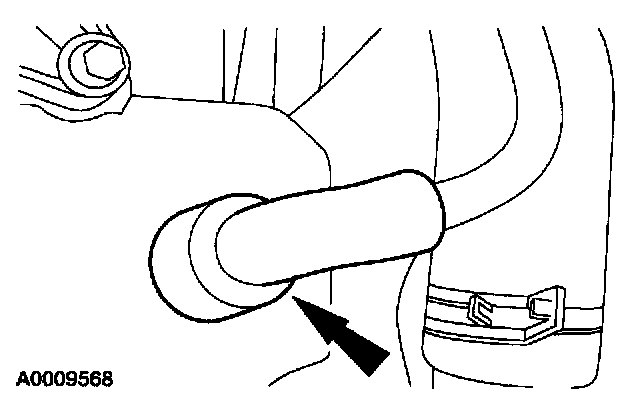

1. Disconnect the crankcase ventilation tube from the valve cover.

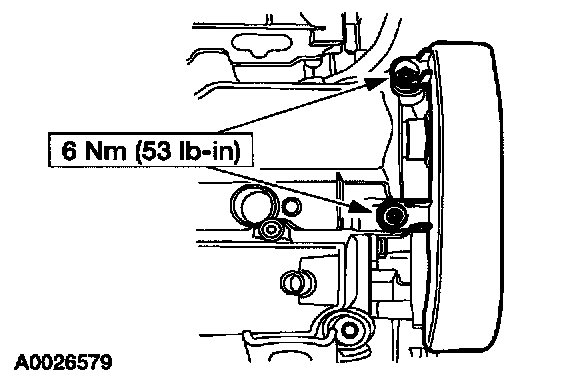

2. Remove the water pump drive belt cover.
3. NOTE: When removing the spark plug wires a slight twisting motion will break the seal and ease the removal.

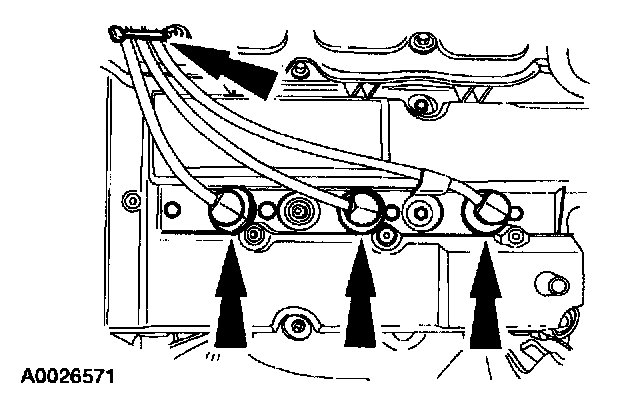

Remove the three LH spark plug wires.
- Disconnect the spark plug wire holder and position out of the way.

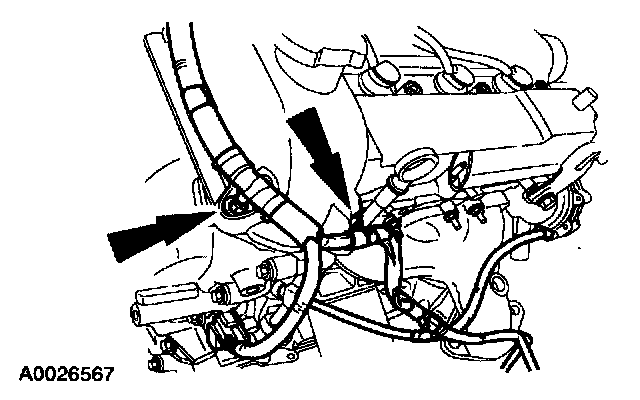

4. Disconnect the wiring harness from the valve cover studs.
- Position the wiring harness aside.
5. Remove the bolts, studs and the LH valve cover.
- Remove and discard the gasket.
Installation
1. Position a new gasket on the valve cover.
2. Apply a 5 mm dot of Silicone Gasket Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4 to the front cover to cylinder head joints.

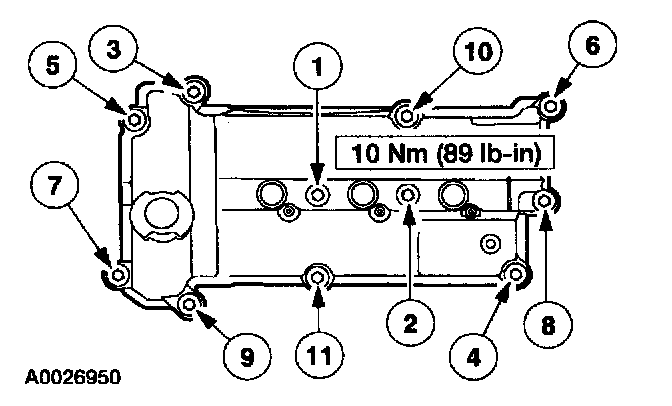

3. Position the valve cover and install the studs and the bolts in the sequence shown.
4. Connect the wiring harness to the valve cover studs.
5. NOTE: Apply a light film of Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A221-A or equivalent meeting Ford specification ESE-M1C171-A to the interior of the spark plug boot prior to installation.

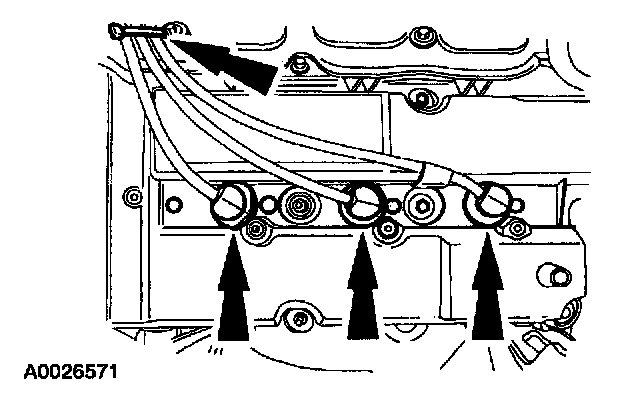

Install the three LH spark plug wires.
- Connect the spark plug wire holder.
6. Install the water pump drive belt cover.
7. Connect the crankcase ventilation tube to the valve cover.
