Cylinder Head - RH

Cylinder Head - RH

Special Tools






Removal

1. Remove the RH camshafts. Camshaft
2. Raise and support the vehicle. Vehicle Lifting






3. Remove the RH exhaust manifold to pipe bolts.
4. Lower the vehicle.






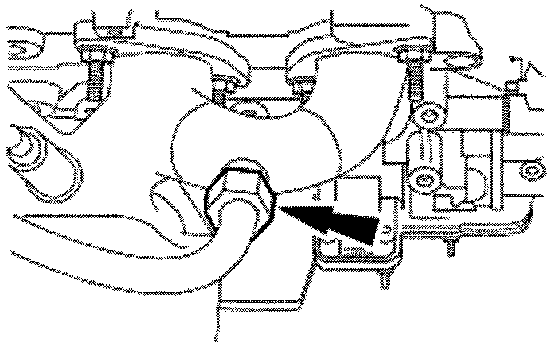

5. Disconnect the exhaust recirculation (EGR) tube from the exhaust manifold.






6. Remove the camshaft followers.






7. Remove the hydraulic lash adjusters.

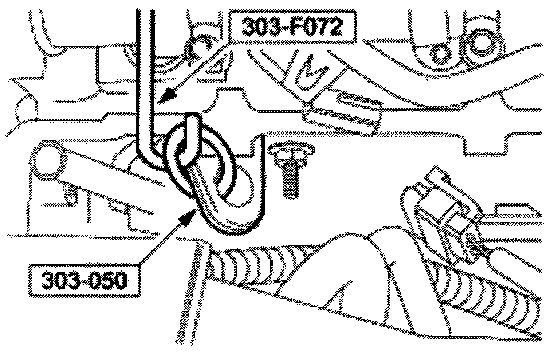

8. Using the engine support tool, lower the engine onto the A/C bracket.
9. Raise the vehicle on a hoist.

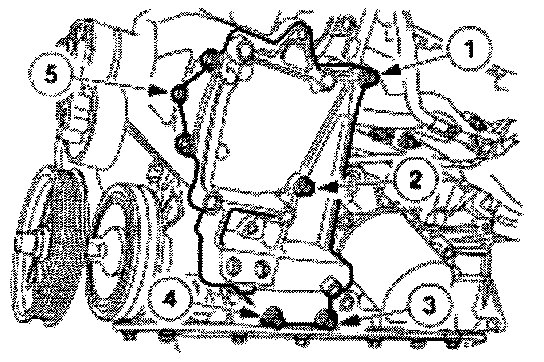

10. Install the A/C bracket bolts in the sequence shown.
11. Lower the vehicle.






12. Remove the special tools.

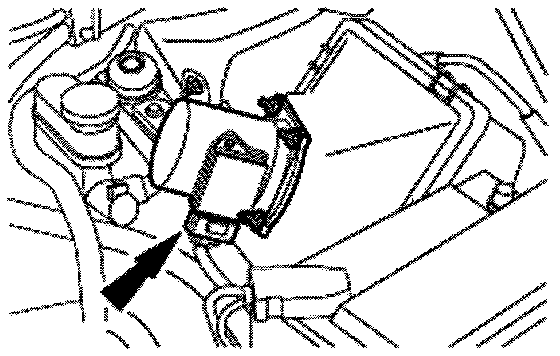

13. Disconnect the mass airflow sensor electrical connector.

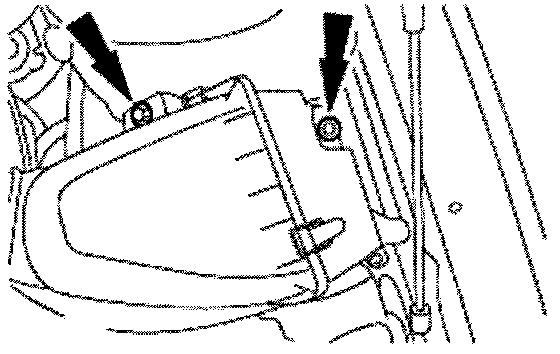

14. Remove the two air cleaner housing bolts.






15. Lift the air cleaner housing off the locating pin.
16. Remove the battery tray. Service and Repair

Warning: To avoid personal injury, do not unscrew the coolant pressure relief cap while the engine is operating or hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly.

Caution: The coolant must be recovered is a suitable, clean container for reuse. If the coolant is contaminated it must be recycled or disposed of correctly.

Note: Less that 80% of coolant capacity can be recovered with the engine in the vehicle. Dirty rust or contaminated coolant requires replacement.

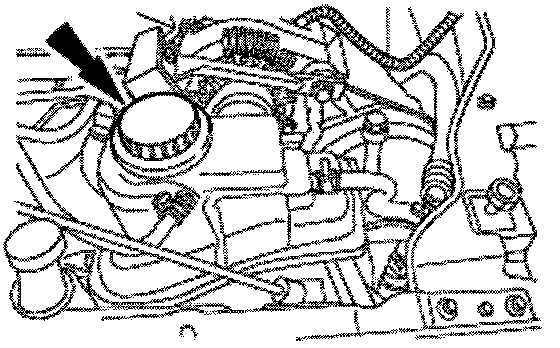

17. Remove the coolant pressure relief cap.
18. Raise the vehicle.






19. Remove the pin-type retainers, the bolts, and the front splash shield.






20. Place a suitable container below the radiator draincock.
- Open the draincock and allow to drain.
- Close the radiator draincock when finished.
21. Lower the vehicle.

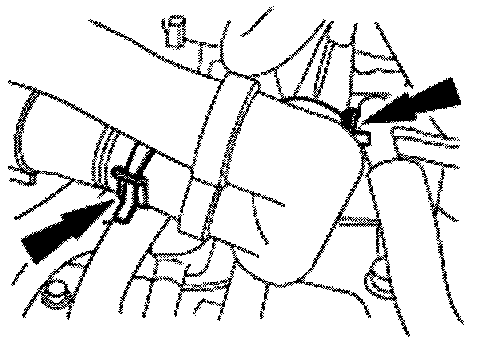

22. Disconnect the upper radiator hose and engine vent hose.






23. Disconnect the transmission10-pin connector.






24. Remove the radiator bypass hose assembly.

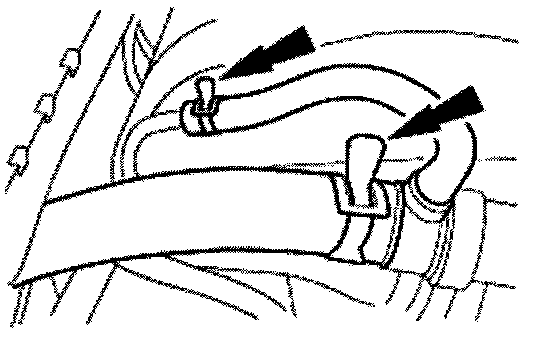

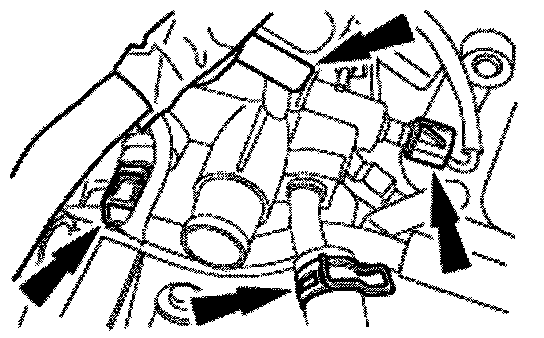

25. Disconnect the engine coolant temperature (ECT) sensor, water temperature sender, heater water hose, and harness locator pin from the bypass tube.






26. Remove the bolt and stud, and the water pump bypass tube.
27. Disconnect the fuel hose spring lock coupling. Service and Repair






28. Disconnect the fuel injector electrical connectors.

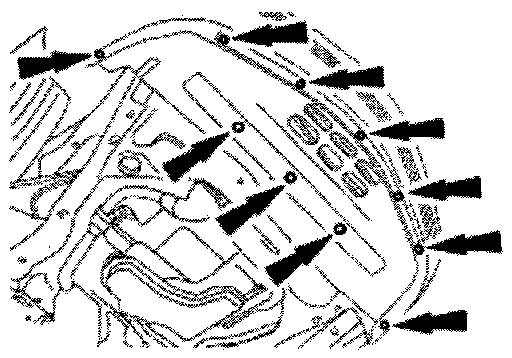

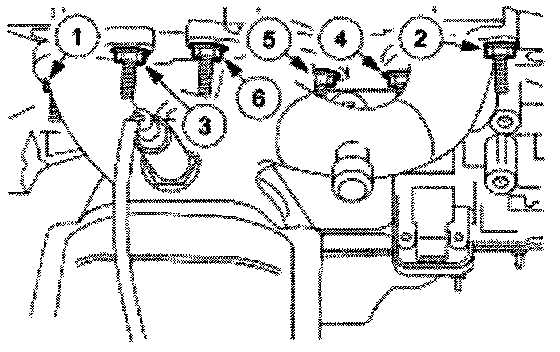

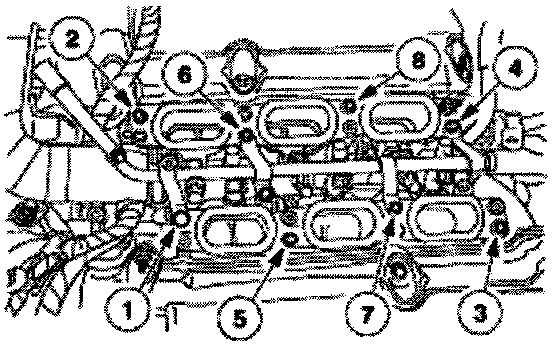

29. Remove the bolts in the sequence shown, and remove the lower intake manifold.
30. Remove and inspect the gaskets from the lower intake manifold.

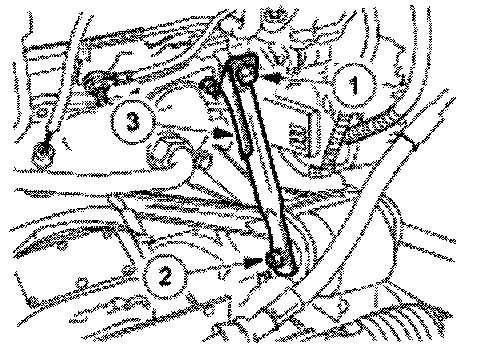

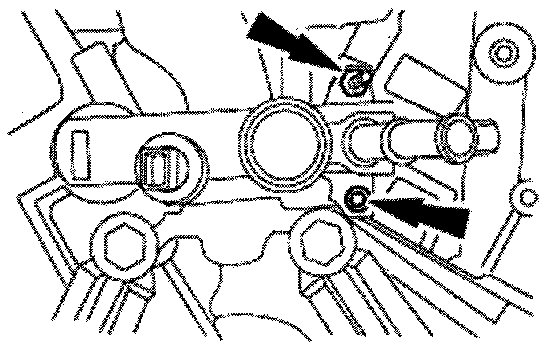

31. Remove the rear support brace.
1. Remove the bolt.
2. Remove the nut.
3. Remove the rear support brace.

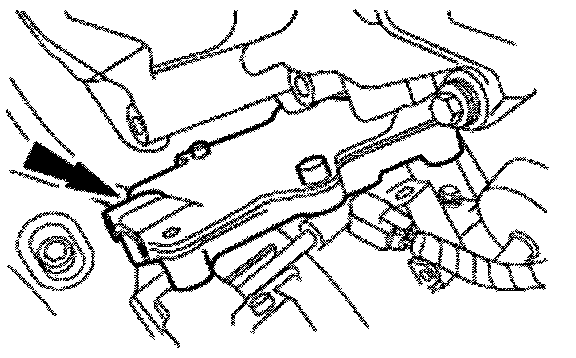

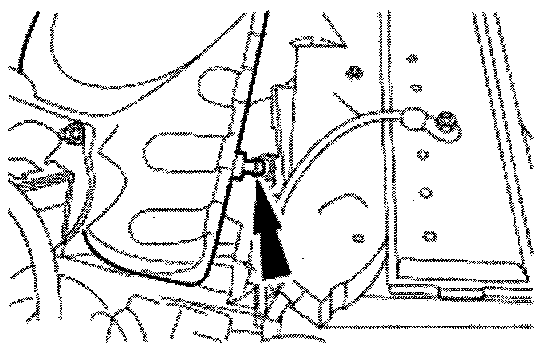

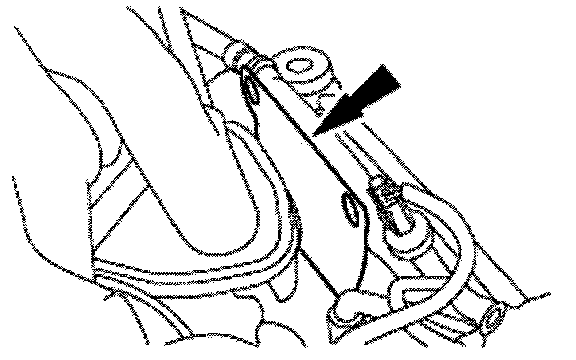

32. Remove the heat shield from the steering gear.

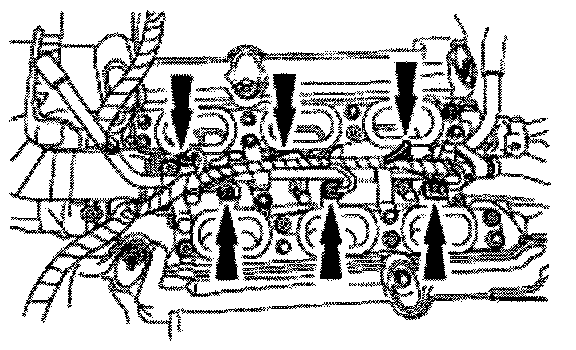

33. Remove the nuts in the sequence shown and remove the exhaust manifold.
- Discard the gasket.

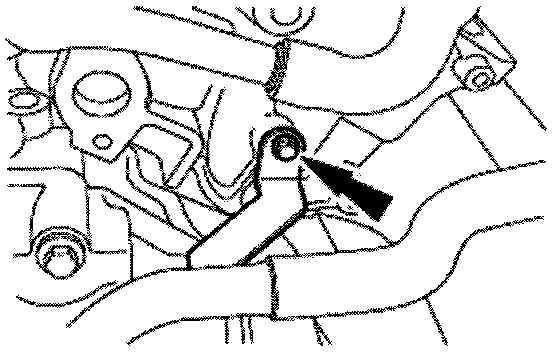

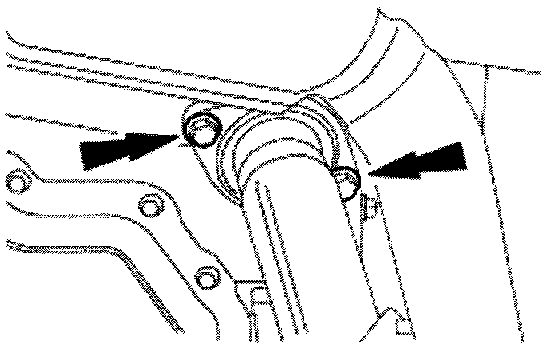

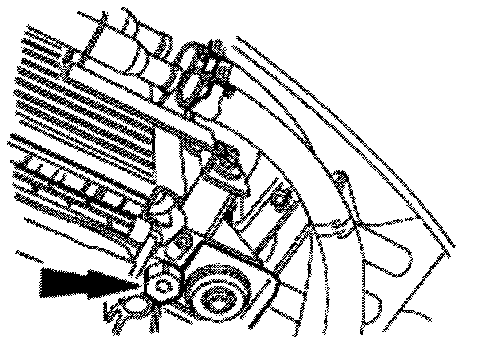

34. Remove the bolt from the water pump coolant tube.

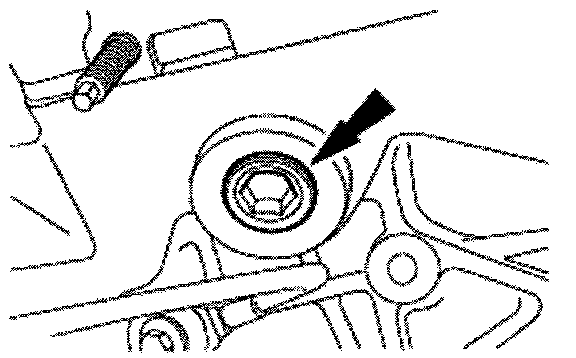

35. Remove the cylinder block drain plug.

Note: New cylinder head bolts must be installed. They are torque-to-yield designed and cannot be reused.

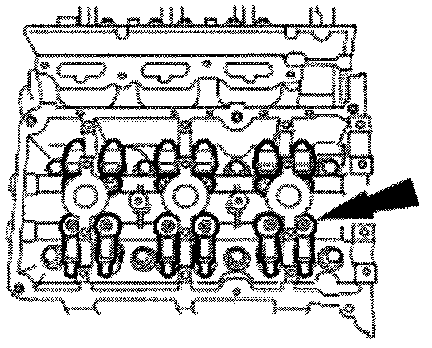

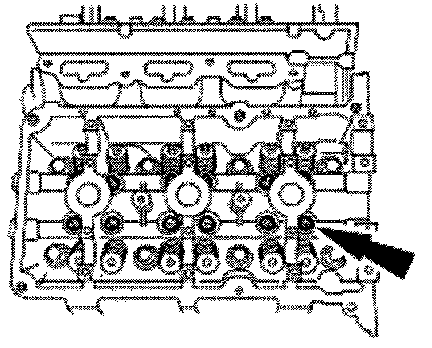

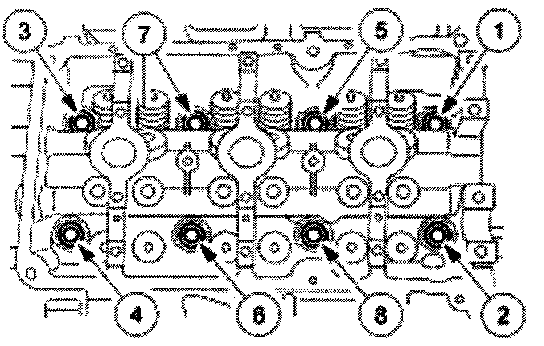

36. Remove the bolts in the sequence shown and remove the cylinder head.
- Discard the gasket and bolts.

Note: The straightedge used must be flat within 0.0051 mm ( 0.0002 in ) per foot of tool length.

37. Support the cylinder head on a bench with the head gasket side up. Inspect all areas of the deck face with a straightedge and feeler gauge. The cylinder head must not have depressions deeper than 0.0254 mm ( 0.001 in ) across a 38.1 mm ( 1.5 in ) square area, or scratches more than 0.0254 mm ( 0.001 in ) deep.
