Rocker Arm Assembly: Service and Repair

Special Tools:

Special Tool(s)


Removal and Installation
1. Remove the LH and RH valve covers.

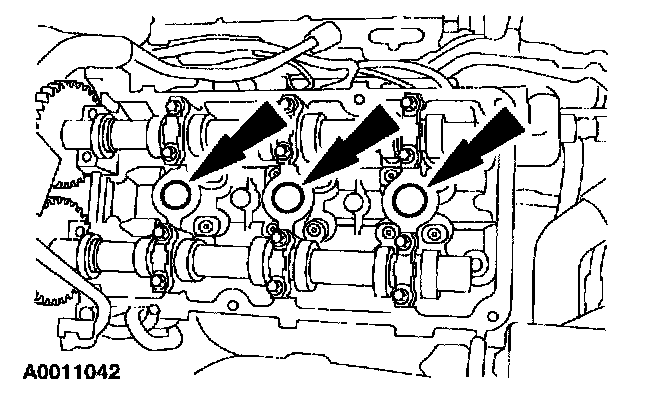

2. NOTE: LH shown, RH similar.

Remove the LH and RH spark plugs.
3. Remover the RH front wheel.





4. Remove the screws, the pin-type retainers, and the RH front inner fender splash shield.
5. Rotate the crankshaft until the camshaft lobe is pointing directly away from the follower.





6. Using the special tool, remove the follower.
7. To install, reverse the removal procedure.
- Lubricate the camshaft followers with Super Premium SAE 5W-20 Motor Oil XO-5W20-QSP or equivalent meeting Ford specifications WSS-M2C153-H.
