Pulley, Crankshaft

Special Tools:

Special Tool(s)


Removal and Installation
1. Remove the drive belt.
2. Raise and support the vehicle.
3. Remove the RH front wheel.

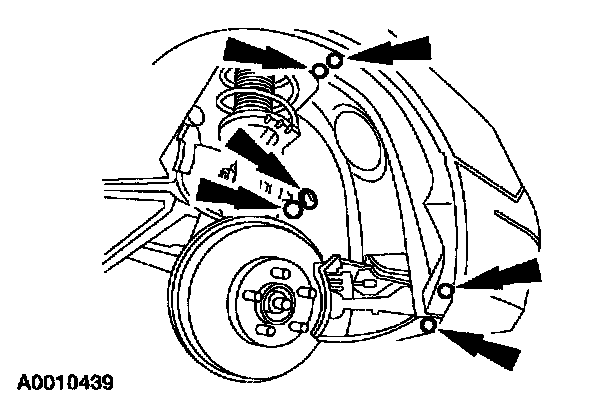

4. Remove the RH front inner fender splash shield.
- Remove the screws and the pin-type retainers.





5. Remove the torque converter inspection cover.

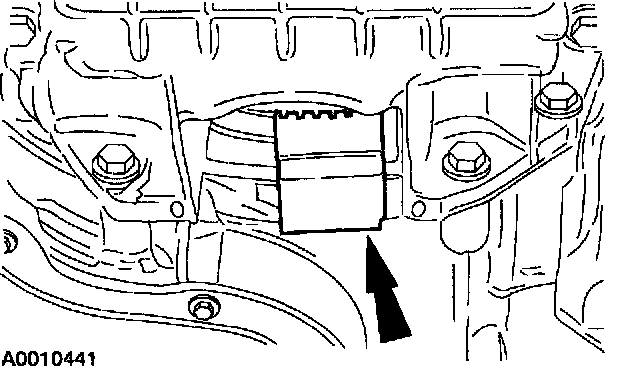

6. Install the flywheel holding tool.





7. NOTE: The pulley has a reverse thread.

Remove the crankshaft pulley.
8. To install, reverse the removal procedure.
