Harmonic Balancer

Special Tools:

Special Tool(s)


Removal
1. Remove the crankshaft pulley.

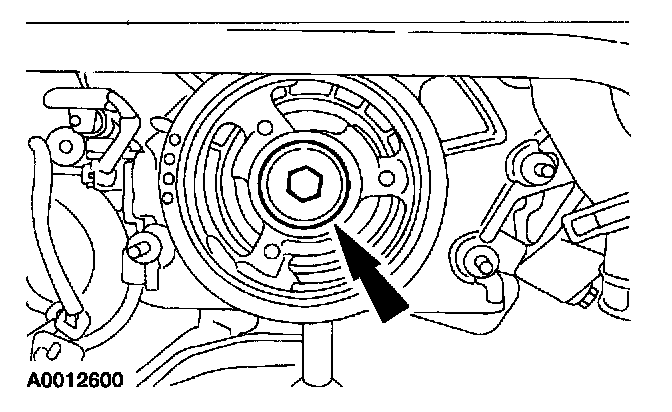

2. Remove the crankshaft damper bolt and washer.

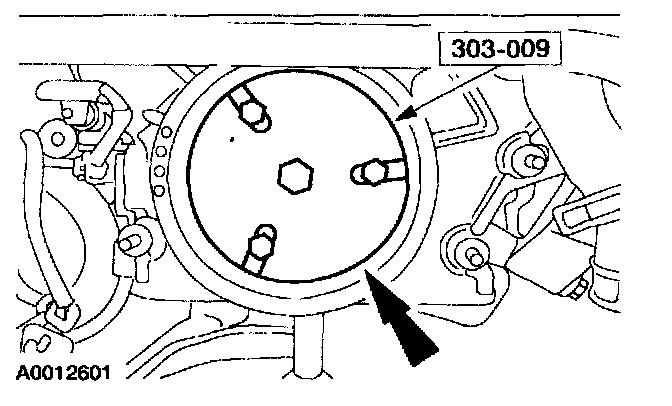

3. Using the special tool, remove the crankshaft damper.


Installation





1. NOTE: Seal surfaces must be free of dirt and oil.

Apply Silicone Gasket and Sealant F7AZ-19554-EA or equivalent, meeting Ford specification WSE-M4G323-A4, to the end of the keyway slot.





2. NOTE: Lubricate the outside diameter sealing surface of the crankshaft pulley with Super Premium SAE 5W-20 Motor Oil XO-5W20-QSP or equivalent, meeting Ford specification WSS-M2C153-H.

Using the special tool, install the crankshaft damper.





3. Install the bolt and the washer and tighten in four stages.
- Stage 1: Tighten to 120 Nm (89 ft. lbs.).
- Stage 2: Loosen 360°.
- Stage 3: Tighten to 50 Nm (37 ft. lbs.).
- Stage 4: Tighten 90°.
4. Install the crankshaft pulley.
