ABS Control Module Parameter Identification (PID) Index

ABS Control Module Parameter Identification (PID) Index

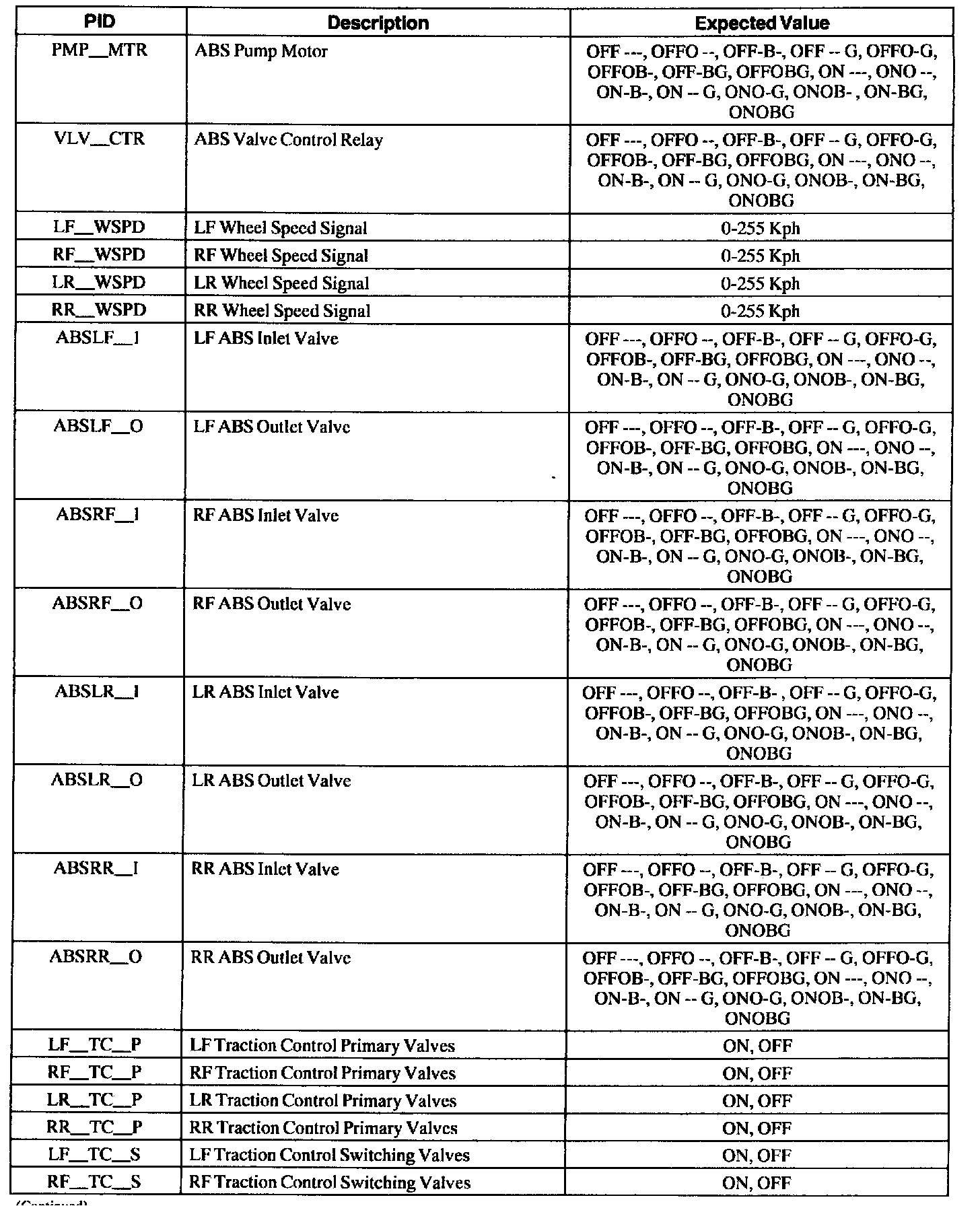

Part 1 of 3

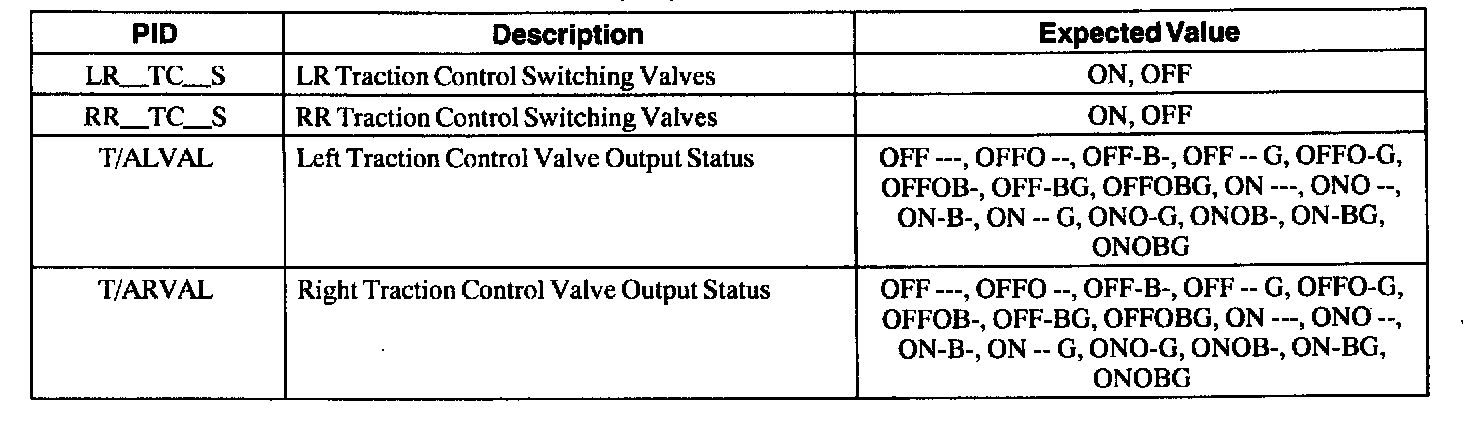

Part 2 of 3

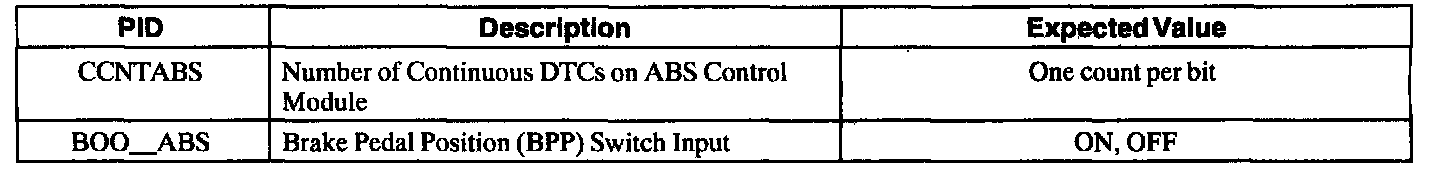

Part 3 of 3
