Removal and Replacement

PARCEL SHELF

Removal and Installation

Late build vehicles







1. Remove the high-mount stoplamp.
- Lift up on the rear of the lamp to disengage the money clip and then pull forward to release the locators.
- Disconnect the electrical connector.

All vehicles
2. Remove the rear seat backrest and the rear seat cushion.

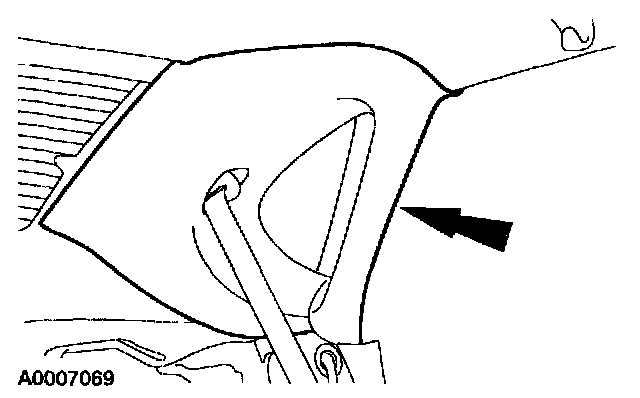

3. Remove the LH and RH roof trim panels.

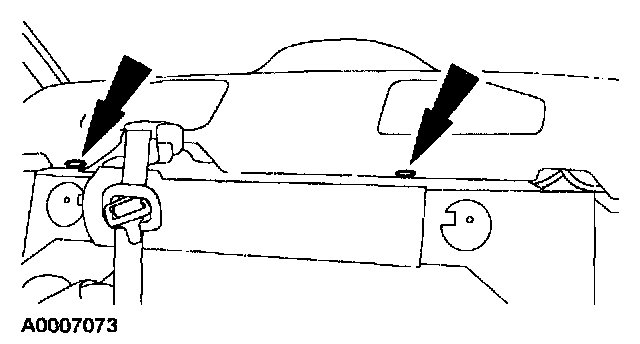

4. Remove the pin-type retainers and the parcel shelf.
5. To install, reverse the removal procedure.
