Procedures

REMOVAL

Late build vehicles

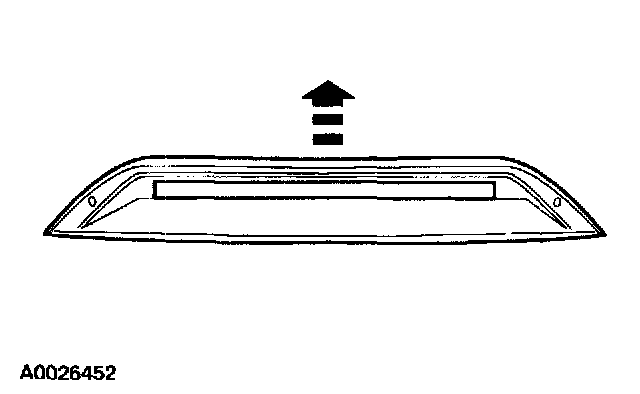

1. Remove the high-mount stoplamp.
- Lift up on the rear of the lamp to disengage the money clip and then pull forward to release the locators.
- Disconnect the electrical connector.

All vehicles
2. Remove the rear seat backrest and the rear seat cushion.







3. Remove the LH and RH roof trim panels.







4. Remove the pin-type retainers and the parcel shelf.

INSTALLATION
1. To install, reverse the removal procedure.
