Removal and Installation

REMOVAL
1. If equipped, remove the Compact Disc (CD) changer.

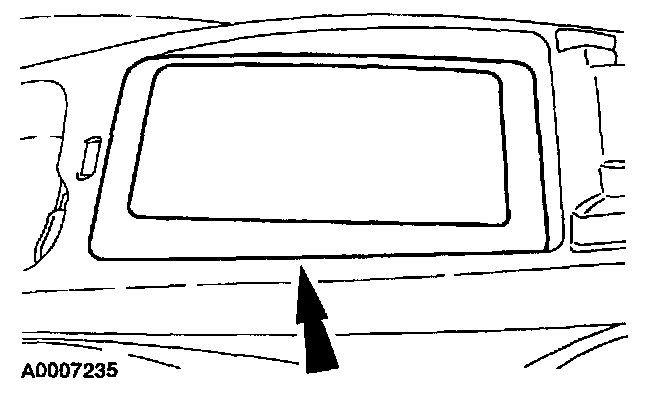

2. If equipped, remove the floor console storage bin.

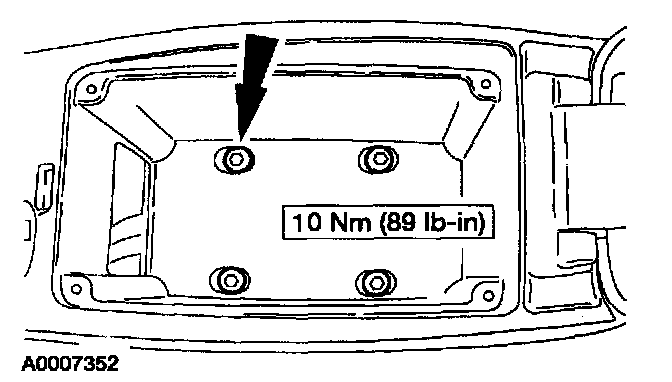

3. Remove the floor console bolts.







4. Remove the floor console finish panel.

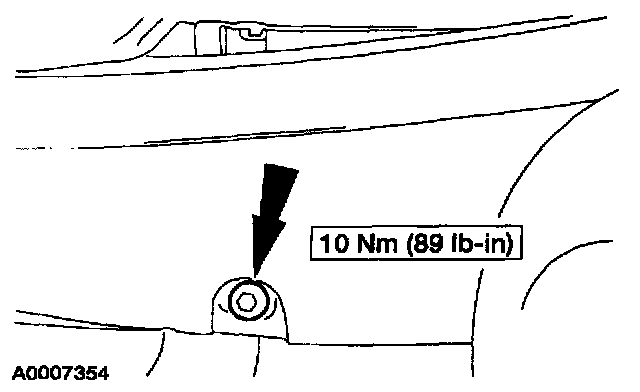

5. Remove the two side floor console bolts.
6. Remove the floor console.

INSTALLATION
1. To install, reverse the removal procedure.
