Wiper Motor Linkage: Service and Repair

REMOVAL
1. Remove the cowl grille.







2. Position the evaporative emission canister purge valve aside.
1 Remove the nuts.
2 Position the valve aside.

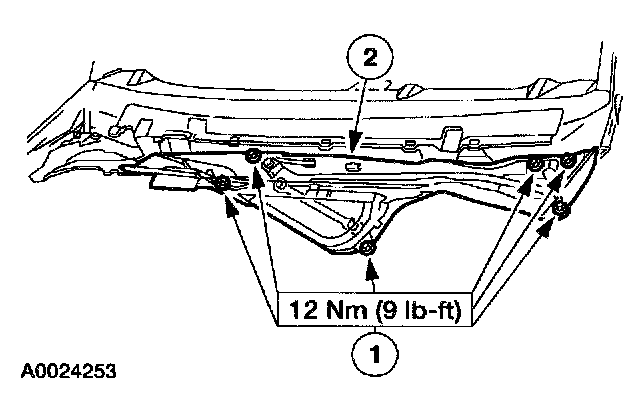

3. Position the mounting arm and pivot shaft aside.
1 Remove the bolts.
2 Position the mounting arm and pivot shaft aside.

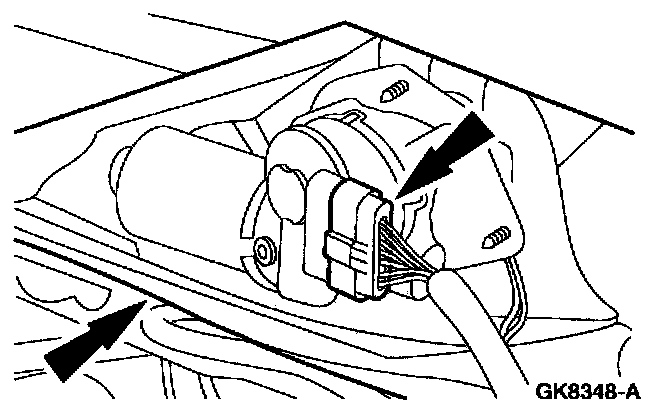

4. Remove the mounting arm and pivot shaft.
^ Disconnect the electrical connector.
^ Disconnect the windshield washer hose.

INSTALLATION
1. To install, reverse the removal procedure.
