Rear Door Window Glass: Service and Repair

REMOVAL
1. Remove the rear door trim panel.







2. Remove the pull strap handle.
3. Remove the watershield.

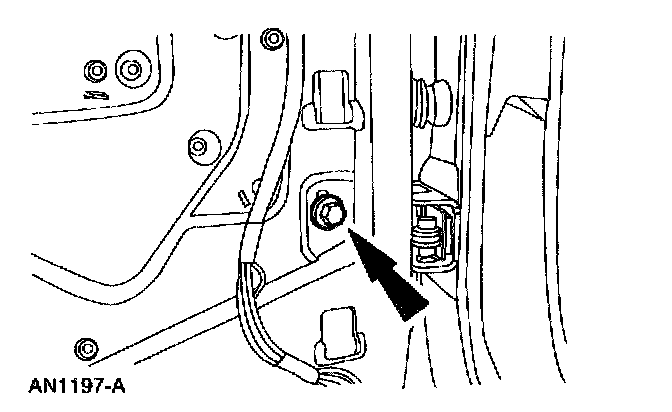

4. Remove the bolt.

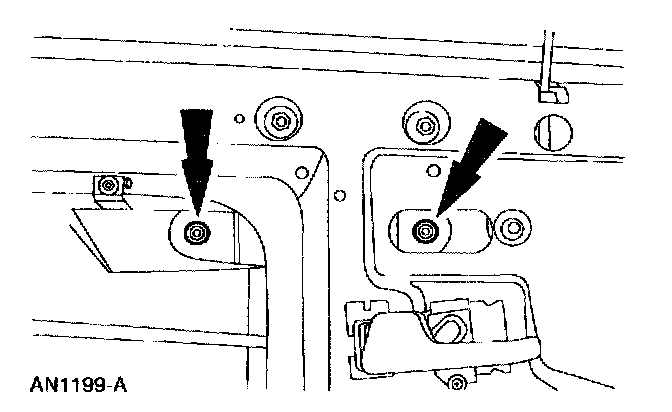

5. Remove the rivets.

CAUTION: Do not attempt to forcibly remove the rivets as damage to the rear door window glass may result. Prior to removing the rivet center pins, it is necessary to place a suitable block support between the door outer panel and the rear door window channel bracket to stabilize the rear door window glass during rivet removal.

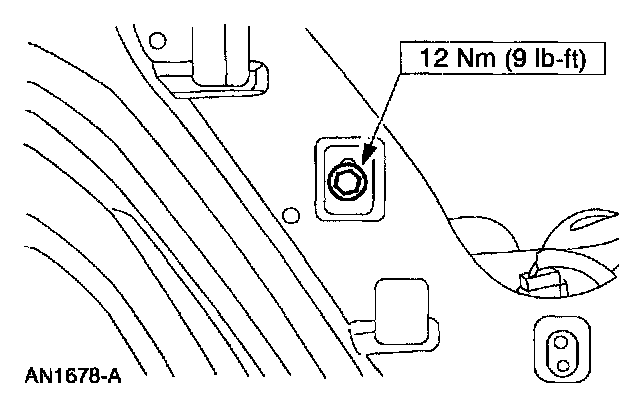

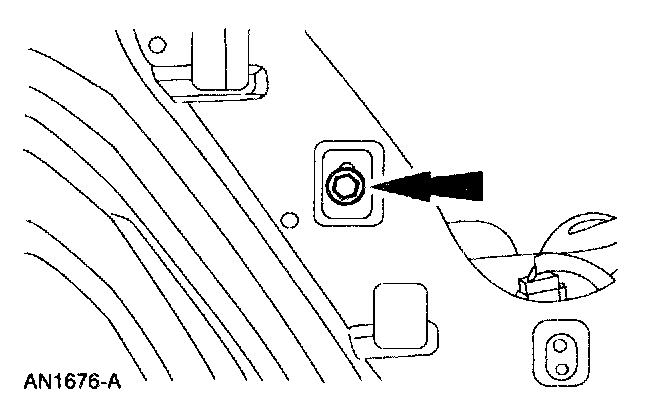

6. Remove the bolt.







7. Remove the rear door window glass.

INSTALLATION












1. To install, reverse the removal procedure.
