Test E: A Single Power Window Is Inoperative - Passenger Front

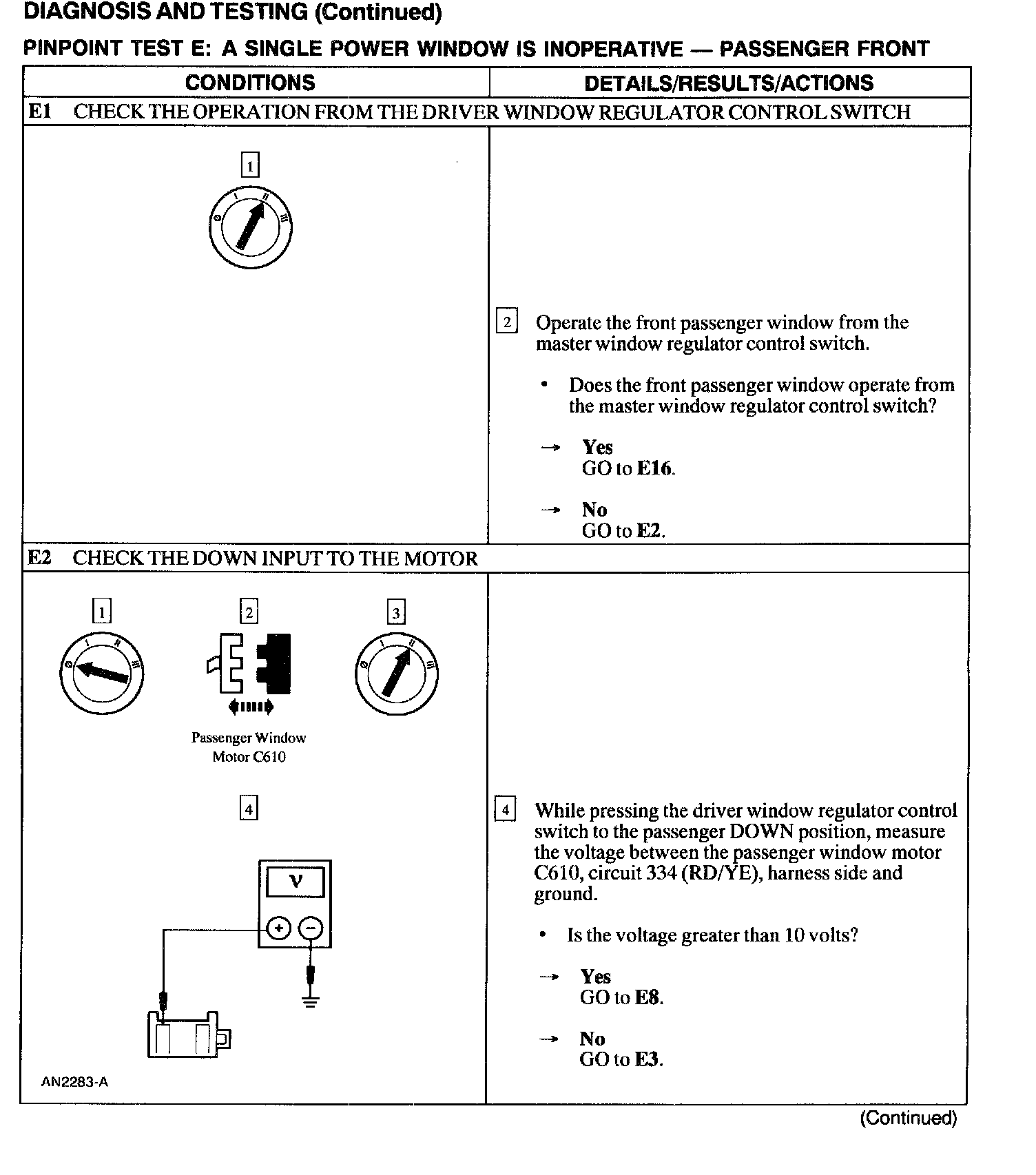

E1 - E2:

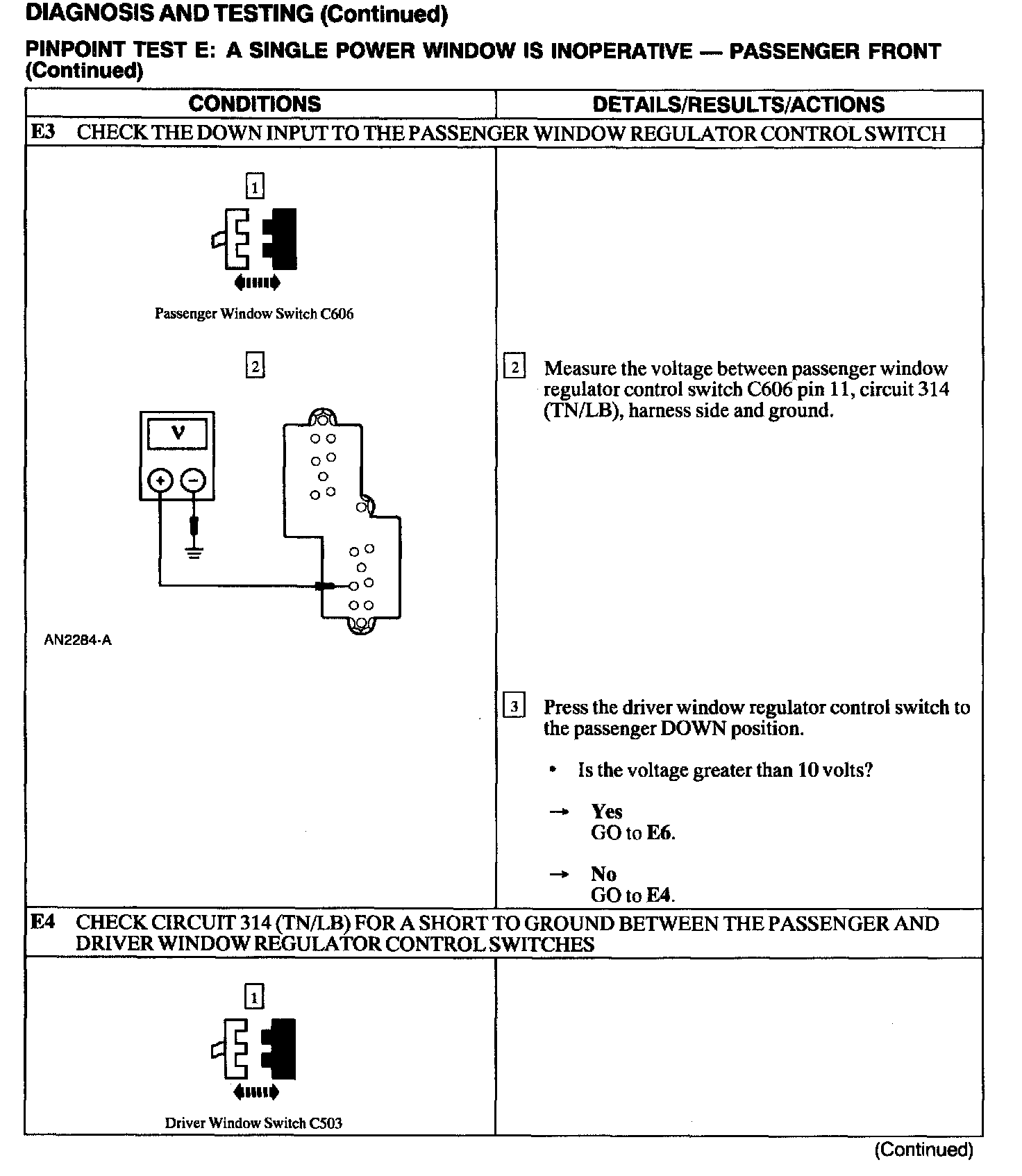

E3 - E4:

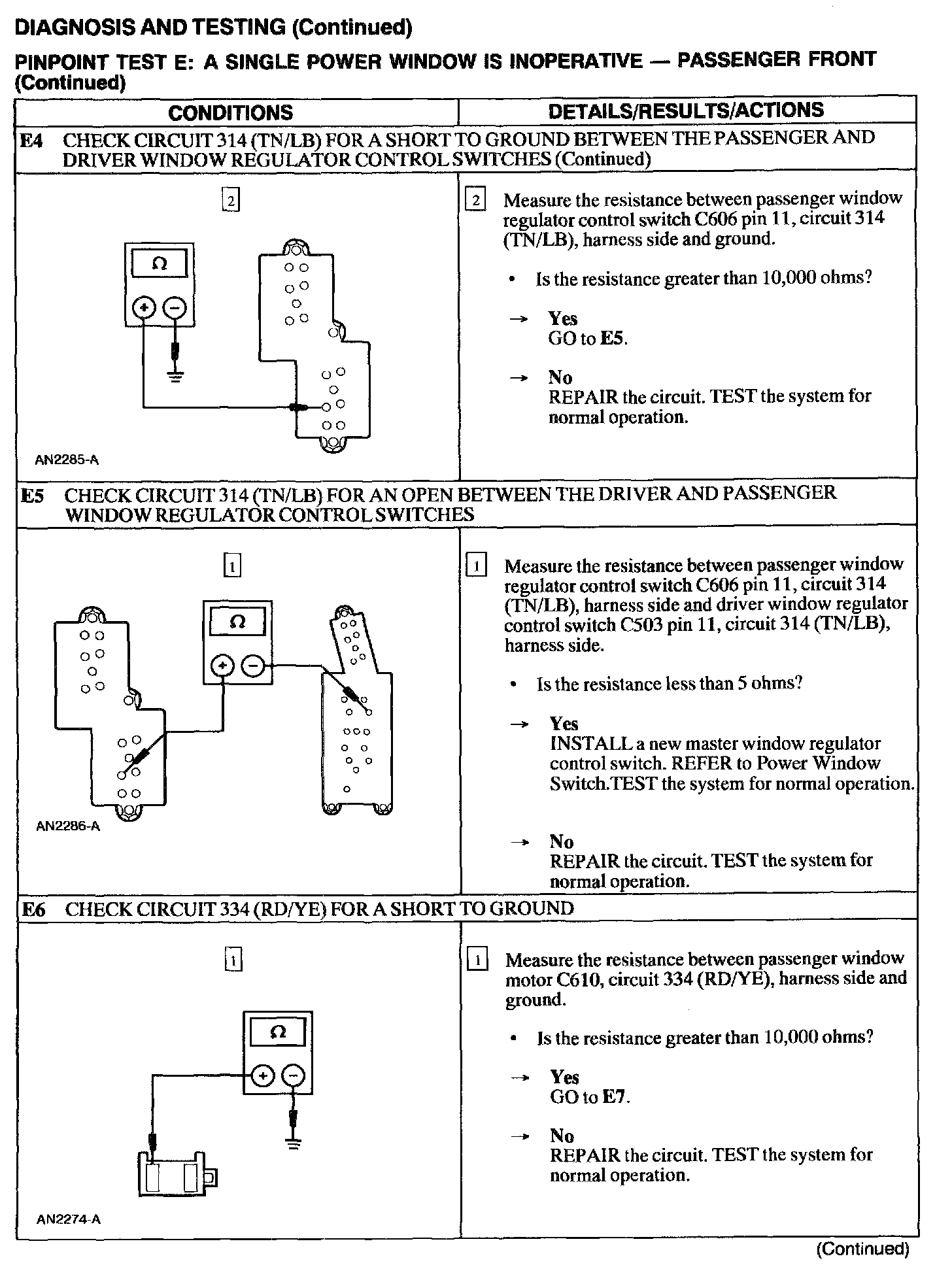

E4 - E6:

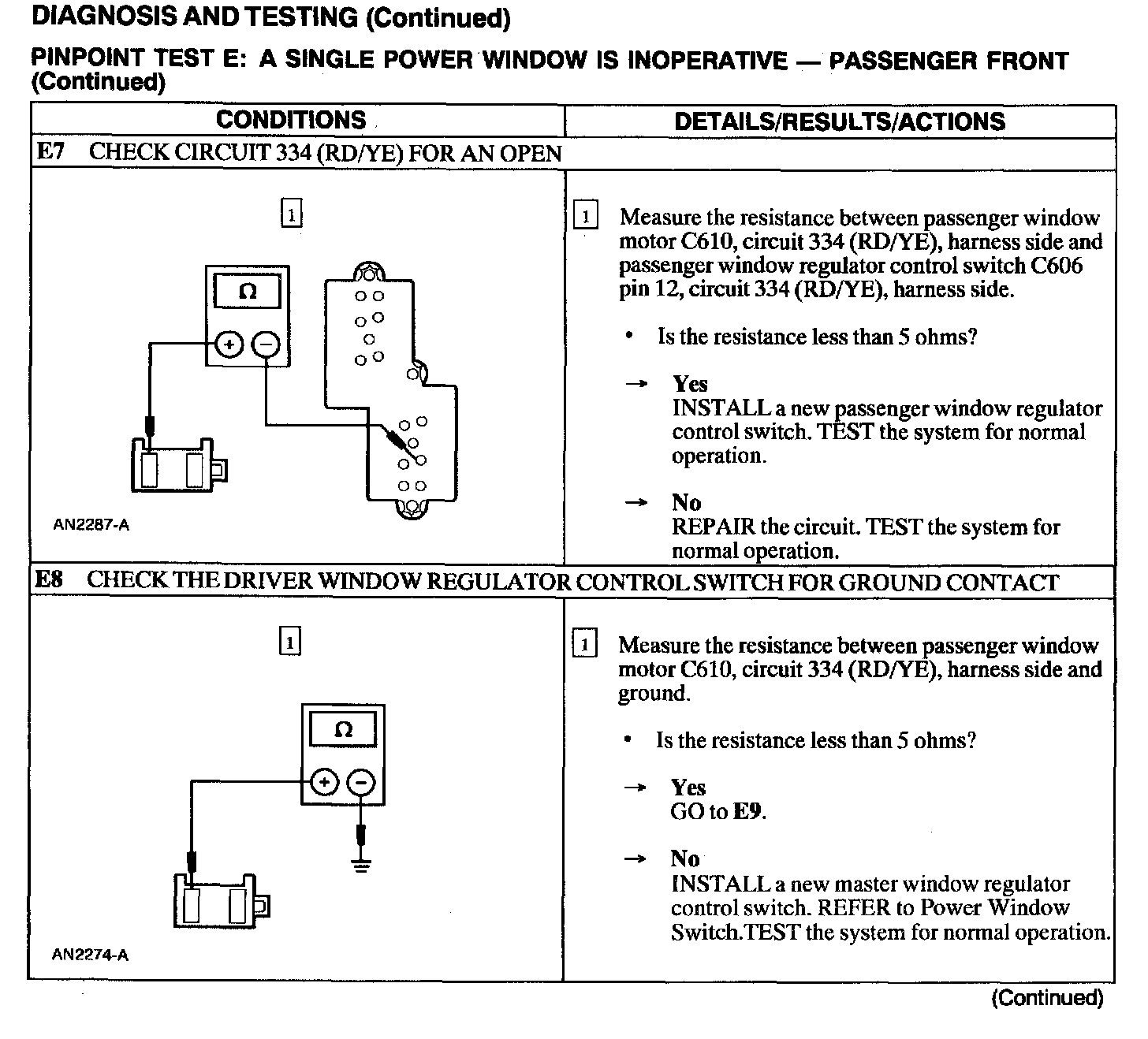

E7 - E8:

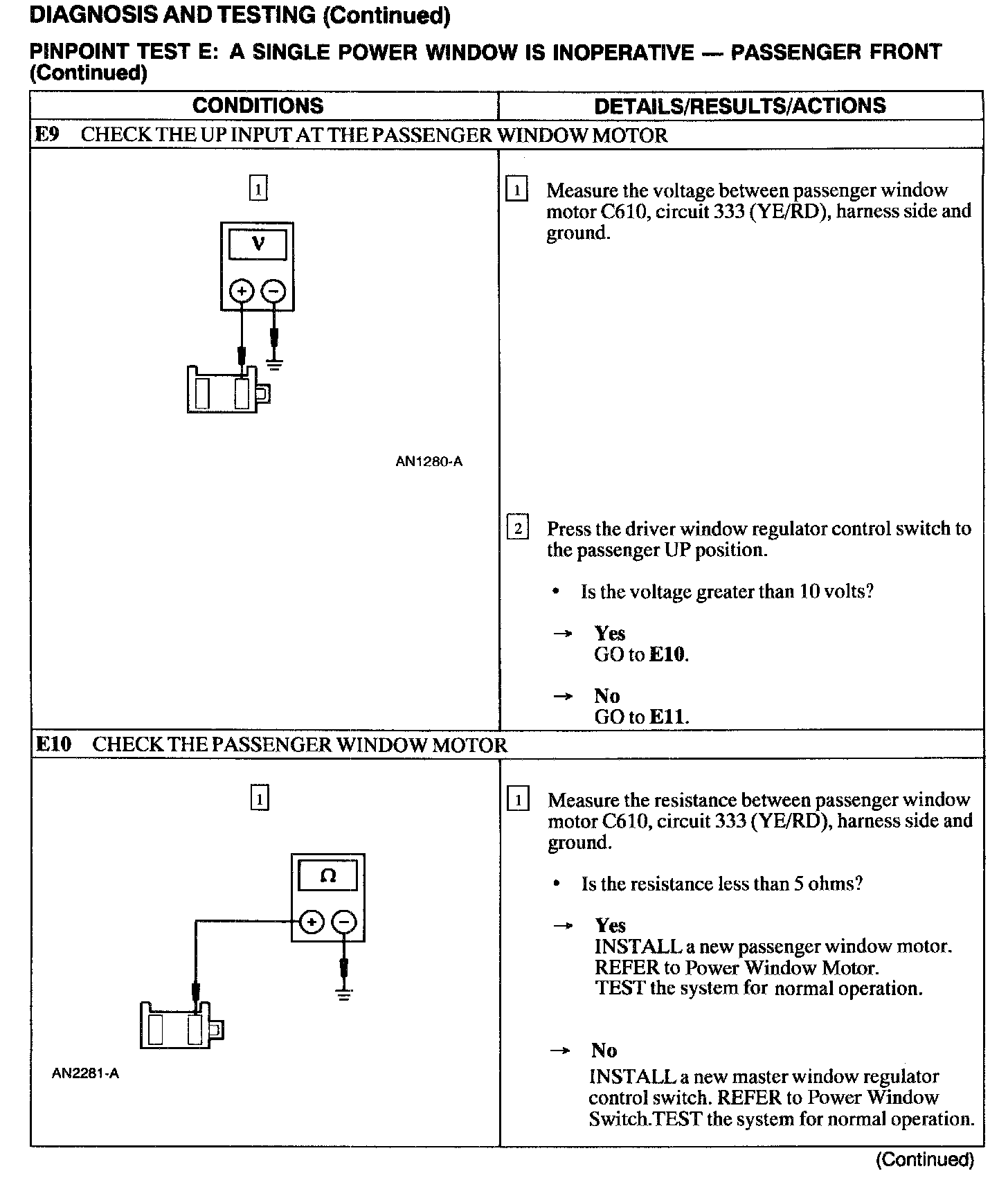

E9 - E10:

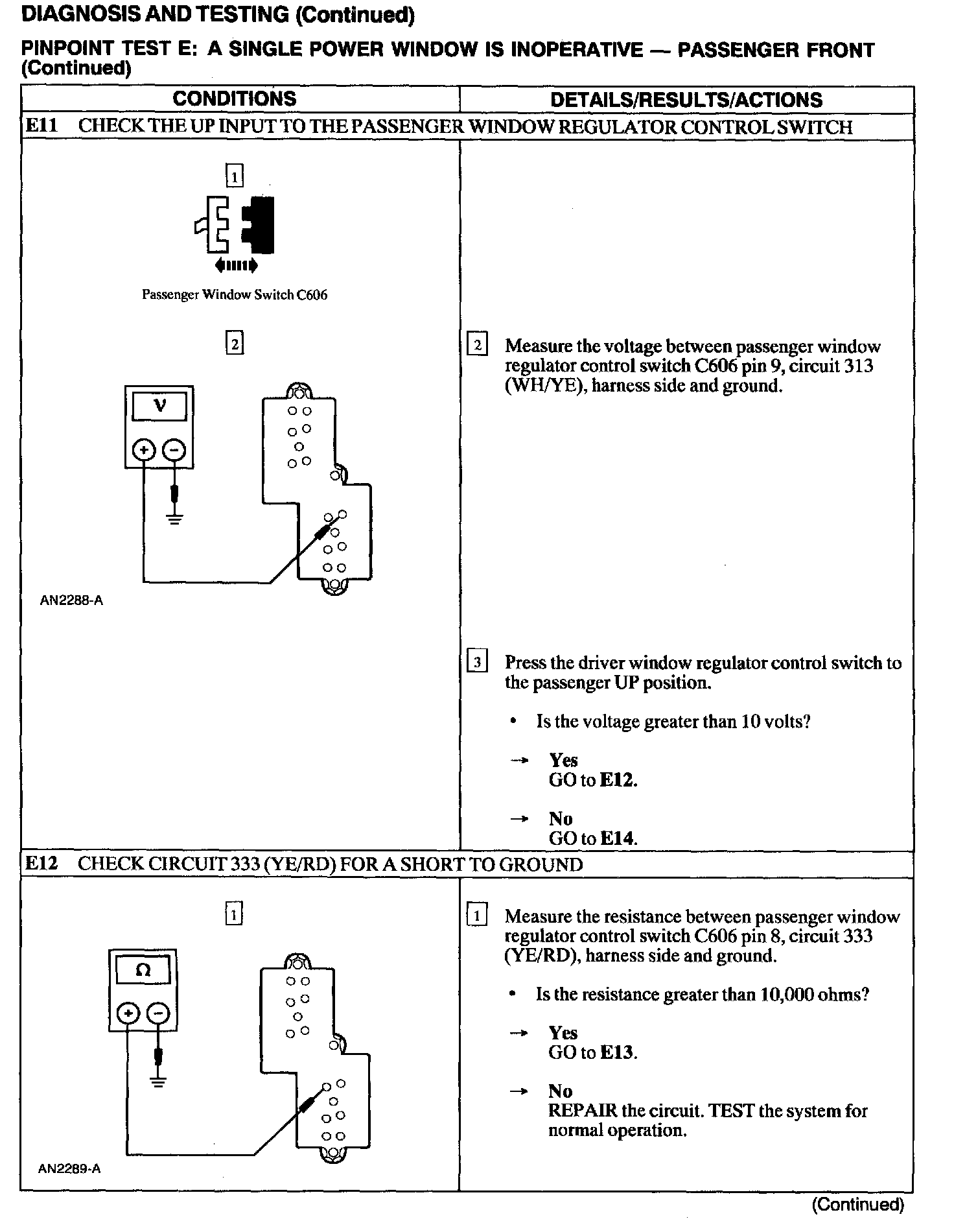

E11 - E12:

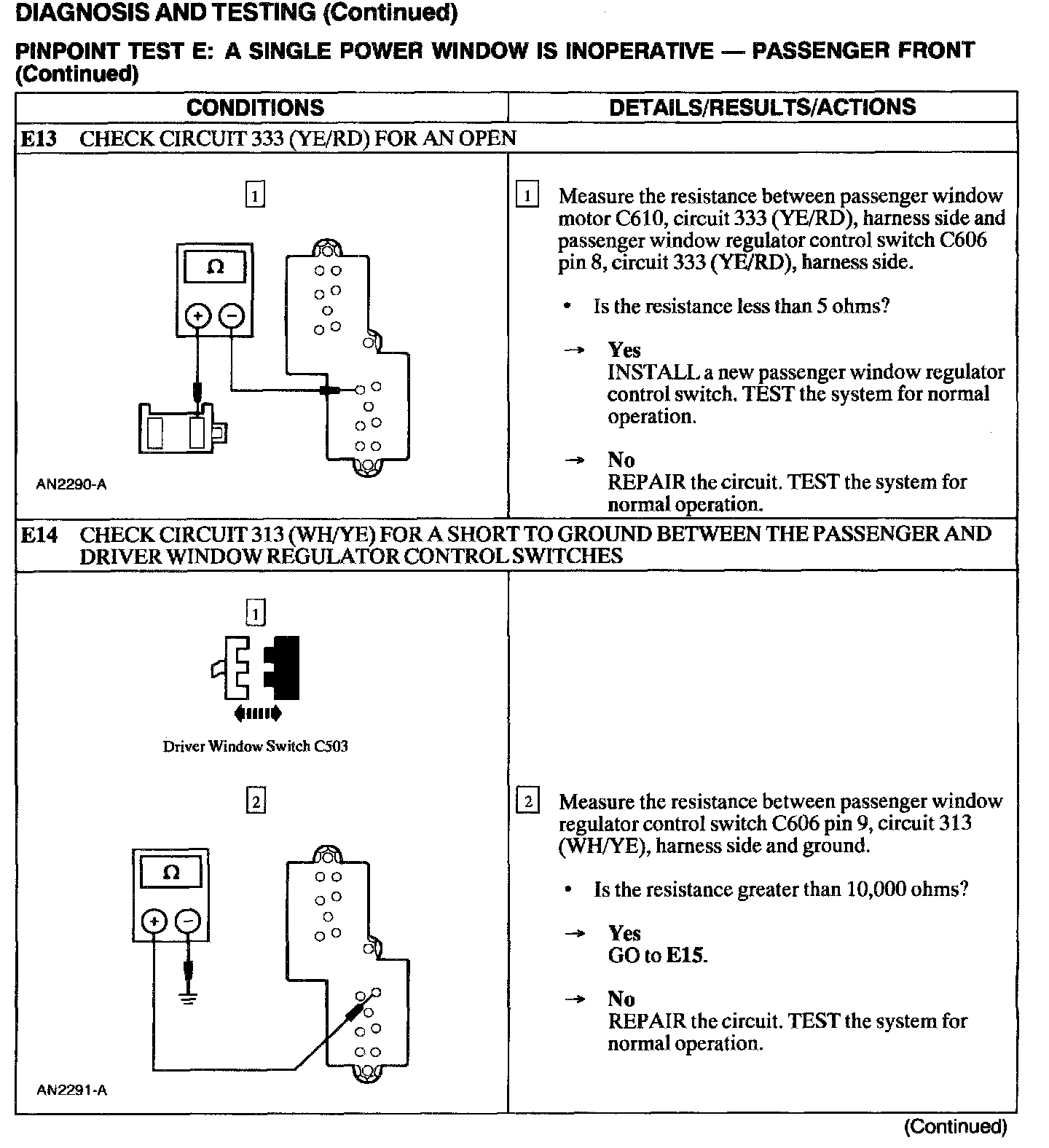

E13 - E14:

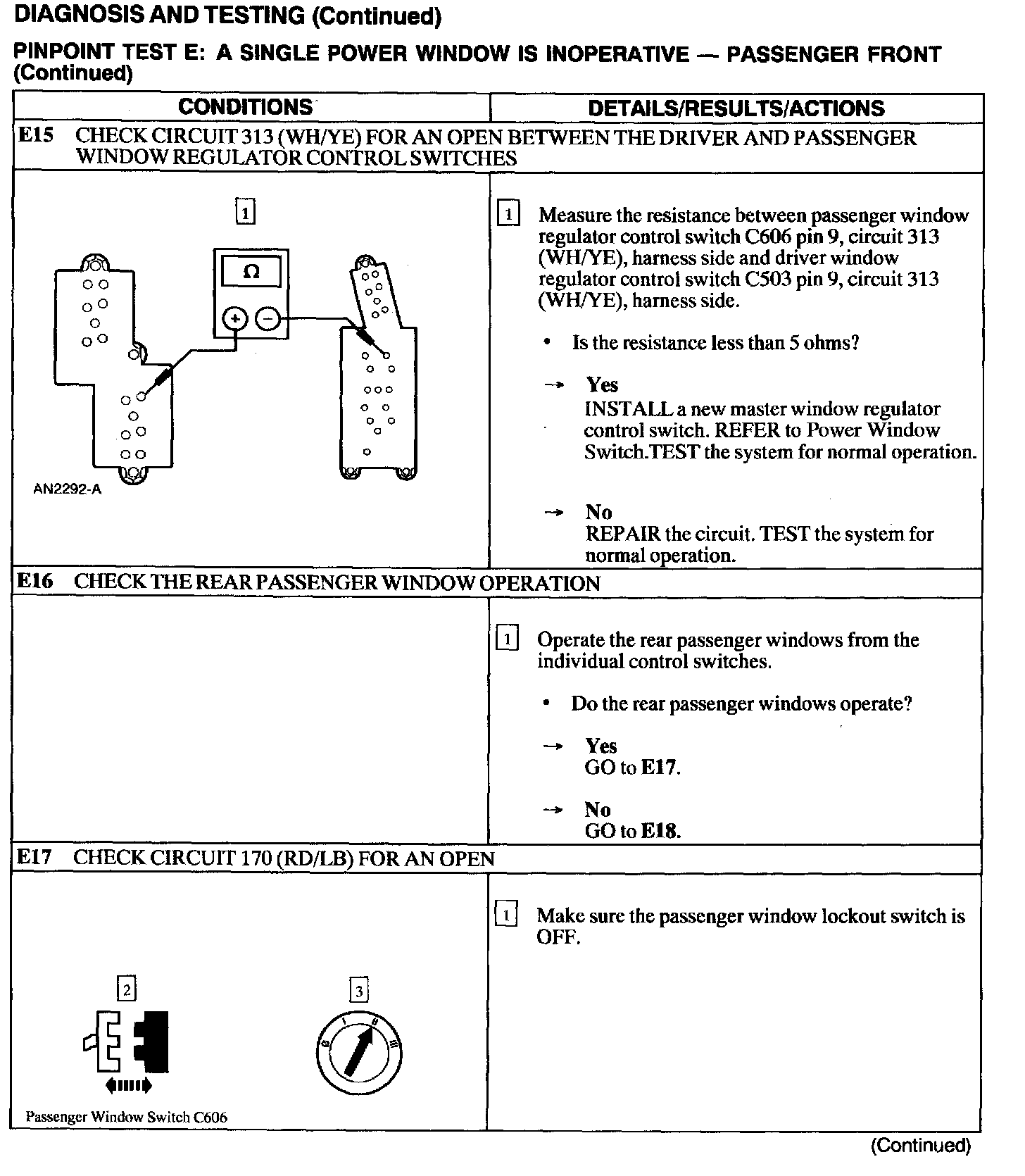

E15 - E17:

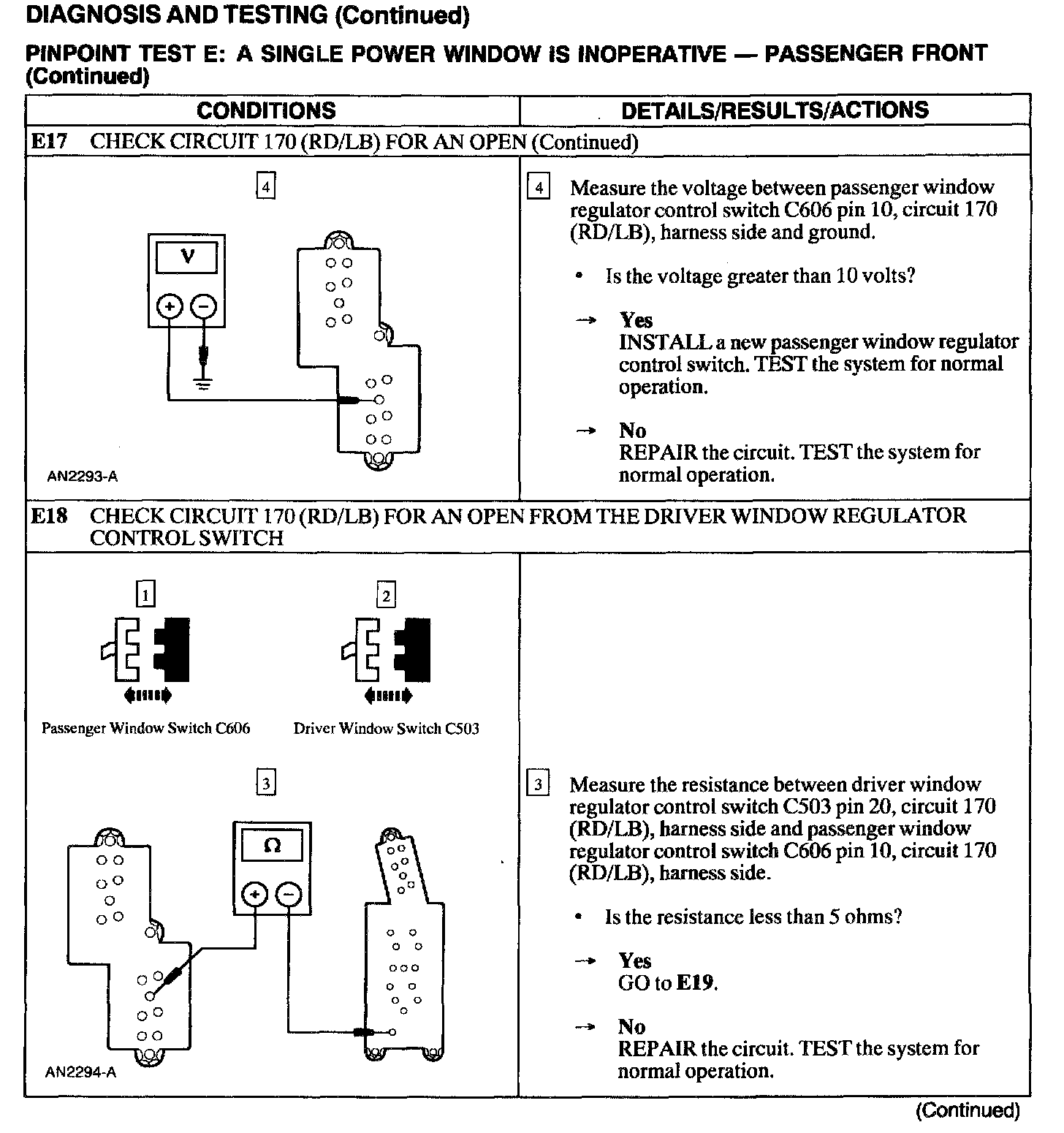

E17 - E18:

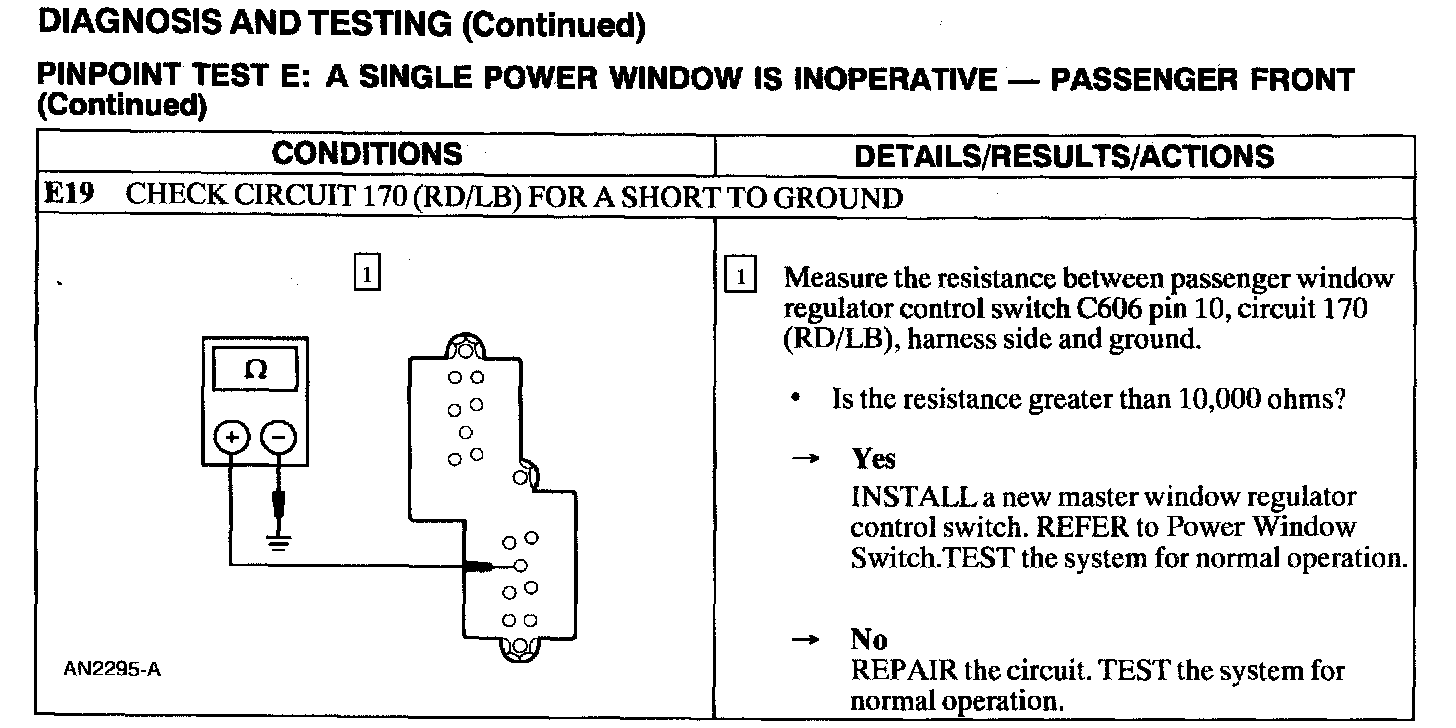

E19:
