Transmission Mount: Service and Repair

Transmission Insulator and Retainer

Removal

1. Remove transmission support crossmember.

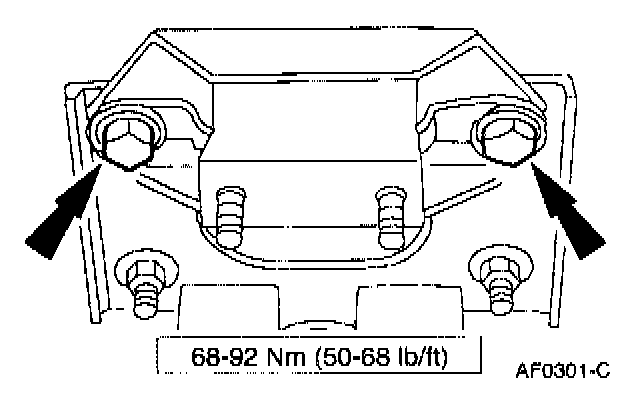

2. Remove the nuts from the transmission support insulator and remove the transmission support insulator.





3. To install, reverse the removal procedure.
