Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 4R70W >> 240-242/340-342 Torque Converter Clutch Operation Concerns >> 242/342: Cycling Shudder/Chatter

242/342: Cycling Shudder/Chatter

Torque Converter Clutch Operation Concerns: Cycling/Shudder/Chatter

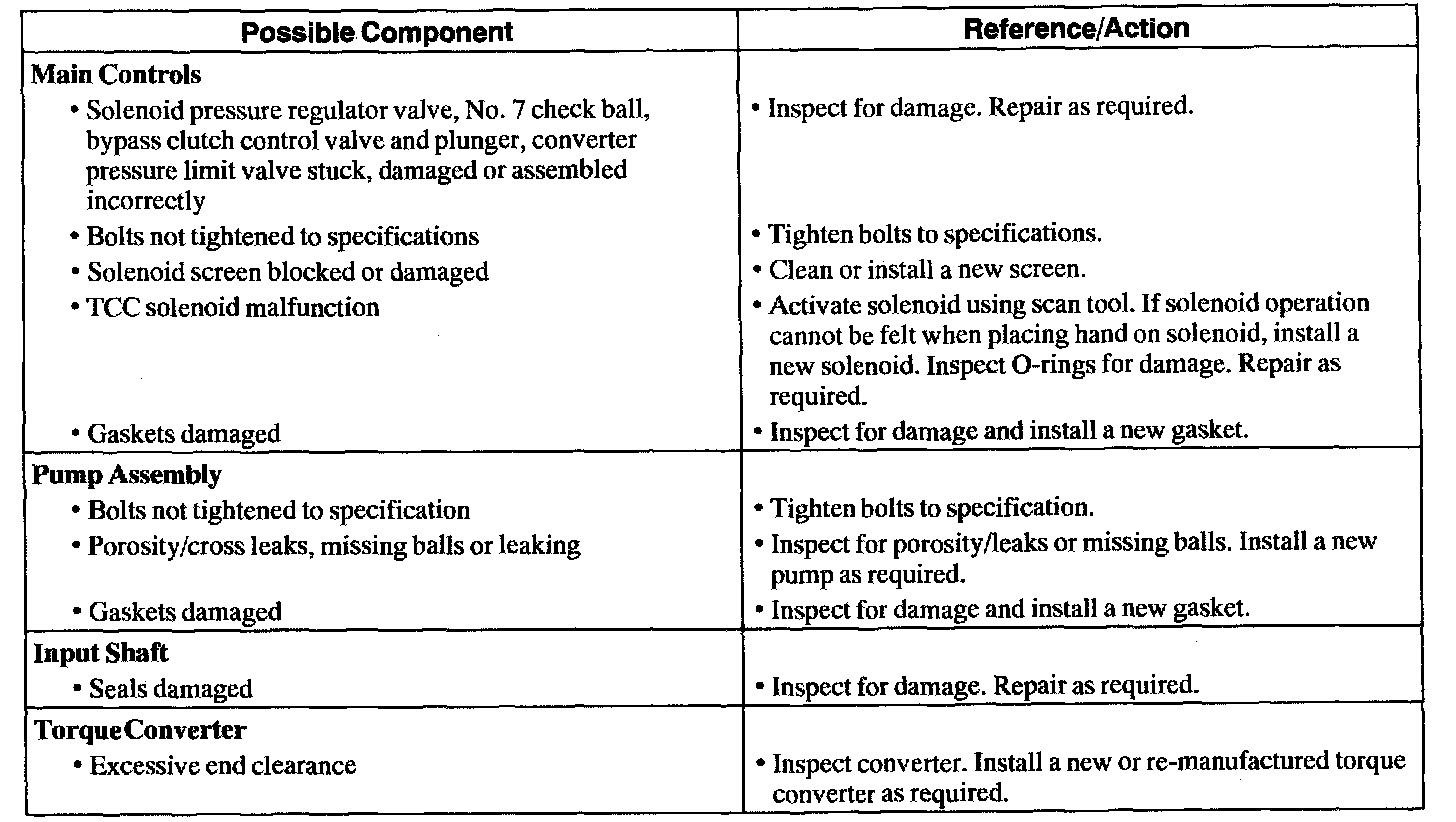

Part 1 of 2

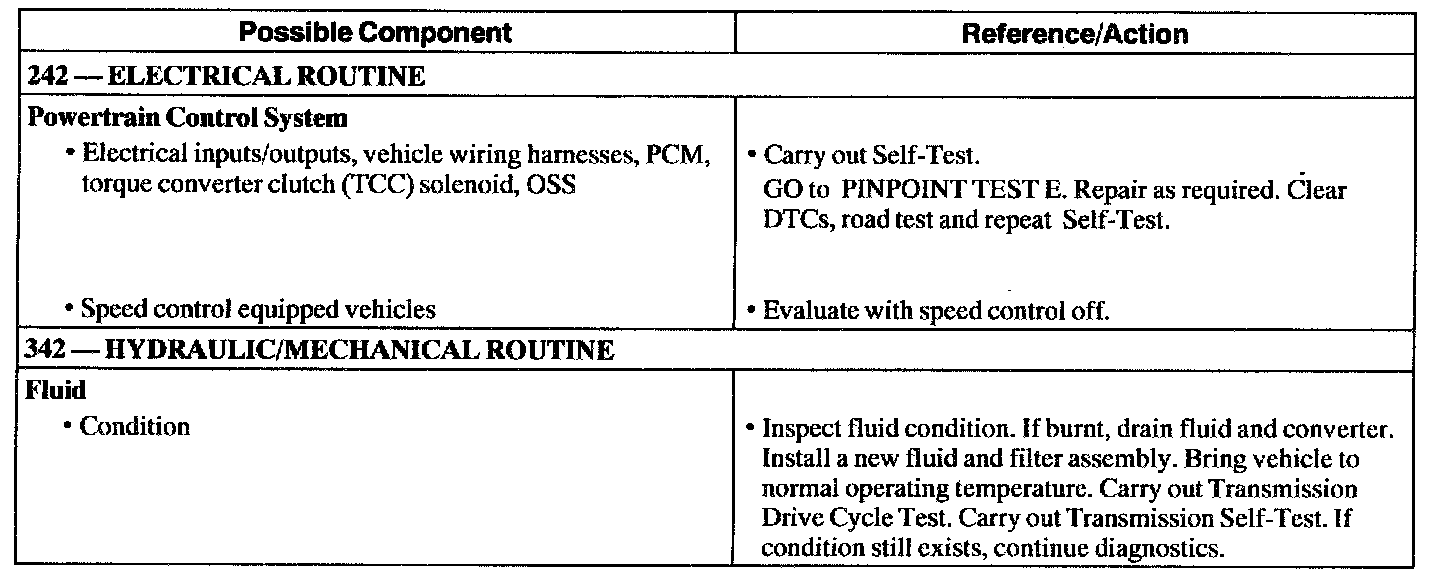

Part 2 of 2
