Test E: Trans Control Indicator Lamp (TCIL) Stays Illuminated

PINPOINT TEST E: THE TRANSMISSION CONTROL INDICATOR LAMP (TCIL) IS ILLUMINATED CONTINUOUSLY





Test E1

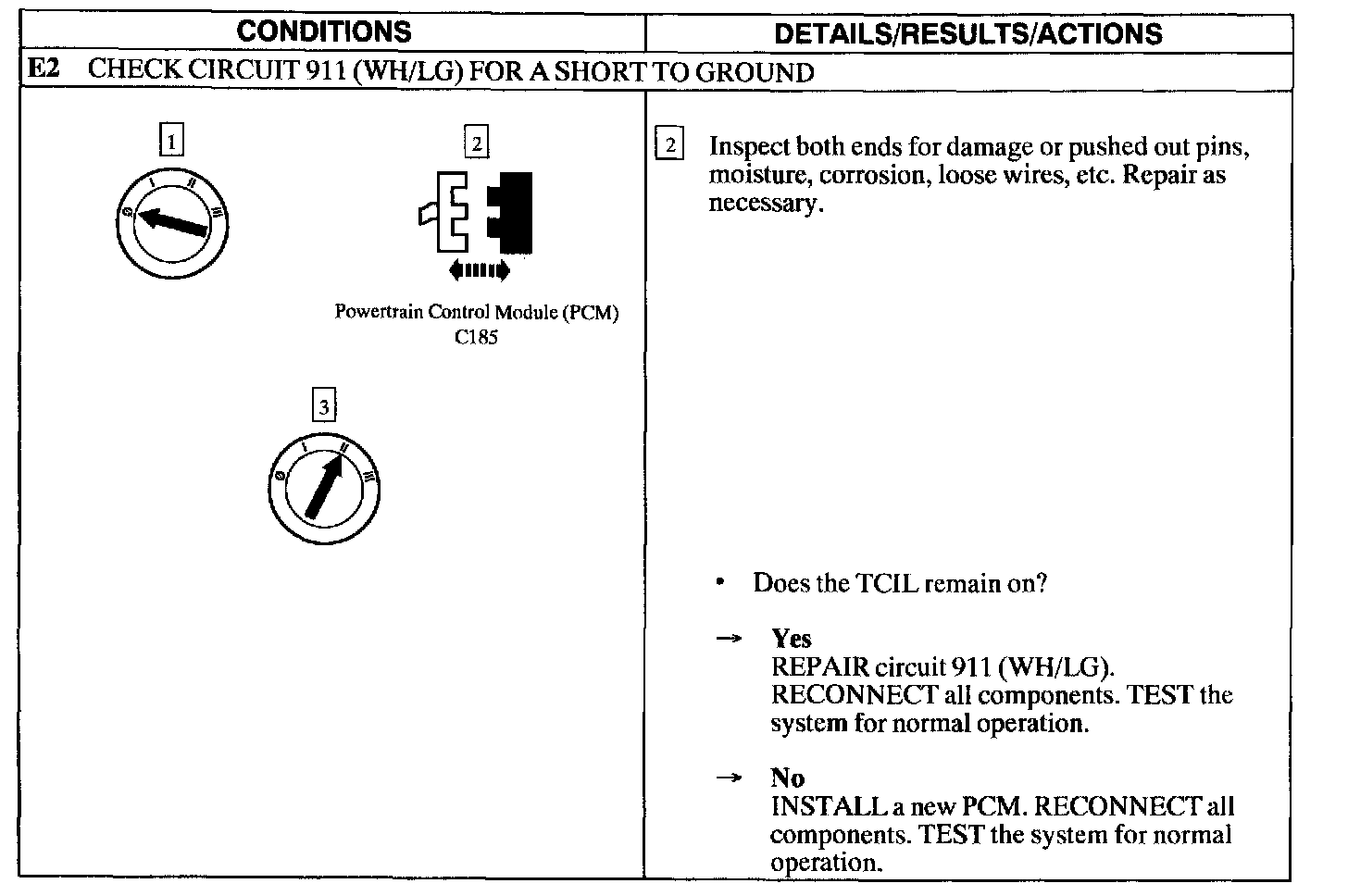

Test E2
