Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - External Controls >> Test C: The Control Linkage Is Binding

Test C: The Control Linkage Is Binding

PINPOINT TEST C: THE CONTROL LINKAGE IS BINDING

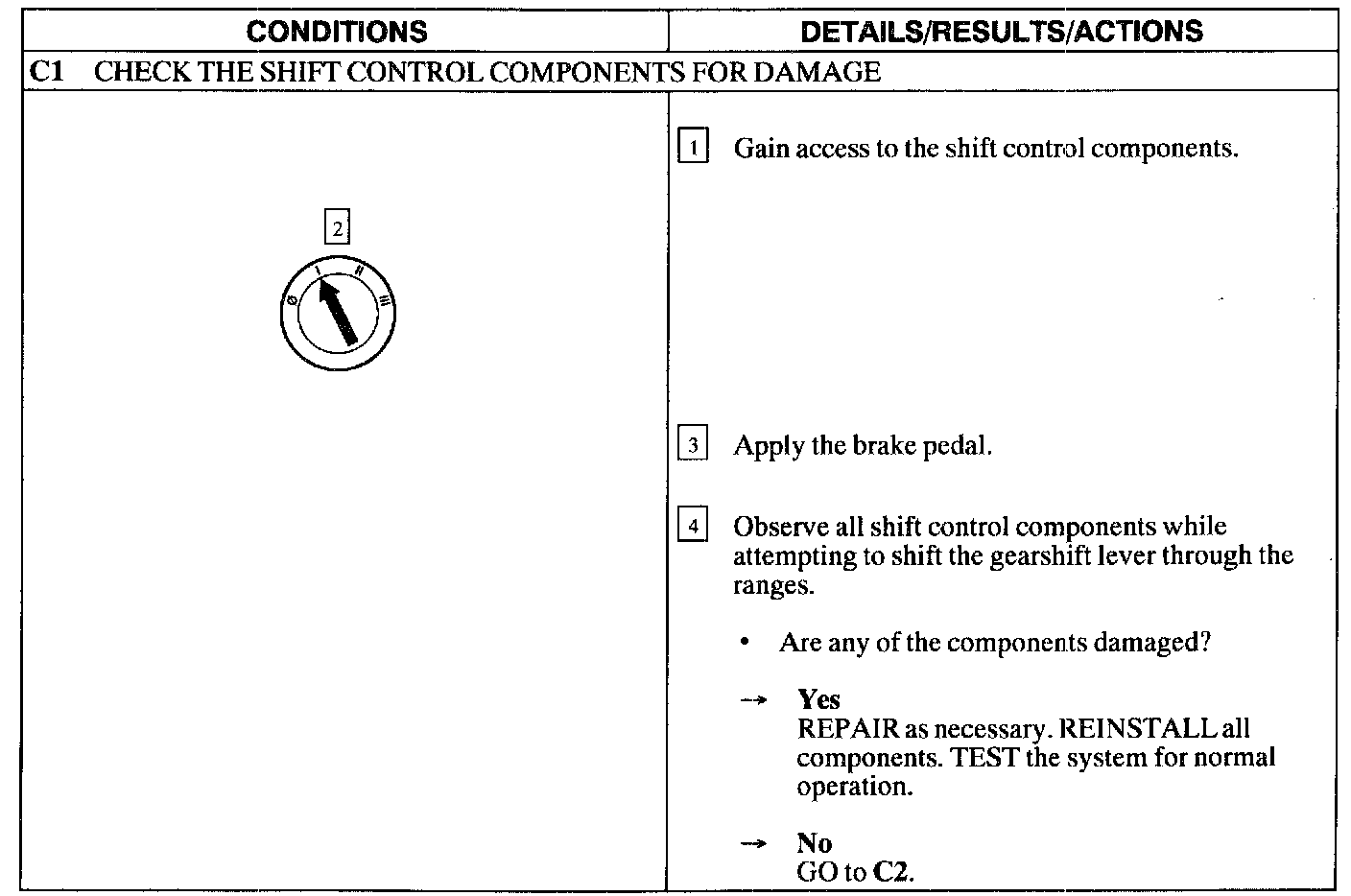

TestC1

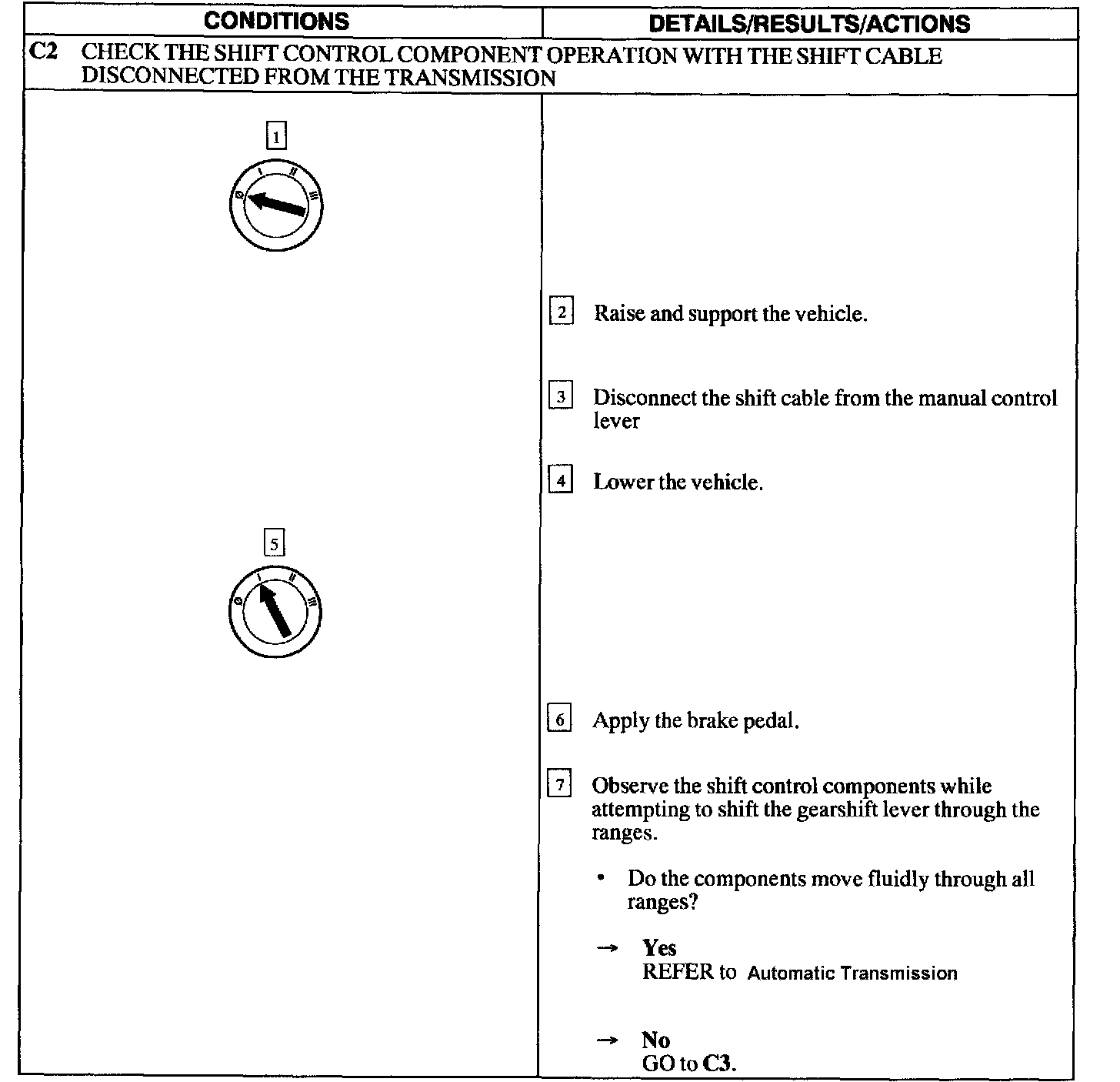

Test C2

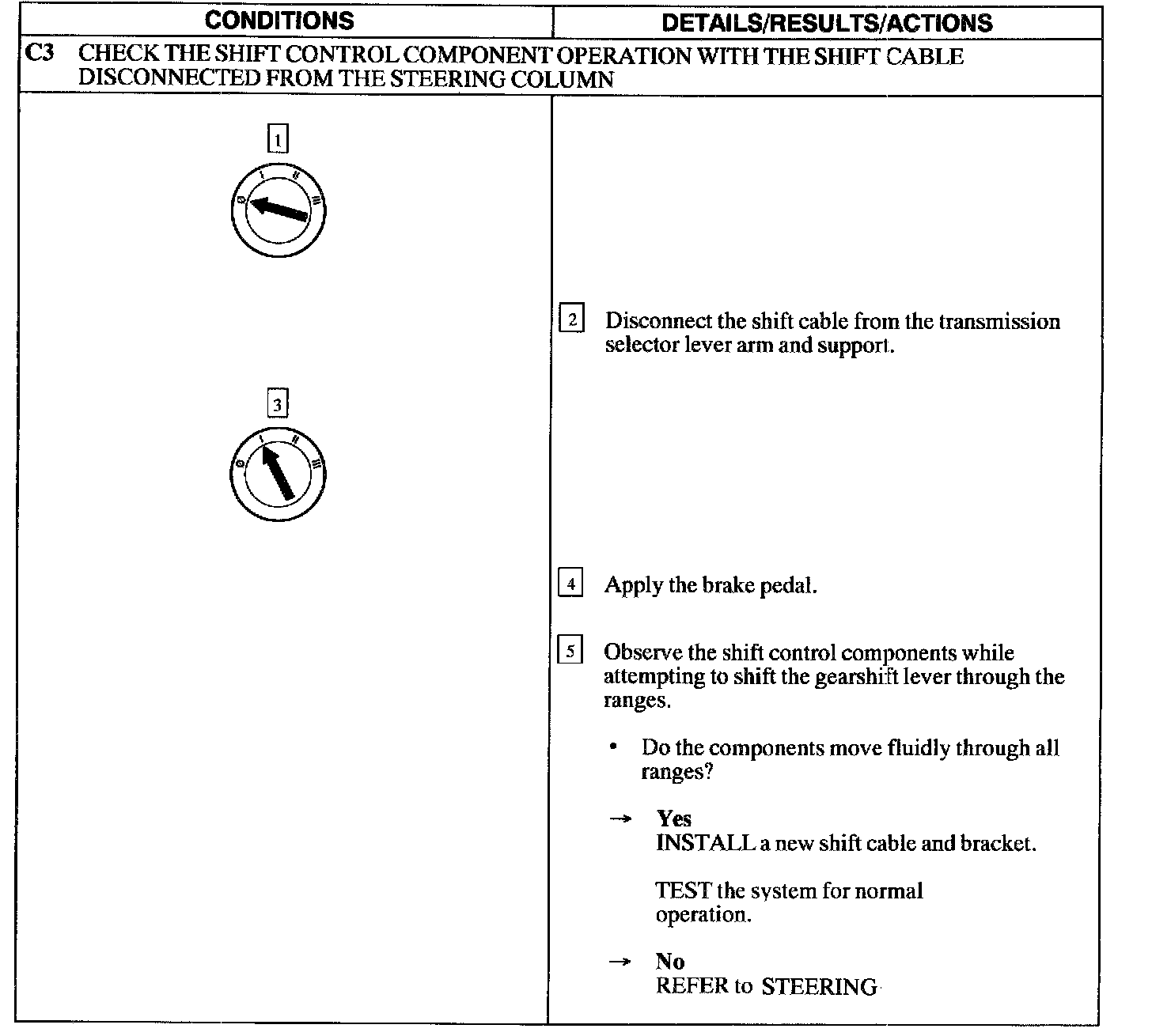

Test C3
