Test A: Shift Interlock System Does Not Release/Lock Correctly
Test A: Shift Interlock System Does Not Release/Lock Correctly
PINPOINT TEST A: THE SHIFT INTERLOCK SYSTEM DOES NOT RELEASE/LOCK CORRECTLY

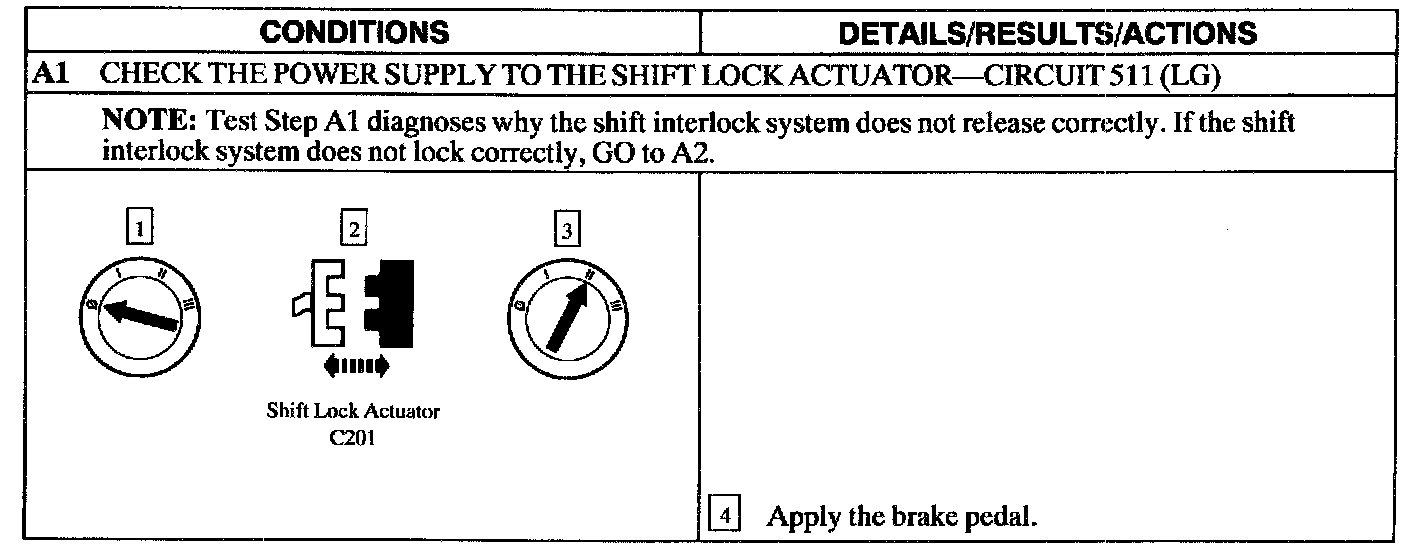

Test A1
Test A1-A3

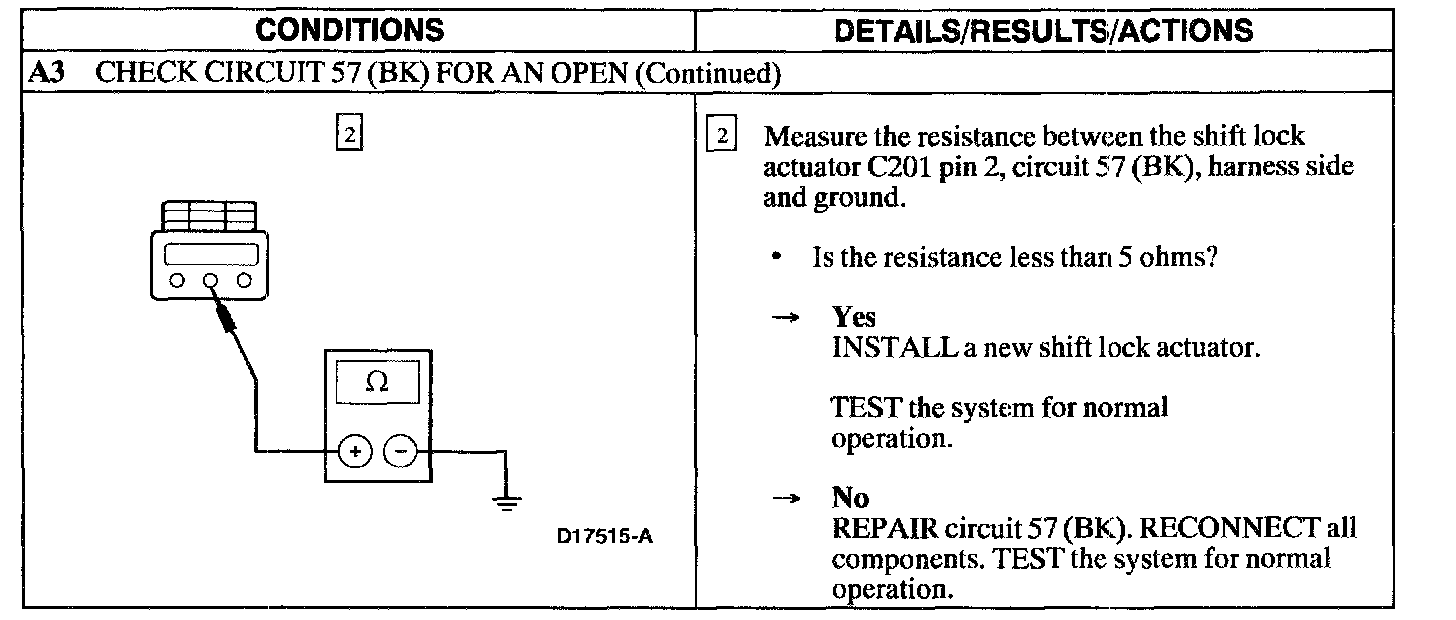

Test A3
