Transmission Connector Layouts

Transmission Connector Layouts

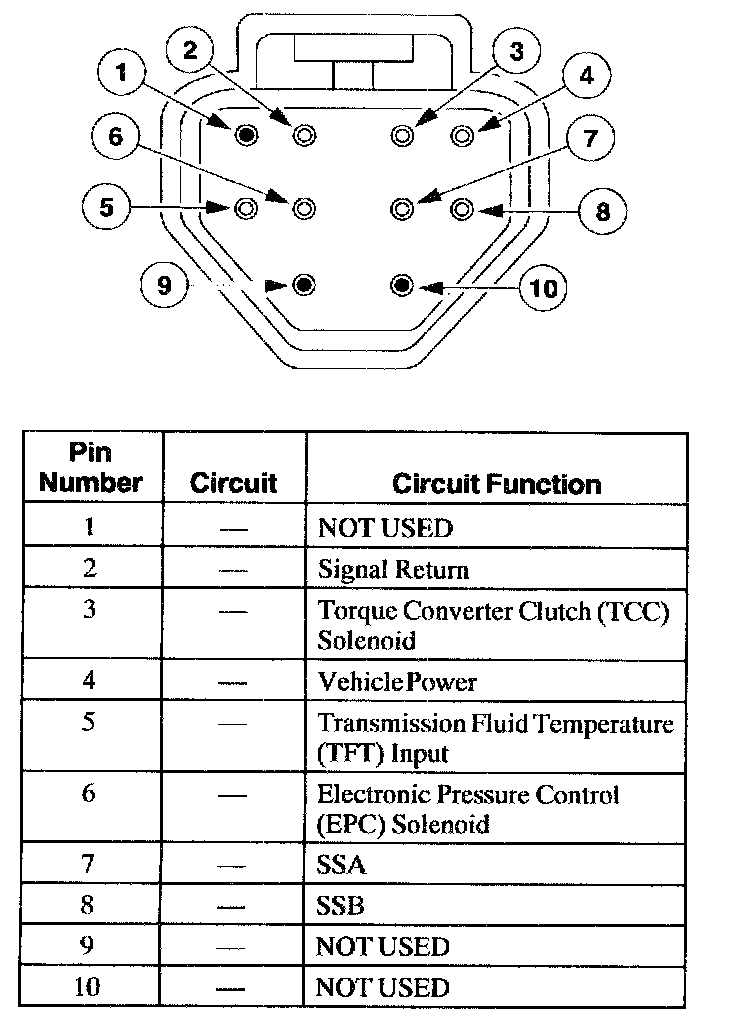

Transmission Vehicle Harness Connector

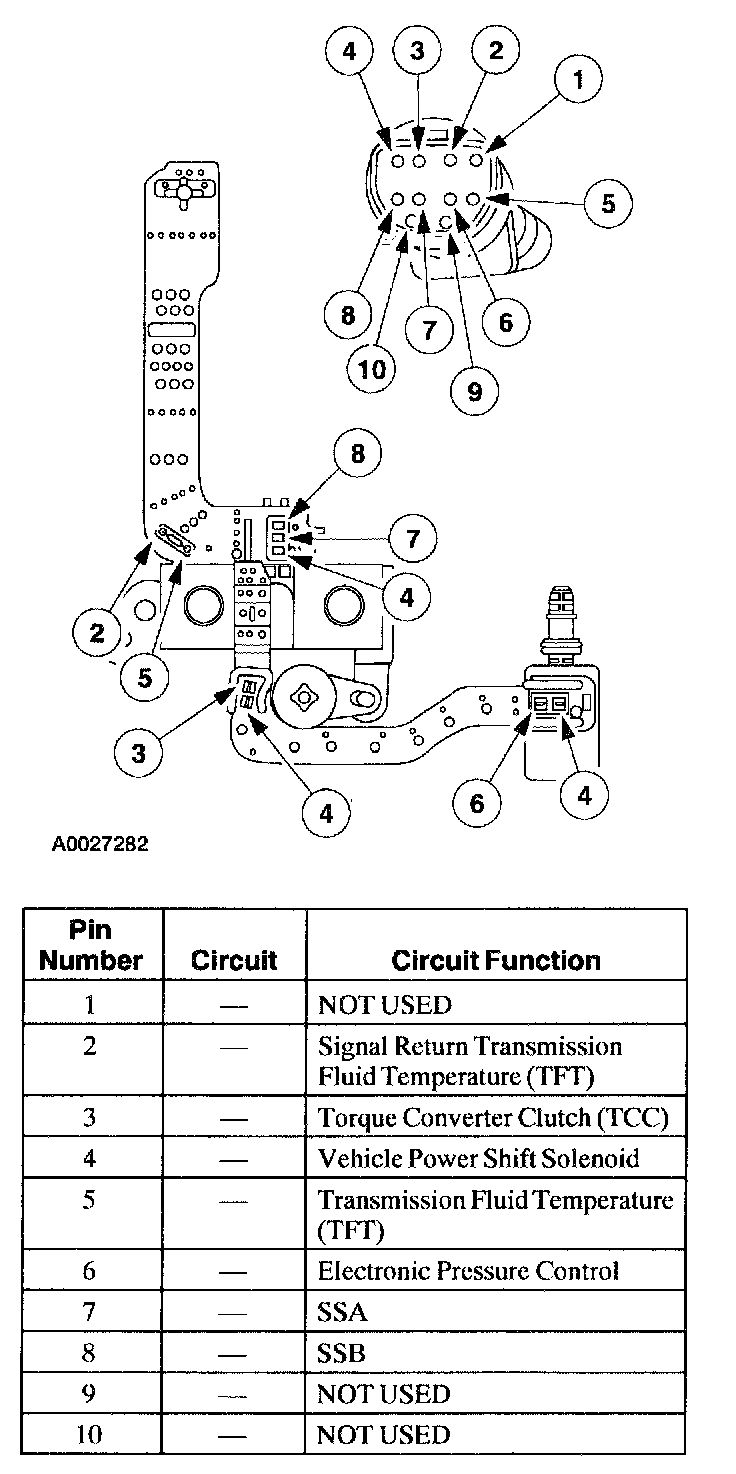

Transmission Internal Harness Connector

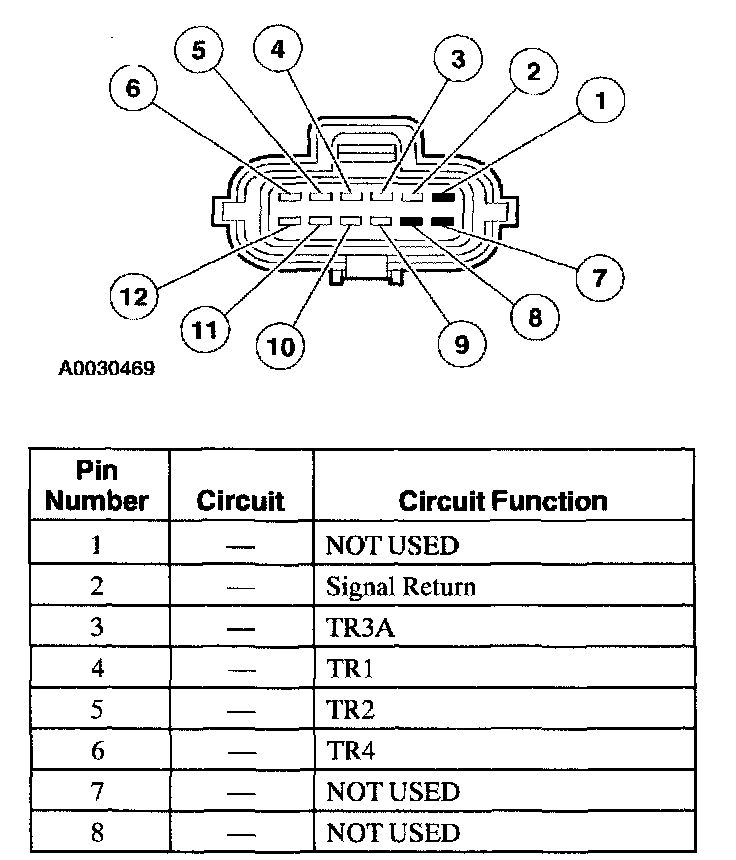

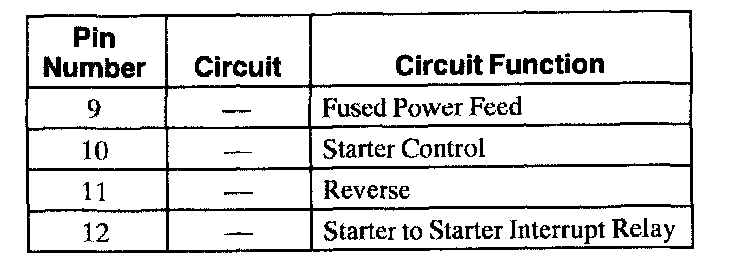

Digital Transmission Range (TR) Sensor Connector

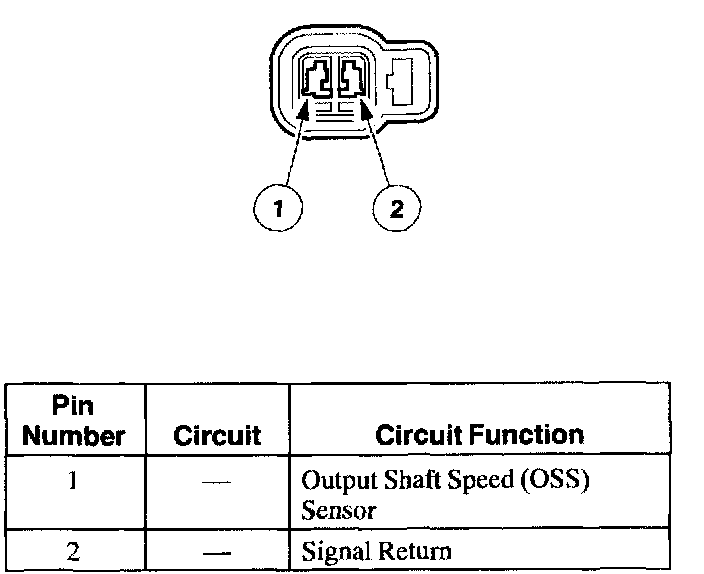

Output Shaft Speed (OSS) Sensor Harness Connector

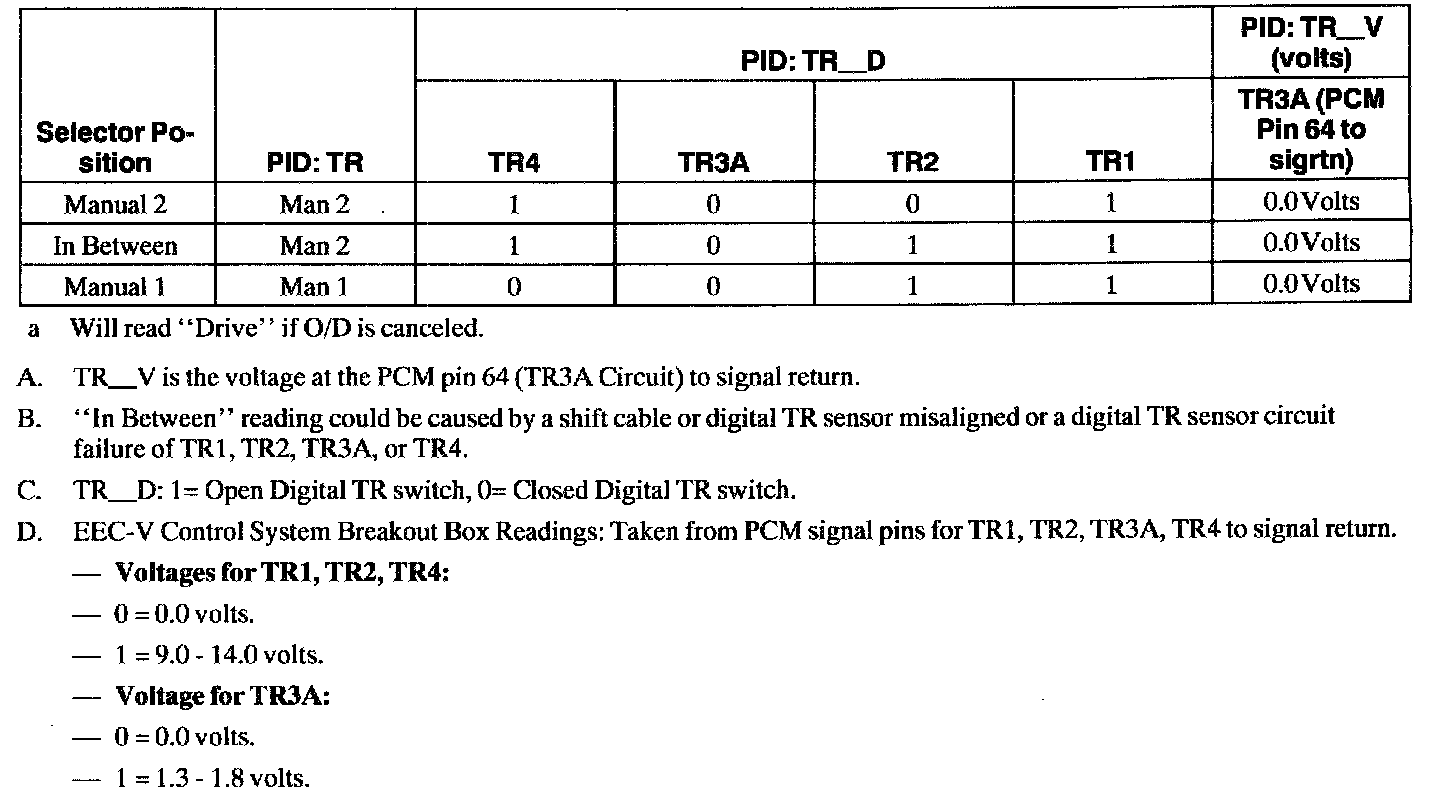

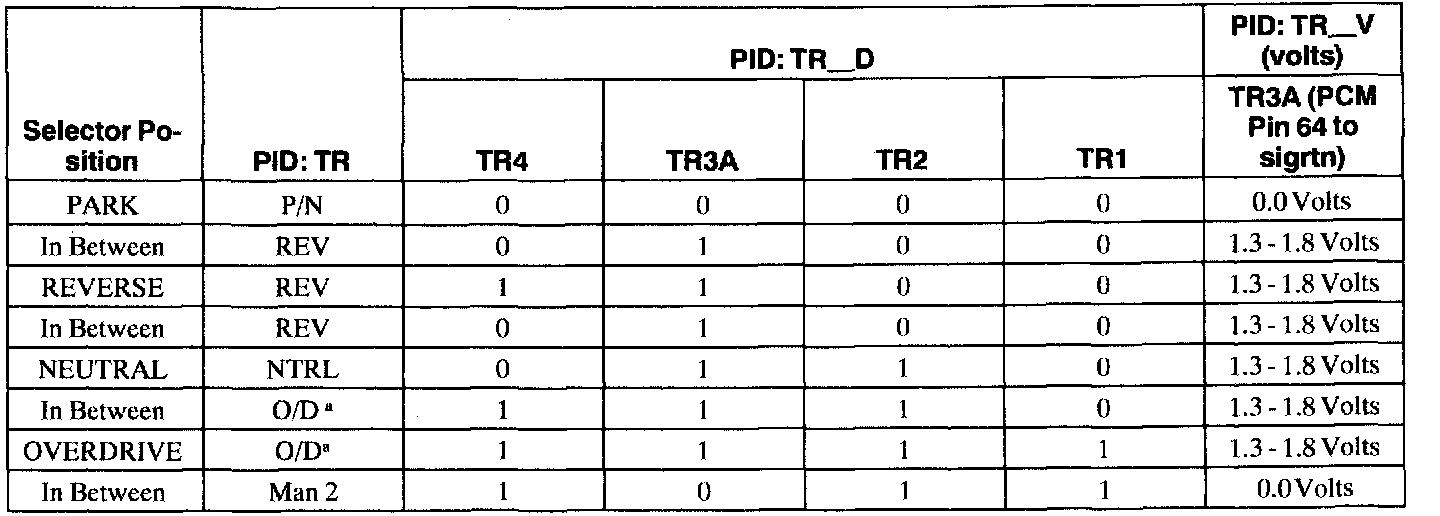

Digital Transmission Range (TR) Sensor Diagnosis Chart
