Test C: Digital Transmission Range (TR) Sensor

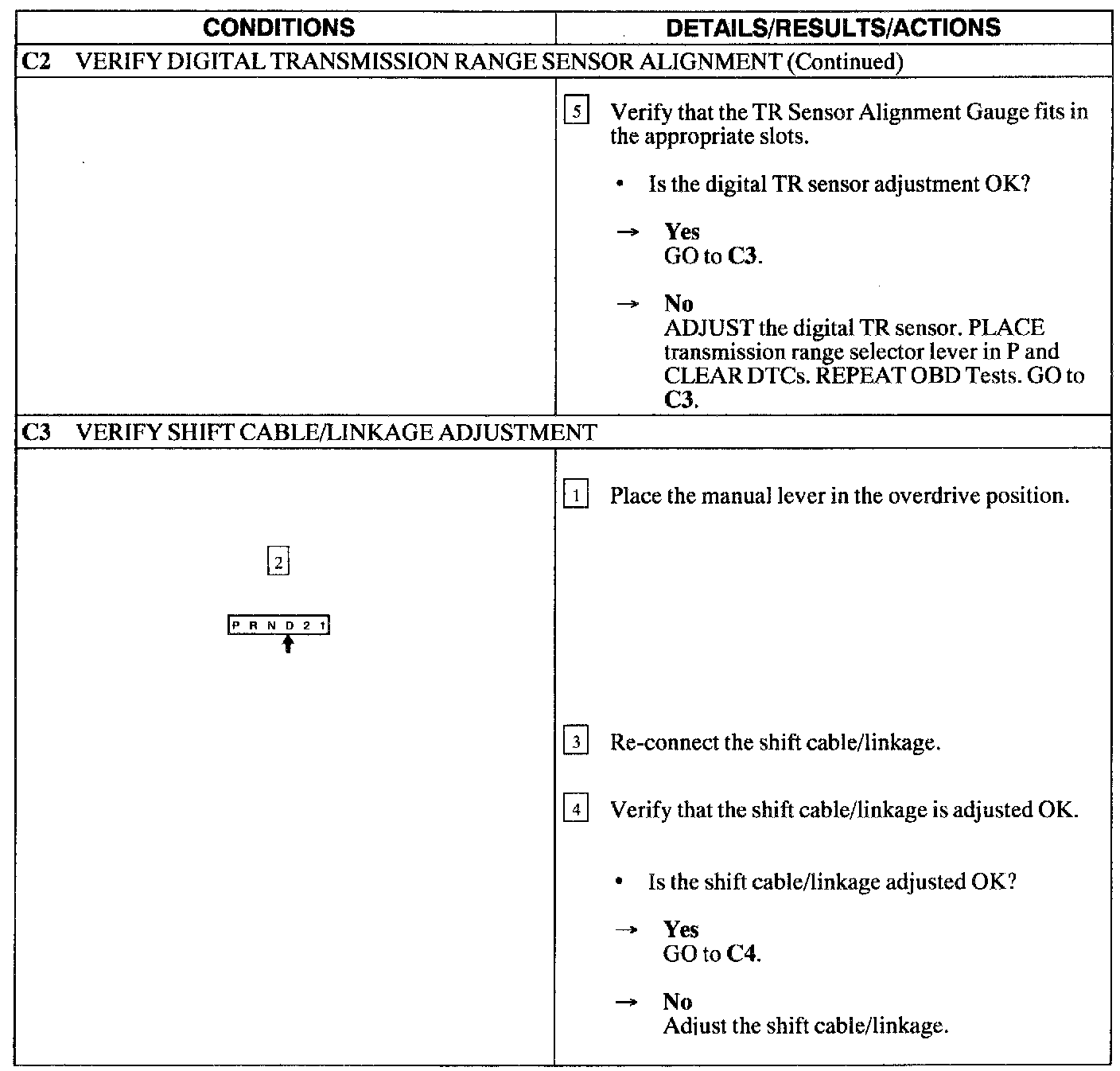

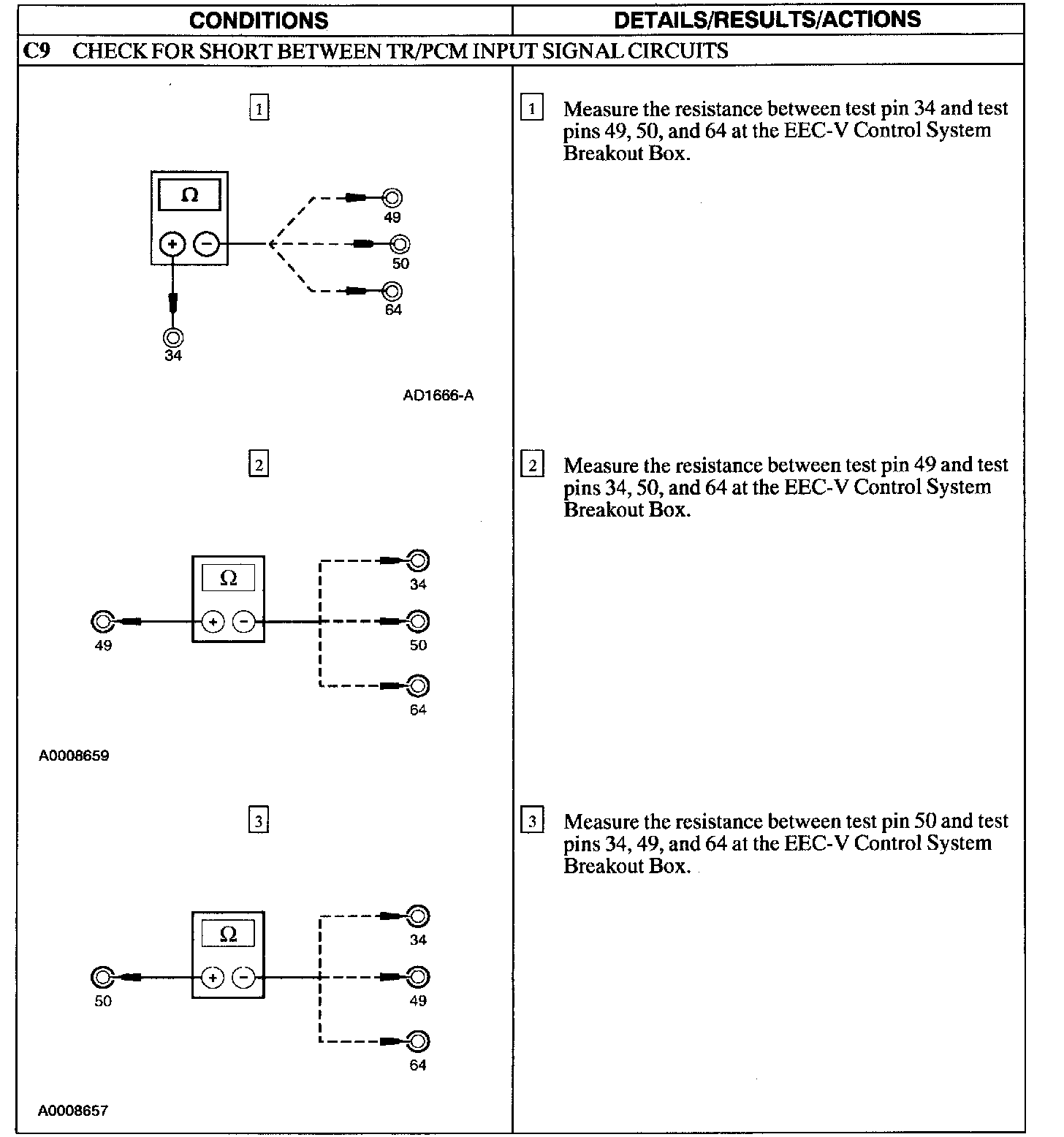

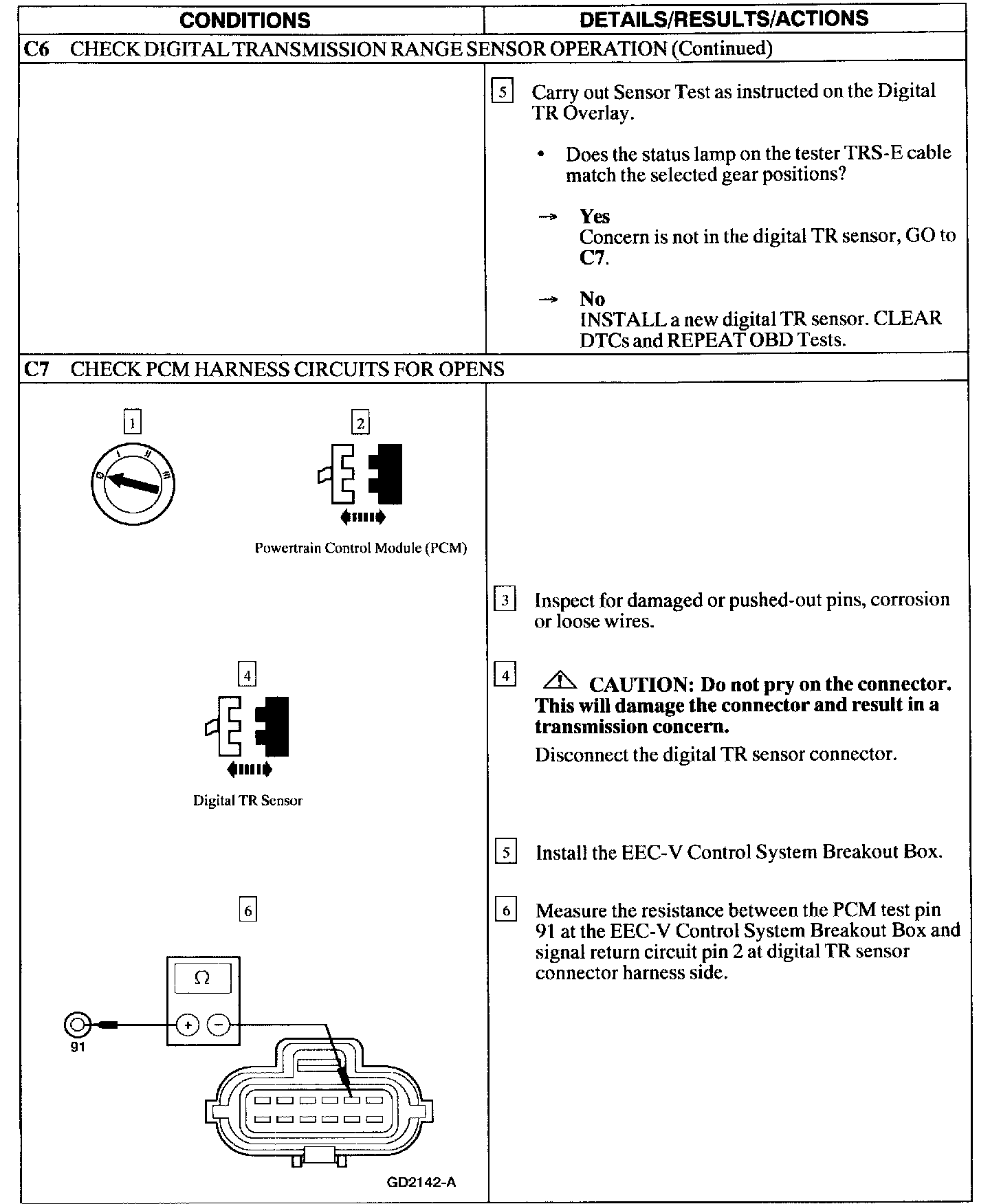

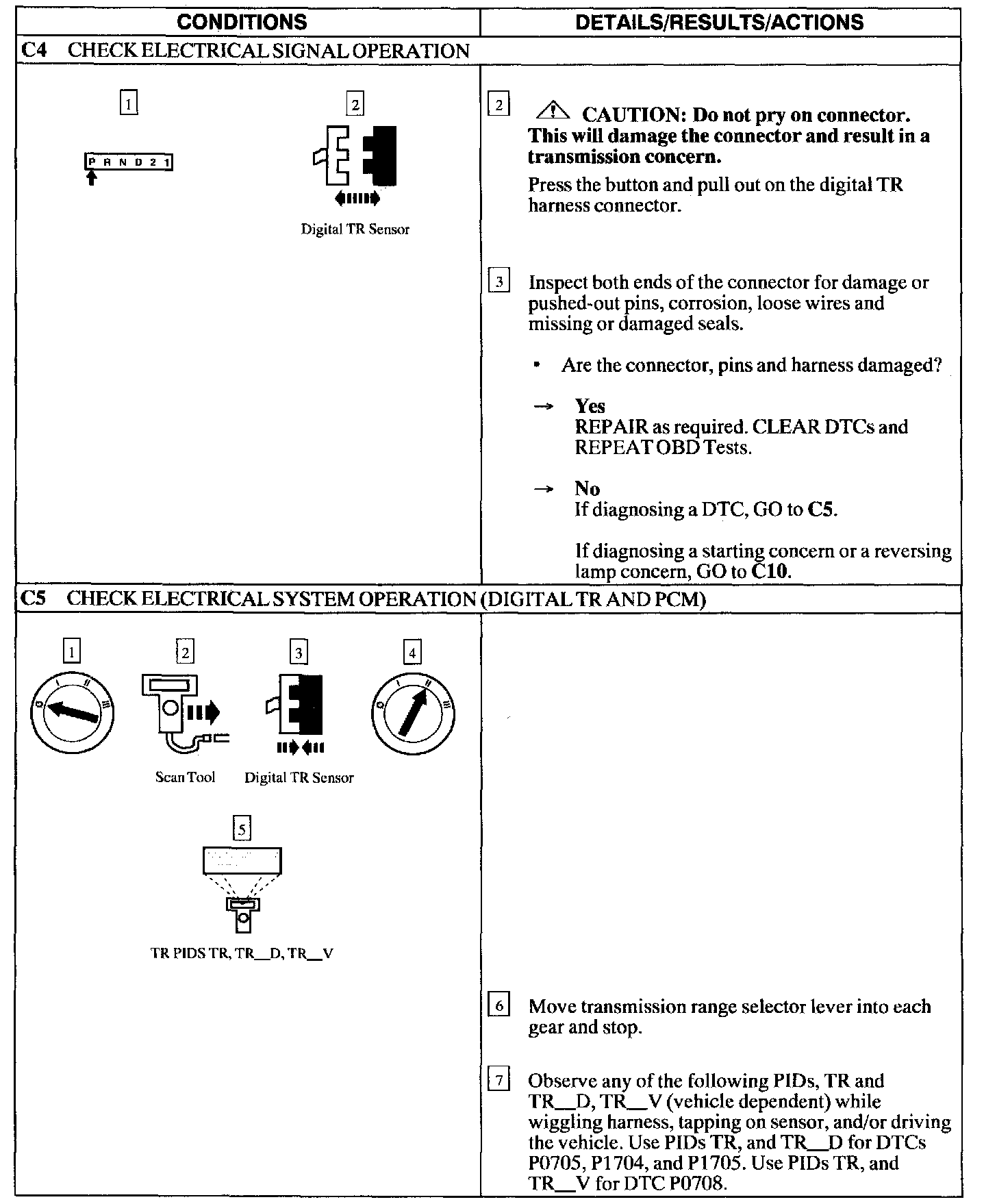

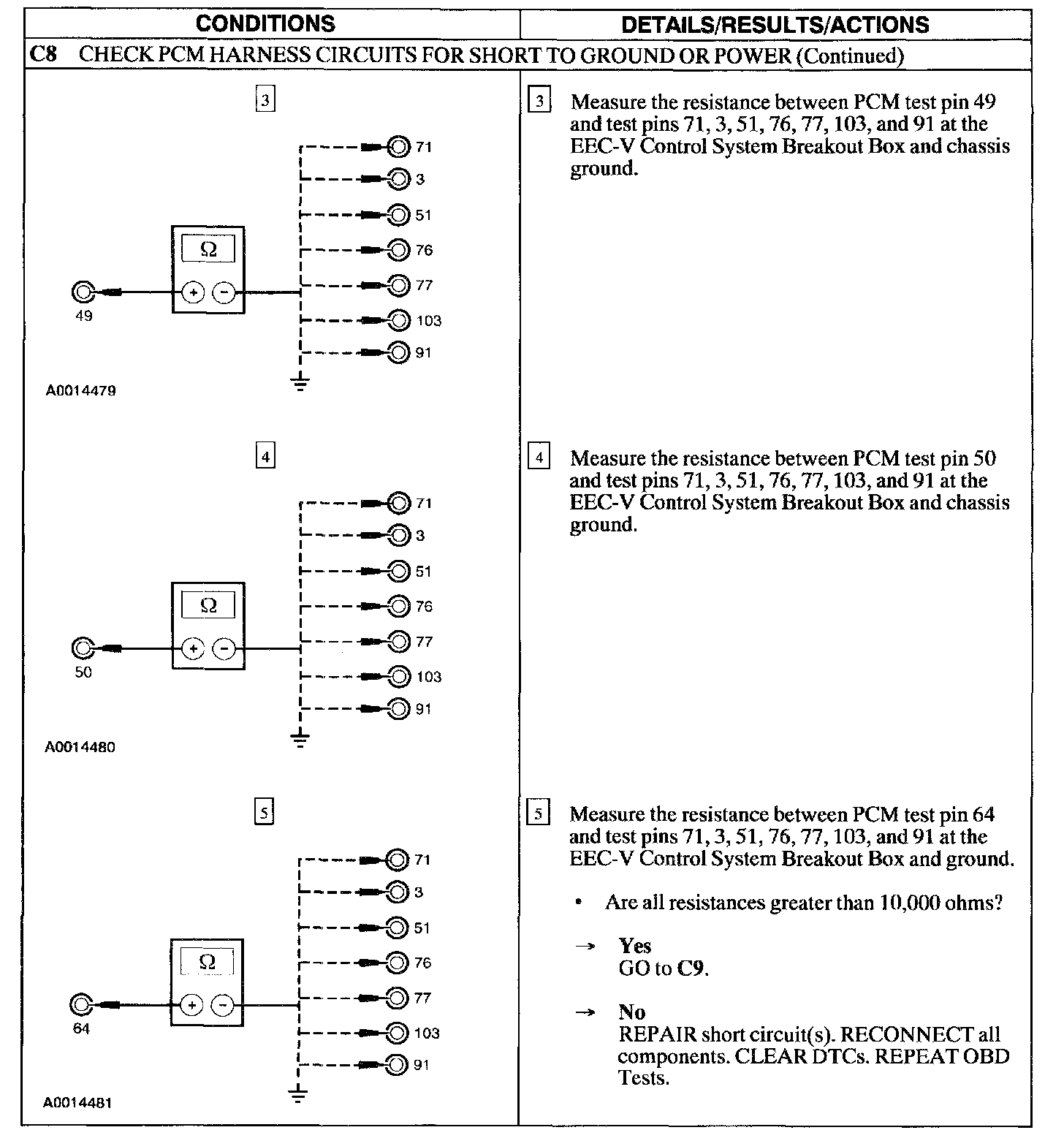

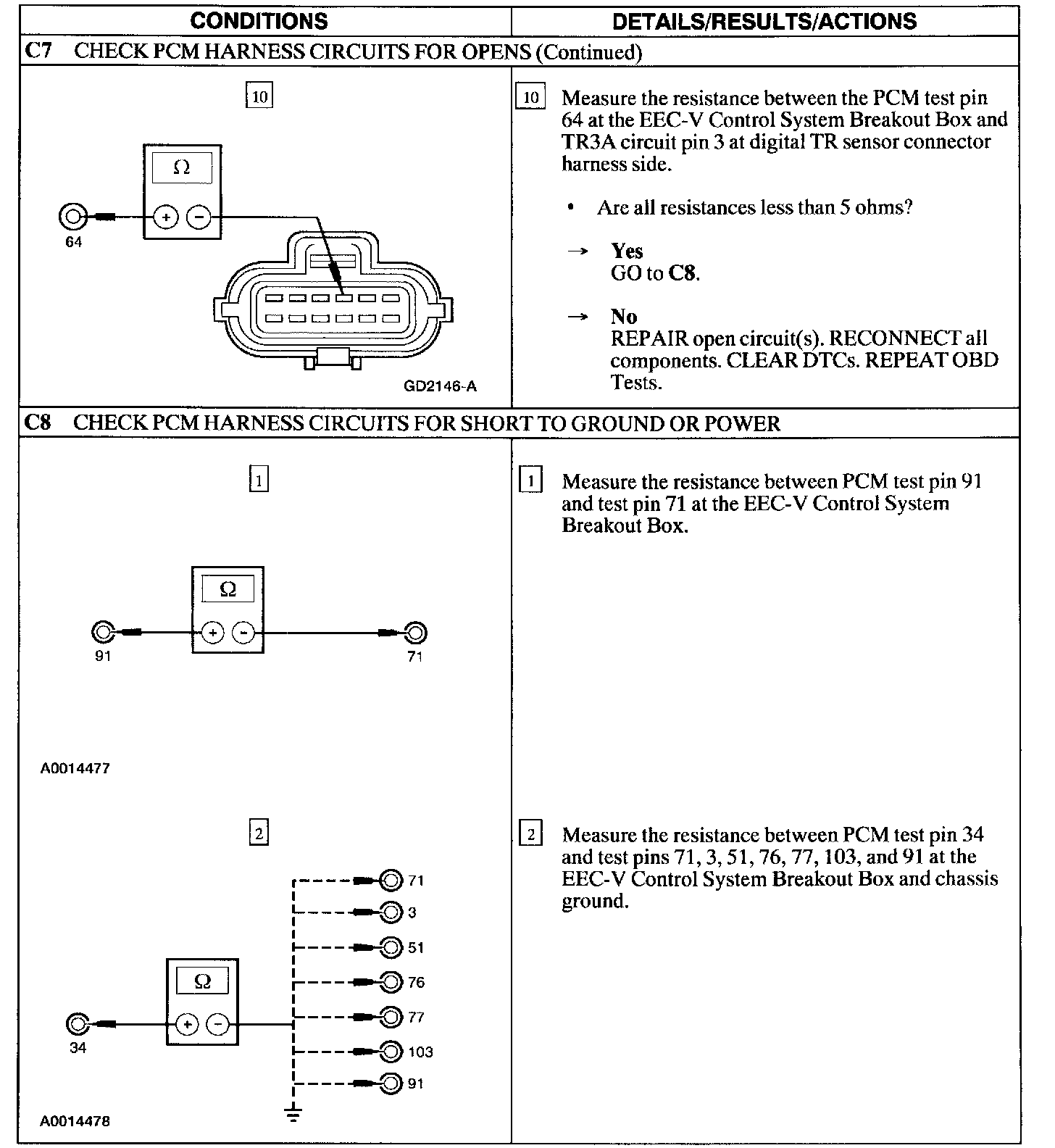

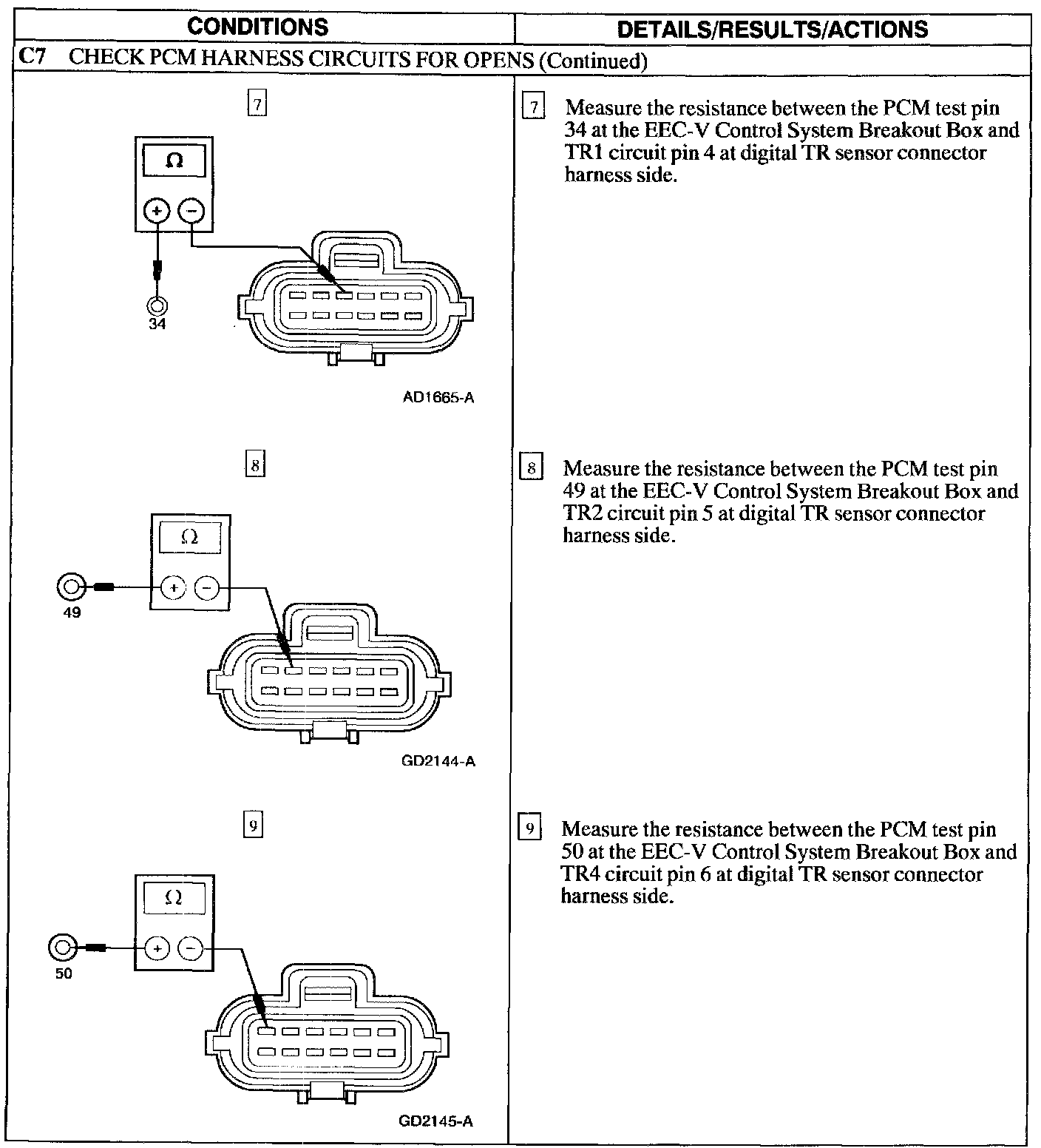

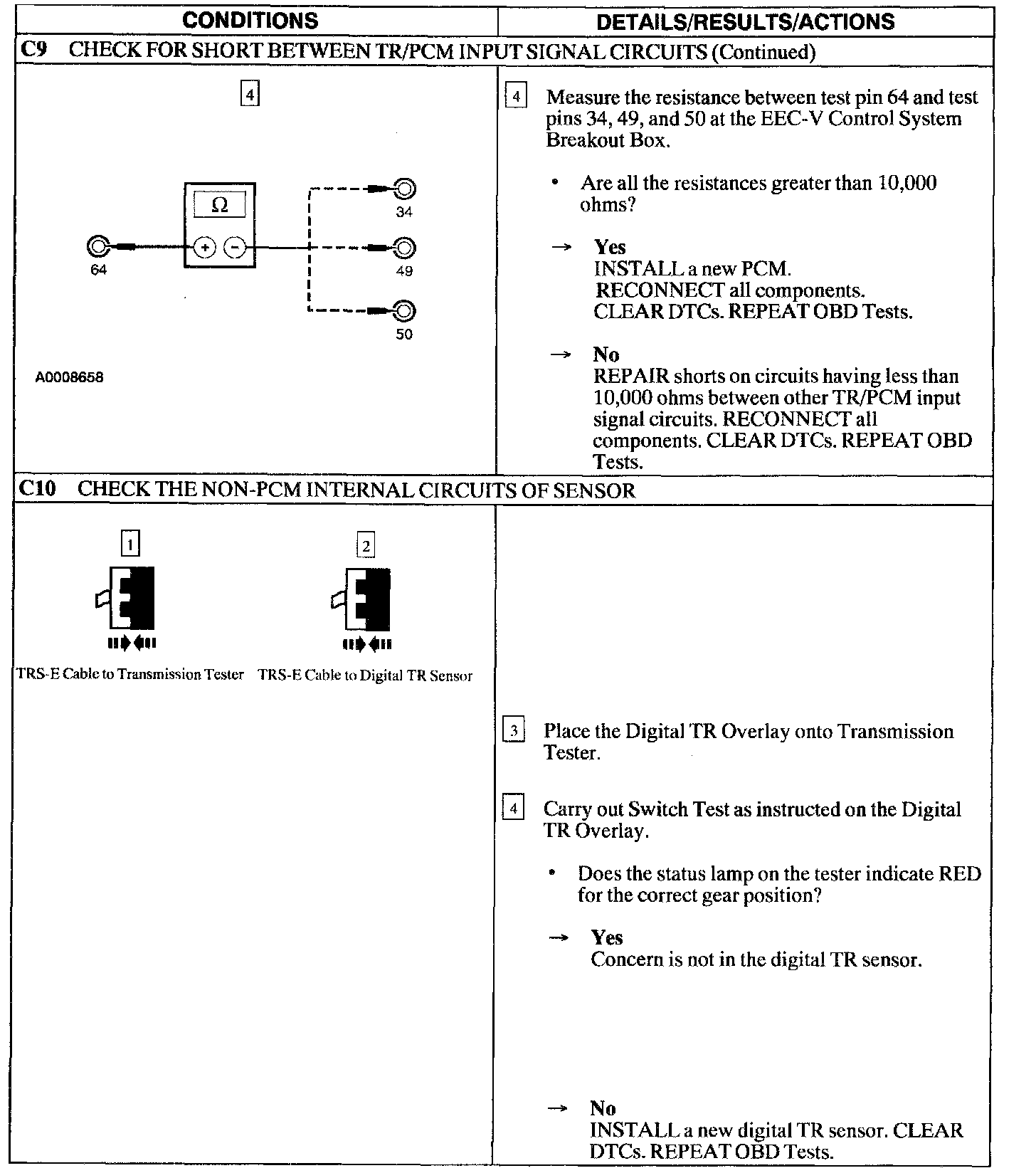

PINPOINT TEST C: DIGITAL TRANSMISSION RANGE (TR) SENSOR





Test C1-C2





Test C2-C3





Test C4-C5





Test C5-C6





Test C6-C7





Test C7





Test C7-C8





Test C8





Test C9





Test C9-C10

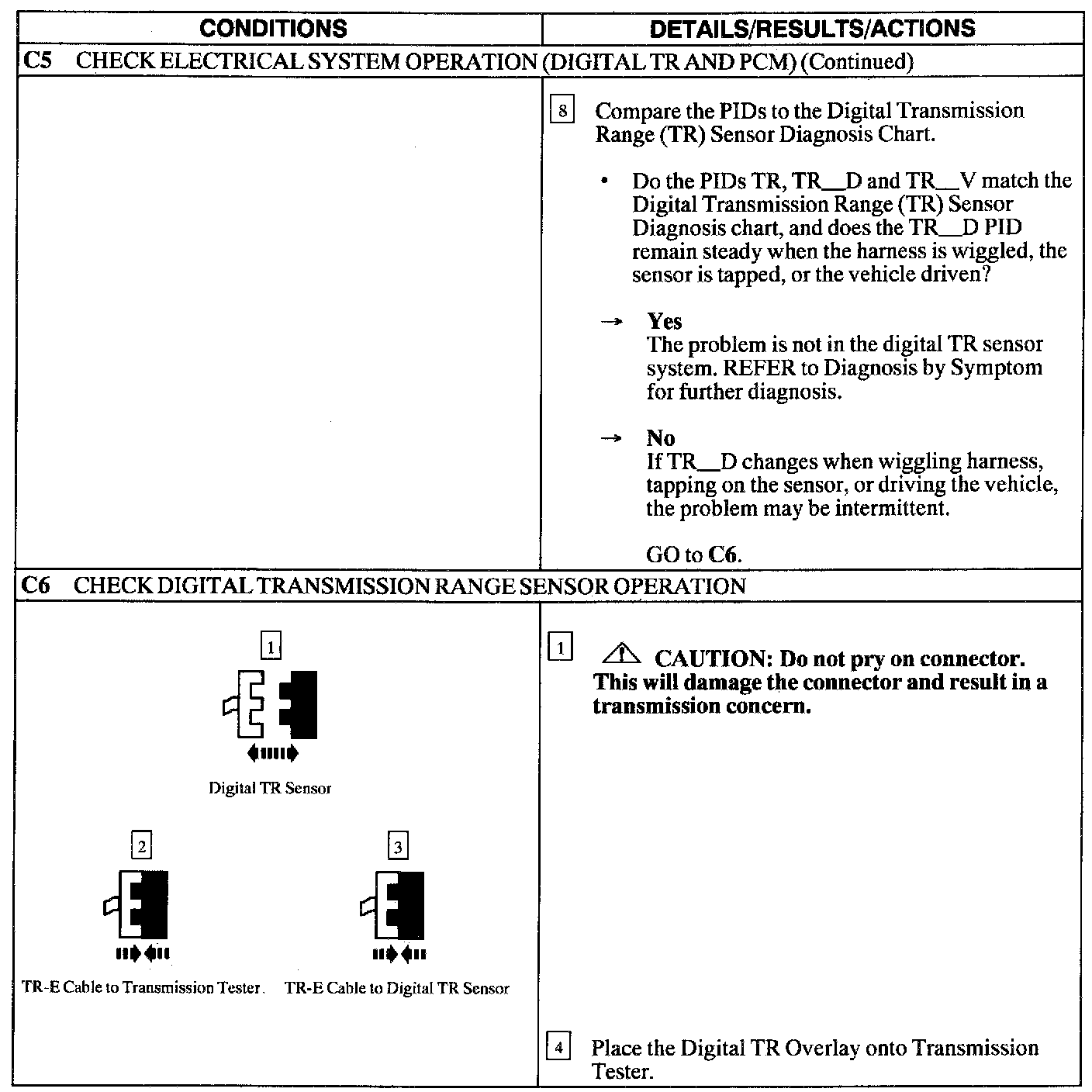

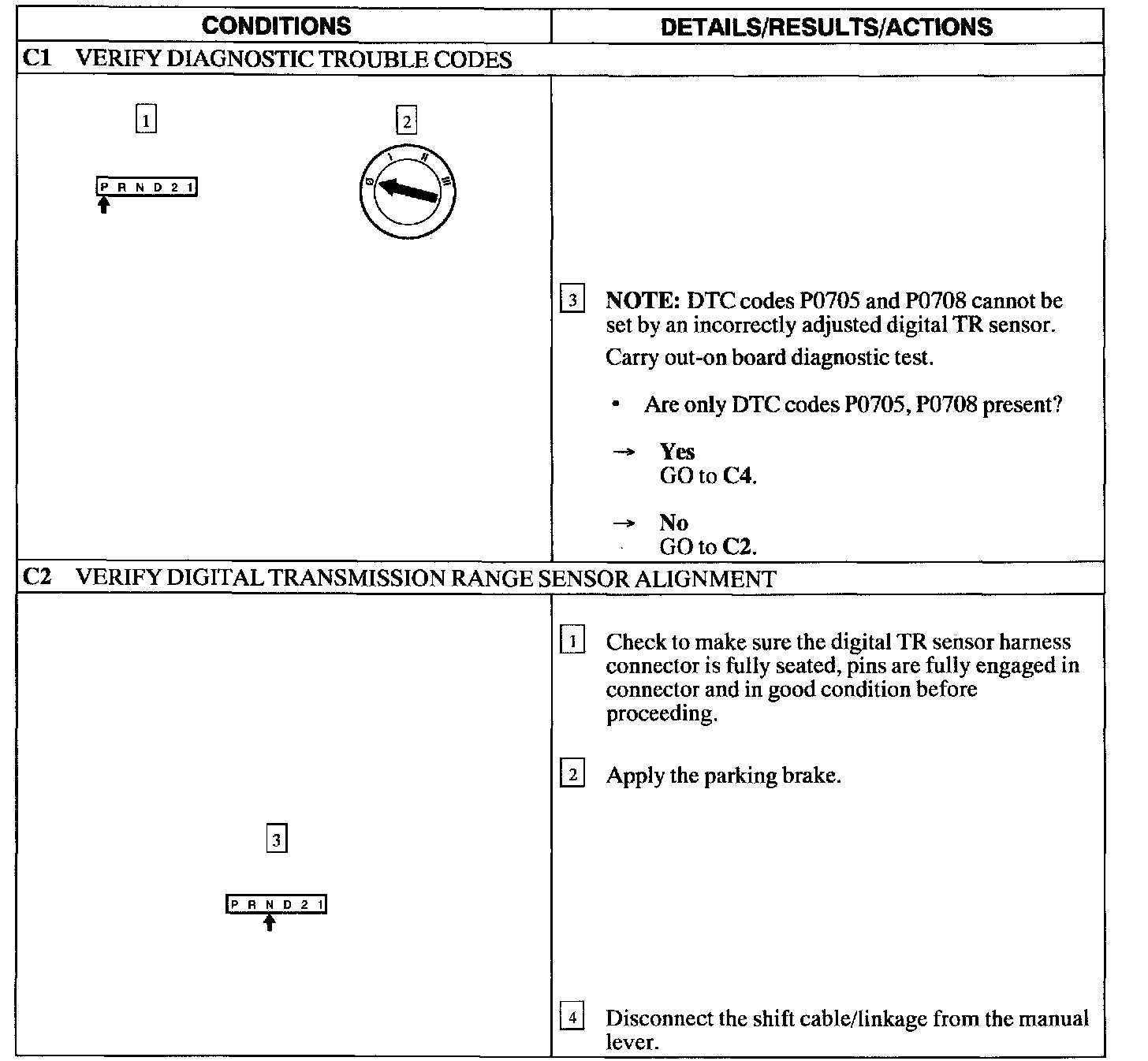

NOTE: Refer to the Digital Transmission Range (TR) Sensor Connector illustration.

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis chart.
