Test A: Shift and Torque Converter Clutch Solenoids

PINPOINT TEST A: SHIFT AND TORQUE CONVERTER CLUTCH SOLENOIDS

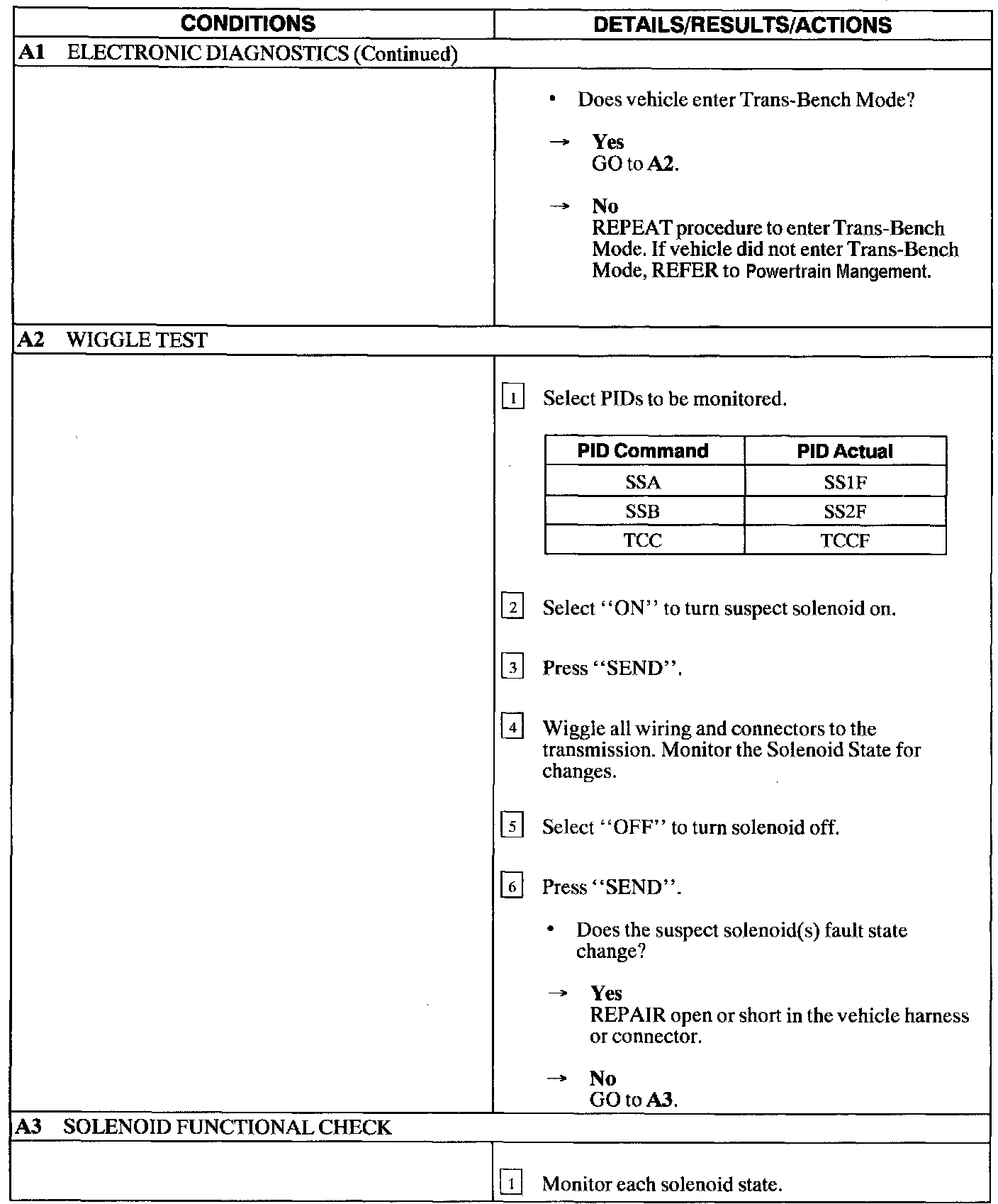

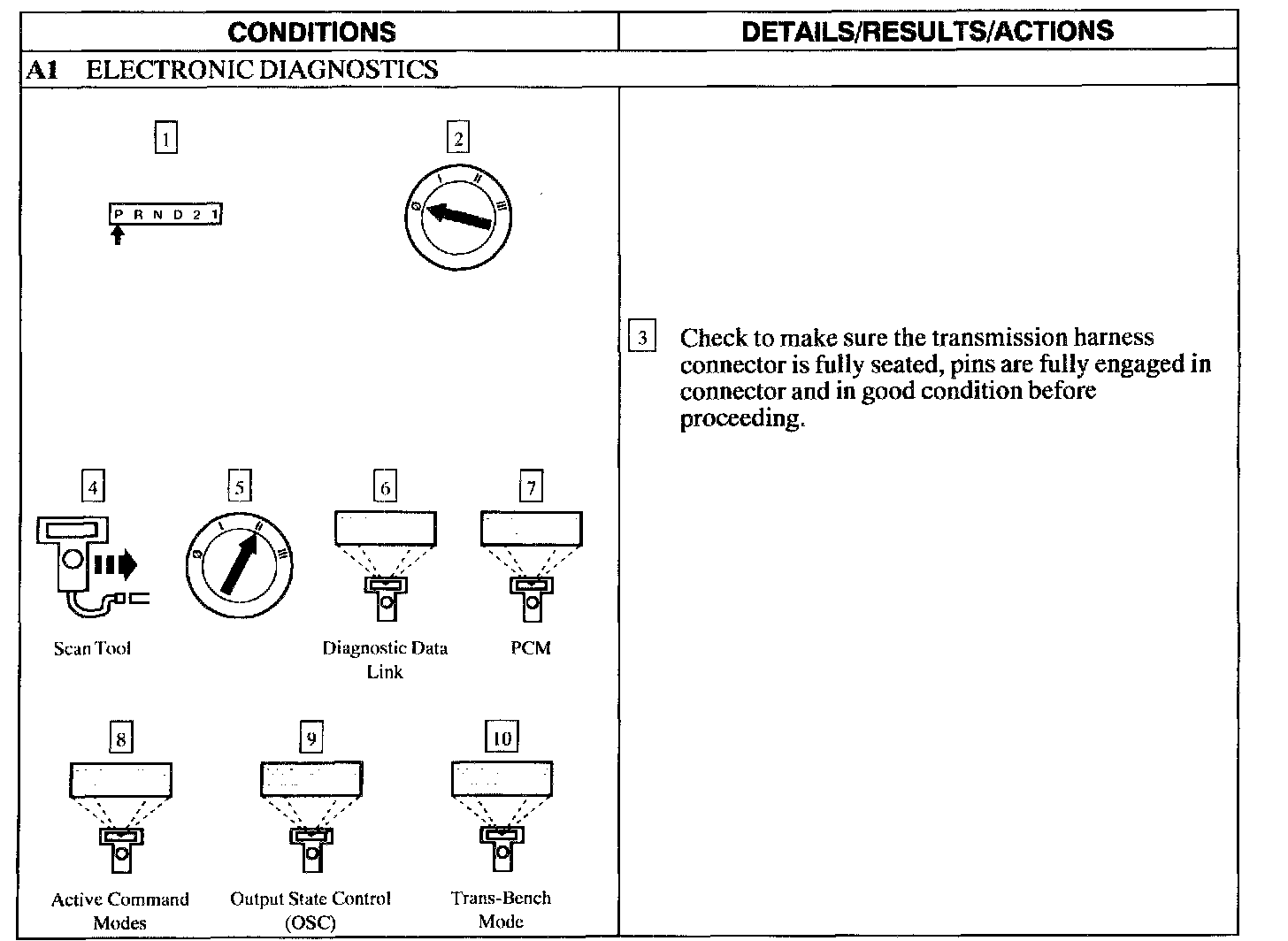

Test A1

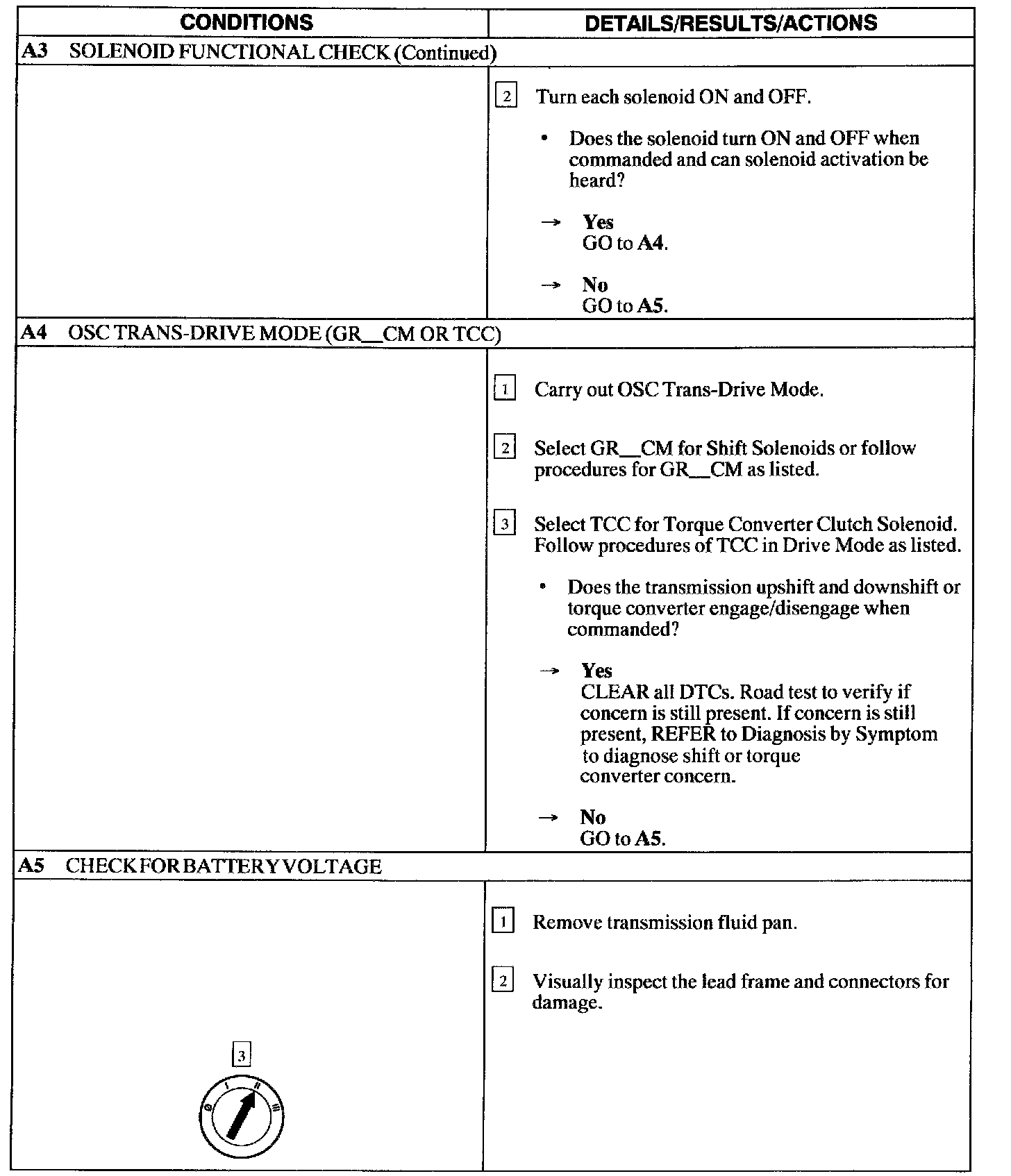

Test A1-A3

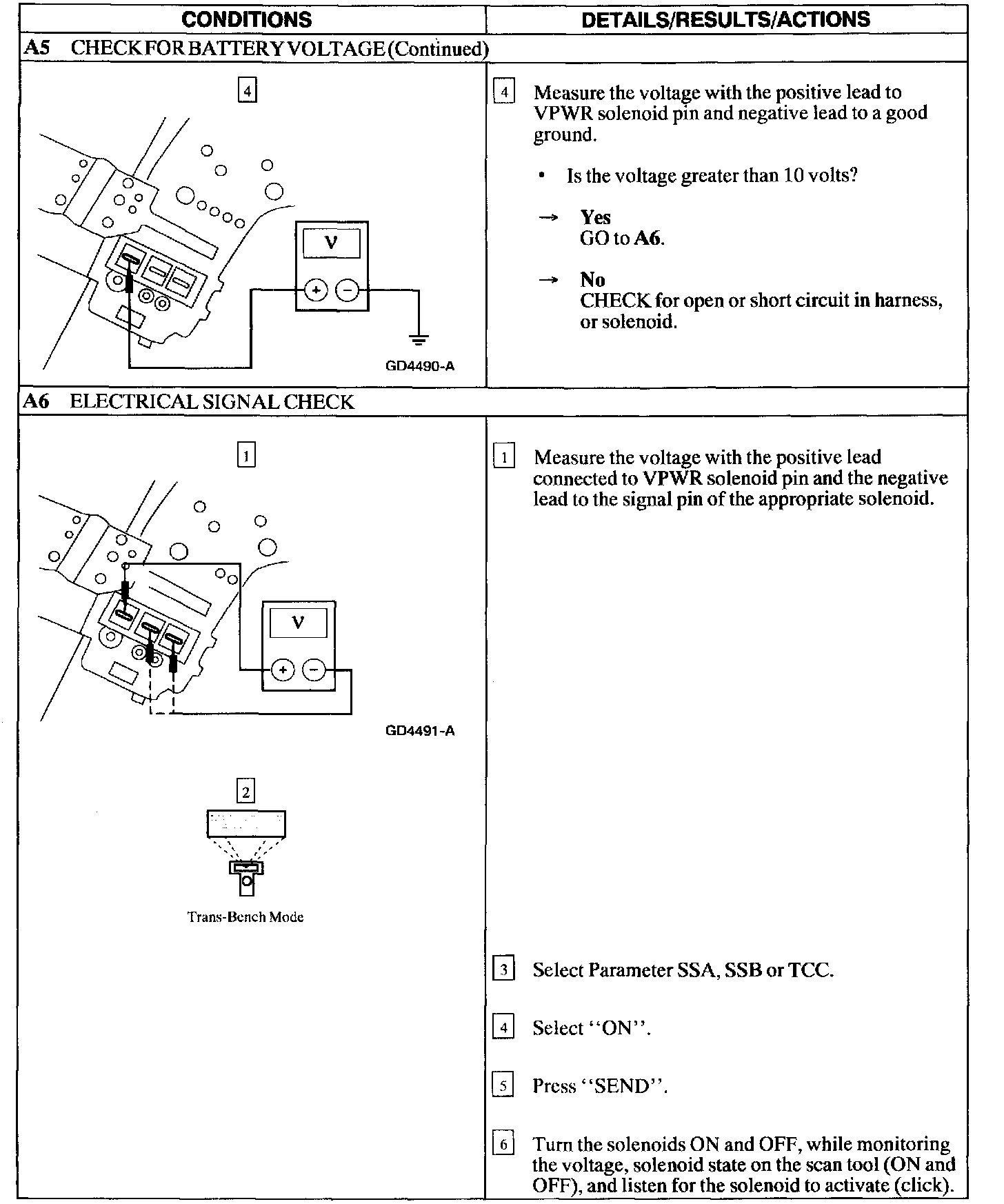

Test A3-A5

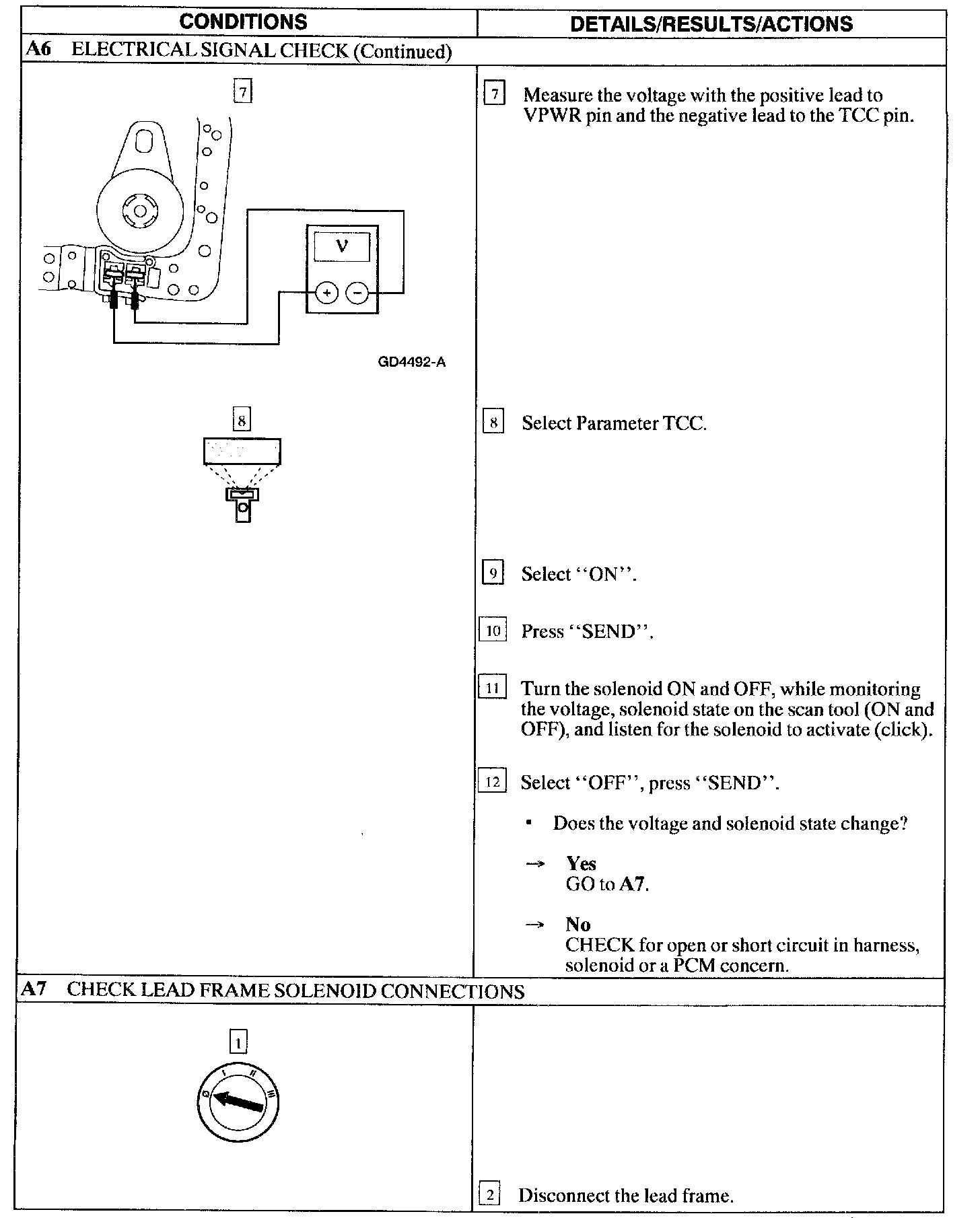

Test A5-A6

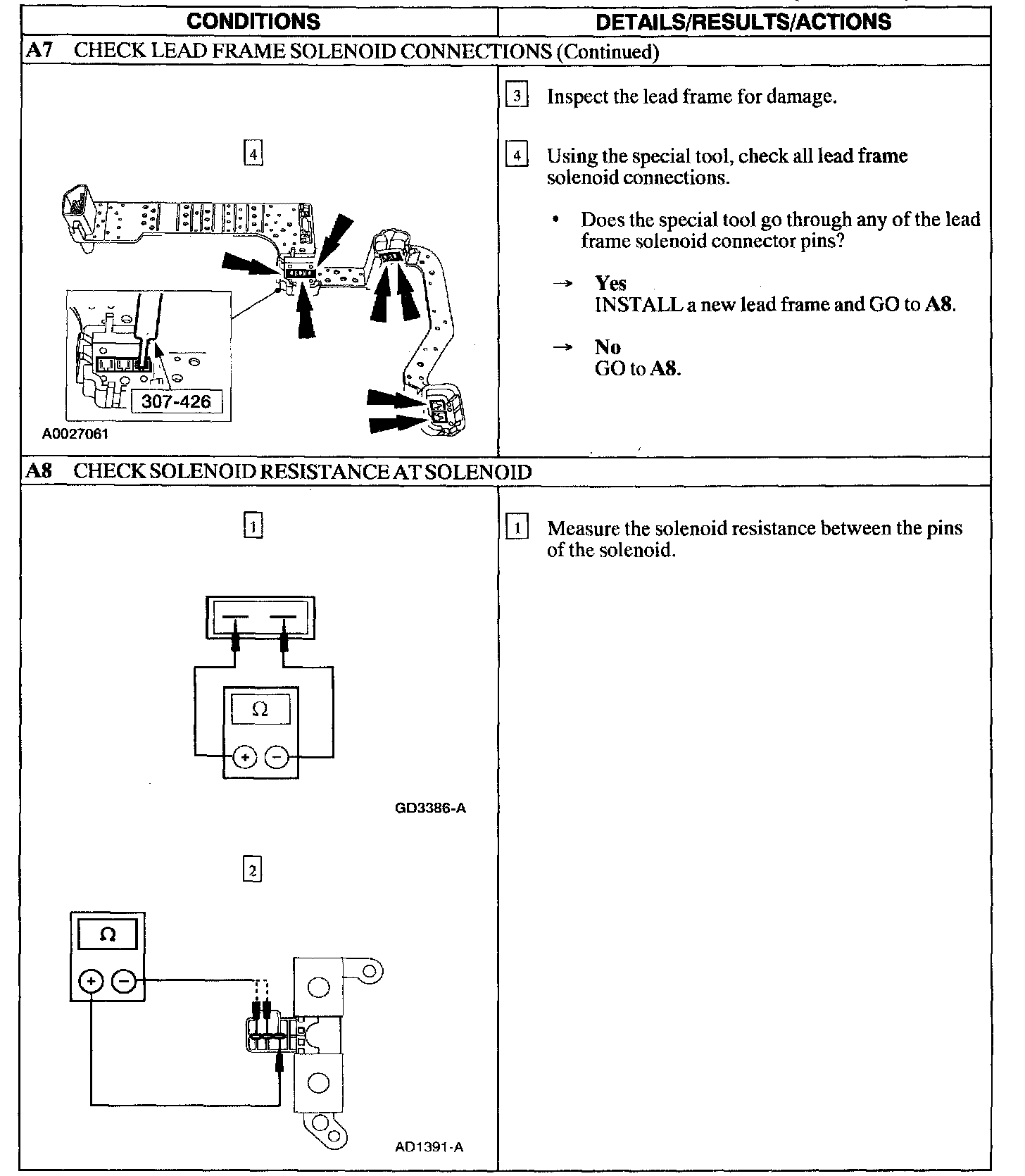

Test A6-A7

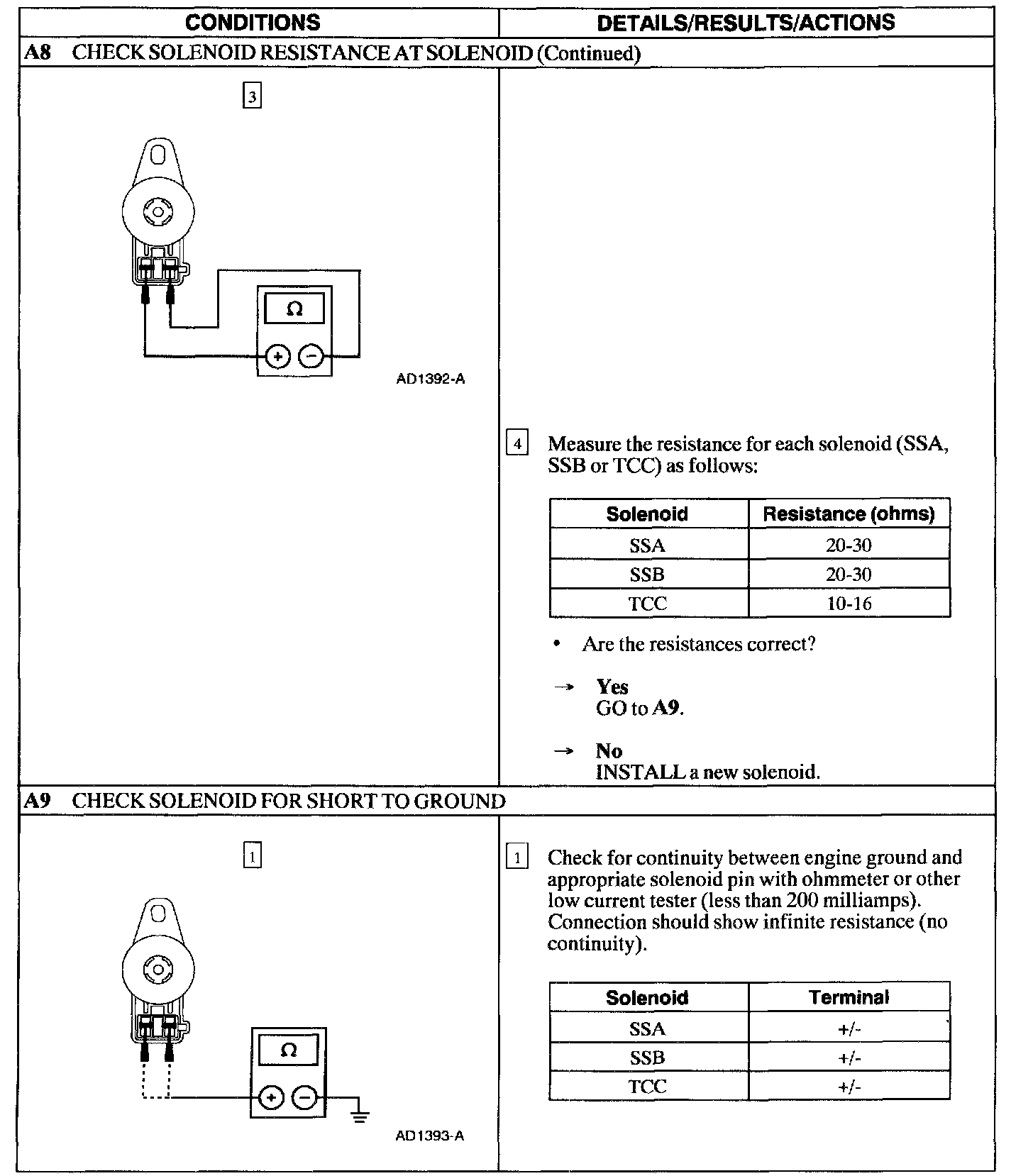

Test A7-A8

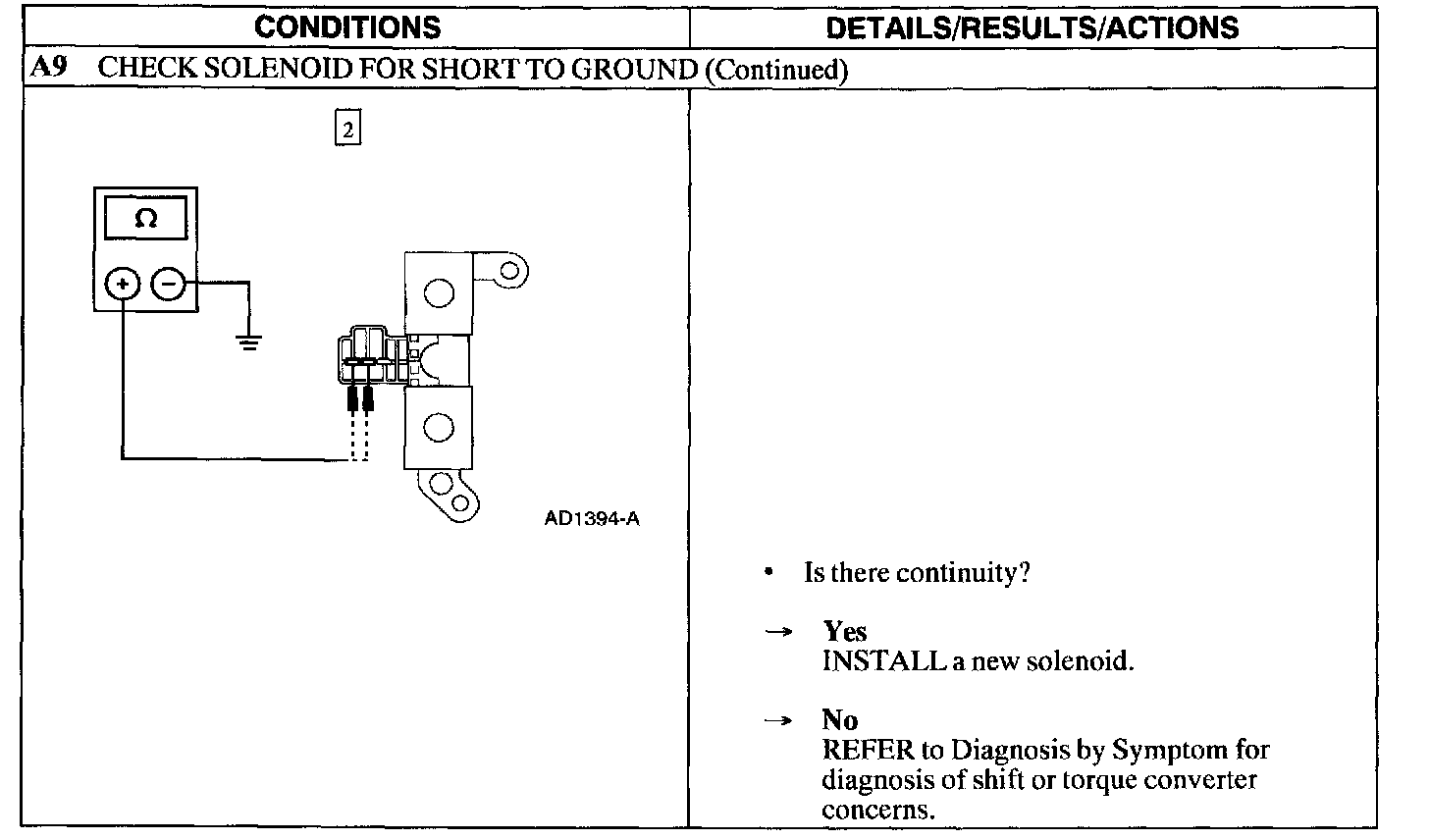

Test A8-A9





Test A9

NOTE: Read and record all DTCs. All Digital TR Sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

NOTE: Refer to the Transmission Internal Harness illustration.

NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
