Shift Solenoids Pre-Diagnosis
Shift Solenoids Pre-DiagnosisUse the following shift solenoid operation information when carrying out Pinpoint Test A.

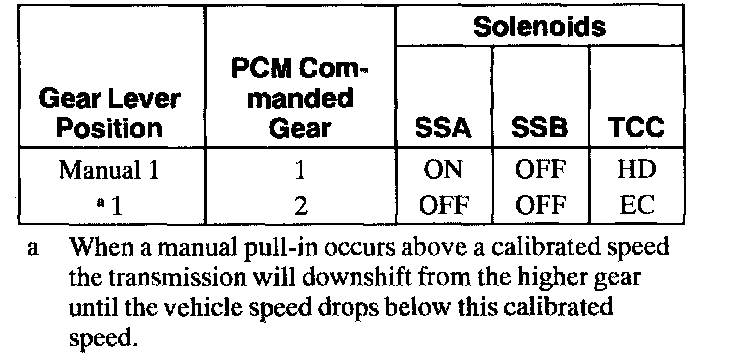

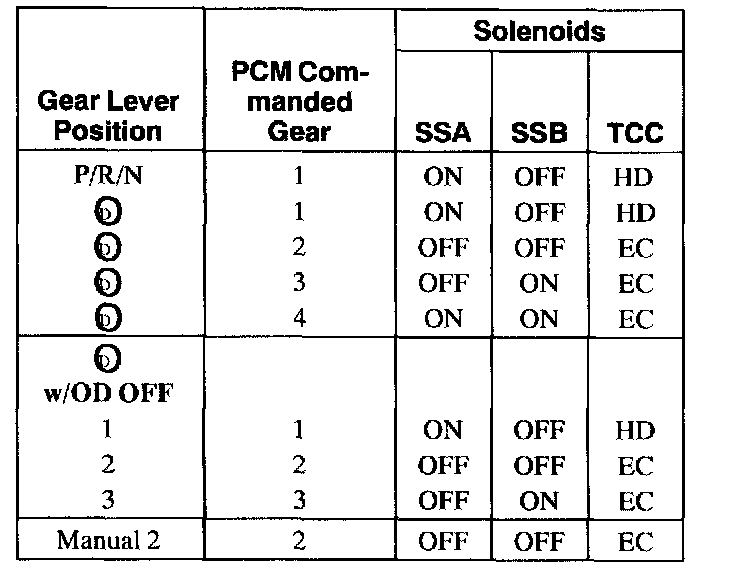

Solenoid Operation Chart
EC-Electonically Controlled.
HD=Hydraulically Disabled.
Use the following shift solenoid operation information when carrying out Pinpoint Test A.
Solenoid Operation Chart
EC-Electonically Controlled.
HD=Hydraulically Disabled.
