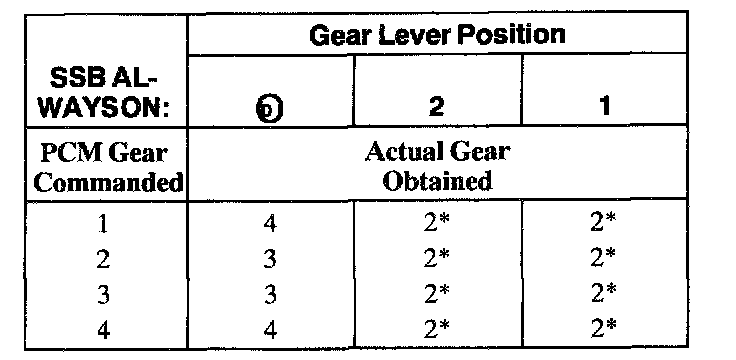

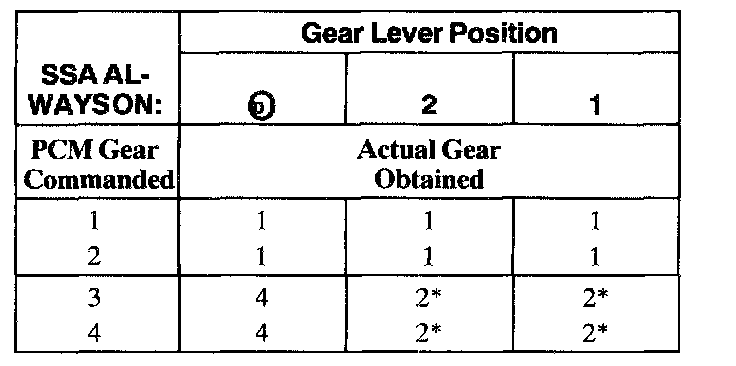

Shift Solenoid Failure Mode Chart "Always On"

Shift Solenoid Failure Mode Chart "Always On"




*No engine braking.




No engine Braking.

Failed on due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck on.
