Shift Solenoid Failure Mode Chart "Always Off"

Shift Solenoid Failure Mode Chart "Always Off"




* No engine Braking.

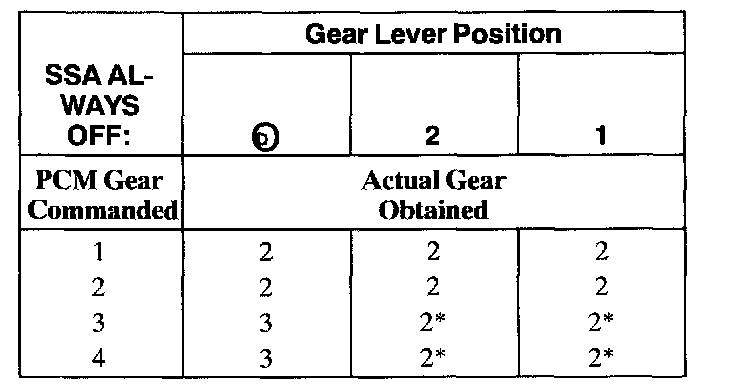

Part 1 of 2

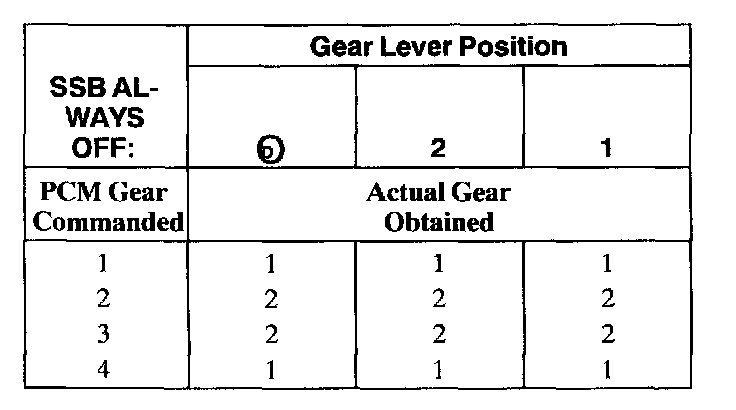

Part 2 of 2

Failed off due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck off.
