Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Test K: DTC 51, Unable to Detect Lowering of Rear

Test K: DTC 51, Unable to Detect Lowering of Rear

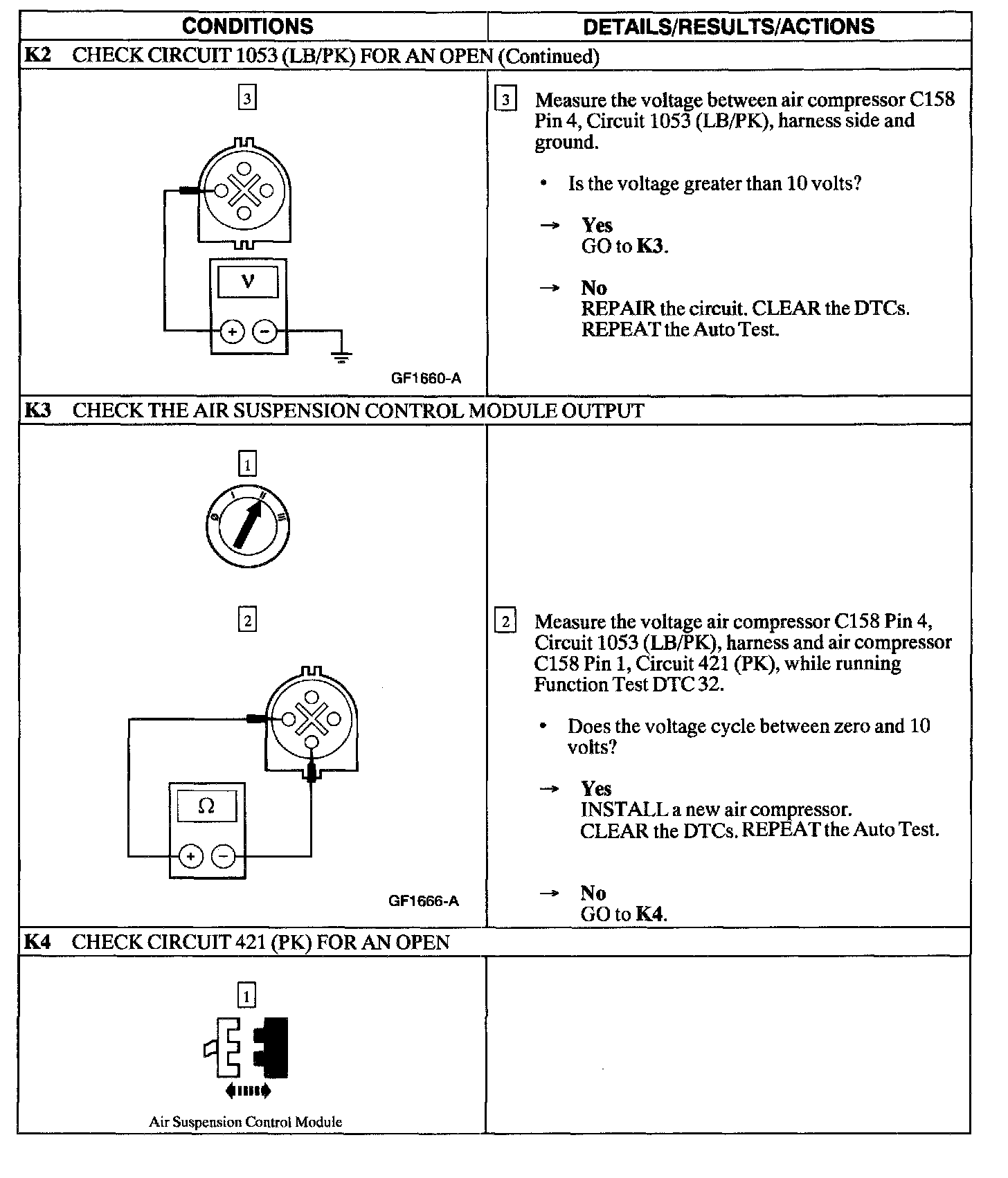

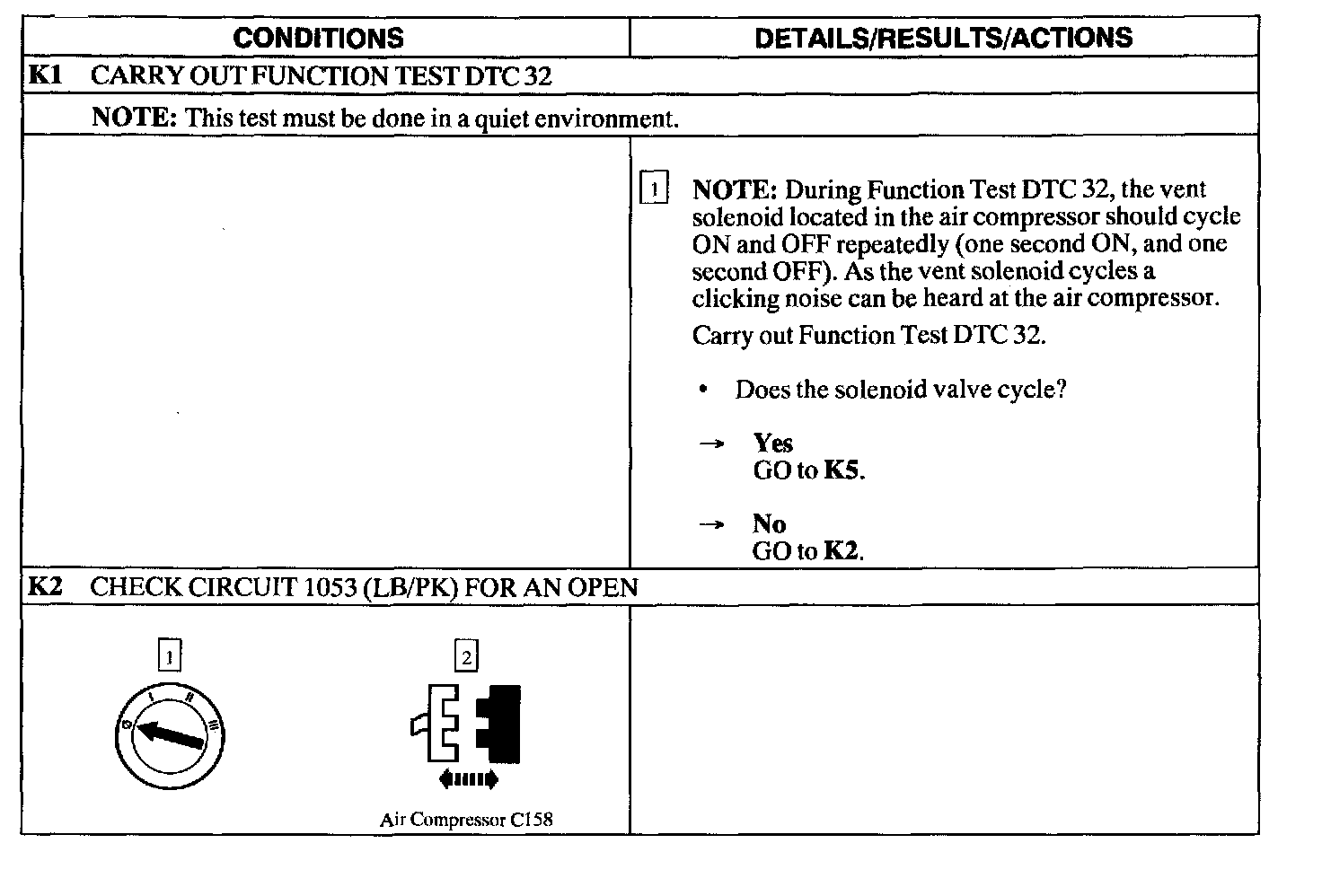

K1 - K2

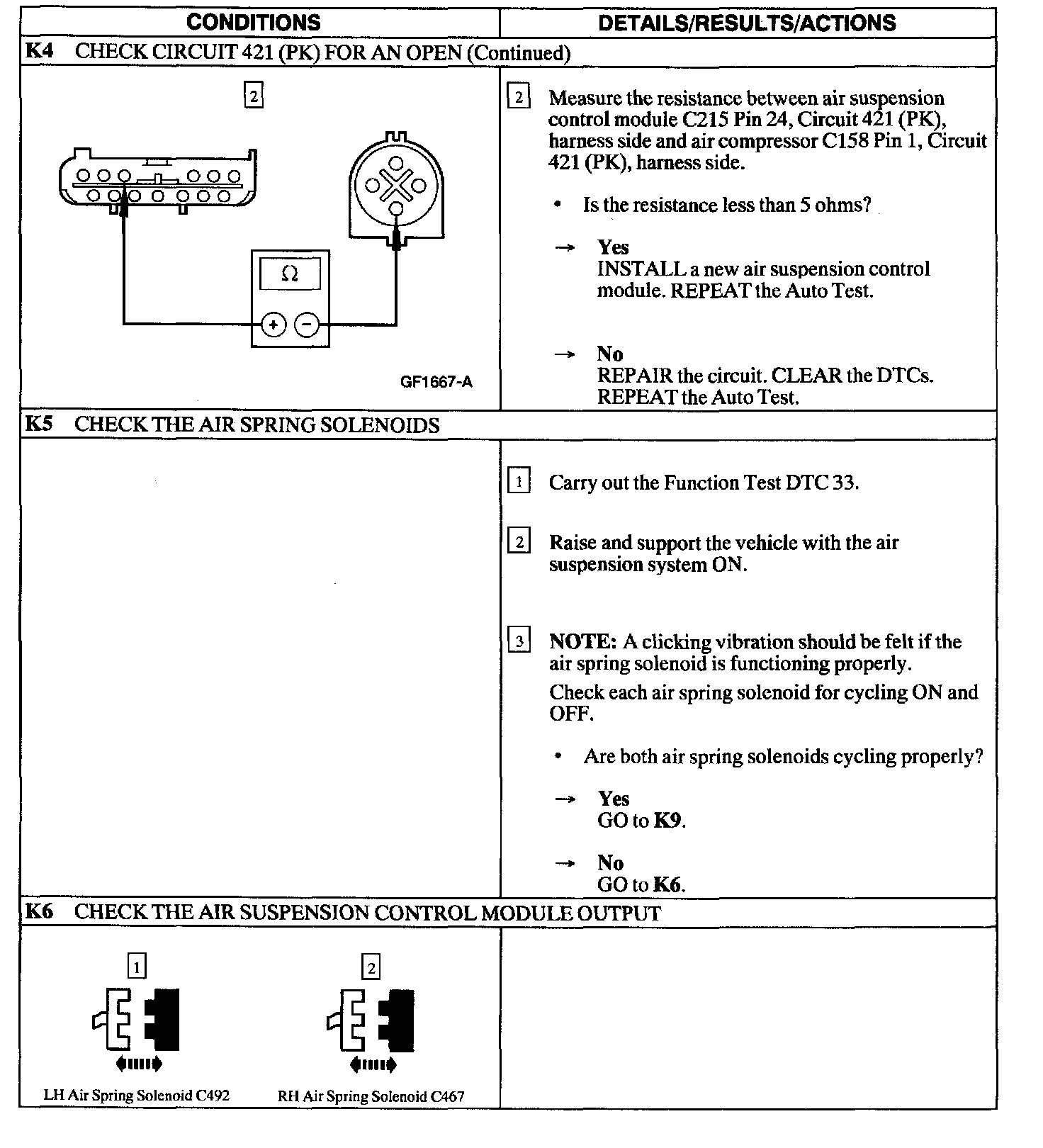

K2 - K4

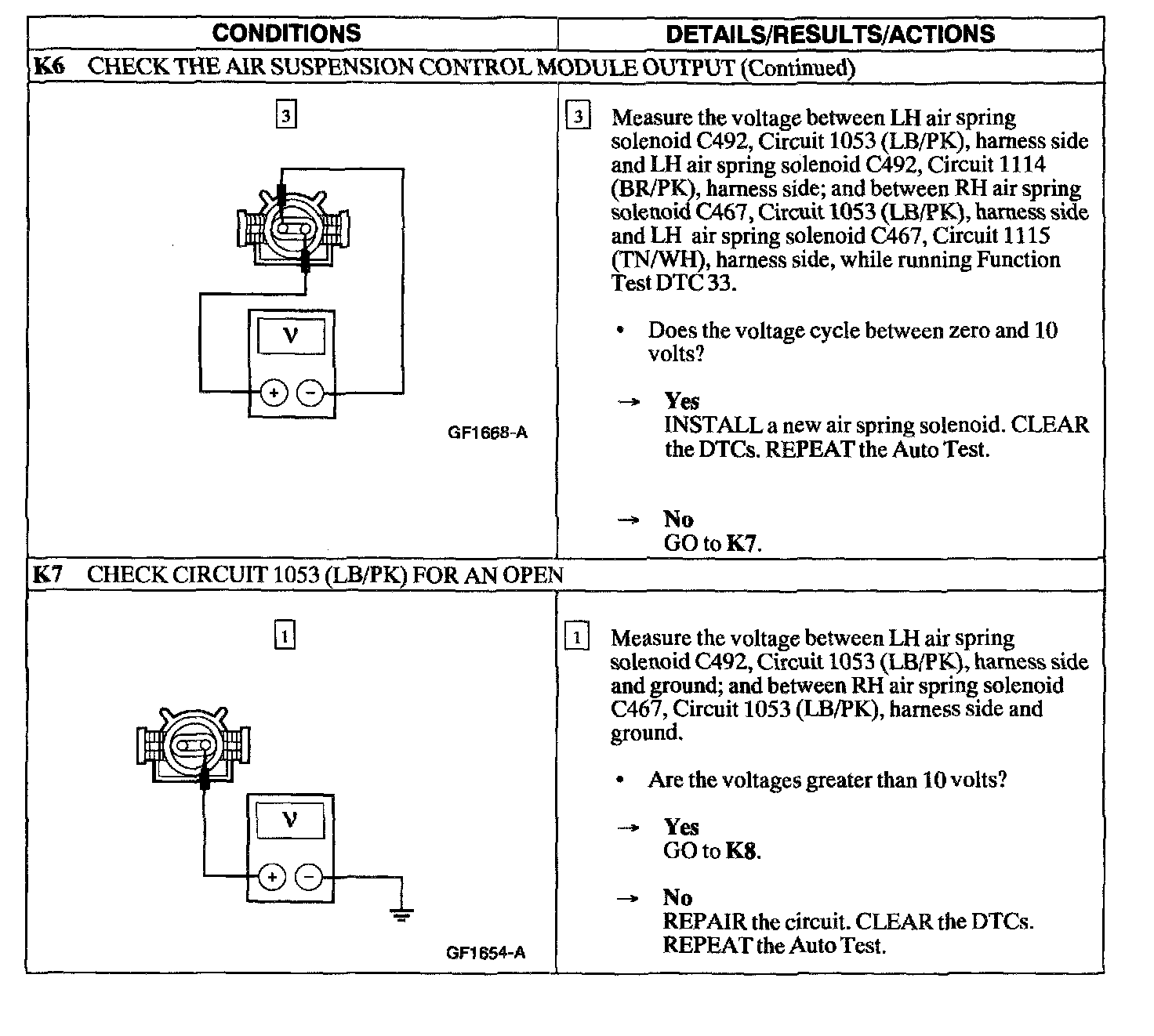

K4 - K6





K6 - K7

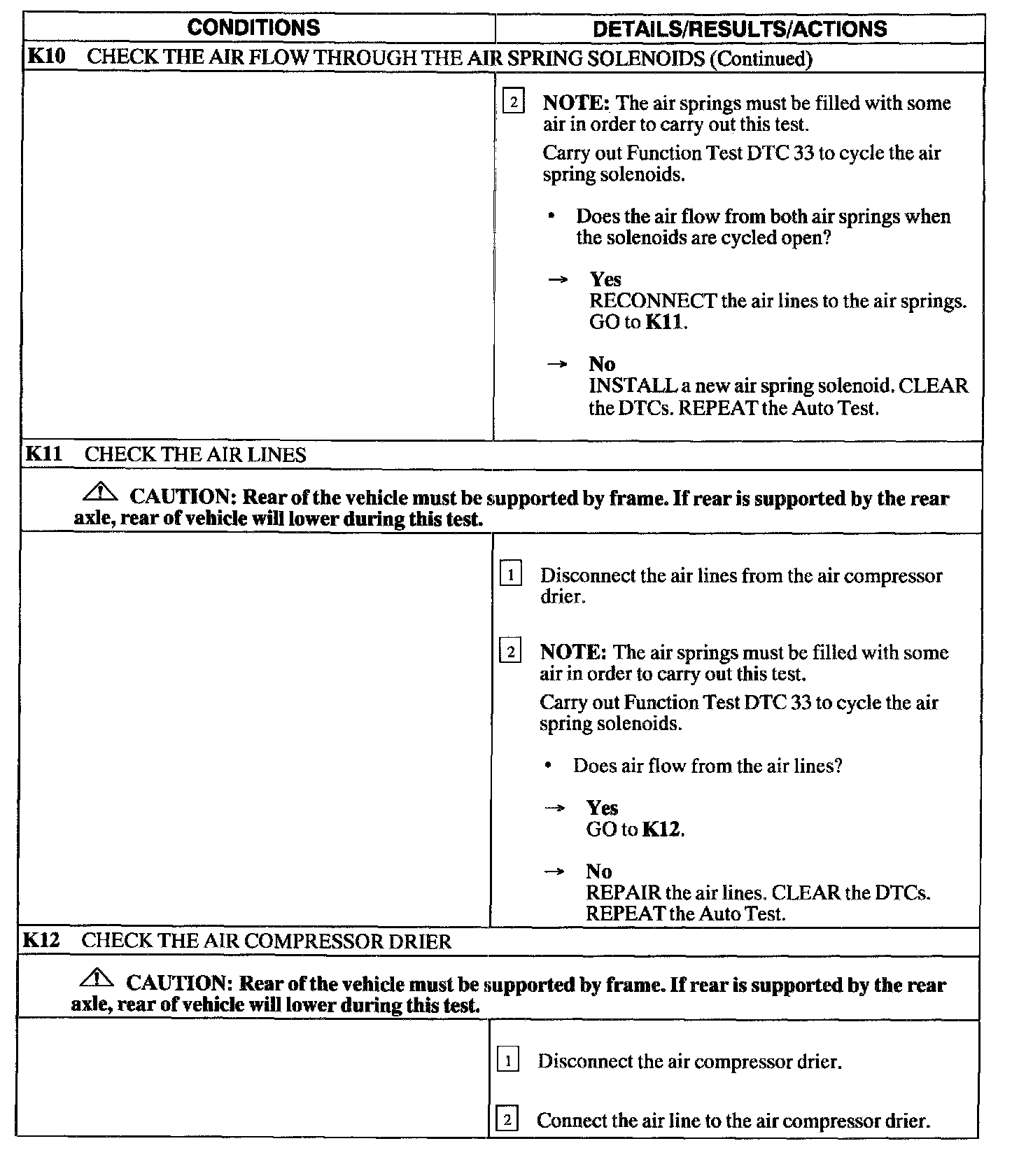

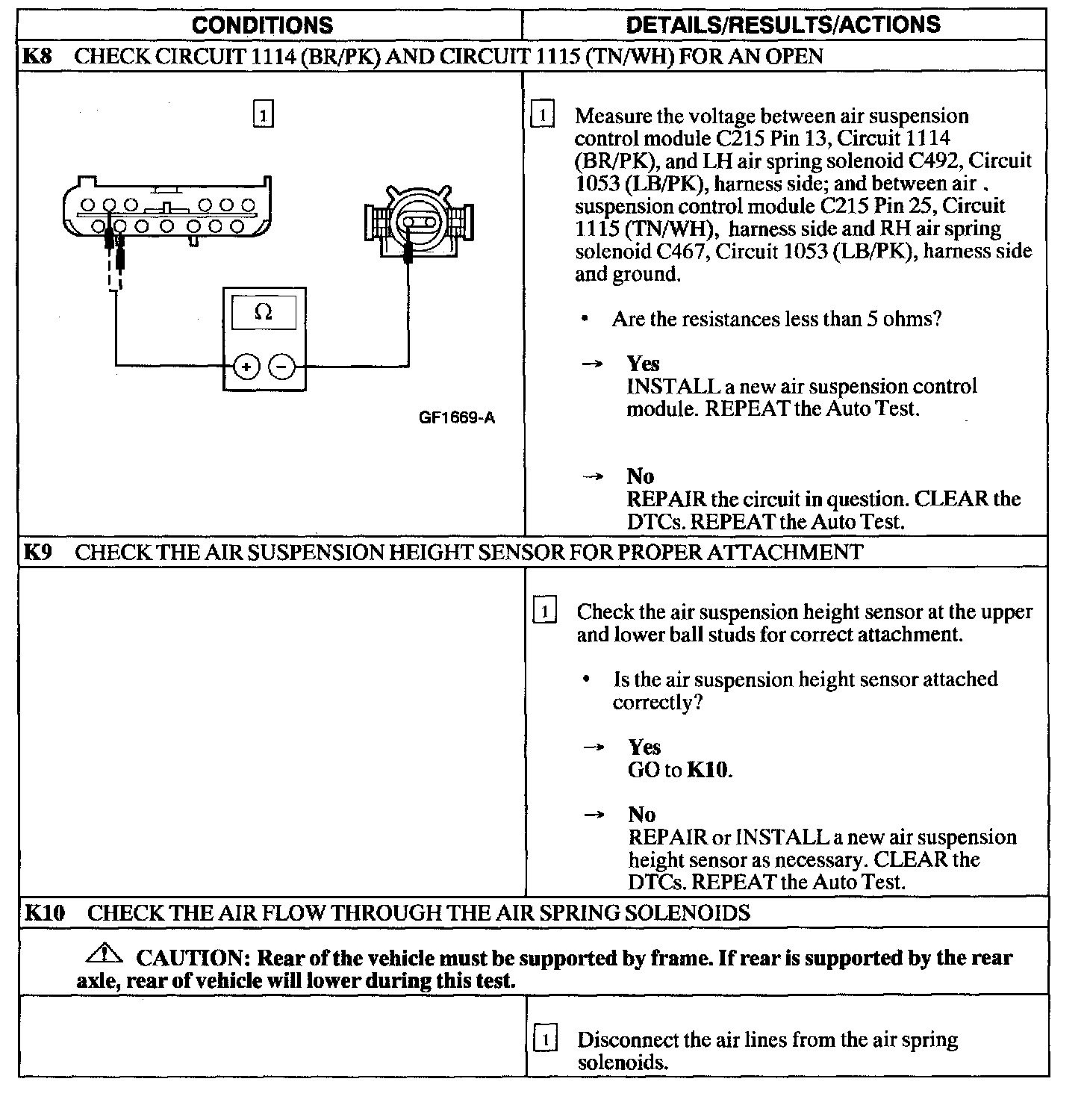

K8 - K10





K10 - K12





K12
