Compressor/Pump: Service and Repair

Air Compressor

Removal and Installation

WARNING: Do not remove an air spring under any circumstances when there is pressure in the air spring. Do not remove any components supporting an air spring without either exhausting the air or providing support for the air spring to prevent vehicle damage or personal injury.

WARNING: Disconnecting an air line that is connected to the air compressor can cause personal injury or damage to components as high pressure air is vented uncontrolled.

WARNING: Before performing maintenance on any air suspension components, disconnect the power to the system by turning off the air suspension switch located on the LH side of the luggage compartment to prevent vehicle damage or personal injury.

1. Turn the air suspension switch off.
2. Disconnect the battery ground cable.
3. Remove the engine Air Cleaner (ACL).





4. Remove the air compressor drier cover.

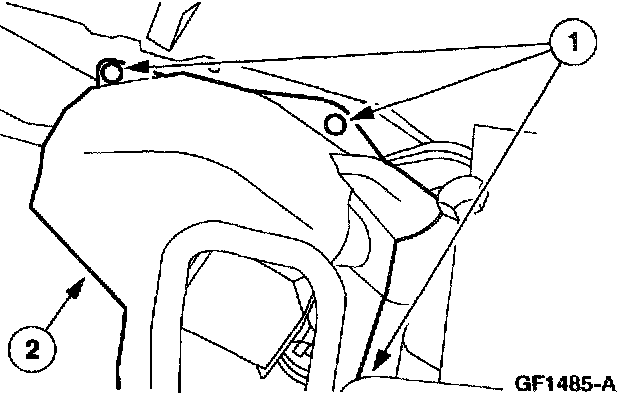

1 Remove the pushpins.
2 Remove the air compressor drier cover.

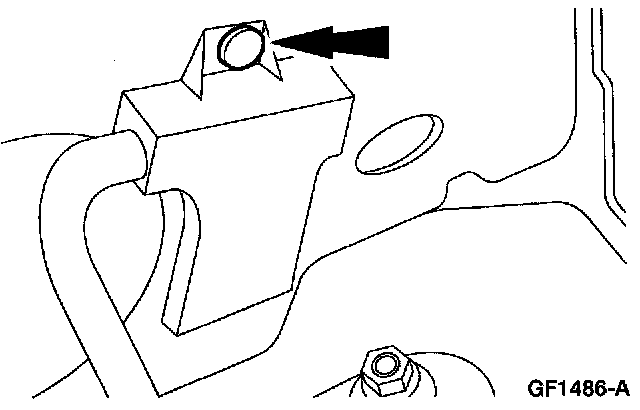

5. Remove the snorkel pushpin and remove the snorkel.





6. Disconnect the air compressor.
1 Compress the quick connect locking ring and pull out the air line.
2 Disconnect the wiring.
7. Raise the vehicle.

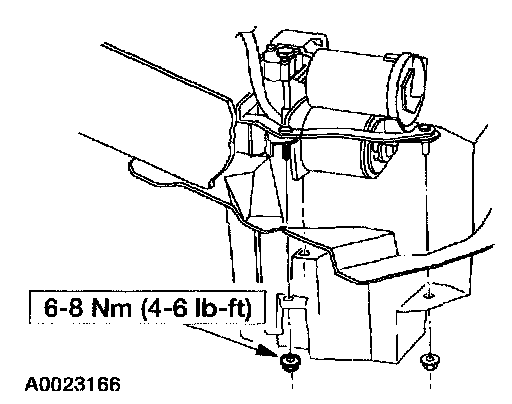

8. Remove the nuts.
9. Lower the vehicle.
10. Remove the air compressor.

11. NOTE: To correctly re-install the air lines into the compressor drier, a minimum of 3mm (1/8 inch) of visible white air line must be inserted into the fitting.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

NOTE: After installing the air compressor, it is necessary to inflate the air suspension system.

To install, reverse the removal procedure.
