Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> Test M: DTC 74 - Steering Rotation Not Detected

Test M: DTC 74 - Steering Rotation Not Detected

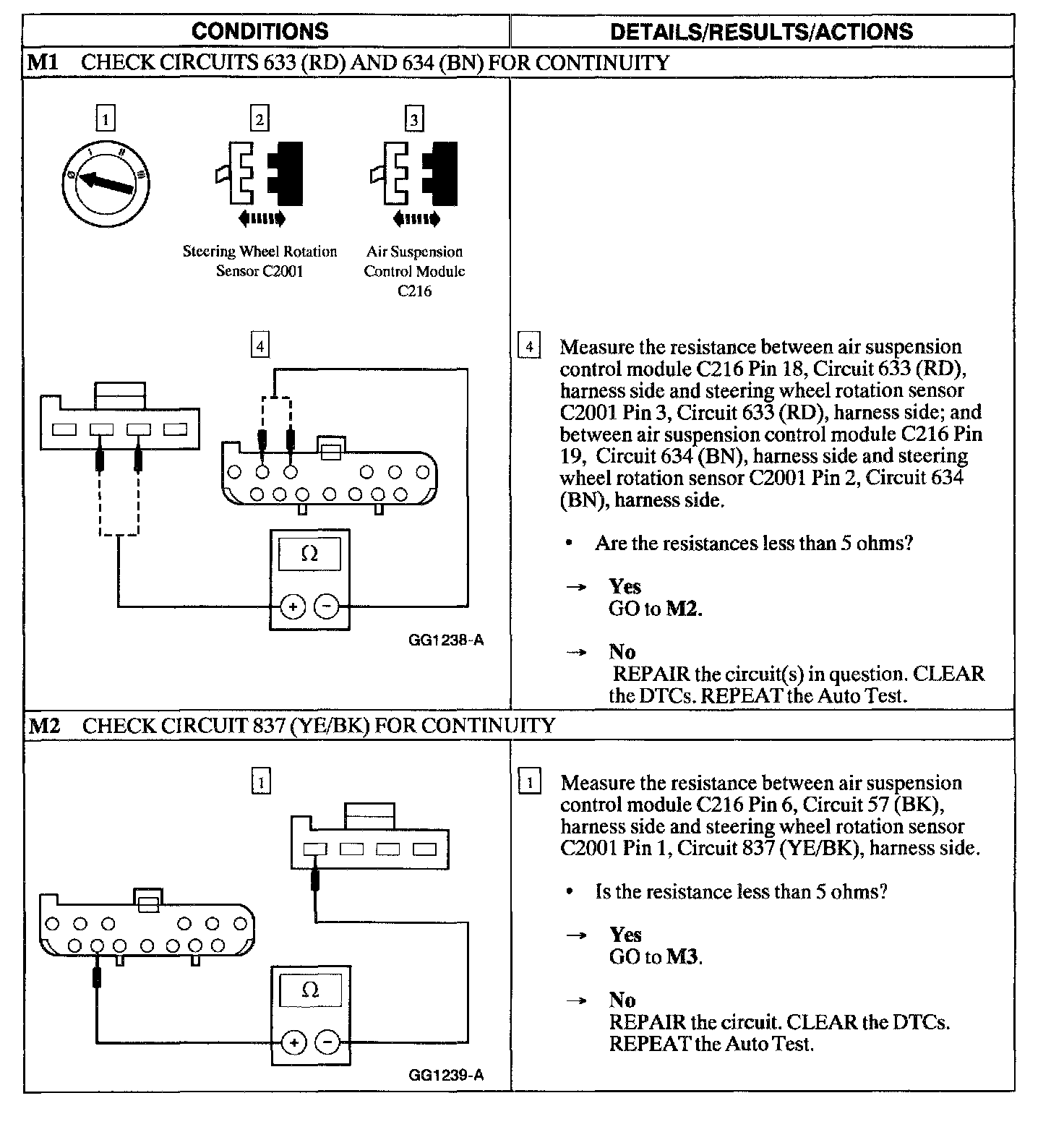

M1 - M2

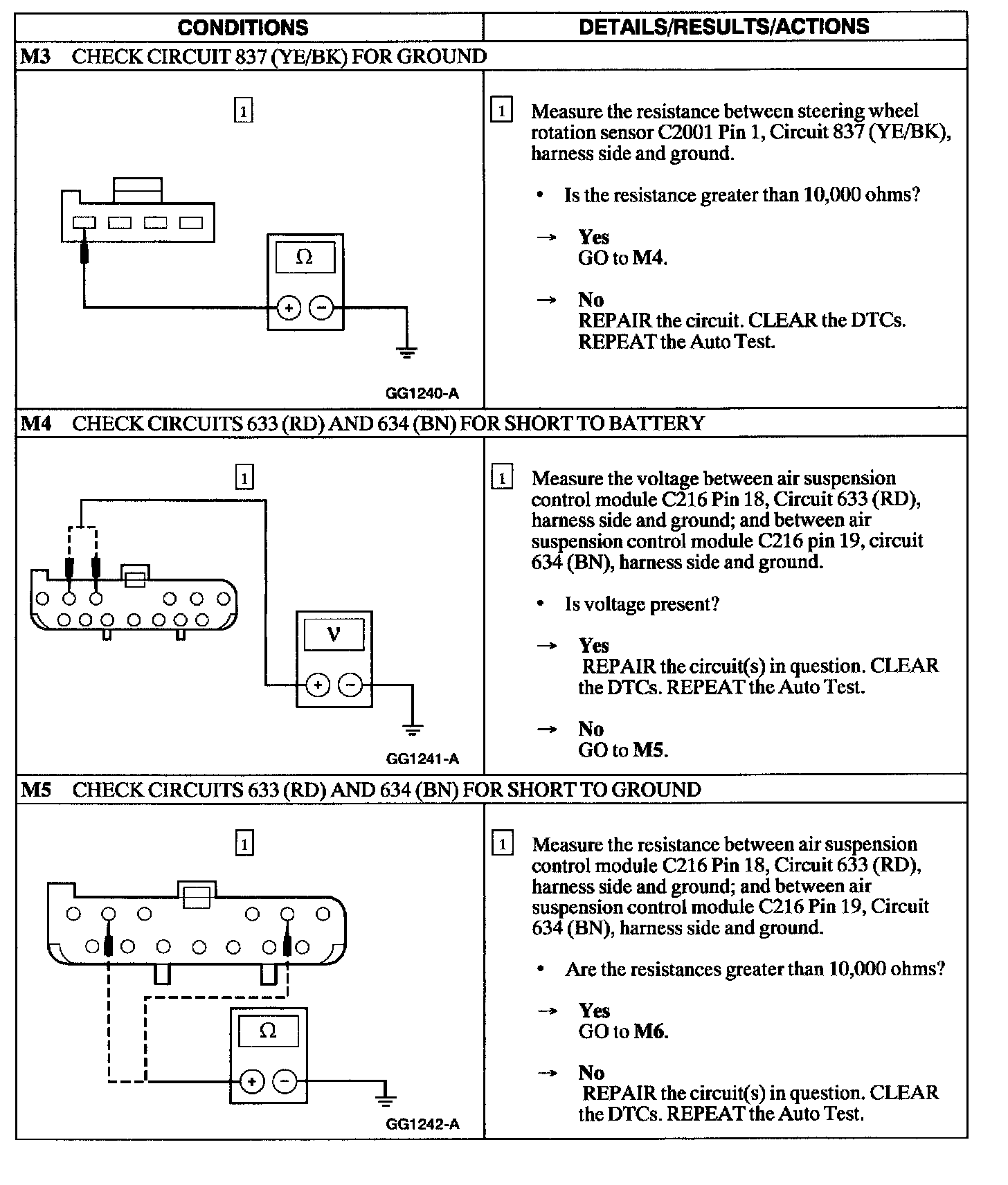

M3 - M5

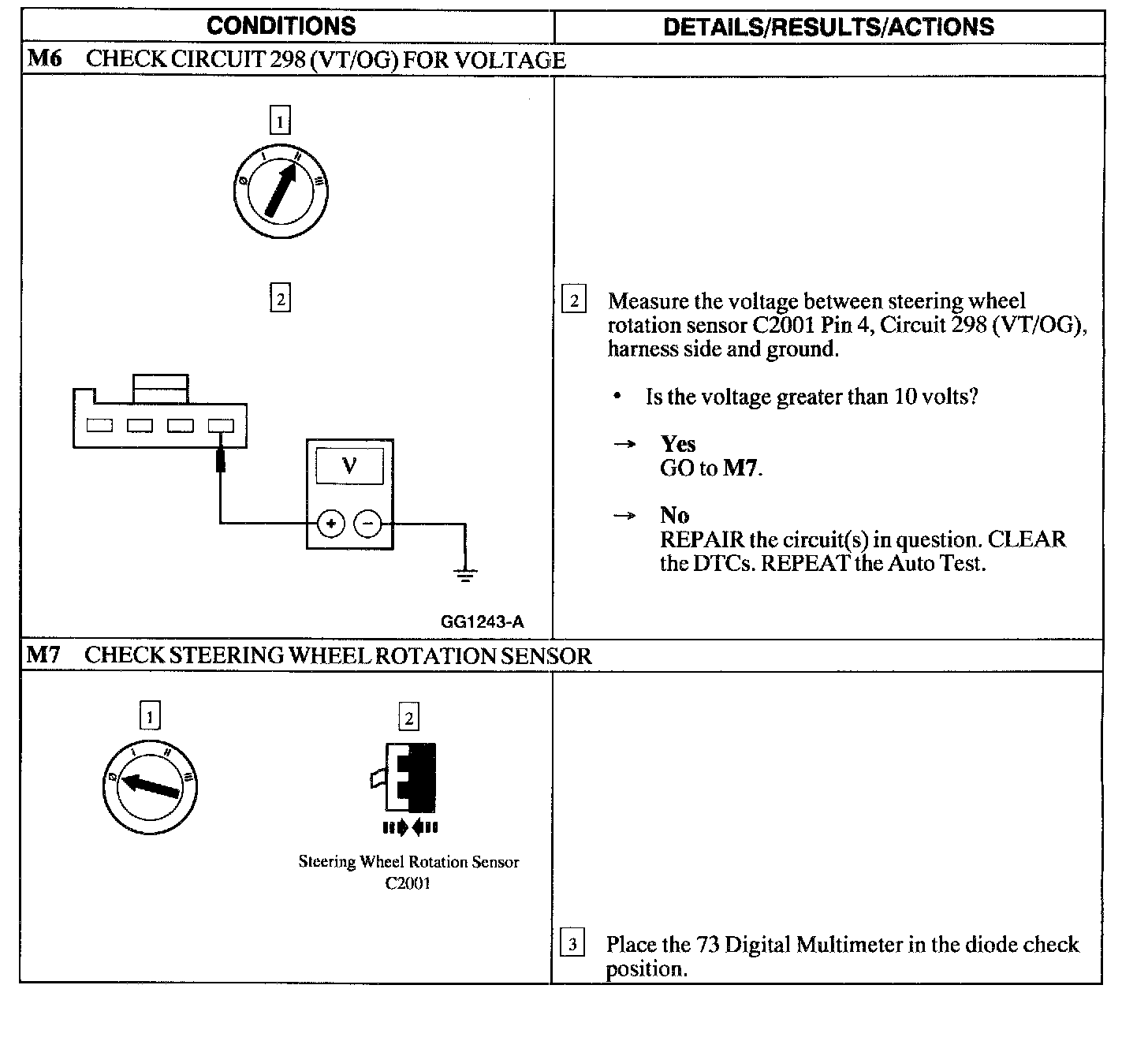

M6 - M7

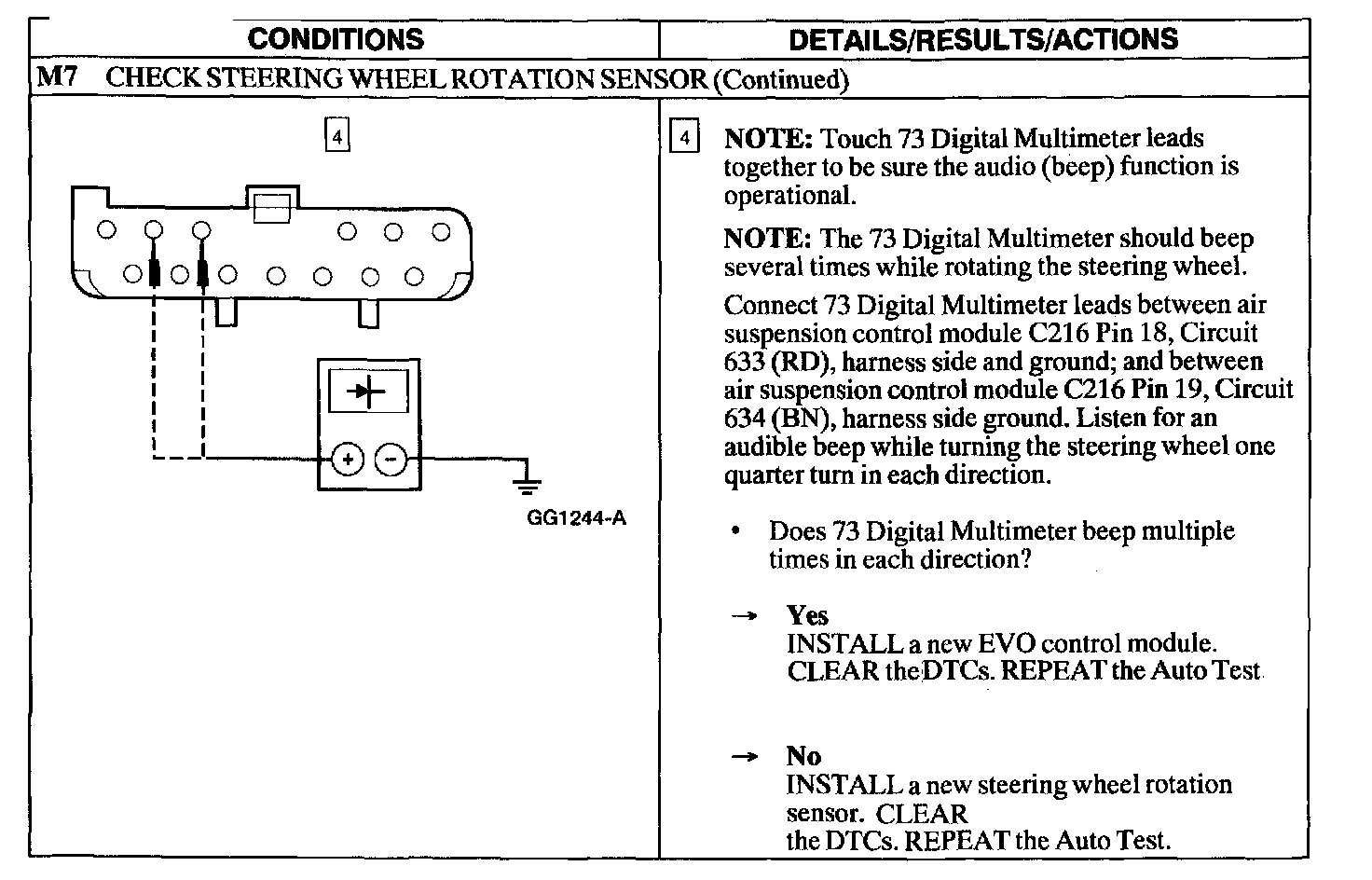

M7
