Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test E: Multifunction Sw Does Not Operate Correctly

Test E: Multifunction Sw Does Not Operate Correctly

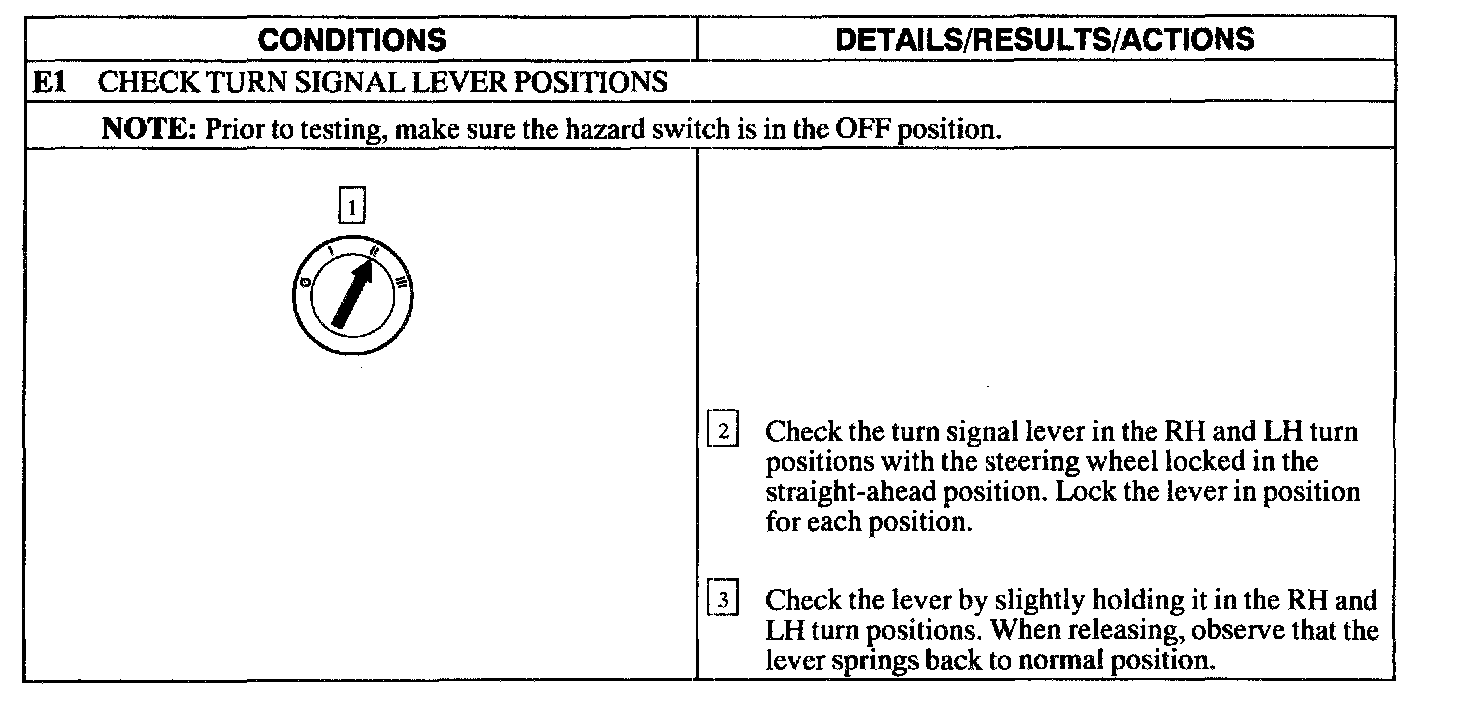

E1

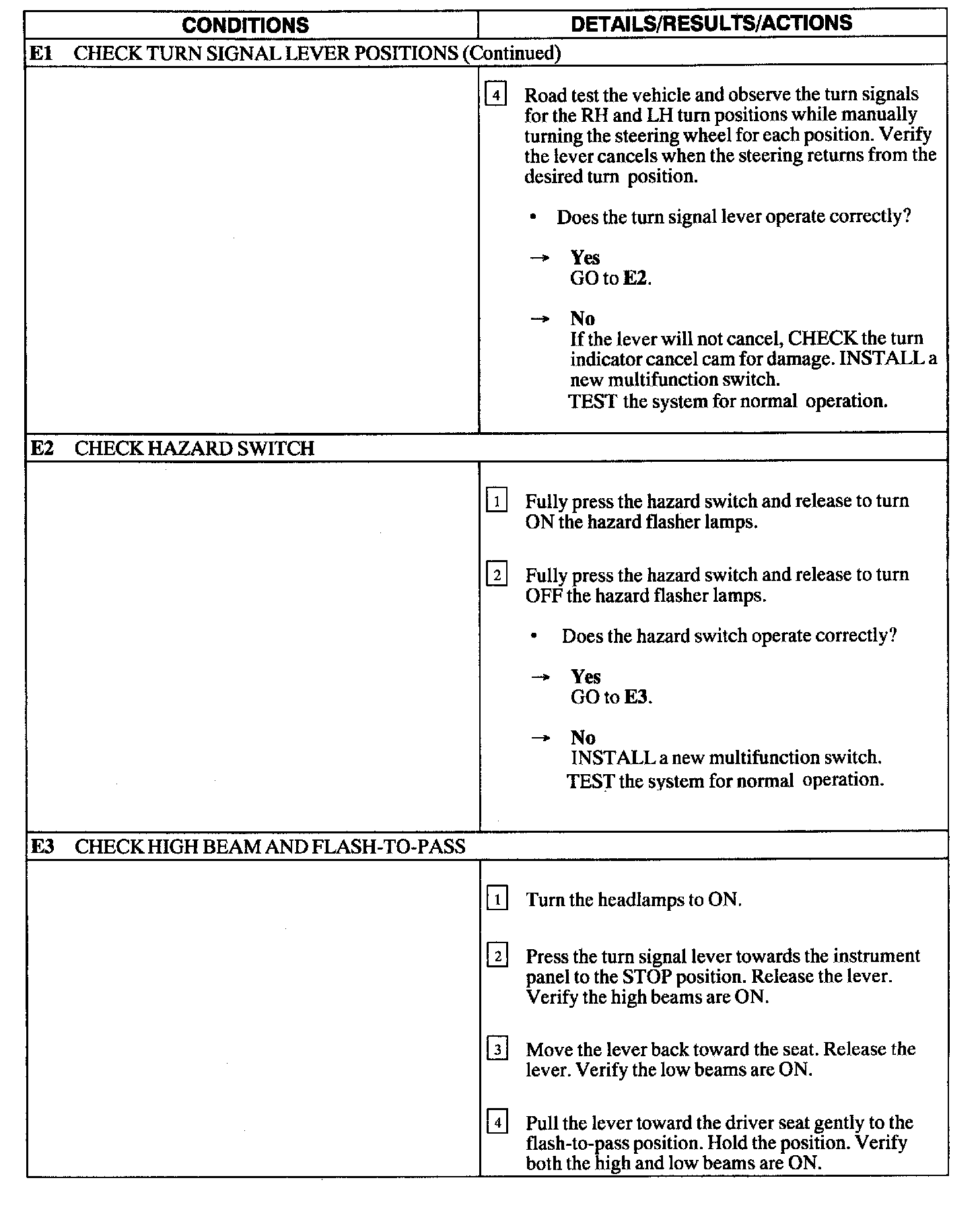

E1 - E3

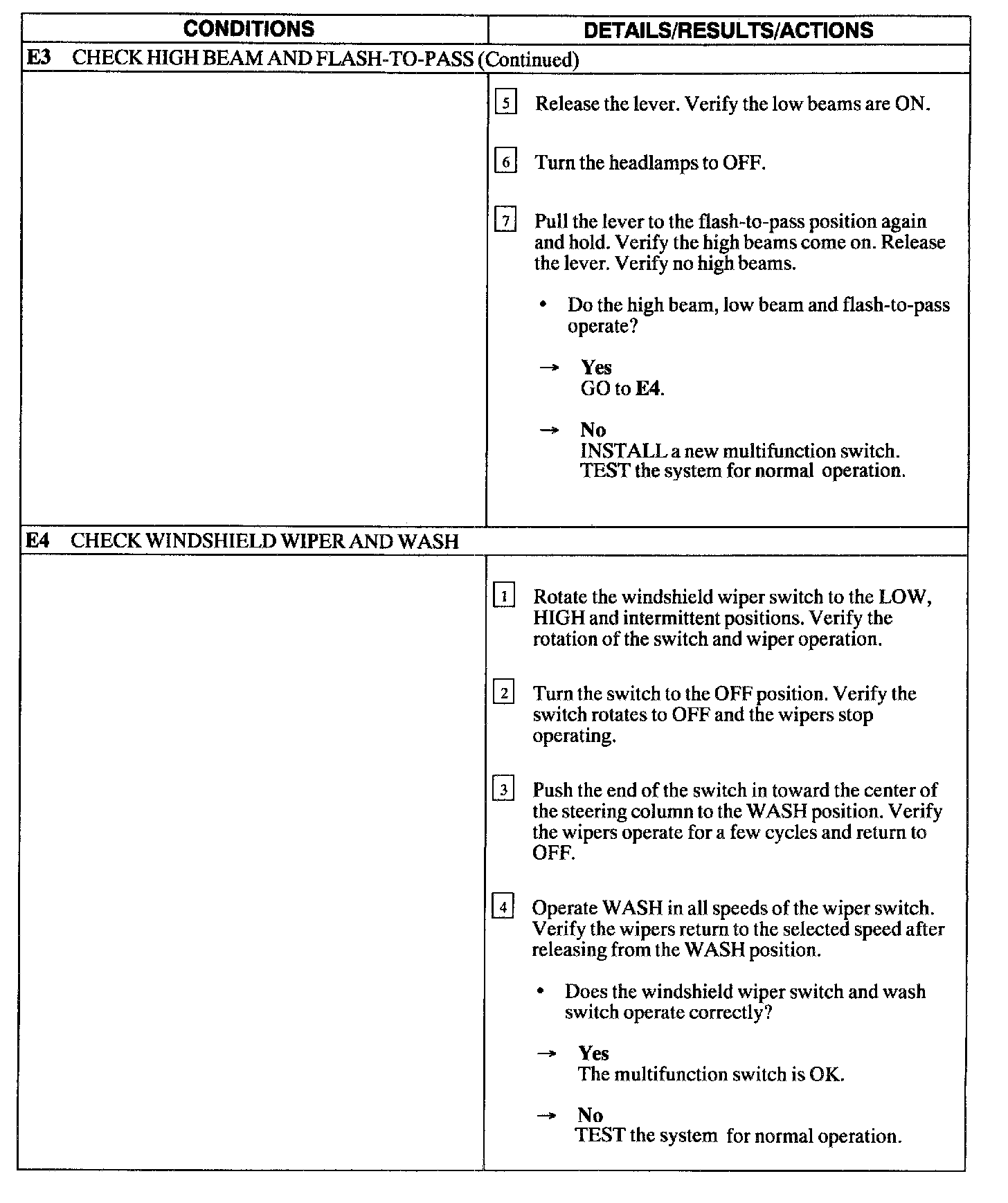

E3 - E4
