Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test A: Ignition Switch Is Inoperative

Test A: Ignition Switch Is Inoperative

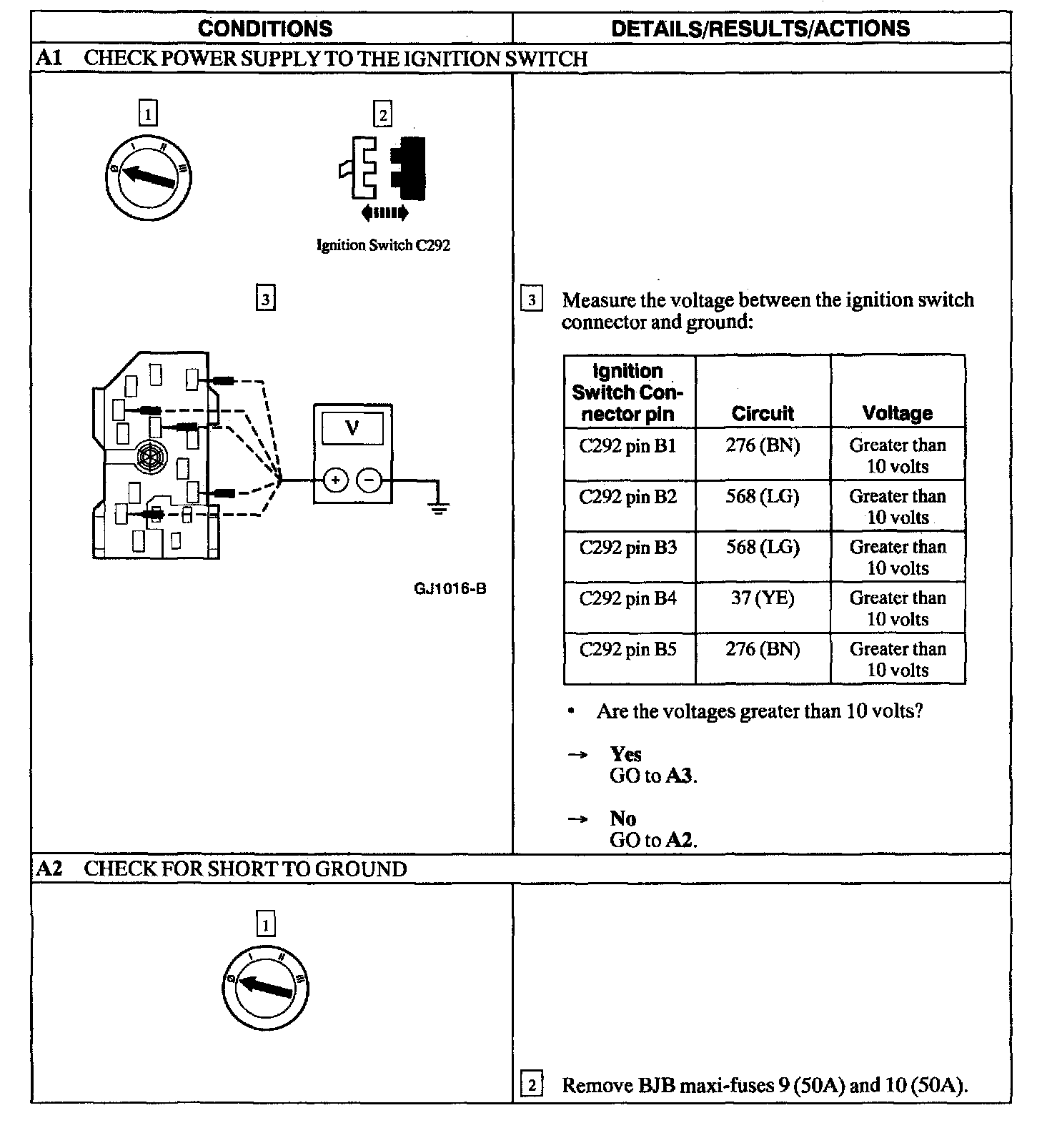

A1 - A2





A2 - A3

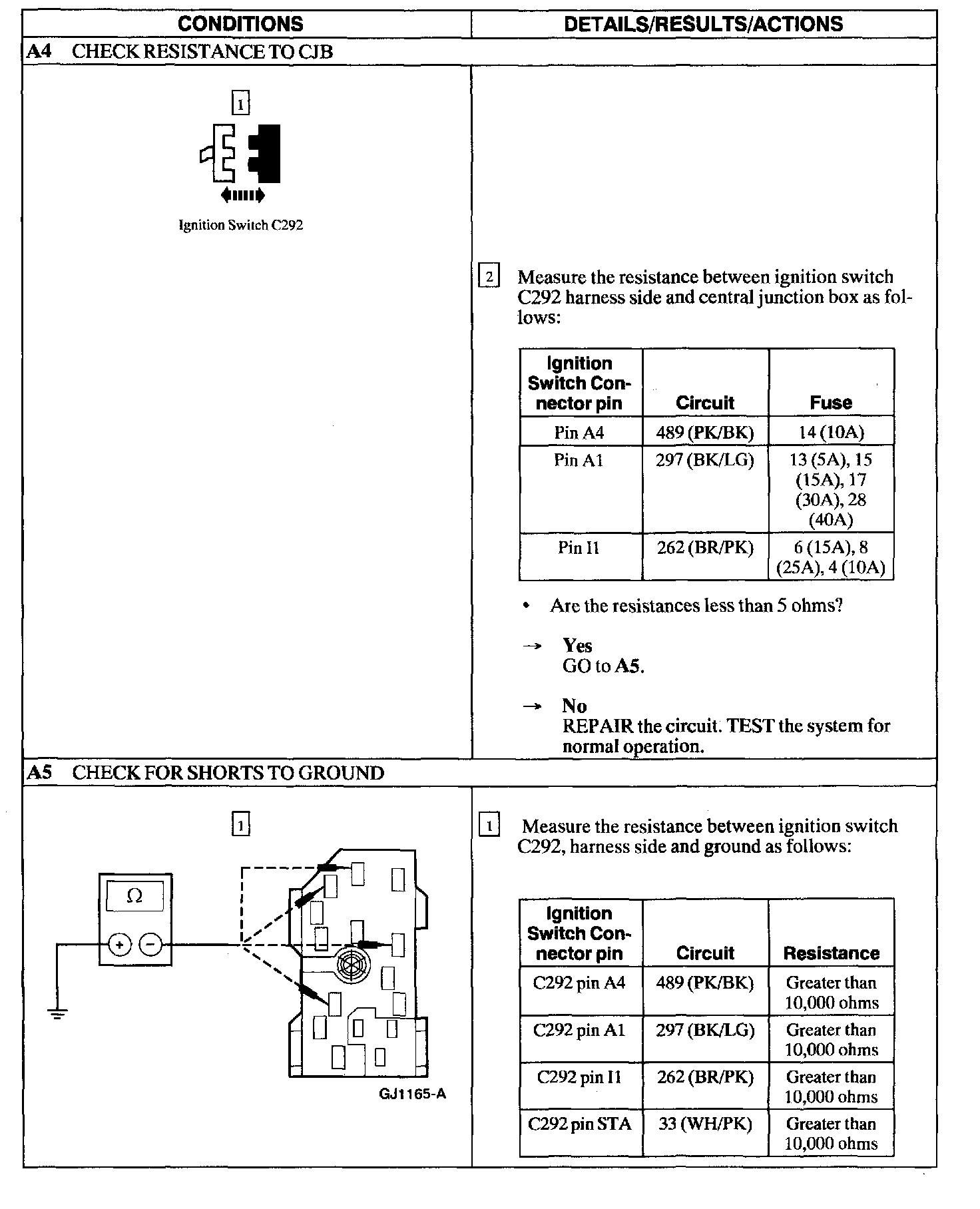

A4 - A5





A5
