Ignition Switch

Removal
1. Disconnect the battery ground cable.

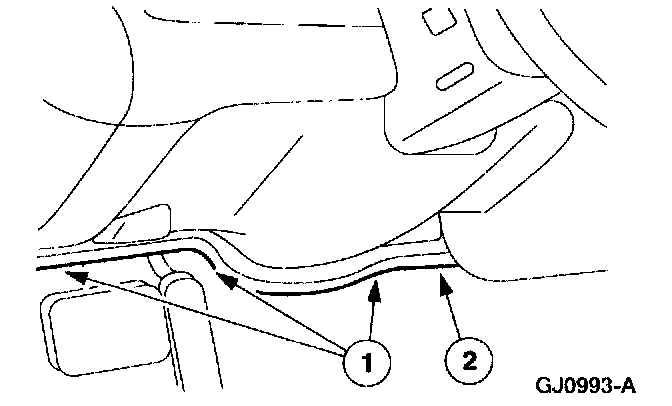

2. Position the LH instrument panel insulator aside.
1 Remove the pin-type retainers.
2 Position the insulator.

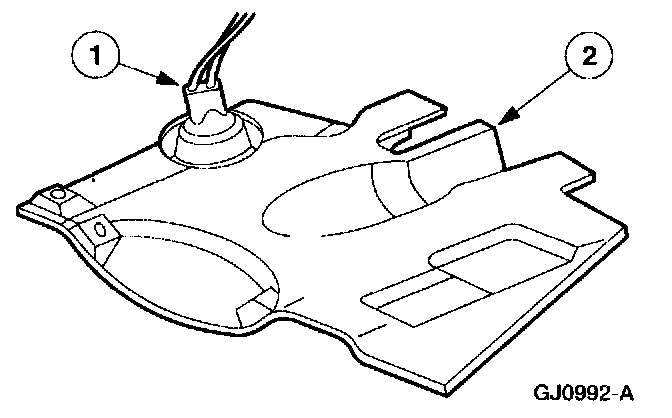

3. Remove the LH instrument panel insulator.
1 Disconnect the courtesy lamp.
2 Remove the insulator.

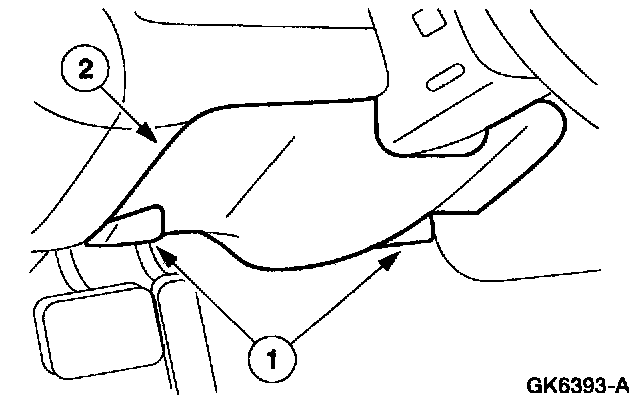

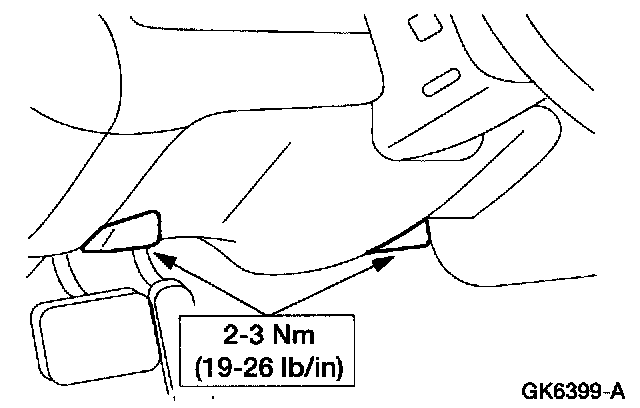

4. Remove the lower instrument panel steering column opening cover.
1 Remove the screws.
2 Remove the cover.

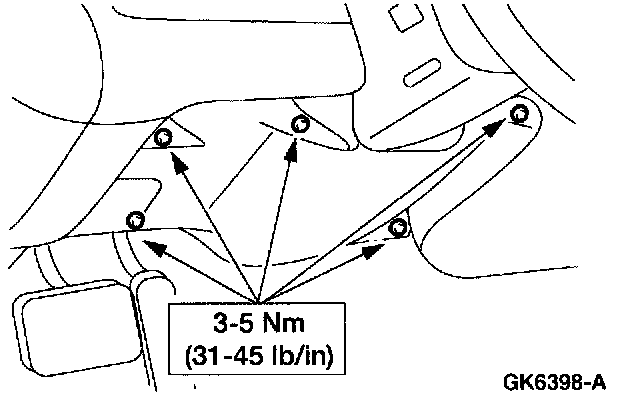

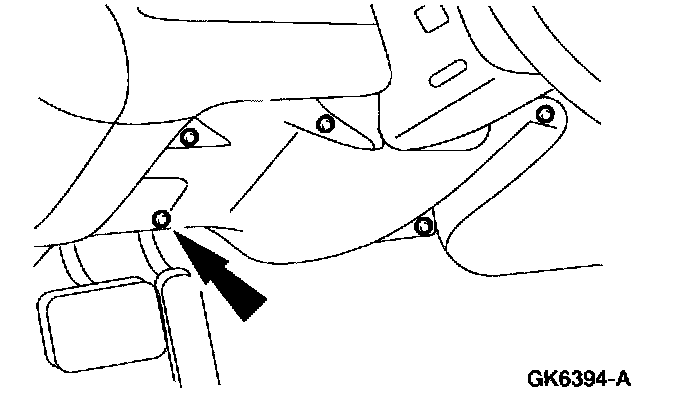

5. Remove the five bolts to remove the instrument panel steering column opening cover reinforcement.





6. Disconnect the ignition switch electrical connector.
1 Loosen the bolt.
2 Disconnect the electrical connector.

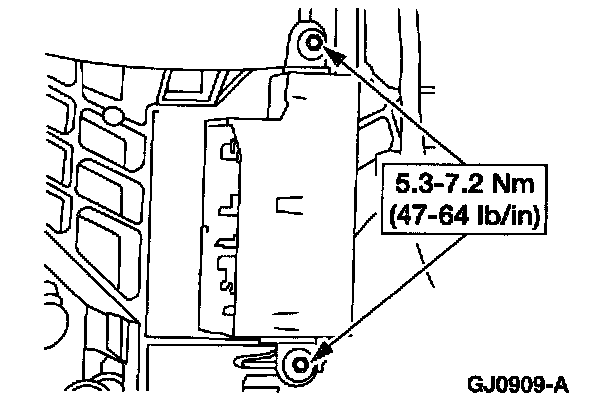

7. NOTE: The ignition key should be in the OFF position.

Remove the ignition switch.
1 Remove the bolts.
2 Remove the switch.

Installation

Part 3 Of 4:

Part 4 Of 4:

1. To install, reverse the removal procedure.
