Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Pinpoint Tests >> Test F: Charging Indicator Flickers Or Is Intermittent

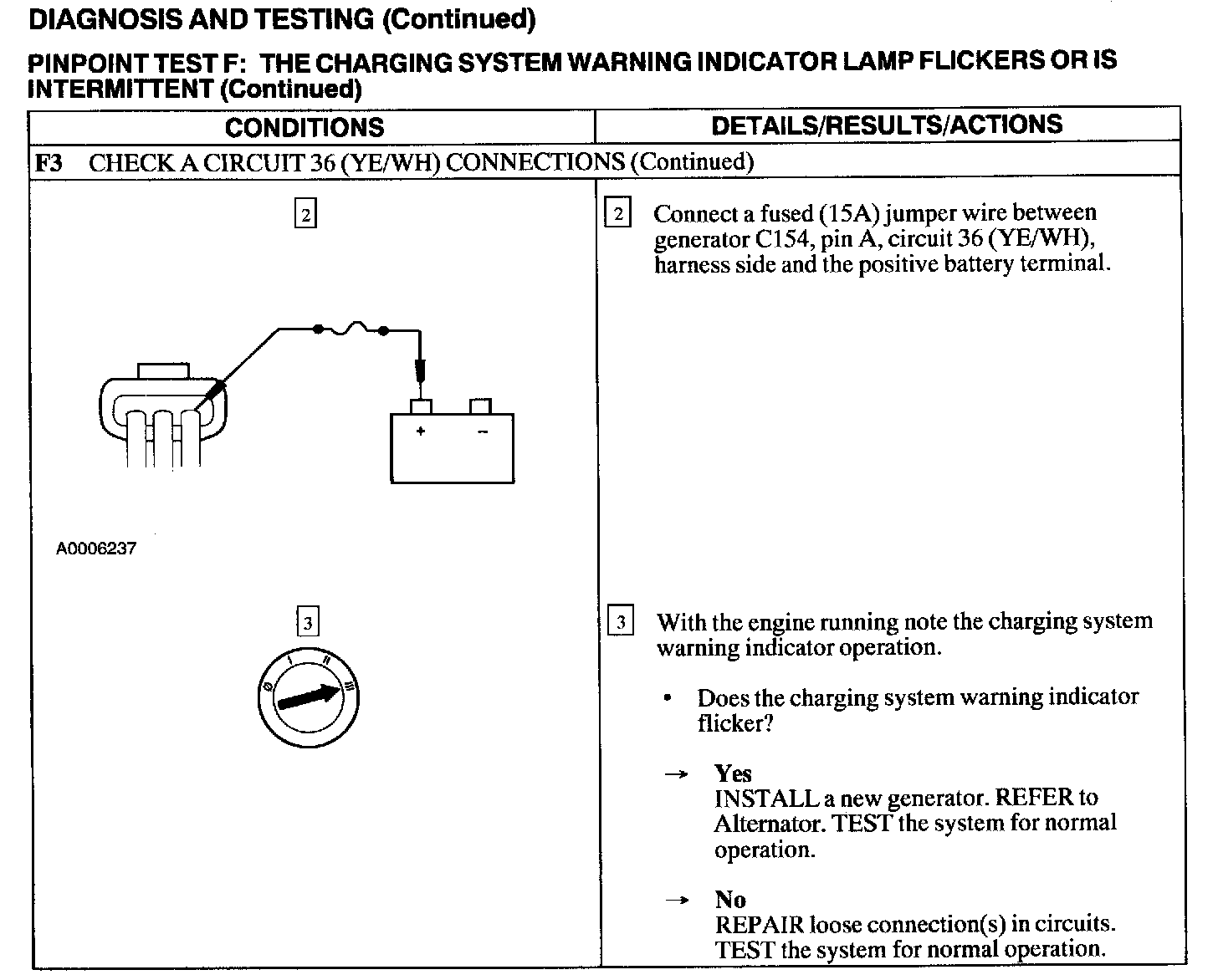

Test F: Charging Indicator Flickers Or Is Intermittent

F1 - F3:



F3:
