Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications >> Automatic Transmission >> Band and Clutch Application Chart

Band and Clutch Application Chart

Band and Clutch Application Chart

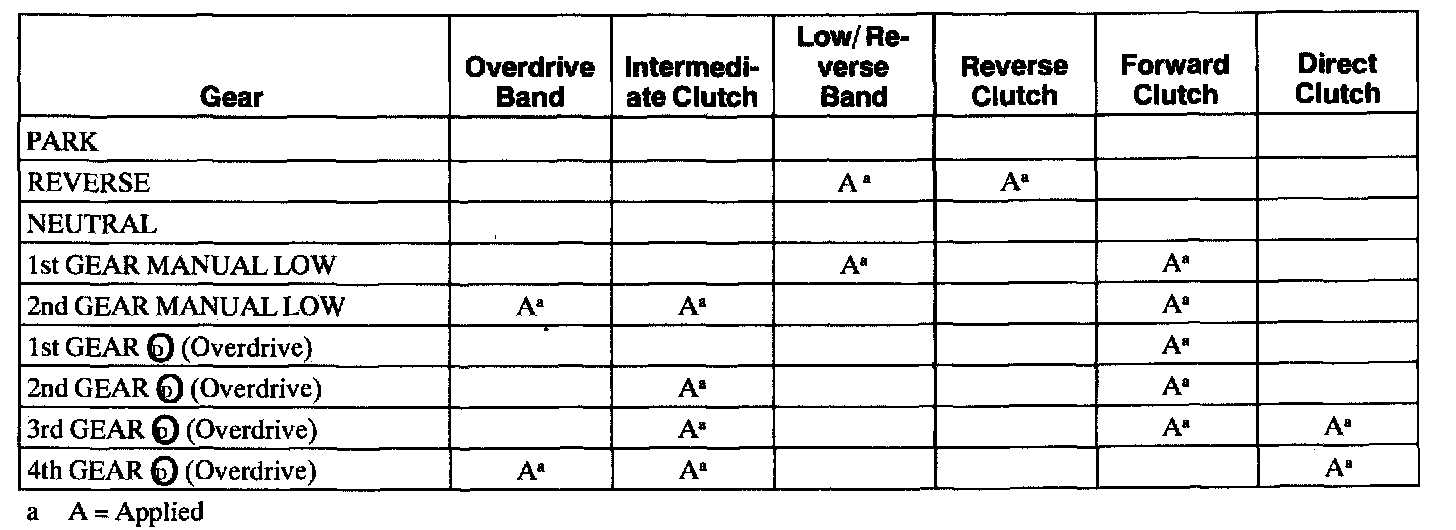

Part 1 of 3

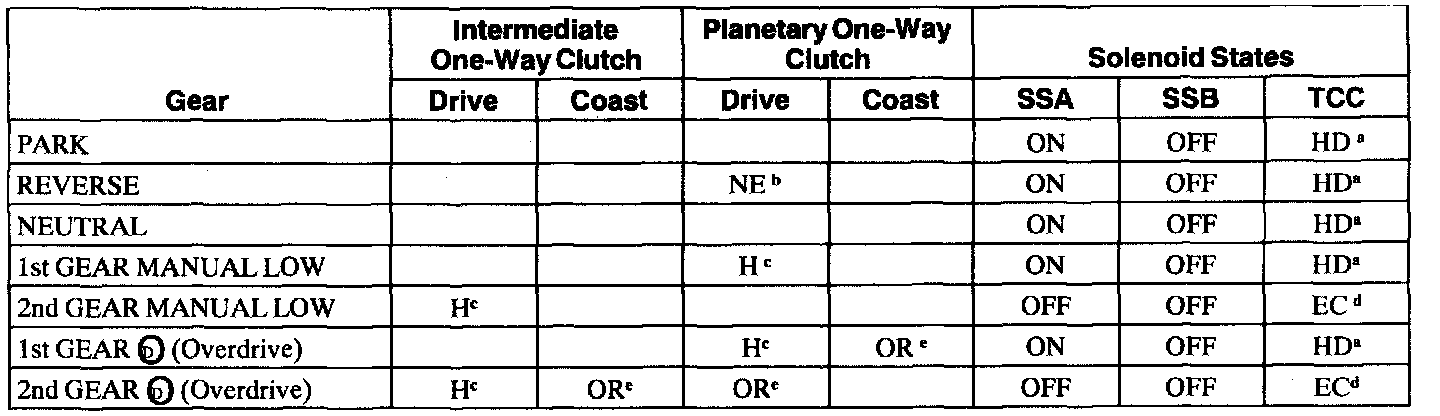

Part 2 of 3

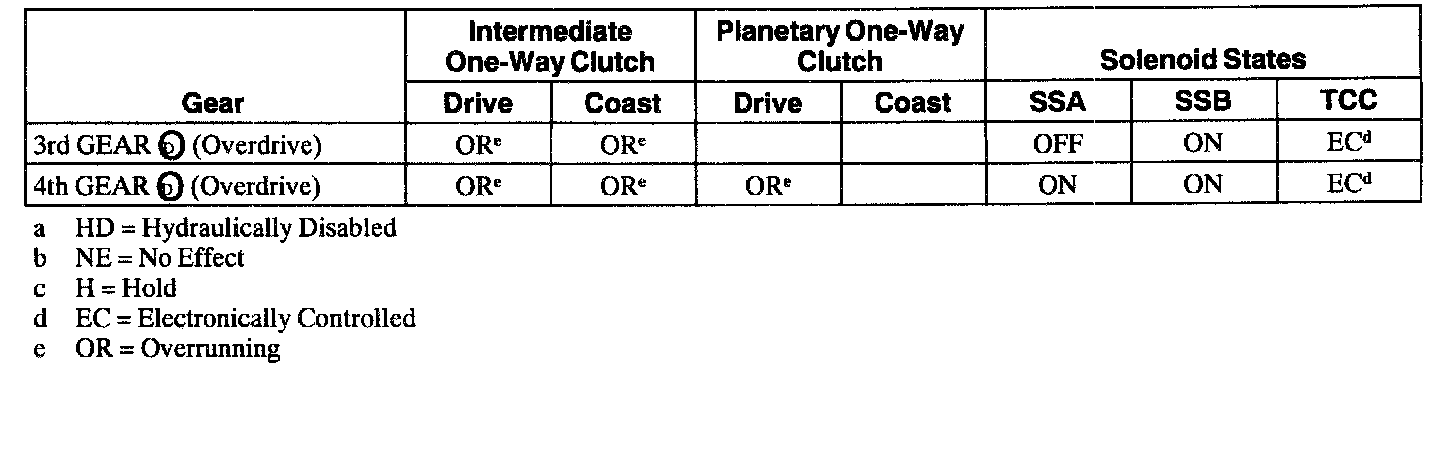

Part 3 of 3
