Home >> Mercury >> 2001 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Instrument Panel, Gauges and Warning Indicators >> System Specifications >> Speedometer Drive/Driven Gear Usage

Speedometer Drive/Driven Gear Usage

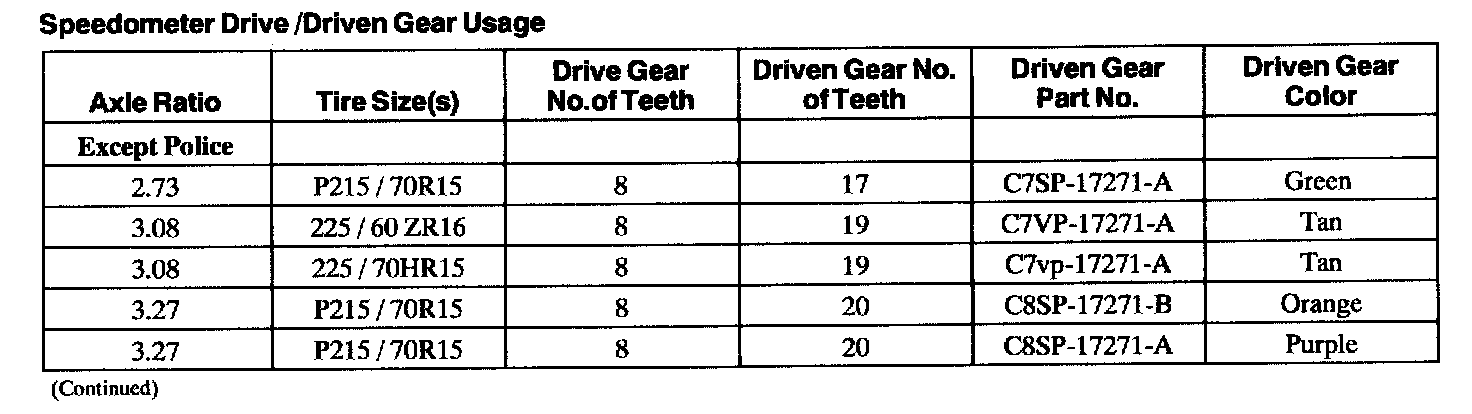

Speedometer Drive/Driven Gear Usage, Part 1:

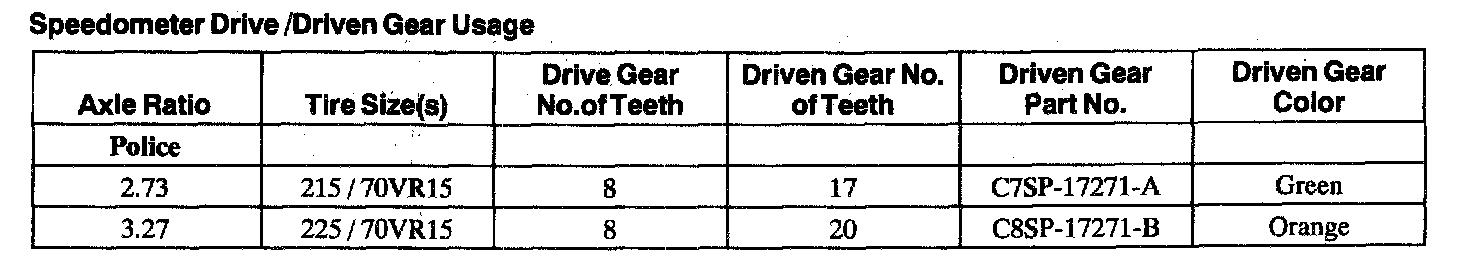

Speedometer Drive/Driven Gear Usage, Part 2:
